Genome-wide analysis of basic helix-loop-helix transcription factors in papaya (Carica papaya L.)

Identification of CpbHLH genes, gene structure and physicochemical analysis

Papaya (Carica papaya L.) bHLH protein sequences were downloaded from the Plant TFDB V4.0 database (Jin et al., 2017). Furthermore, we used the SMART online software (http://smart.embl-heidelberg.de/) and the InterProScan tool (http://www.ebi.ac.uk/Tools/pfa/iprscan/) to identify integrated bHLH domains in putative papaya bHLH proteins. The physicochemical properties of CpbHLH proteins were predicted by ProPAS (Wu & Zhu, 2012). The genomic sequences, ID numbers and coding sequences (CDS) corresponding to each predicted CpbHLH gene were obtained from the Phytozome database (https://phytozome.jgi.doe.gov/pz/portal.html). The intron numbers, exon–intron organizations and locations of the CpbHLH genes were analyzed by Gene Structure Display Server (GSDS) v2.0 (Hu et al., 2015).

Phylogenetic tree building, motif identification and multiple sequence alignment

To research the phylogenetic relationship of CpbHLH proteins, protein sequences of papaya were pre-aligned using HMM align (Eddy, 1998) and the pHMM HLH ls.hmm from PFAM (https://pfam.xfam.org/family/PF00010) to identify the domains of bHLH TFs. Based on the manually aligned bHLH region of 158 bHLH proteins from Arabidopsis and 173 from rice (Pires & Dolan, 2010), the identified bHLH domains were later aligned using MAFFT v7.305b (Kaotoh, Kuma & Miyata, 2002) with default settings. Phylogenetic tree was constructed based on the neighbor-joining method using FastTree v2.1.11 (Price, Dehal & Arkin, 2009) with default settings. Bootstrapping with 1000 replicates was used to assess the statistical reliability of nodes in the tree. Multiple sequence alignment based on protein sequences of these 73 CpbHLH TFs was generated by MAFFT v7.305b (Kaotoh, Kuma & Miyata, 2002) with default settings.

To identify the conserved motifs among the CpbHLH proteins, we uploaded the 73 amino acid sequences of the CpbHLH family to the Multiple EM for Motif Elicitation (MEME, version 5.1.1) (http://meme-suite.org/tools/meme). The parameter settings were as follows: zero or one, occurrence of a single motif per sequence; 3, maximum number of motifs found. All other parameters were set to the default values.

Promoter cis-acting regulatory element analysis and gene ontology (GO) annotation

To predict and compare the putative promoter cis-elements of bHLHs in papaya and Arabidopsis, the upstream 2,000 bp genomic DNA sequences of 73 CpbHLH genes in papaya, and 47 AtbHLH genes in Arabidopsis (the putative orthologous genes corresponding to CpbHLHs) were downloaded and then submitted to the PlantCARE (Magali et al., 2002). The GO annotations of papaya bHLH proteins were downloaded from AgriGOv2.0 (http://systemsbiology.cau.edu.cn/agriGOv2/download/508_slimGO). For GO enrichment analysis, the full-length protein sequences of papaya bHLH were blasted against Arabidopsis proteins with default parameters. The best hits were submitted to AgriGOv2.0 for GO enrichment analysis (Tian et al., 2017). Fisher’s exact test was used to evaluate enriched GO terms. GO terms include three aspects: biological process, cellular component and molecular function.

Plant materials, growth conditions and stress treatments

In this experiment, stems with axillary buds were selected as explants from two-year-old ‘Yi Chi Gua’ papaya trees grown under standard field conditions in the Institute of Fruit Tree Research, Guangdong Academy of Agriculture Science, Guangzhou, China, and cultured in vitro to obtain the complete papaya seedlings with normal leaves and roots using tissue culture techniques. Healthy and uniform papaya seedlings were used for different treatments. For the selection of stress conditions for papaya, we designed different gradients of stress conditions for pre-experiments: the concentration gradients of salt stress are 100 mM Nacl, 200 mM Nacl, and 300 mM Nacl; the concentration gradients of PEG6000 (to mimic drought stress) are 15% PEG6000, 20% PEG6000, 25% PEG6000 and 30% PEG6000; the concentration gradients of ABA are 50 µM ABA, 100 µM ABA and 150 µM ABA; the temperature gradients are 0 °C, 4 °C and 10 °C, and finally determined the suitable stress conditions used in this manucript. For salt, drought and ABA stresses, seedlings were treated with MS liquid medium containing 200 mM Nacl, 25% PEG6000 and 100 µM ABA for 2 h respectively, and then the roots were collected. For cold treatment, seedlings were subjected to 4 °C for 2 h and the leaves were collected. All of the collected materials were immediately frozen in liquid nitrogen and stored at −80 °C for RNA isolation. Untreated seedlings were used as the control groups. Three biological replications were carried out for each treatment.

RNA extraction and quantitative real-time PCR (qRT-PCR) analysis

Total RNA from papaya after different treatments was isolated using TRIzol reagent (Invitrogen). The extracted RNA was treatment with DNase (TaKaRa), and then reverse transcribed into cDNA using the PrimeScriptTM RT Reagent Kit (TaKaRa). The qRT-PCR was conducted on the ABI StepOne Real Time PCR system using 2X SG Fast qPCR Master Mix (High Rox) (TaKaRa) according to the manufacturer’s instructions. TATA binding protein 2 (CpTBP2) amplification was used as an internal control (Zhu et al., 2012). The qRT-PCR reactions used three biological replicates, and each biological repeat had three technical replicates. Gene-specific primers for qRT-PCR of the 22 CpbHLH genes were designed based on the CDSs of the CpbHLH genes using Primer Premier 5.0 (Data S1). The relative expression levels of each gene were calculated using the 2^−ΔΔCT method, the raw data was showed in File S1.

Identification and characterization of CpbHLHs

A total of 105 putative bHLH transcription factors of papaya (C. papaya) were downloaded from the PlantTFDBv2.0 (http://planttfdb.cbi.pku.edu.cn/). To verify the reliability of these results, the 105 Cp bHLH proteins sequences were filtered by Interproscan and SMART domain annotation, and a total of 73 predicted CpbHLH proteins were identified. They were named CpbHLH001 to CpbHLH073 at random except for 32 proteins that were explicitly excluded by Interproscan and SMART (Table S1). The detailed information on these predicted Cp bHLHs, including protein ID, locus ID, opening reading frame (ORF) lengths, amino acid sequences/lengths, molecular weight, isoelectric point and exon/intron numbers, are listed in Data S2. In previous studies, 129/132, 188, 159, 147, 124, 95, 94 and 56 bHLH genes were identified in peanut (Gao et al., 2017), apple (Mao et al., 2017), tomato (Sun, Fan & Ling, 2015), Arabidopsis (Toledo-Ortiz, Huq & Quail, 2003), potato (Wang et al., 2018b), peach (Zhang et al., 2018), grapes (Wang et al., 2018a) and sweet orange (Geng & Liu, 2018), respectively. Compared with the above dicotyledonous plants, the density of bHLHs genes in papaya genome was about 0.26%, which is lower than the density of peanut (Gao et al., 2017), apple (Mao et al., 2017), tomato (Sun, Fan & Ling, 2015), Arabidopsis (Toledo-Ortiz, Huq & Quail, 2003), potato (Wang et al., 2018b) and sweet orange (Geng & Liu, 2018), and similar to peach (Zhang et al., 2018) and wine grapes (Wang et al., 2018a) (Table 1). This is probably associated with the whole-genome duplications during evolution. Among the above plants, some plants with recent whole-gene duplication like peanut, apple, tomato, Arabidopsis, potato and sweet orange while the plants without whole-gene duplication like papaya, peach and wine grapes.

To further characterize the bHLHs in papaya, the physicochemical properties of these putative proteins were analyzed and are shown in Data S2. The size of deduced CpbHLHs ranged from 100 (CpbHLH053) to 679 (CpbHLH068) amino acids, the corresponding molecular weights from 11.525 KDa to 75.899 KDa. The predicted theoretical isoelectric points (PI) values of CpbHLHs were between 4.71(CpbHLH028) and 11.07(CpbHLH003). Similar molecular weights and isoelectric points have been made in potato (Wang et al., 2018b). And all of predicted CpbHLH proteins were hydrophilic characteristic proteins, the grand average of hydropathy values were negative, ranging from −0.2098(CpbHLH033) to −1.0125(CpbHLH006). Similar result has been made in Brachypodium distachyo n (Niu et al., 2017). That is, the predicted CpbHLH proteins showed diversities in their length, molecular weight, PI and the grand average of hydropathy values.

Phylogenetic analysis, gene structure, conserved motifs analysis and multiple sequence alignment of CpbHLHs

To evaluate the evolutionary relationships of the CpbHLH proteins, a neighbor-joining phylogenetic tree was generated using conserved bHLH domains from papaya, Arabidopsis and rice. The phylogenetic tree showed that the 73 CpbHLH members were clustered into 18 subfamilies with one orphan (Fig. 1A and Data S3), consistent with the earlier results showing that the bHLH subfamily in plants can be divided into 15–25 subfamilies (Pires & Dolan, 2010). Previous research have named the bHLH subfamilies using English letters (Li et al., 2006; Mao et al., 2017), Roman numerals (Song et al., 2017; Sun, Fan & Ling, 2015), or Arabic numerals (Chen et al., 2015; Toledo-Ortiz, Huq & Quail, 2003), In this study, we named CpbHLH subfamilies using Roman numerals. As shown in Fig. 1, the subfamily XII was the largest subfamily among all three species, and all of subfamilies include at least two species. In papaya, none of the bHLHs were grouped into IV d, II, X V, X, XI V and XIII subfamilies compared to rice and Arabidopsis, which may be due to these bHLHs were lost during the process of evolution.

Exon/intron organization, as a type of structural divergence, plays an important role in the evolution of multiple gene families (Xu et al., 2012). The annotation features of the CpbHLH genes were submitted to Gene Structure Display Server (GSDS) together to show their gene structures. As described in Data S2 and Fig. 2A, the number of introns varied from zero to ten, representing a complex distribution pattern. Most (63 (86.3%)) of the CpbHLHs were found to possess introns among the 73 CpbHLH genes, while 10 (13.7%) of the genes were intron-less, 8 (11.0%) genes contained one intron, and the remaining genes had two or more introns. In addition, members of the same subfamily also displayed similar intron distribution patterns in view of the full-length genome sequences. For instance, all of the CpbHLHs in subfamily V b had one intron and two exons, the whole members of subfamily III f had six introns and seven exons, the IV a subfamily members showed three introns and four exons, and all members of VIII b subfamily consisted only one exon.

Most importantly, members of the same bHLHs subfamily are usually participated in the same signaling pathway or biological process, and the functions of these members are often partially or totally redundant (Pires & Dolan, 2010). For example, AtbHLH10, AtbHLH89 and AtbHLH91, corresponding rice orthologs OsbHLH141, OsbHLH142 are members of subfamily II, they are all involved in the process of pollen development (Li et al., 2006; Liu et al., 2017; Zhu et al., 2015). Especially in Arabidopsis, there is no obvious phenotype in single mutant of AtbHLH10, AtbHLH89 or AtbHLH91, only their various double or triple mutants showed the phenotype of pollen development deficiency (Liu et al., 2017). In subfamily III b, OsbHLH001 (OsICE2), OsbHLH002 (OsICE1), CpbHLH027, CpbHLH062, AtbHLH116 (ICE1) and AtbHLH33 (ICE2) were clustered within one clade. In previous studies, AtbHLH116(ICE1) and AtbHLH33(ICE2) and corresponding orthologs in rice (Os bHLH001/OsICE2, OsbHLH002/OsICE1) have been reported to function in the stress of chilling (Chinnusamy et al., 2003; Deng et al., 2017; Fursova, Pogorelko & Tarasov, 2009; Li et al., 2010; Zhang et al., 2017). And we also found transcripts of CpbHLH027 and CpbHLH062 were increased under chilling stress in this study, implying that CpbHLH027 and CpbHLH062 are involved in the process of chilling stress in papaya.

To further study the sequence characteristics of the predicted bHLH domains at the amino acid level, we carried out a multiple sequence alignment of the 73 predicted CpbHLH protein sequences (Fig. 3). The result showed that the 73 putative CpbHLH proteins contained two conserved regions in the bHLH domains: the basic region plus helix 1 and the loop region plus helix 2 (Fig. 3 and Table S2). Additionally, we used the online MEME program to identify the conserved motifs (Bailey & Elkan, 1994). The result also showed that most of the sequences (exclude CpbHLH003) exhibited two highly conserved motifs: one is contains 29 amino acids, and the other consists of 21 amino acids, are shown in red and black blocks, respectively (Fig. 2B). Among the two motifs, motif 1 comprises basic residues and helix 1, and motif 2 comprises a loop and helix 2. And the space between motif 1 and 2 consists of a loop, which is variable in length in some bHLH proteins. The sequence logos of motif 1 (in red) and motif 2 (in black) are shown in Fig. 4A. The backbones of motif 1 and 2 are also conserved in most plant species (Guo & Wang, 2017; Heim et al., 2003; Sun, Fan & Ling, 2015), and these highly conserved residues in bHLH domains may be responsible for protein dimerization (Heim et al., 2003).

Besides these two common conserved motifs, some CpbHLHs that are mainly distributed into eight subfamilies (including V a, V b, III f, IV a, III b, III, I b and I a subfamilies) harbor another conserved motif (motif 3) with a length of 36 amino acids. The motif 3 is indicated by the yellow blocks and the sequence logo is visualized as logo3 (Fig. 2B and Fig. 4B). This result is accord with the previous studies that members of a given subfamily exhibited another conserved nonbHLH motif (motif 3) in plant bHLH superfamily (Pires & Dolan, 2010). However, in papaya, members of the bHLH proteins have the same motif that is distributed into eight subfamilies, not just one subfamily. In addition, among the 73 CpbHLHs, one atypical bHLH protein (Cp bHLH003) exhibited incomplete bHLH domains, whereas the remaining 72 CpbHLH proteins all presented complete bHLH domains. Similar observations have been made in other plant species, such as peach and blueberry (Song et al., 2017; Zhang et al., 2018).

Promoter analysis of bHLH genes in papaya

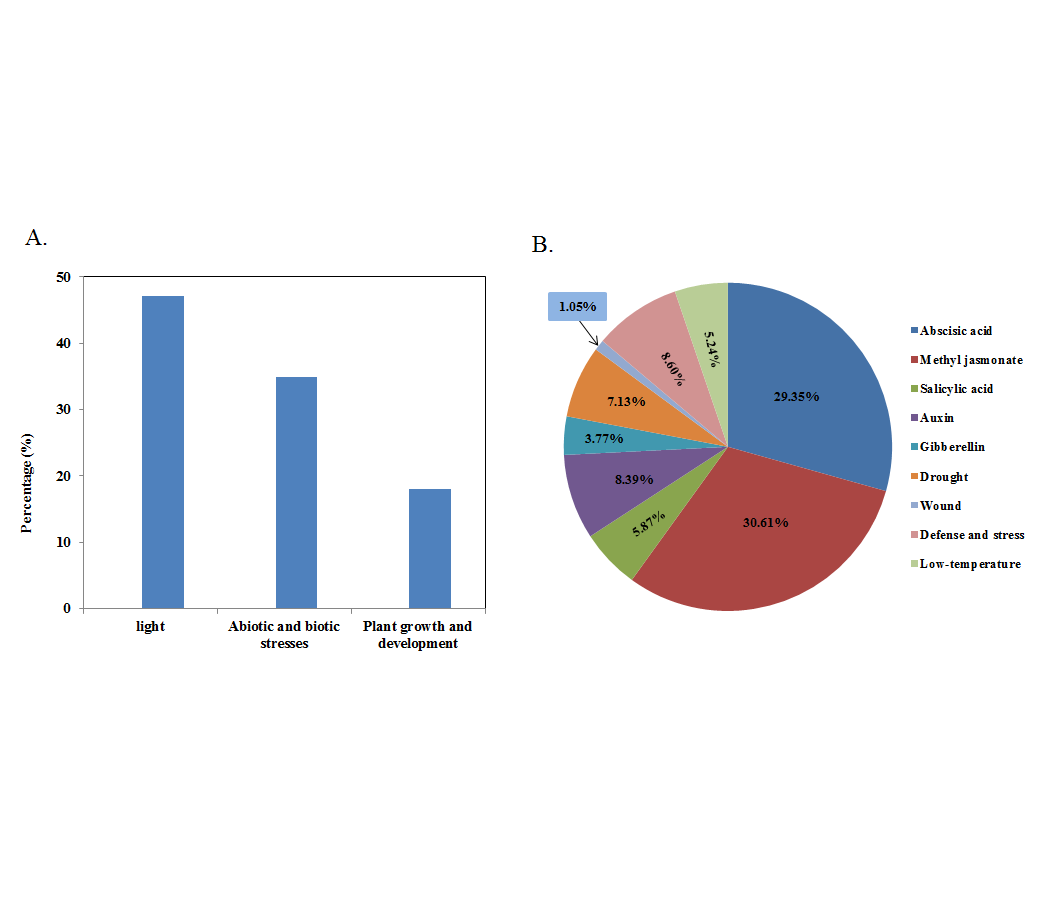

To further understand CpbHLHs functions and regulation patterns, cis-elements in CpbHLH genes promoter sequences were investigated. Regions of 2,000 bp upstream from the start codons of each CpbHLH gene were analyzed using PlantCARE. The results showed that the cis-elements could be divided into three main categories (Fig. 5A and Data S4). Category one contained a ubiquitous class of plant light responsive elements among which G-Box, G-box, GT1-motif and Box 4 were common in the CpbHLH promoters. Category two contained important elements that were involved in the process of stress-responsiveness, including MYB binding site involved in drought-inducibility (MBS), low temperature response elements (LTR), defense and stress responsive elements (TC-rich) and wound-responsive elements (WUN-motifs). In addition, more than ten kinds of hormone-responsive cis-elements were identified (e.g., gibberellin-GA, auxin-IAA, methyl jasmonate-MeJA, salicylic acid-SA, and abscisic acid-ABA). Among them, the most common response elements were ABA (ABRE), MeJA (CGTCA-motif and TGACG-motif) and SA (TCA-element and SARE), which included 158 (29.15%), 128 (23.62%) and 53 (9.78%), respectively (Fig. 5B). Category three contained plant growth and development elements, such as anaerobic induction elements (ARE), O₂-site, CAT-box and so on. Additionally, we also analyze the cis-elements in the promoter regions of putative orthologous genes that corresponding to CpbHLH in Arabidopsis, and the similar result has been obtained in Arabidopsis (Fig. S1 and Data S4). There also existed three main categories: plant light, abiotic and biotic stresses and plant growth and development responsive elements. And the percentage of most stress-responsive elements in Arabidopsia were similar to papaya, including ABA responsive elements, drought-responsive elements, wound-responsive elements, low temperature-responsive elements and IAA responsive elements, implying that most of the promoter cis-elements of bHLH family were conserved in Arabidopsis and papaya.

GO annotation of CpbHLH proteins

To understand the functions of papaya bHLHs, we performed a GO annotation of CpbHLHs, and the results are shown in Data S5 . A total of 70 CpbHLHs were involved in protein dimerization activity (GO: 0046983). The result is consistent with the earlier studies, which show that the HLH domain was necessary for protein dimerization and DNA binding (Murre, Mccaw & Baltimore, 1989). Some conserved amino acid residues are important to the function of bHLH proteins, especially the Leu-27 in helix 1 and the Leu-73 in helix 2 (Carretero-Paulet et al., 2010). In this study, we found 72 (out of 73) CpbHLH proteins have Leu-27 (corresponding to Leu-27 in AtbHLHs), and all of the CpbHLH proteins have Leu-63 (corresponding to Leu-73 in AtbHLHs) (Fig. 3 and Table S2). Because of a lack of reported experimental data and databases, we used Arabidopsis as the reference species to perform a GO enrichment analysis of CpbHLH proteins, and 54 of 73 predicted CpbHLH proteins were obtained with results compared to Arabidopsis. We summarized the results in Fig. 6 and Data S6. The majority of predicted CpbHLH proteins were enriched in DNA binding. Almost all of the predicted CpbHLH proteins (37, 68.5%) were predicted to localize in the nucleus, whereas the remaining predicted CpbHLH proteins were located in other organelles, including plastids, the cytoplasm, and chloroplasts. Additionally, some predicted CpbHLH proteins existed in multiple cellular components. For example, CpbHLH013 was located in three cellular components: chloroplasts, part of the cytoplasm, and the nucleus, which may reflect its multiple functions in various biological processes. The metabolic processes involved the greatest number of putative CpbHLH proteins (47, 87.0%). Biosynthetic processes and gene expression involved the second greatest number of putative CpbHLH proteins (46, 85.2%). In addition, CpbHLH proteins could respond to stimulus, morphogenesis, cell differentiation, and developmental process.

Expression analysis of bHLH superfamily genes under different abiotic stresses

The bHLH proteins have been characterized functionally in many plants with a vital role in the regulation of diverse biological processes, but little is known about their role in papaya. To analyze the functions of CpbHLHs responding to abiotic stresses, the expression profiles of 22 selected genes under salt, drought, ABA and cold stresses were investigated by using qRT-PCR (Table 2 and Fig. 7). The results showed that 4 (CpbHLH011, CpbHLH022, CpbHLH027 and CpbHLH056) of 22 CpbHLH mRNAs were increased, and 3 CpbHLH (CpbHLH020, CpbHLH053 and CpbHLH062) mRNAs were reduced more than 2-fold in salt (200 mM Nacl) treated papaya seedlings. Under drought stress (25% PEG), 8 (CpbHLH011, CpbHLH022, CpbHLH027, CpbHLH046, CpbHLH050, CpbHLH052, CpbHLH056 and CpbHLH068) of 22 CpbHLH mRNAs were upregulated, and 3 CpbHLH (CpbHLH020, CpbHLH042 and CpbHLH053) mRNAs were downregulated more than 2-fold. Under ABA treatment (100 µM), 3 (CpbHLH027, CpbHLH052 and CpbHLH056) of 22 CpbHLH mRNAs were upregulated, and 5 CpbHLH (CpbHLH019, CpbHLH020, CpbHLH042, CpbHLH053 and CpbHLH062) mRNAs were downregulated. Under cold stress (4 °C), there were 4 CpbHLH genes (CpbHLH027, CpbHLH035, CpbHLH056 and CpbHLH062) whose expression increased more than 1.5-fold, and 4 CpbHLH (CpbHLH046, CpbHLH050, CpbHLH052 and CpbHLH068) mRNAs were reduced more than 2-fold.

Interestingly, a few transcripts of CpbHLH responded to all or multiple stresses. For instance, CpbHLH056 was sensitive to all four stresses and was upregulated distinctly under the four stresses. The orthologue of CpbHLH056 in Arabidopsis is BEE1 (AtbHLH044) (Fig. 1), which has been functionally characterized in previous reports. At low temperatures, BEE1 is a positive regulator of flavonoid accumulation (Petridis et al., 2016), which is consistent with our results. In addition, BEE1, BEE2 and BEE3 are functionally redundant positive regulators of BR (brassinosteroid) signaling, but these transcripts are repressed by ABA (Friedrichsen et al., 2002). However, we found the transcription of CpbHLH056 was notably upregulated (>10-fold) under ABA treatment. More interestingly, CpbHLH042, which is an orthologue of BEE2 (Fig. 1), was distinctly repressed by ABA (approximately 4-fold). These results suggested that CpbHLH056 and CpbHLH042 may provide different functionalities compared to Arabidopsis. Additionally, CpbHLH027 was also upregulated distinctly under four stresses. In Arabidopsis, the orthologue of CpbHLH027 is AtbHLH116 (ICE1) (Fig. 1), which can be induced by Nacl, ABA and cold stresses, playing an important role in the cold-responsive signaling pathway via an ABA-independent pathway (Chinnusamy et al., 2003). There are two orthologues of CpbHLH027 in rice, one ortholog is OsICE2/OsbHLH001, is induced by salt stress, and its overexpression can enhanced the tolerance to freezing and salt stress (Deng et al., 2017; Li et al., 2010). OsICE1/OsbHLH002 is another ortholog in rice, which is induced by chilling stress. OsbHLH002 can positively regulates cold signaling via targeting OsTPP1, which encodes a keyenzyme for trehalose biosynthesis (Zhang et al., 2017). These results implied CpbHLH027 plays essential roles in abiotic stresses in papaya. In addition, the transcript of CpbHLH062 was also increased under cold treatment, its orthologue is AtbHLH033/ICE2, which involving the cold response and the ABA pathway (Fursova, Pogorelko & Tarasov, 2009; Kurbidaeva, Ezhova & Novokreshchenova, 2014), implying the CpbHLH062 may involved in the cold stress. Cp bHLH053 was downregulated under salt, drought and ABA stresses. The orthologue of CpbHLH053 is AtbHLH129 (Fig. 1), which is a transcription repressor that negatively regulates the ABA response in Arabidopsis (Tian et al., 2015), implying CpbHLH053 may have the similar function with the AtbHLH129 in the process of ABA response.

We should also noticed a few CpbHLHs that showed distinct increases or decreases in their mRNA levels under different treatments, and these CpbHLHs′ orthologues have not been reported in previous studies. For instance, CpbHLH050 is notably upregulated (>10-fold) under PEG treatment, CpbHLH046 is upregulated by PEG treatment, but sharply down regulated under ABA and cold treatments, implying these genes may have additional functions than response to drought by regulating root development. CpbHLH020 and CpbHLH053 were downregulated (>2-fold) by Nacl, PEG and ABA stresses distinctly. We should also pay attention to these genes in the following research.
