Overexpression of PheNAC3 from moso bamboo promotes leaf senescence and enhances abiotic stress tolerance in Arabidopsis

Plant material, growth conditions and treatments

The Arabidopsis thaliana ecotype Columbia-0 (Col-0), all transgenic plants, and moso bamboo (Phyllostachys edulis) seedlings were planted in a greenhouse under a 16/8 h light/dark cycle (long daylight) at 23 °C. The different developmental stages of moso bamboo leaves were sampled according to Ren et al. (2017b).

Treatments for senescence induction were performed with bamboo leaves and solutions of various substances. The third leaf from 2 to 3-month-old moso bamboo seedlings was detached and incubated in ABA solution (100 µM), MeJA solution (100 µM), SA solution (100 µM), ethrel (ETH) solution (600 mg/L), NaCl solution (200 mM), polyethylene glycol 6000 (PEG 6000) solution (20%, m/v), or sterile water. For dark treatment, the detached leaves were incubated in sterile water under darkness. The leaf samples were collected at 0, 1, 12, 24 and 48 h after treatment.

To detach Moso bamboo shoots, after the sheaths of the shoot tips emerged from the soil, they were manually removed after they reached the height of 35 ± 5 cm. The shoots were placed at room temperature, sampling at 0, 12, 24 and 48 h, respectively.

Isolation of PheNAC3 and its sequence analysis

Using the protein sequence of ONAC011 (Os06g0675600) as a query to search against Bamboo.Hic.pep database (http://forestry.fafu.edu.cn/db/PhePacBio) (Wang et al., 2017; Zhao et al., 2018), two peptide sequences (PH02Gene43417.t1 and PH02Gene32306.t1) were found to have high similarities (over 83%) with that of ONAC011 protein, namely PheNAC2 and PheNAC3, respectively. PheNAC3 had higher similarities with ONAC011 than PheNAC2. According to the CDS sequence of PheNAC3 gene retrieved from Bamboo.Hic.cds database (http://forestry.fafu.edu.cn/db/PhePacBio), Primer Premier 5 software was used to design the primers to isolate PheNAC3.

The genome sequence and the promoter fragments (from −2,000 bp to the initiation codon) of PheNAC3 were retrieved from moso bamboo genome database (http://forestry.fafu.edu.cn/db/PhePacBio). The Gene Structure Display Server (http://gsds.cbi.pku.edu.cn/) was used to visualize the intron patterns (Hu et al., 2015). The conserved NAM domain was analyzed with the Conserved Domains Database (http://www.ncbi.nlm.nih.gov/Structure/cdd/cdd.shtml). Multiple sequence alignment and neighbor-joining phylogenetic analysis of PheNAC3 was performed with the program Clustal X 1.83 and MEGA 7 (1,000 bootstrap replicates). The cis-acting reglatory elements were identified with the online program Plant CARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/).

The LOC ID of NAC family proteins used for constructing the phylogenetic tree are as follows: Arabidopsis thaliana, ATAF1 (ANAC002, AT1G01720.1), ORE1 (ANAC092, AT5G39610.1). ORS1 (ANAC059, AT3G29035.1), CUC1 (ANAC054, AT3G15170.1), CUC2 (ANAC098, AT5G53950.1), CUC3 (ANAC031, AT1G76420.1), NAC1 (ANAC022, AT1G56010.2), NAP (ANAC029, AT1G69490.1), JUB1 (ANAC042, AT2G43000.1), RD26 (ANAC072, AT4G27410.2), ANAC016 (AT1G34180.1), VNI2 (ANAC083, AT5G13180.1); Oryza sativa, ONAC011 (OMTN4, Os06g46270), ONAC104 (OMTN6, Os08g10080), ONAC060 (OMTN3, Os12g41680), ONAC002 (SNAC1, Os03g60080), ONAC058 (OsNAP, Os03g21060), ONAC131 (Os12g03040). ONAC002 (OsNAC2, Os04g38720); Brachypodium distachyon, BdNAC010 (Bradi1g32660), BdNAC054 (Bradi3g17287), BdNAC067 (Bradi4g02060), Petunia hybrida, StNAC262 (LOC102595632). The conserved motifs in the above senescence-related NAC sequences were defined by MEME version 4.12.0 (http://meme-suite.org/tools/meme) (Bailey et al., 2009).

Gene expression analysis

Total RNA was extracted using RNAiso Plus (Code No.: 9108; Takara, Kusatsu, Japan) according to manufacturer’s instructions. First-strand cDNA was synthesized using a PrimeScript RT Reagent Kit with gDNA Eraser (Code No: RR420A; Takara, Kusatsu, Japan). The specific primers were designed using Primer 3 Input software (version 4.1.0). The quantitative PCR assays were performed as described by Cheng et al. (2017). The primers used for qRT-PCR are listed in Table S1. The tonoplast intrinsic protein 41 gene (TIP41) (Fan et al., 2013) and ACT2 (Chen et al., 2011) were used as reference genes in moso bamboo and Arabidopsis, respectively.

Subcellular localization and transcriptional activation

For the subcellular localization experiment, the full-length coding sequence of PheNAC3 without the stop codon was cloned and inserted into the PCAMBIA2300-35S-EGFP vector. The functional vectors of green fluorescent protein (GFP)-tagged PheNAC3 were introduced into Agrobacterium tumefaciens strain GV3101. The transformed Agrobacterium strain was infiltrated into the fully expanded leaves of 4-week-old tobacco (Nicotiana benthamiana). After 48 h, the GFP signal was detected by fluorescence microscope. The subcellular localization also was performed by transfecting GFP-tagged PheNAC3 into Arabidopsis protoplasts according to Yoo, Cho & Sheen (2007).

For transcriptional activation analysis in yeast, the full-length PheNAC3 cDNA was inserted into the PGBTK7 vector. The fusion vector of PheNAC3 and the GAL4 DNA-binding domain were transformed into yeast strain AH109 according to the manufacturer’s instructions (Clontech). The transactivation activity of the PheNAC3 protein was evaluated according to growth status and α-galactosidase activity (Chen et al., 2011; Chai et al., 2014).

Overexpression and stress treatments

The full-length cDNA of PheNAC3 was cloned into the pCAMBIA 2300 vector according to Cui et al. (2013). The pCAMBIA 2300-PheNAC3 vector was introduced into Arabidopsis (Columbia-0, Col-0) through the floral dipping method (Clough & Bent, 1998). Putative transgenic plants were selected on 1/2 Murashige and Skoog (MS) medium solid plates supplemented with 50 mg/L kanamycin.

To observe the effects of NaCl or mannitol on seed germination and phenotypic differences between WT and OE-PheNAC3 plants, three independent PheNAC3 overexpressing lines (T₃) and WT Arabidopsis plants were tested according to method previously methord (Hou et al., 2018). WT and PheNAC3 seeds were sown on 1/2 MS medium solid plates with 150 mM NaCl or 200 mM mannitol, stratified at 4 °C for 2 days and then transferred to long-day growth conditions (16 h light/8 h dark cycle at 23 ± 2 °C) in a growth chamber. Seed germination rates was daily were measured after 2 days until the number of germinated seeds no longer increased. The taproot lengths and lateral roots per taproot were measured after 10 days.

PheNAC3 is a homolog of ONAC011 and NAC1 in moso bamboo

To identify the NAC TFs associated with senescence in moso bamboo, the protein sequence of ONAC011 was used as a query to search against Bamboo.Hic.pep database (http://forestry.fafu.edu.cn/db/PhePacBio). One putative NAC protein (moso bamboo database: PH02Gene32306.t1; NCBI ID: FP095491) sharing high similarity (87%) with ONAC011 protein was named PheNAC3. Based on the analysis of intron–exon arrangement and conserved domain, the results showed that PheNAC3 contained two introns, three exons and the complete NAM domain (pfam02365; Fig. S1). Phylogenetic analysis of PheNAC3 and other NACs related to senescence revealed that PheNAC3 and ONAC011 were classified into one clade with 100% bootstrap support (Fig. 1A). Furthermore, the conserved motif distribution was consistent with the classification of the phylogenetic analysis (Fig. 1B).

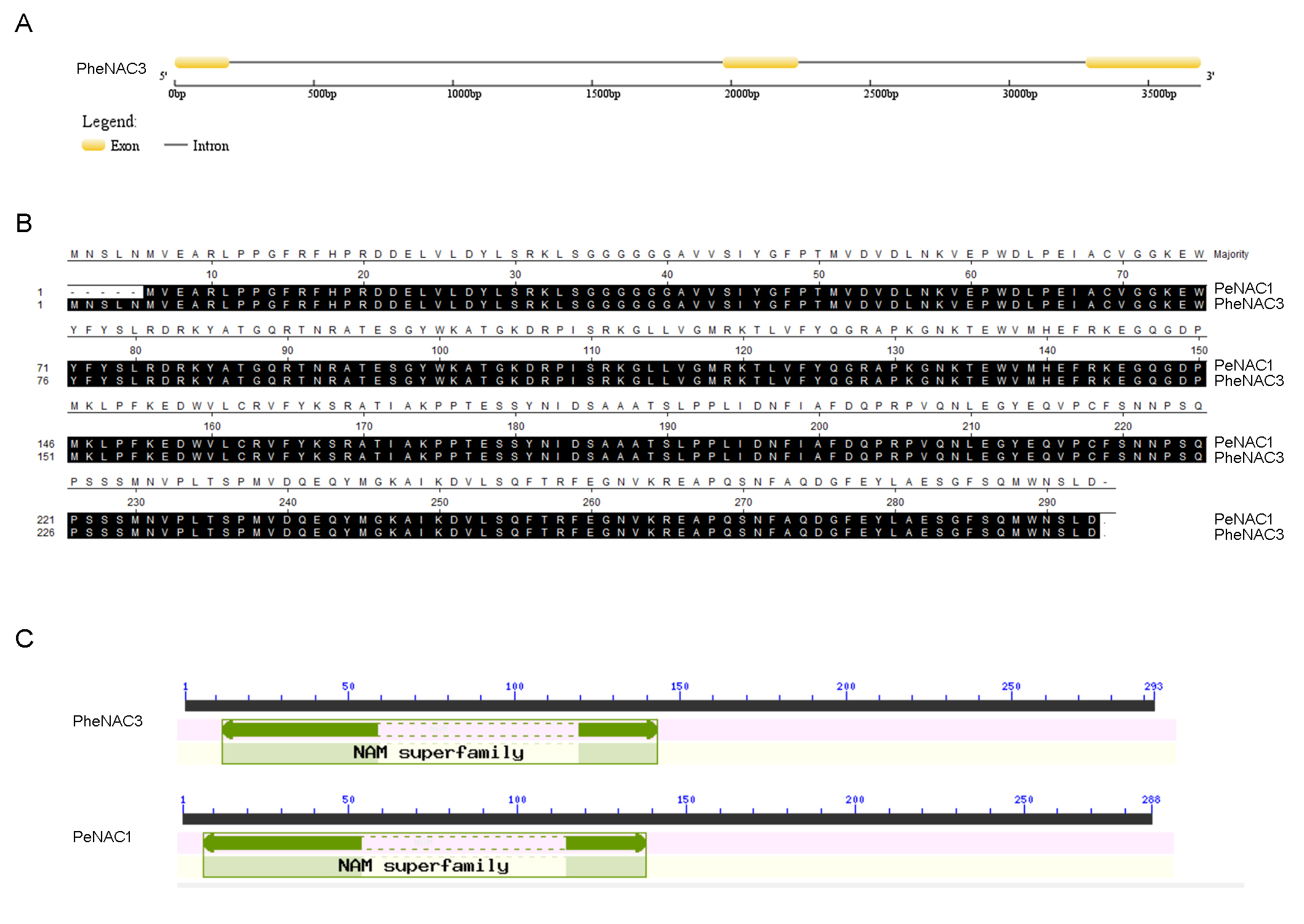

In previous studies, most of the NAC proteins possessed A–E subdomains in the N-termini that conferred the DNA-binding activity. In this study, motifs 3, 4, 1, 2 and 5 specifying the NAM subdomain A–E were present in PheNAC3 proteins. In the C-termini, motif 6 was found in both NAC1 and NAM/CUC subgroups, while motifs 7, 8, 9 and 10 were only found in NAC1 subgroup. Moreover, motif 12 was only present in most of the members of subgroup NAM/CUC. Multiple sequence alignment showed that PheNAC3 showed with 88.74% similarity to ONAC011 protein (Fig. 1C). The PheNAC3 protein also had a conserved core sequence of DBD and NLS in subdomain C and D. Furthermore, sequence alignment indicated that the CDS sequence of PheNAC3 was longer than that of PeNAC1 by only 15 bases at the 5′ end. The amino acid encoded by the 15 base-sequence corresponded to motif 10 based on conserved motif analysis through MEME (Figs. S1B, S1 and S2).

PheNAC3 was localized in the nucleus and possessed transcriptional activity

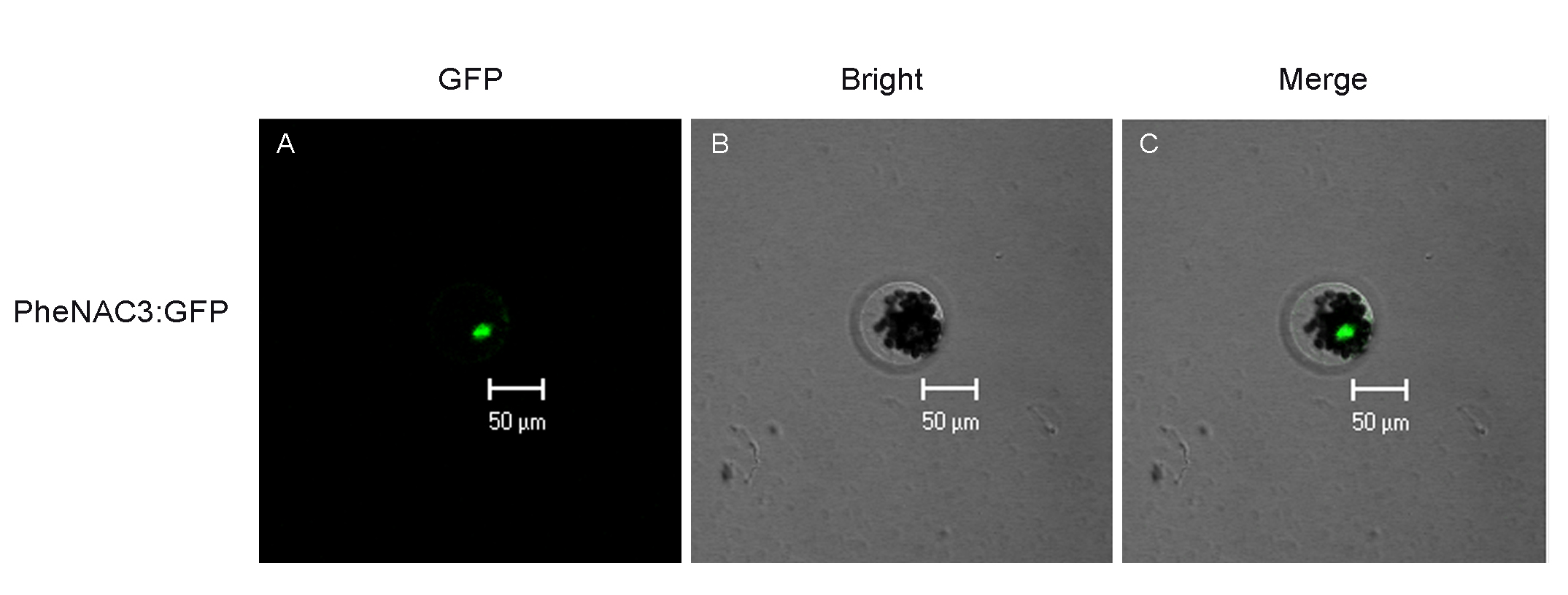

A previous study reported that OMTN4/ONAC011 is a nuclear protein and putative transcriptional activator (Fang, Xie & Xiong, 2014). To determine the subcellular localization of PheNAC3, the PheNAC3-GFP fusion vector was transiently expressed in tobacco (Nicotiana benthamiana). The PheNAC3-GFP fusion protein was localized in the nucleus (Fig. 2A), as the GFP fluorescence in all cases colocalized with the fluorescence of the 4′,6-diamidino-2-phenylindole marker. The control GFP was distributed throughout the cell. In addition, the PheNAC3-GFP fusion protein also was localized in nucleus of Arabidopsis protoplasts (Fig. S3).

To examine whether PheNAC3 engages in transcriptional activation, the full-length PheNAC3 was fuzed to the GAL4 DBD of the pGBKT7 vector (Fig. 2B). The resulting constructs were expressed in AH109 yeast cells. The empty pGBKT7 vector was used as a negative control, and pGBKT7-53 and pGADT7-T were used as positive controls. All the transformants grew well on synthetic defined (SD)/-Trp medium, but only the yeast cells as a positive control and PheNAC3-BD could survive and simultaneously turn blue on SD/-Trp/-His/X-α-Gal medium (Fig. 2C).

Expression profile of PheNAC3 during senescence of moso bamboo leaves and shoots

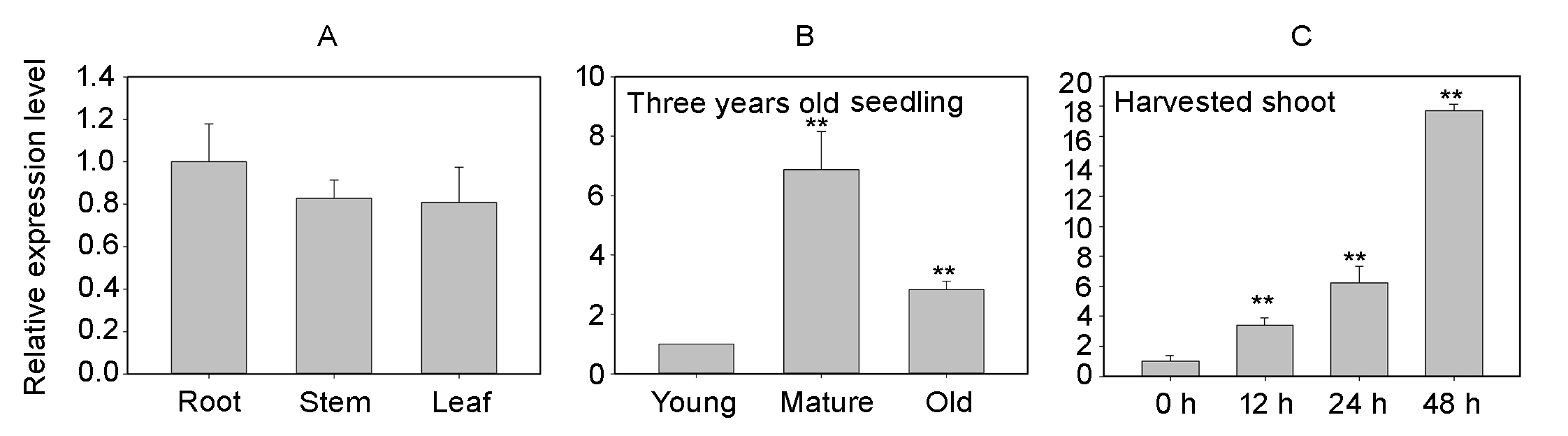

To evaluate the contribution of PheNAC3 in leaf senescence, we further analyzed the relative expression levels of PheNAC3 in moso bamboo through qRT-PCR. The results show that there were similar expression levels of PheNAC3 in roots and leaves (Fig. S4A). According to the photochemical efficiency of photosystem II (Fv/Fm) and the content of chlorophyl, the developmental stages of moso bamboo leaves were divided into young leaves, mature leaves, and senescent leaves (Ren et al., 2017b). There was an increase in PheNAC3 transcript accumulation during the natural senescence of leaves (Fig. S4B).

According to the physiological and biochemical changes during the senescence of harvested shoots, sharp transitions occurred at 12 and 24 h, as compared to 0 h (Li et al., 2019). Additionally, the detached shoots become inedible after being stored for 24 h. Therefore, four representative storage time points (0, 12, 24 and 48 h) were selected to analyze the relative expression pattern of PheNAC3. The results showed that PheNAC3 was significantly upregulated (approximately 3-fold higher than 0 h) at 12 h and continued to increase expression at 24 h (approximately 6-fold higher) and 48 h (approximately 17-fold higher) (Fig. S4C).

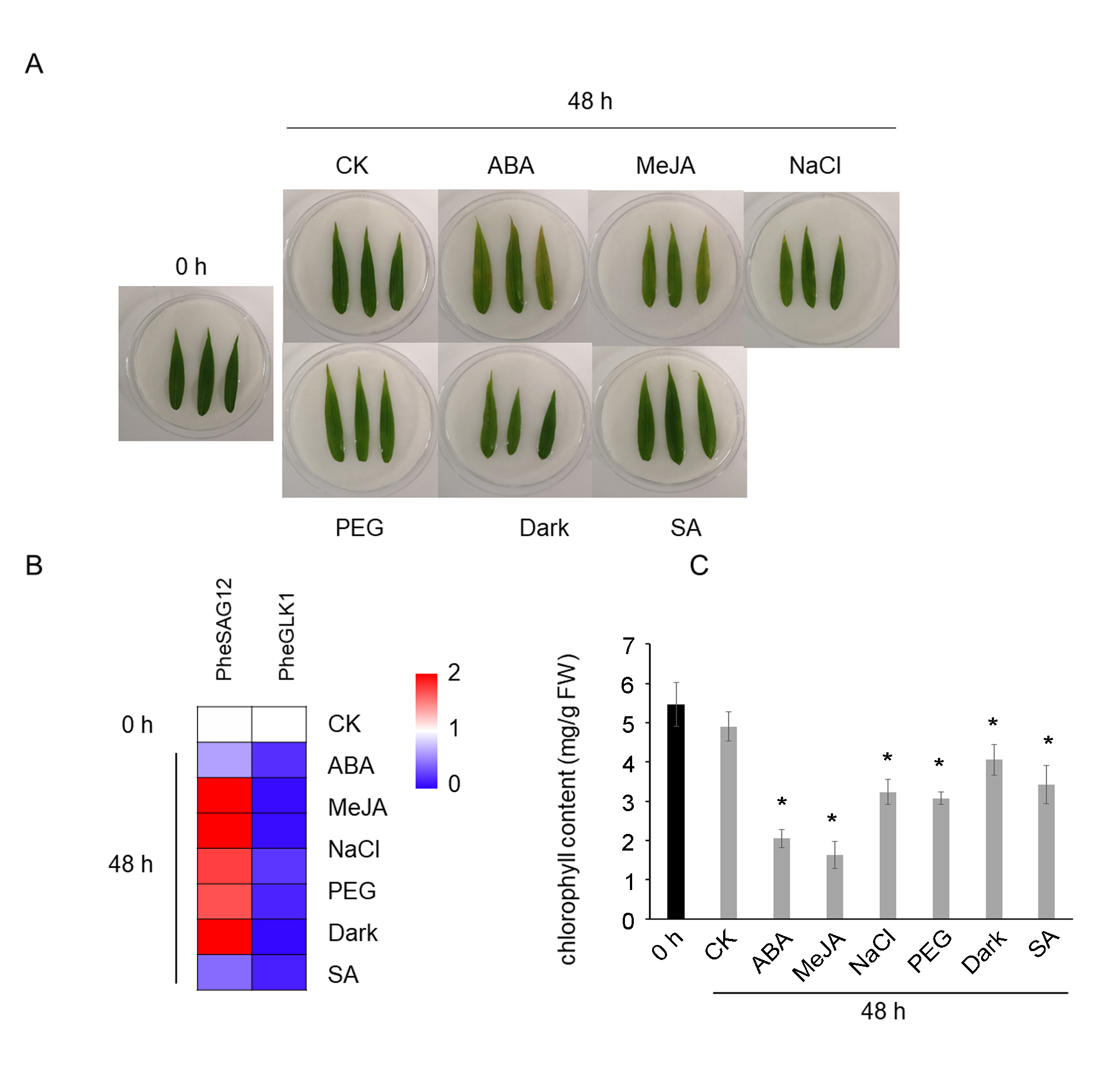

The transcript profiles of PheNAC3 were evaluated according to different treatments for detached leaves to induce senescence (i.e., treatment with ABA, MeJA, SA, darkness, salt, or drought; Fig. 3). After 48 h of treatments, all leaves turned yellow, and the chlorophyl content significantly decreased. Additionally, down- and upregulation of the chloroplast maintenance-related TF (PheGLK1, PH01000738G0520) and the senescence-associated gene (PheSAG12, PH01001461G0020) occurred, respectively (Fig. S3). PheNAC3 was upregulated during all seven senescence-induction treatments. Among these, PheNAC3 showed upregulated expression after ABA, darkness and salt stress. During the ABA treatment, the expression level of PheNAC3 was at least four-fold higher than that of the control within 12 h (Fig. 3A). The expression level of PheNAC3 was approximately 3-fold higher than that of the control after 24 h of darkness (Fig. 3D). Particularly, the expression level of PheNAC3 was approximately 11-fold higher than that of the control after 24 h of treatment with 200 mM NaCl (Fig. 3C). The distinct expression patterns of PheNAC3 suggested that it might function differently during different senescence processes.

PheNAC3 overexpression caused precocious leaf senescence phenotype

The PheNAC3 coding sequence, driven by the 35S promoter, was introduced into the wild-type (Col-0) plants to overexpress PheNAC3. After 3 weeks of growth, the PheNAC3 overexpressors (OE-PheNAC3) displayed the senescence phenotype (the tip of 7th leaf begins to turn yellow), while the non-yellowing phenotype was found in Col-0 (Fig. S6). After 5 weeks, both OE-PheNAC3 and Col-0 displayed the senescence phenotype (Fig. 4A). The expression level of PheNAC3 in OE-PheNAC3 lines was confirmed by RT-PCR (Fig. S7). The detached leaves were divided into three groups (G1–G3; Fig. 4B) according to the senescent condition. G2 and G3 were used to analyze the chlorophyl content and target gene expression levels. Compared with Col-0, the OE-PheNAC3 lines showed much lower chlorophyl content in G2 leaves (Fig. 4C; Fig. S8). The above results demonstrated that overexpression of PheNAC3 could induce leaf senescence-related physiological changes in Arabidopsis.

The expression profiles of senescence-specific marker genes AtSAG12 and AtCAB1 were analyzed with qRT-PCR during leaf senescence between OE-PheNAC3 and Col-0 plants (Figs. 4D and 4E). The results showed that AtSAG12 was upregulated and AtCAB1 was downregulated compared with Col-0. These results suggested that PheNAC3 acted as a positive regulator of leaf senescence.

Based on the analysis of the promoter region of PheNAC3 in PlantCARE, we found that seven ABRE cis-elements were contained in this region (Table S2). The relative expression level of PheNAC3 was upregulated (over 4 fold) in detected leaves of moso bamboo after ABA treatment. Furthermore, AtNCED3, AtRD29A and AtRD29B related to ABA biosynthesis and/or response genes were obviously upregulated in OE-PheNAC3 lines compared with those in Col-0 under normal conditions (Fig. S9).

PheNAC3 overexpression enhanced drought and salt tolerance of Arabidopsis

ONAC011/OMTN4 may negatively regulate drought tolerance of rice (Fang, Xie & Xiong, 2014). In order to examine whether PheNAC3 affects drought and salt tolerance in transgenic Arabidopsis, we examined the germination rate and growth of Col-0 and OE-PheNAC3 lines after 200 mM mannitol and 150 mM NaCl stress treatments (Figs. 5 and 6). The results showed that 3 days after germination, there was no significant difference in the germination rate (100%) and root length between wild-type and transgenic lines on 1/2 MS (Figs. 5 and 6; Fig. S10). On 1/2 MS with 150 mM NaCl, the germination rate of both Col-0 and OE-PheNAC3 lines was obviously decreased. However, the germination rate and root length of OE-PheNAC3 were significantly higher than that of wild-type (Figs. 5 and 6; Fig. S10). Approximately 90% of OE-PheNAC3 seeds germinated after 4 days, but only 60% of wild-type seeds germinated (Fig. 5). After 10 days, the average length of taproot of OE-PheNAC3 was greater than 0.79 ± 0.05 cm, while the WT was 0.27 ± 0.08 cm (Fig. 6; Fig. S10). At the same time, germination tests were also performed in the presence of 200 mM mannitol. The germination rates of OE-PheNAC3 were significantly higher than that of wild-type on the 2 and 3 days. The number of lateral roots were also significantly higher than those of the wild-type. After 10 days. The average numbers of lateral roots per in taproot of were OE-PheNAC3 and WT over 4.38 ± 0.46 and 1.71 ± 0.65, respectively, p < 0.004 (Fig. 6; Fig. S10). These results provided evidence that PheNAC3 positively regulates drought and salt resistance in Arabidopsis.

PheNAC3 is a candidate senescence-related gene

NAC TFs play important and multiple roles in plant development, stress response and senescence regulation (He et al., 2005; Kim et al., 2009; Nakashima et al., 2012; Nuruzzaman, Sharoni & Kikuchi, 2013). In Arabidopsis, AtNAC2 is involved in the salt stress response, lateral root development, and senescence regulation (He et al., 2005; Balazadeh et al., 2010). AtNAP negatively regulated the salt stress response and leaf senescence (Guo & Gan, 2006; Seok et al., 2017). In rice, OsNAC2 and OsNAP exhibited a higher degree of sequence similarity to AtNAC2 and AtNAP, respectively (Chen & Ding, 2013; Liang et al., 2014; Mao et al., 2017). OsNAC2 is involved in leaf senescence regulation and negatively regulates rice abiotic stress reactions (Luo et al., 2016; Mao et al., 2017). OsNAP can increase the resistance to high salinity, drought, and low temperature stress and promote leaf senescence (Chen & Ding, 2013; Liang et al., 2014). Thus, it is generally acknowledged that homologous proteins with similar domains among different species may have the same or similar functions.

ONAC011/OMTN4 is upregulated during natural senescence, which can promote leaf senescence and accelerate heading time in rice (Mannai et al., 2017). Furthermore, ONAC011 was strikingly reduced under drought stress conditions and increased under high salinity stress, and exhibited negative drought stress tolerance (Fang, Xie & Xiong, 2014).

Moso bamboo, as a perennial, lignified, and herbaceous plant, has great ecological, economic, and cultural value. There is a lack of systematic research on the mechanism of senescence regulation in moso bamboo because of the plant’s longevity. Thus, our study was focused on moso bamboo in order to find a novel NAC member of moso bamboo that can regulate senescence.

In this study, a senescence-induced NAC gene, was isolated from the senescent leaf cDNA library of moso bamboo and subsequently named PheNAC3. Sequence analysis revealed that PheNAC3 encoded an NAC1-like NAC protein. The amino acid sequence of PheNAC3 protein is 88.74% similar to that ONAC011 protein. Based on transient expression and transcriptional activation analysis, PheNAC3 was determined to be a nuclear protein and exhibited transcriptional activation activity in yeast. These data indicated that PheNAC3 might function as a transcription factor and had a function similar to that of ONAC011.

PheNAC3 participates in multiple senescence processes

To explore the function of PheNAC3 in senescence regulation, its expression pattern was initially analyzed during natural senescence, after treatment with ABA, MeJA, SA, NaCl and PEG, and during dark-induced leaf senescence. During natural leaf senescence, accumulation of PheNAC3 mRNA levels was similar to the relative expression pattern of ONAC011, which demonstrated that PheNAC3 could respond to senescence signals of age-dependent pathways (Mannai et al., 2017). Expression of PheNAC3 was significantly upregulated during ABA and NaCl treatments (Fig. 3). In addition, the promoter of PheNAC3 contained seven ABA-responsive elements (ABREs) and three stress-related elements (MBS: MYB drought inducibility; STRE: activation by heat shock, osmotic stress, low pH and nutrient starvation) (Table S2). These results indicated that PheNAC3 might be involved in the ABA-senTF module and NaCl-senTF module. At the same time, PheNAC3 was also upregulated during post-harvest senescence of bamboo shoots. The transcript level was positively correlated with the rate of loss of moisture, peroxidase activity, and catalase activity, and negatively correlated with lipoxygenase activity and phenylalanine ammonia-lyse activity (Li et al., 2019). Therefore, PheNAC3 participates in the regulation of post-harvest senescence of bamboo shoots. Taken together, these results suggest that PheNAC3 might be a senescence regulator during multiple senescence processes of moso bamboo.

Ectopic expression of PheNAC3 can promote leaf senescence of Arabidopsis

In rice, ONAC011 was previously identified as a senescence regulator (Mannai et al., 2017). Here, the ectopic overexpression of PheNAC3 triggered premature senescence of leaves in Arabidopsis. In Arabidopsis, AtSAG12 and AtCAB were considered to be senescence marker genes (Lohman et al., 1994; Buchanan-Wollaston, 1994; Hensel et al. 1993) that were upregulated and downregulated during leaf senescence, respectively. In this study, the expression of two marker genes was upregulated and downregulated in OE-PheNAC3 transgenic Arabidopsis, respectively. This leads us to suspect that PheNAC3 promotes natural leaf senescence by regulating AtSAG12 and AtCAB in Arabidopsis.

Our results showed that ABA promoted senescence of moso bamboo detached leaves, and PheNAC3 upregulated the expression during the senescence process. NCED3 is known as a key enzyme in ABA biosynthesis (Ren et al., 2007), and overexpression of NCED increases the ABA content (Tan et al., 1997; Hwang et al., 2010). In OE-PheNAC3 transgenic Arabidopsis, AtNCED3 was upregulated. AtABF4, AtRD29A and AtRD29B, as ABA response genes, are upregulated by ABA (Yoshida et al., 2010; Cheong et al., 2010; Jia et al., 2012). Among them, the regulation of AtRD29B expression is only via the ABA-dependent pathway (Jia et al., 2012). In OE-PheNAC3 transgenic Arabidopsis, AtRD29A and AtRD29B were upregulated in leaves of G2 stage. These results suggested PheNAC3 might promote leaf senescence via ABA biosynthesis.

Ectopic expression of PheNAC3 can enhance abiotic stress tolerance in Arabidopsis

ONAC011 negatively regulates drought tolerance in rice (Mannai et al., 2017). PeNAC1 may promote lateral root development and enhance tolerance to salinity and drought stress (Wang et al., 2016). In our study, there was no significant difference in the growth, root length, or number of lateral roots of PheNAC3 overexpressing in plants on 1/2 MS medium compared to wild-type Arabidopsis. This result is different from that of Wang et al. (2016), which indicates that it is caused by the difference in the motif10 in the N-terminus.

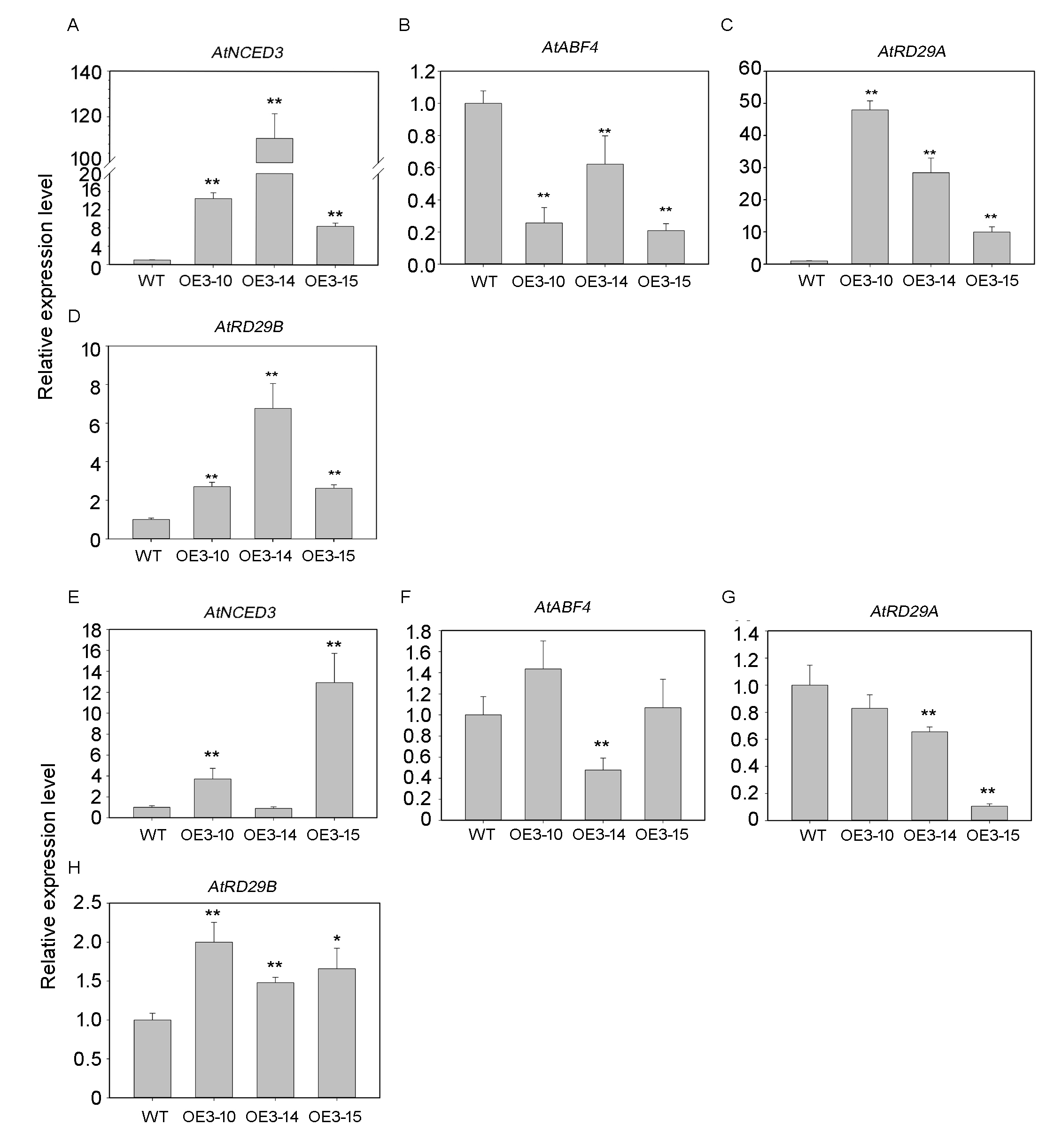

RD29A and RD29B were most frequently selected as stress-related downstream markers in Arabidopsis (Xiong et al., 2002). RD29A is an abiotic stress-responsive gene (Yamaguchi-Shinozaki et al., 1992; Yamaguchi-Shinozaki & Shinozaki, 1994) and enhanced the salt tolerance of transgenic tobacco and Sophora japonica (Yamaguchi-Shinozaki & Shinozaki, 1994; Wang et al., 2009). RD29B was upregulated in transgenic Arabidopsis with GmProT1, GmProT2 and MYB15, which increases tolerance to drought and/or salt (Ding et al., 2009; Guo et al., 2016). In this study, the tolerance to drought and salt of OE-PheNAC3 transgenic Arabidopsis was increased, and the function of OE-PheNAC3 was similar to that of PeNAC1 (Wang et al., 2016). Additionally, the expression levels of RD29A and RD29B were upregulated in OE-PheNAC3 transgenic Arabidopsis compared with wild-type Arabidopsis. Therefore, the overexpression of PheNAC3 can enhance the abiotic stress tolerance of Arabidopsis.
