Genetic diversity and structure of the red squat lobster (Grimothea monodon) in the Humboldt Current Ecosystem using SNP markers

Introduction

Understanding the patterns of population structure and differentiation in marine invertebrates of fishing importance with a wide distribution range is important for the conservation, management and sustainable exploitation of these marine bioresources (Lowell et al., 2023). In this context, at the genetic level, the diversity and structure of populations can reflect both the influence of environmental factors and the biology of species (Bert et al., 2014; Silva & Gardner, 2016; Boulanger et al., 2022). In the case of marine invertebrates that have a wide ecological niche (i.e., realized niche) in habitats with variable environmental conditions, their dispersal potential and/or connectivity can vary along a latitudinal gradient (Einfeldt, Zhou & Addison, 2017). Habitat geography also plays an important role in generating patterns of genetic differentiation (Kimura & Weiss, 1964; Duforet-Frebourg & Slatkin, 2015), where biogeographic barriers that promote local environmental conditions can influence genetic divergence between and within populations (Tovar Verba et al., 2022). In addition, it has recently been described that the influence of anthropogenic disturbances can also alter the genetic structure and spatial distribution of species in their natural environment (Chiu et al., 2023).

Within a marine ecosystem, there are intrinsic and extrinsic factors that can influence the dispersal capacity of species, such as the larval development time and the presence of biogeographic barriers, which consequently affect the genetic connectivity of populations (Kelly & Palumbi, 2010; Haye et al., 2014). In turn, these factors can be attenuated or pronounced by environmental conditions. For example, sea temperature can influence the metabolism, growth and survival of larvae, while ocean currents can affect their movement through plankton and their ability to colonize new habitats (Wares, Gaines Steven & Cunningham, 2001). In marine invertebrates with a complex life cycle (for a concept see: Wilbur (1980), Moran (1994) and Formery & Lowe (2023)), the dispersal ability of larvae is highly relevant because it drives important demographic and evolutionary processes by promoting population connectivity (Chiu et al., 2023). In this way, competition and inbreeding are minimized, thus allowing larvae to colonize new habitat patches and potentially generate new populations (Suárez et al., 2022). In addition, high gene flow allows populations to maintain more stable population sizes, reducing the rate of extinction and speciation (Haye et al., 2014).

There are a variety of molecular markers that allow us to understand the diversity and genetic structure of marine populations (e.g., Cytochrome c Oxidase subunit I (COI), Amplified Fragment Length Polymorphism (AFLP)). These markers have been used to study the genetic structure and connectivity of populations of marine organisms with complex life cycles, such as macroalgae (Tellier et al., 2009; Fraser et al., 2010), invertebrates (Haye et al., 2014; Haye et al., 2019; Ewers-Saucedo et al., 2016; Quesada-Calderón et al., 2021) and fish (González-Wevar et al., 2015). Currently, population genetic studies are gaining more relevance through molecular markers such as single nucleotide polymorphism (SNP), which has obtained denser genotypes with greater representation of the species genome (Uptmoor et al., 2003; de Villemereuil et al., 2016). Unlike mitochondrial markers (e.g., mtDNA COI, Cyt b), SNP markers utilize adaptive loci (outlier loci) to aid in confirming whether there is a weak or null genetic structure within a certain population at a variety of spatial and environmental scales (Jenkins et al., 2019), as has been reported in species with low dispersal potentials, such as Pyure chilensis (Segovia et al., 2017) or high dispersal potentials, such as Metacarcinus edwardsii (Veliz et al., 2022).

The Humboldt Current Ecosystem (HCE) is one of the most important systems worldwide due to its wide variety of environmental and oceanographic conditions (Carrasco et al., 2021) and the presence of topographic discontinuities (Rodríguez-Romero et al., 2022), which generate “barriers” or “biogeographic breaks” that establish complex environments and a mosaic of habitats (Berend, Haynes & MacKenzie, 2019). These barriers have an impact on the connectivity of natural populations. Within the HCE, known biogeographic breaks are located between 5°S–6°S and 12°S (Ibanez-Erquiaga et al., 2018), 30°S (Brante, Fernández & Viard, 2012; Segovia et al., 2017; Weidberg et al., 2020), and 42°S (Fernandez et al., 2000; Leclerc et al., 2018). A transition break between 24°S–25°S has also been described along the coasts of Chile, although some authors do not consider this of relevance (Ojeda, Labra & Muñoz, 2000; Haye et al., 2010; Sielfeld et al., 2010; Navarrete, Lagos & Ojeda, 2014). Nonetheless, the changes observed in richness and abundance of marine species and assemblages coincide with this biogeographic break (Navarrete, Lagos & Ojeda, 2014). For example, changes in the morphological traits of some marine species, such as the red squat lobster Grimothea monodon (previously known as Pleuroncodes monodon (Baba et al., 2008), have been recorded (Machordom et al., 2022).

Grimothea monodon (Decapoda: Munididae) supports the main industrial fishery of demersal crustaceans in the Southeastern Pacific Ocean. Its geographic distribution covers a large part of the Humboldt Current Marine Ecosystem (Perú-Chile) from Isla Lobos de Afuera in Perú to Chiloé in Chile (Hendrickx & Harvey, 1999; Hernáez & Wehrtmann, 2011). G. monodon presents two morphotypes: (i) pelagic (5°S–24°S) and (ii) benthic (∼24°S to 48°S) (Haye et al., 2010). Currently, its distribution range has been extended to North America (DecaNet, 2024). In this context, its wide distribution could be explained by its high fecundity and dispersal potential, characterized by a large egg production (approx. 1,808–33,966 embryos), from which numerous planktonic larvae hatch and live in the water column for ca. 90 days (Palma & Arana, 1997; Hernáez & Wehrtmann, 2011). Through a single molecular analysis with the mitochondrial marker COI, it was determined that the pelagic and benthic morphotypes of G. monodon correspond to a single genetic population, suggesting a heterochronic phenotypic plasticity that is expressed during its early ontogeny (Haye et al., 2010).

Environmental factors, such as temperature, influence generation time, mutation rates and physiological processes (growth and reproduction) (Willig & Presley, 2018) of ectothermic marine animals (Sunday, Bates & Dulvy, 2012; Weber et al., 2015) with high thermal (Bennett et al., 2019) and physiological sensitivity (Sunday, Bates & Dulvy, 2011; Sunday, Bates & Dulvy, 2012). In marine environments, variations in temperature along a latitudinal gradient can exert a potential selective pressure that modifies the phenotypic responses of a population with a wide distribution range (Lardies, Arias & Bacigalupe, 2010; Barria et al., 2018), resulting in a phenotypic plasticity response (Acasuso-Rivero et al., 2019; Burton, Ratikainen & Einum, 2022), which can be reversible or irreversible (Forsman, 2015; Futuyma & Kirkpatrick, 2017; Hoffmann & Bridle, 2022). Consequently, the ability of a population to adapt to a heterogeneous environment depends on the changes that occur in its physiological traits and its life history (thermal sensitivity, metabolic rate, fecundity) (Nilsson, 2012; Calosi et al., 2013).

In turn, other evolutionary scenarios could also explain the presence of distinct phenotypes in different areas (Rutschmann et al., 2016; Vinton et al., 2022). For example, the presence of barriers to gene flow (i.e., biogeographic barriers) could generate a cessation of gene flow between populations, triggering the morphological differentiation of adult individuals by both neutral (genetic drift) and selective mechanisms acting independently in isolated populations (Malvé, Rivadeneira & Gordillo, 2018). Although a high gene flow in G. monodon has been suggested throughout its distribution based on mitochondrial sequences (Haye et al., 2010), it remains to be evaluated whether this apparent pattern is supported by analyzing the genetics of the populations in more recent conditions with a more informative marker (e.g., SNPs). This can be explained by the fact that mitochondrial markers have a single locus due to the lack of recombination and can thus provide a biased view of the level of differentiation or be exposed to incomplete lineage sorting processes (Hurst & Jiggins, 2005; Bradman, Grewe & Appleton, 2011).

To better understand the evolutionary ecology of the red squat lobster, nuclear markers with higher resolution power must be utilized (Morin et al., 2004; Wenne, 2023). Therefore, the objective of the present study was to evaluate the diversity, connectivity and genetic structure of the pelagic and benthic populations of G. monodon throughout its wide latitudinal distribution range, and to test its correlation with biogeographic barriers using SNP markers. We hypothesized that the pelagic and benthic morphotypes of G. monodon distributed along the latitudinal gradient of the HCE present a genetic structure concordant with the distribution of its morphotypes.

Materials & Methods

Collection of samples

Adult individuals of G. monodon were collected in the southeastern Pacific Ocean within the Humboldt Current Ecosystem. The pelagic morphotype was collected by the Peruvian Sea Institute (IMARPE) in Peru through the monitoring of anchovy fisheries as by-catch, and the benthic morphotype was obtained through the monitoring of the demersal crustacean fishing fleet by the Fisheries Development Institute (IFOP) in Chile. The sampling range in the HCE covered an extension of ca. 6,000 km from 9°S latitude to 36°S latitude, corresponding to a total of 10 locations where the pelagic (09°S–17°S; Peru) and benthic (30°S–36°S; Chile) morphotypes were obtained (Fig. 1; Table 1). For each sampling location, n = 10 individuals were processed, except for Pisco (n = 4 individuals), with a total of n = 94 samples. Only muscle tissue samples from the chelae were extracted from each individual; these were placed in a PCR tube with 99% pure alcohol. The prepared samples were sent to the Diversity Array Technology (DArT) laboratory in Australia. The DNA was extracted, sequenced, and the informative SNP markers were processed (https://www.diversityarrays.com, Kilian et al., 2012) for the elaboration of the DarTSeq libraries (Wenzl et al., 2004). The DarTSeq method obtains high-performance markers of the entire genome by reducing the complexity of the genome mediated by restriction enzymes (Edet et al., 2018). This tool is ideal for characterizing the genome of “species without genomic reference” or other previous information (Ayllón, 2017).

Results

From a total of n = 94 individuals collected in 10 localities in Peru and Chile, a total of n = 90,539 SNPs were obtained. Subsequently, after filtering, a total of 12,616 SNPs for 81 individuals were available for downstream analyses. For details regarding the individuals and localities used in analyses, see Table 1.

Genetic structure of evaluated populations

No marked genetic structures were found in the analysis of the evaluated populations. The principal component analysis (PCoA) revealed a slight separation between the benthic morphotypes from the Constitución (35°S) and Concepción (36°S) localities. In turn, all the sampled populations of the pelagic morphotype were grouped together with the benthic population from the Coquimbo locality (30°S). The total explained variability was 3.5% in the PC1 and PC2 components. This result was similar to that of the Discriminant Analysis of Principal Components (DAPC); here, the optimal cluster value “k” obtained by the silhouette method was K = 2. In contrast, the Gap statistical analysis for the real optimal cluster value was K = 1. The DAPC presented a similar result to the PCoA; here, the explained variability represented 76.81%, where the benthic morphotypes from the locations of Constitución and Concepción were classified as a single group and were clearly separated from those from the Coquimbo population. Consequently, these were noticeably different from the pelagic morphotype group (Fig. 2).

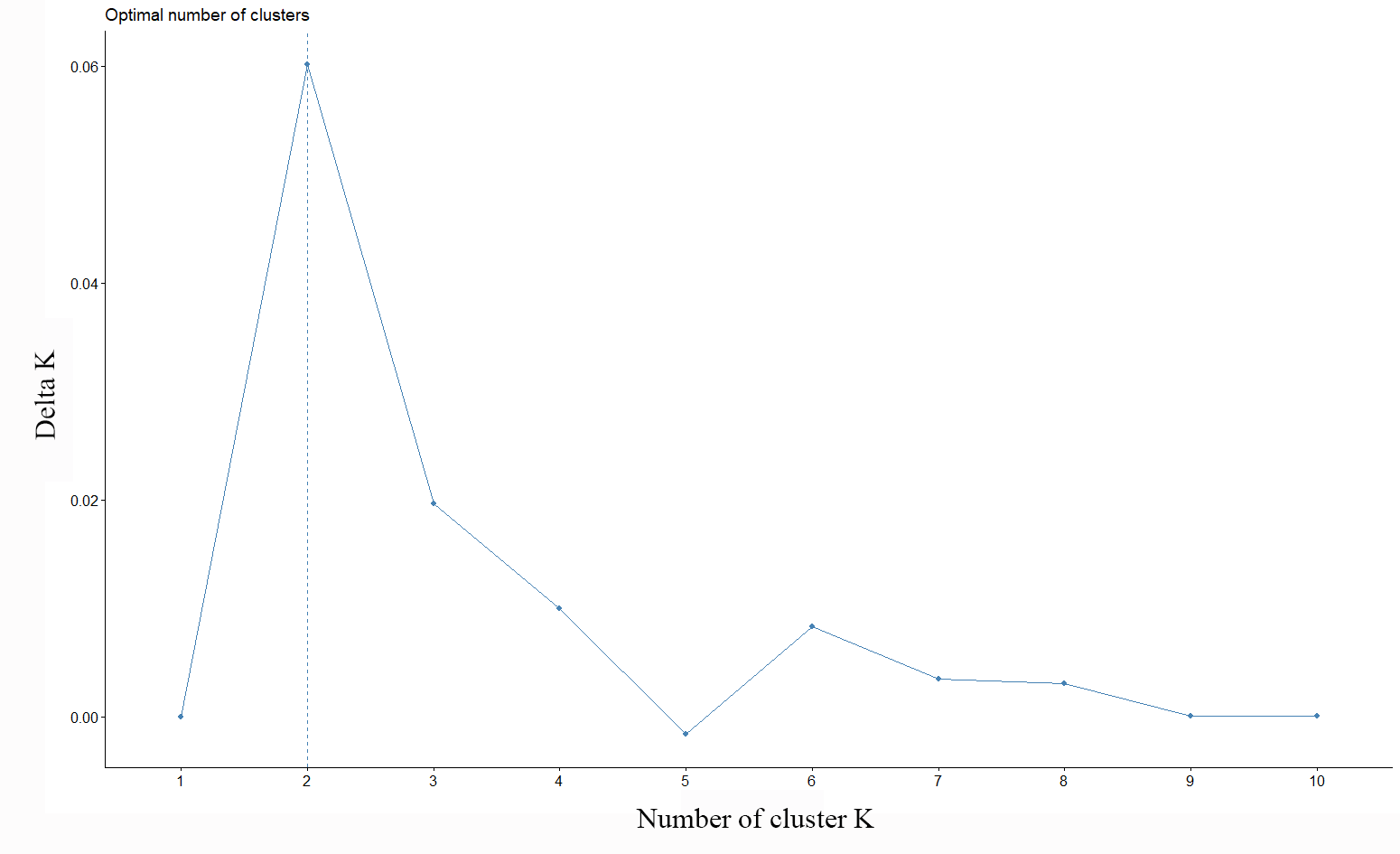

The ADMIXTURE in the LEA analysis showed no genetic structure in the K = 2, K = 3, K = 4 bar plots. This result was similar to that observed in STRUCTURE, where K = 2 best represented the biological analysis (Fig. S1) of the genetic structure of the evaluated populations (Fig. 3). Through the fixation index (F_st), it was observed that G. monodon presented a low genetic differentiation between the different populations and localities (F_st = 0.0026). This result was verified through the pair test between the different populations (Table 2), where the greatest genetic divergence was observed between the localities of Constitución-Concepción and Marcona, with a F_st of 0.0109 and 0.0179, respectively. Consistently, a low dispersion potential was recorded in the comparisons Marcona ^x Constitución (22.64) and Marcona ^x Concepción (13.74) (Table 2).

Discussion

The HCE is characterized by its environmental mosaics of contrasting physical-chemical factors (e.g., temperature, nutrients, upwelling) and biogeographic breaks or environmental barriers along a latitudinal gradient; all of these features consequently influence the structure, composition, and genetic diversity of marine organisms (McClain & Hardy, 2010; Sánchez et al., 2011; Heads, 2015; Berend, Haynes & MacKenzie, 2019). The great variability in habitat conditions modulates the gene flow in species with wide biogeographic distributions, as reported in G. monodon (Yapur-Pancorvo et al., 2023) and also in the marine invertebrates: Liocarcinus depurator (Ojeda et al., 2022), Tegula atra, Scurria scurra, Emerita analoga, and Heliaster helianthus (Haye et al., 2014), fish: Xiphias gladius (Lu et al., 2016; Grewe et al., 2020), and algae: Macrocystis pyrifera (Iha et al., 2023). All of the aforementioned marine organisms have a complex life cycle characterized by a pelagic larval phase with the dispersal potential to colonize new habitats and/or allow flow between populations. In this context of connectivity and structure, some studies in the HCE indicate that a strong signal of genetic structure in many marine species may be influenced by the presence of biogeographic breaks (e.g., off the coast of Chile at 30°S) where important oceanographic and physical changes have been reported as upwelling areas, thermal discontinuities, scarce to narrow continental shelf (Deville et al., 2021). The presence of a notable genetic structure occurs mainly in species that present low dispersal potential, as reported by Haye et al. (2014), who indicated that low genetic diversity is linked to the effects of genetic drift of species (Kelly & Palumbi, 2010).

The study of genetic diversity is important for the development of strategic plans to manage and conserve important marine species (Oñate, 2012). For example, identifying the heterozygosity index is important to assess population variation at the genetic level, and the observed heterozygosity is often influenced by sample size (Qin, Shi & Sun, 2013; Duan et al., 2022). In populations of G. monodon, no variation in genetic diversity was detected across the study range based on any of the diversity indices. Allelic richness is considered a good indicator of genetic diversity compared to heterozygosity, as well as being considered an important indicator of selection potential (Greenbaum et al., 2014). The generally high allelic richness observed in most populations provides no clear evidence of inbreeding in southern populations, contrary to previous assumptions based on the strong exploitation of other marine resources (Pinsky & Palumbi, 2014; Sadler, Watts & Uusi-Heikkilä, 2023).

Despite evidence of overexploitation of G. monodon, which led to the collapse of the benthic population in the Southern Fishing Unit (SFU) (Yapur-Pancorvo et al., 2023; Barros et al., 2024), our data do not provide conclusive evidence for a reduction in genetic diversity or an increase in inbreeding in southern populations. This may be explained by the implementation of fishing bans along the Chilean coast (Queirolo et al., 2015) and/or by extensive population mixing driven by high levels of gene flow. Moreover, based on multiple analyses of genetic structure (e.g., STRUCTURE, DAPC, IBD), we detected low levels of differentiation among populations. This finding indicates the existence of one single genetic population, which is in accordance with the results of a mitochondrial analysis reported by Haye et al. (2010). Although the Principal Coordinate Analysis (PCoA) and the Discriminant Analysis of Principal Components (DAPC) revealed slight structuring—where the clustering of samples or individuals corresponded to their geographic distribution in the HCE (Barros, Alarcón & Arancibia, 2023)—this weak geographic signal may reflect isolation by distance, as confirmed by the Mantel test. The overall lack of strong genetic structure, indicative of high gene flow, could explain the similar levels of genetic diversity observed in G. monodon along the Peruvian and Chilean coasts.

Given the lack of population genetic structure found for the species, which has been also reported by Haye et al. (2010), it remains unclear how the marked morphological differences between morphotypes are maintained despite high levels of gene flow. Haye et al. (2010) proposed that the variability in the morphology of G. monodon could be explained by phenotypic plasticity as a response to the environmental conditions that predominate during its early ontogeny. In this context, adult G. monodon have different lifestyles and/or morphotypes (pelagic vs. benthic) throughout their latitudinal distribution range in the HCE, probably due to the variability of the environmental conditions and geomorphological characteristics of the habitat, such as the presence of the continental shelf (Deville et al., 2021). Therefore, the absence of a distinct genetic structure for the two morphotypes is due to the high dispersal potential of their pelagic larvae, which converge as a development trait of early ontogeny for both morphotypes and/or lifestyles of this species. This pelagic larval phase of G. monodon lasts ca. 90 days in the water column (Fagetti & Campodonico, 1971; Yannicelli et al., 2013; Á Urzúa, pers. obs., 2015), a period which most likely allows connectivity to be maintained between the two populations along the latitudinal gradient. In turn, the high larval dispersal potential presented by G. monodon is not limited by the large biogeographic break that occurs at 30°S or by important environmental barriers, such as upwellings that vary in intensity off the coasts of Peru, northern and south-central Chile (Montecino & Lange, 2009; Deville et al., 2021), as has been observed in other crustaceans such as Metacarcinus edwarsii (Veliz et al., 2022).

On the other hand, the clustering of the G. monodon populations in our results reflects their geographic distribution, suggesting some role of geographic distance as was observed in genus Munida (Wang & Bradburd, 2014; Yan et al., 2020). This result was similar to the one observed for the species Stichaster striatrus, which has also shown a high potential for larval dispersal, a degree of isolation by distance, and a weak genetic structuring (Haye et al., 2014). The genetic differentiation presented by the red squat lobster, mainly due to the geographic distance between the most extreme study locations (Chimbote (9°S) vs. Concepción (36°S), with an approximate distance of 3,500 km between them), could indicate the presence of a slight genetic heterogeneity in this species in relation to its geographic distribution, similar to that reported by Ellis et al. (2017) in the lobster Homarus gammarus. This species of lobster, like the red squat lobster G. monodon, shares attributes of commercial importance, overexploitation by fisheries and a wide distribution (Hinchcliffe et al., 2022; Jurrius & Rozemeijer, 2022). In agreement with the above, and particularly with the high genetic flow that G. monodon has presented, our findings suggest that the pattern observed for the red squat lobster fits the stepping-stone model (Kimura & Weiss, 1964) that is influenced by the Humboldt Current from 42°S northwards.

The importance of exploring genetic diversity and structuring lies in determining whether any adaptive process is being generated in response to important environmental changes (Harvey et al., 2014; Chung et al., 2023). Genetic diversity increases chances of survival and of obtaining new phenotypic traits to face changes in environmental or anthropic factors (Alcala et al., 2013), such as the two morphotypes or phenotypes that G. monodon presents in the HCE. During closed season this resource may be able to migrate from north to south thanks to its high genetic variability, which is consistent with the high gene flow between Huacho and Pisco (Nm = 1,627 ind/gen). In this sense, a high gene flow between individuals of the pelagic vs. benthic morphotypes was also revealed between the locality of Pisco, Constitución (Nm = 241 ind/gen) and Concepción (Nm =1 39 ind/gen); In addition, the gene flow between benthic individuals from the locations of Constitución and Concepción was high, with an infinite value of genetic flow. A similar response has been described for other species of decapods with a wide distribution range in temperate and cold coastal regions (Hudson, Slatkin & Maddison, 1992; Yuan et al., 2010).

In turn, the migratory behavior of G. monodon can help to recover its population stock and maintain ecosystem balance, particularly for the stability of marine food webs where it plays an important role in the transfer of energy in biogeochemical processes of benthic-pelagic coupling (Guzmán-Rivas et al., 2021). As revealed in this study, G. monodon presents a high resilience to negative impacts (natural or anthropogenic), a high genetic flow and low genetic structuring. All these characteristics could allow both pelagic and benthic morphotype individuals to be maintained and bred under captive conditions. Thus, larval culture technologies could help repopulate this species by releasing captive-bred juveniles into geographic areas where a significant population decline has been reported due to overfishing.

Conclusions

Finally, according to the analyses carried out in this study using SNP markers, we can conclude that biogeographic barriers are not a limiting factor in the structuring and genetic diversity of the red squat lobster G. monodon. The life-history characteristics of this species (morphotypes: pelagic vs. benthic) in its adult stages did not represent genetic breaks, it could indicate that these morphotypes have not originated from neutral evolution and a lack of genetic flow. The most important trait that influences the low structuring and genetic variability could be the pelagic larval phase, which is present and converges in both morphotypes. These larvae remain in the plankton for a long time before their metamorphosis to the megalopa stage and subsequent first juvenile, which depending on their ability to settle on the bottom or swim in the open ocean could determine the type of lifestyle of the adults (benthic or pelagic, respectively).
