Phosphoproteomic insights into the regulation of root length in rice (Oryza sativa L. cv. KDML 105): uncovering key events and pathways involving phosphorylated proteins

Plant materials

Seeds of Thai jasmine rice cultivar Khao Dawk Mali 105 (Oryza sativa L. cv. KDML 105) were obtained from Rice Seed Division, Rice Department, The Ministry of Agriculture and Cooperatives, Thailand. The rice seeds were surface sterilized following modified protocols (Adams & Turner, 2010; Zhou et al., 2020a). Briefly, rice seeds were soaked in sterile deionized water for 30 min, immersed in 70% (v/v) ethanol for 3 min, and then 5% sodium hypochlorite (NaClO) for 10 min, followed by rinsing with sterile deionized water for ten times. Three cultivation systems were prepared in four replicates: (i) deep water culture (DWC; deionized water), (ii) water agar (WA; 0.3% (w/v) agar in deionized water), and (iii) vermiculite-based hydroponics (VBH; vermiculite immersed in deionized water). All cultivation systems were adjusted to pH 6 and placed in sterilized polyethylene containers (17 cm × 10 cm × 7 cm) with a medium depth of 6 cm. Following setup, 100 air-dried seeds were placed into each container. For DWC, seeds were placed on a floating plastic mesh sheet; while for WA and VBH, seeds were directly placed on the surface, as illustrated in Fig. 1. All containers were maintained under germination conditions at 30 °C, with photosynthetically active radiation (PAR) of 200 µmol.m².s⁻¹ under a 12-h light/dark cycle for 7 days. The experiment employed between-subjects design with each condition tested in four replicates using independent groups.

Phenotypic study

The roots of rice grown in three cultivation systems were evaluated for MRL and fresh biomass at the seventh day of germination. These measurements were obtained from 30 seedlings per system. MRL for each biological replicate was measured using a straightedge, while root fresh weight was determined following a surface-drying procedure with paper towels as described by Parmar et al. (2022).

Total protein extraction, phosphoprotein enrichment, and tryptic digestion

Seven days after germination, root samples from 50 rice seedlings per replicate were collected from each of three different cultivation systems, rinsed four times with sterile deionized water, and immediately ground in a sterile mortar with liquid nitrogen. Total protein extraction was performed following an improved TCA/acetone precipitation protocol (Niu et al., 2018). Briefly, 200 mg of fine root powder was vortexed with 0.5% SDS and incubated at room temperature for 30 min. After centrifugation at 12,000 g, 4 °C for 7 min, the supernatant was mixed with 20% TCA/acetone at 1:1 ratio (v/v) and incubated at –20 °C for 1 h prior to centrifugation at 12,000 g, 4 °C for 7 min. The resulting protein pellet was air-dried for 3 min before, resuspending in 100 µl of ultrapure water, and determined the concentration by Lowry method. The quality of protein samples was assessed by 12% SDS-PAGE (Fig. 1). Each protein sample was adjusted to a concentration of 10 mg/ml and then subjected to phosphoprotein enrichment using a Pierce™ Phosphoprotein Enrichment Kit (Thermo Fisher Scientific, Waltham, MA, USA). Reduction of disulfide bonds and alkylation of sulfhydryl groups of the enriched phosphoprotein were performed using 5 mM dithiothreitol and 15 mM iodoacetamide, respectively. The phosphoproteins were then digested with sequencing grade porcine trypsin (Promega, Madison, WI, USA) at 1:20 enzyme-to-substrate ratio and incubated at 37 °C for 16 h.

LC-MS/MS analysis

The tryptic phosphopeptides were injected into an Ultimate3000 Nano/Capillary LC System (Thermo Scientific, Waltham, MA, USA) coupled to a ZenoTOF 7600 mass spectrometer (SCIEX, Framingham, MA, USA). Briefly, 1 μl of phosphopeptides underwent enrichment on a µ-Precolumn (300 µm i.d. × 5 mm) packed with Pepmap 100 resin (5 µm, 100 A, Thermo Scientific, Waltham, MA, USA). Subsequent separation was carried out on a 75 μm I.D. × 15 cm Acclaim PepMap RSLC C18 (2 μm, 100 Å, nanoViper, Thermo Scientific, Waltham, MA, USA). The C18 column was housed in a thermostatted column oven maintained at 60 °C. The chromatographic separation employed solvent A (0.1% formic acid in water) and solvent B (0.1% formic acid in 80% acetonitrile) with a gradient elution of 5–55% solvent B over 30 min, at a constant flow rate of 0.30 μl/min.

On the ZenoTOF 7600 system, source and gas parameters were configured as follows: ion source gas 1 at 8 psi, curtain gas at 35 psi, CAD gas at 7 psi, source temperature at 200 °C with the polarity set to positive and a spray voltage of 3,300 V. Data-dependent acquisition (DDA) was employed, selecting the top 50 most abundant precursor ions per MS1 survey scan for MS/MS, with an intensity threshold of >150 cps. Precursor ions were dynamically excluded for 12 s following two MS/MS acquisitions, with dynamic collision energy enabled. MS2 spectra were collected in the range of 100–1,800 m/z, with a 50-ms accumulation time and the Zeno trap enabled. Collision energy parameters were set to a declustering potential of 80 V, with no DP spread and a CE spread of 0 V. Time bins were summed across all channels using a 150,000 cps Zeno trap threshold. The total cycle time for the Top 60 DDA method was 3 s.

Protein quantitation and identification

Protein quantitation for individual samples was carried out using MaxQuant 2.4.9.0, integrated with the Andromeda search engine (Tyanova, Temu & Cox, 2016a). MS/MS spectra were matched to the UniProt Oryza sativa database. Label-free quantitation was conducted following MaxQuant’s standard settings, including allowance for a maximum of two miss cleavages, a mass tolerance of 0.6 Dalton for main search, and trypsin as the digesting enzyme. Carbamidomethylation of cysteine was specified as a fixed modification, while oxidation of methionine and acetylation of the protein N-terminus were included as variable modifications. Peptide used for protein identification were required to be a minimum of 7 amino acids in length with at least one unique peptide. Proteins were required to be identified by at least two peptides, including one unique peptide. A 1% false discovery rate (FDR) was applied for protein identification, determined using reverse search sequences. The maximal number of modifications per peptide was set to 5. The Oryza sativa proteome downloaded from UniProt on 26 April 2023, served as the reference FASTA file with potential contaminants automatically included to the search space by the software. Log2 transformation of mass intensities was performed using Perseus version 1.6.6.0 (Tyanova et al., 2016b). Missing values were imputed with a constant value of zero. The MS/MS raw data and analysis are available in the ProteomeXchange Consortium via the jPOST partner repository: JPST002995 with dataset identifier PXD050876.

Different expressed phosphoproteins

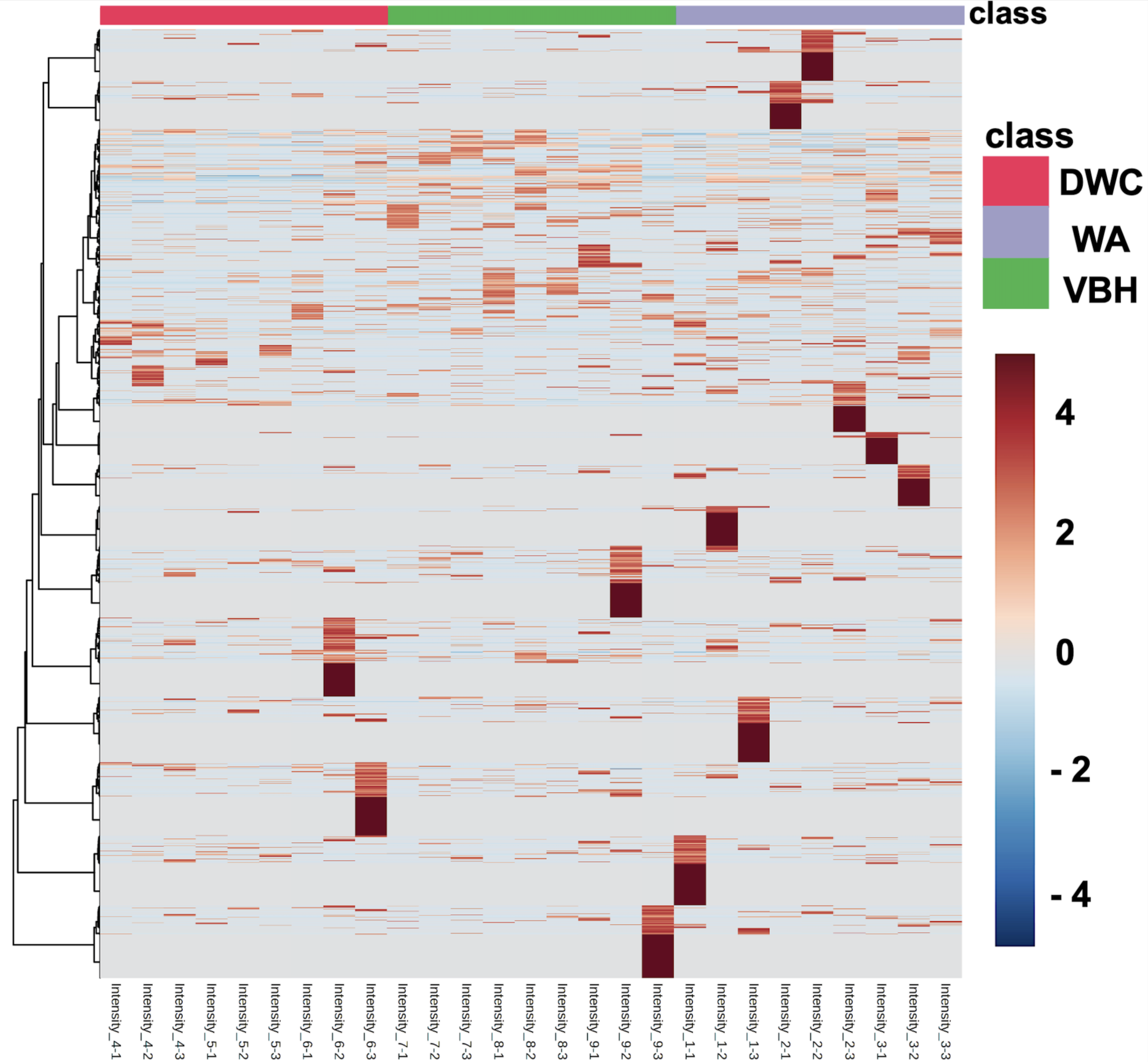

The visualization and statistical analyses in this study, including heatmap generation, principal component analysis (PCA), and variation analysis, were conducted using MetaboAnalyst version 6.0 (Pang et al., 2022). To improve data quality, features with a relative standard deviation (RSD) greater than 25% were excluded. Data normalization was carried out by applying a base-10 log-transformation. Differentially expressed phosphoproteins (DEPPs) were identified using analysis of variance (ANOVA), with a p-value threshold of 0.1. The normalized peak intensity of identified proteins is visualized by box-and-whisker plots.

Gene Ontology annotation and phosphorylation site prediction

Gene Ontology (GO) annotation was conducted by integrating data from the UniProt knowledgebase (https://www.UniProt.org/proteomes/) (UniProt Consortium, 2022), and Gene3D (http://www.cathdb.info) (Lewis et al., 2018). Phosphorylation site prediction was conducted using the online tool NetPhos version 3.1 (https://services.healthtech.dtu.dk/services/NetPhos-3.1/) (Blom et al., 2004).

Protein-protein interaction

Protein-protein and protein-ligand interactions of DEPPs were investigated using the STITCH version 5.0 (http://stitch.embl.de) (Szklarczyk et al., 2015). A medium confidence level was set with a minimum interaction score of 0.400. Additionally, the analysis was restricted to proteins identified in this study. The network edges represent interaction confidence levels.

Statistical analysis

The statistical analysis of germination data was performed using the R package germinationmetrics version 0.1.8 (Aravind et al., 2019), with three technical replicates, each consisting of 30 seeds. MRL and root fresh weight were analyzed using R version 4.3.2 (R Core Team, 2020). Variance analyses were conducted using one-way ANOVA with Tukey’s honestly significant difference (HSD) post hoc test with 30 biological replicates per treatment (n = 30).

Cultivation systems cause apparent variation in rice maximum root length

After the seventh day of germination, the results showed that the speed of germination was non-significantly accelerated under the water agar (WA) system compared to those of deep water culture (DWC) and vermiculite-based hydroponics (VBH) (Fig. 2A). The total number of germinated seeds did not show a notable difference between the cultivation systems (Fig. 2B). However, both root length (Fig. 2C) and root fresh weight (Fig. 2D) exhibited significant variation across the cultivation systems. Among them, rice seedling grown in the VBH system produced the longest roots and highest fresh underground biomass, followed by the WA system (Fig. 2E).

Cultivation systems induce significant differences in the phosphoprotein profiles of roots

To examine the global phosphorylation dynamics associated with the MRL trait, total proteins were isolated from roots grown in the DWC, WA, and VBH cultivation systems. Label-free quantification using LC-MS/MS identified a total of 18,423 phosphoproteins from roots across the three systems (Table S1). After data normalization, 13,255 proteins (Table S2) were submitted for further analysis. Significant differences in phosphoprotein profiles among DWC, WA, and VBH systems were revealed through heatmap analysis (Fig. S1). Partial least squares-discriminant analysis (PLS-DA) classified the phosphoprotein profiles into three distinct groups along the directory of component 1 (Fig. 3).

Analysis of differentially expressed phosphoproteins and Gene Ontology

In this study, roots obtained from both WA and VBH systems exhibited a significantly longer MRL compared to that of DWC. To identify DEPPs, a comparative analysis was conducted using ANOVA with a p-value threshold of 0.1. The results revealed that five out of the 13,255 identified phosphoproteins exhibited significant changes in abundance across the different cultivation systems (Fig. 4). The peak intensities of Q8L4D3 (heat shock protein 40/DnaJ), Q2R0A3 (leucine-rich repeat family protein/LRR), and Q5SN55 (DUF6598 domain-containing protein) were significantly elevated in roots from both WA and VBH systems. In contrast, the peak intensity of Q0D6I4 (RNA polymerase-associated protein C-terminal repeat protein 9/Crt9) and Q8H5D5 (uncharacterized protein) were notably higher in roots from VBH system (Fig. 5, Table S3).

GO investigation (Table 1) showed that Q0D6I4, Q8L4D3, and Q2R0A3 were associated with the paf1 complex (GO:0016593), the cytosol (GO:0005829), and the plasma membrane (GO:0005886). These proteins are involved in transcription elongation by RNA polymerase II (GO:0006368), protein metabolism (GO:0019538), and the plant-type hypersensitive response (GO:0009626), respectively. However, the other two DEPPs have yet to be annotated. All five proteins were predicted to contain phosphorylation sites using NetPhos.

Protein-protein interaction analysis of DEPPs

To explore the critical biological processes involved with the potential MRL regulatory phosphoproteins identified in this study, a protein-protein interaction analysis was performed using STITCH. While no information was retrieved for Q5SN55 and Q8H5D5 from the Oryza sativa japonica protein database in STITCH (Table S4), three phosphoproteins Q0D6I4 (RNA polymerase-associated protein C-terminal repeat protein 9/Crt9), Q8L4D3 (heat shock protein 40/DnaJ), and Q2R0A3 (leucine rich repeat family protein/LRR) were found to be part of a network involving key root growth hormones, including abscisic acid (ABA), auxin (AUX), cytokinin (CK), ethylene (ETH), and gibberellin (GA). This interaction network also encompassed several biochemical components, such as adenosine triphosphate (MgATP), adenosine diphosphate (MgADP), cyclic guanosine monophosphate (cGMP), and cyclic adenosine monophosphate (cAMP), as well as enzyme like nitrilase (NIT) and aldehyde dehydrogenase (ALDH), as illustrated in Fig. 6. This network highlights the potential integration of hormonal signaling and metabolic pathways in regulating MRL in rice.

The MRL trait is highly responsive to phosphorylation events

In this study, although no significant effects on germination were observed, the rice root length trait exhibited notable differences across cultivation systems. This highlights the sensitivity of rice maximum root length (MRL) trait to environmental variation. Specifically, vermiculite-based hydroponics (VBH) proved to be the most beneficial condition for the MRL trait, followed by water agar (WA), while deep water culture (DWC) being the least advantageous. Previous analyses have identified distinct environmental conditions for each system: the DWC system increases humidity (Zhang et al., 2001), the WA system reduces oxygen availability (Wu et al., 2017), and the VBH system alters the pressure of the growth matrix (Qin et al., 2022b). Despite the absence of a thorough comparative analysis of the physical attributes of these cultivation systems, the VBH system stands out due to its significant light blockage, resulting in a considerably darker growth environment. It has been demonstrated that darkness enhances MRL in rice by modulating the auxin (AUX) signaling pathway, a process regulated by protein phosphorylation (Wang, Ho & Chen, 2011; Sassi et al., 2012; Ki, Sasayama & Cho, 2016). These findings highlight the role of protein phosphorylation in regulating root growth and may provide an explanation for the enhanced MRL observed in the VBH system. The considerable variation in MRL phenotype across different cultivation systems underscores the importance of considering the influence of cultivation conditions in future studies on rice root structure and development.

Furthermore, PCA analysis categorizes the phosphoprotein profiles of roots from different systems into three distinct groups, thereby revealing the differences in protein phosphorylation patterns among these systems (Fig. 3). These differences suggest that variations in factors such as light, humidity, and oxygen content within cultivation systems may significantly influence the phosphoprotein profiles of rice roots. However, these variations in the systems induced only minimal changes in the abundance of phosphoproteins, with just five showing significant alterations (Fig. 4). This underscores the strong responsiveness of the rice MRL trait to fluctuations in phosphorylation events, aligning with previous phosphoproteomic studies on root traits in Arabidopsis, which have demonstrated that even minor phosphorylation changes can significantly alter root traits (Zhang et al., 2013; D’Alessandro et al., 2019). This sensitivity indicates the potential to modulate MRL traits in rice through precise control of phosphorylation pathways.

Phosphorylated leucine-rich repeat protein positively regulates the MRL trait

Plant disease resistance (R) family proteins play a crucial role in both plant defense and environmental adaptation. In particular, nucleotide-binding leucine-rich repeat (NB-LRR) type R proteins possess an LRR domain that detects extracellular biotic and abiotic signals, while the NB domain triggers immune responses, including programmed cell death (PCD), after binding to ATP or GTP (Rairdan et al., 2008; Yang et al., 2022; Hussain et al., 2024). To prevent the activation of unnecessary defense responses, NB-LRR proteins are regulated by a conserved nucleotide-binding APAF-1, various R-proteins and CED-4 (NB-ARC) domain (Okuyama et al., 2011). Disturbance of the auto-inhibition function of the NB-ARC domain within a coiled-coil (CC)-NB-LRR protein impeded root elongation in rice (Yu et al., 2018). In the present study, a CC-NB-LRR protein Q2R0A3 was found to be highly abundant in the roots grown in both WA and VBH systems (Fig. 5), which exhibited longer MRL. This suggests that the observed phosphorylation event has no impact to the auto-inhibition of the LRR protein. The identified CC-NB-LRR protein appears to influence the MRL trait through a different mechanism rather than triggering the innate immunity responses. However, further investigations of the protein functions and their associations with root growth should be conducted to evidently prove that protein phosphorylation plays an important role in the MRL trait of rice plants.

The phytohormone ABA plays a significant role in the environmental adaptation of plants. Early investigations have shown that the expression of NB-LRR proteins responds to environmental stimuli (Ariga et al., 2017). Artificially enhancing NB-LRR protein expression elevated both the synthesis and the sensitivity of ABA (Xun et al., 2019; Li et al., 2024). Based on our results, the phosphorylated CC-NB-LRR protein may promote rice MRL by improving the roots’ ability to sense environmental factors together with the phytohormone ABA acting as a signaling molecule to initiate downstream adaptation responses. This includes the biosynthesis of glycine betaine and AUX, driven by the predicted network partners, aldehyde dehydrogenase (ALDH) and nitrilase (NIT) (Fig. 6) (Ishitani et al., 1995; Rahman, Miyake & Takeoka, 2002; Niu et al., 2014; Man, 2016; Lehmann et al., 2017).

Phosphorylated heat shock protein benefits the MRL trait by optimizing hormonal crosstalk

Phytohormones are small organic compounds that regulate physiological responses and gene expression in a dose-dependent manner (Li et al., 2015b). Their complex interactions and integrated signaling networks enable effective coordination of plant growth and adaptation. ABA, AUX, CK, ETH, and GA are key phytohormones that influence the rice MRL trait. Individually, exogenous ABA promotes root length by inducing expansion in the root tip cells (Chen et al., 2006). AUX increases the root elongation zone (Qi et al., 2012), while GA supports both root cell elongation and division (Sauter & Kende, 1992). Conversely, CK inhibits root length by reducing the size of meristem (Wang et al., 2020), and ETH decreases cell wall plasticity (Zhou et al., 2024). However, the roles of these phytohormones in regulating the rice MRL trait are governed by a complex network. Although both ABA and AUX generally promote root elongation, high amount of ABA also enhance AUX synthesis and accumulation, which eventually inhibits rice MRL (Yin et al., 2011; Qin et al., 2023). Additionally, the inhibitory effect of ETH on the MRL requires cooperation with ABA and AUX (Ma et al., 2014; Huang et al., 2022), while CK primarily exerts its inhibitory effect by increasing ETH levels (Zou et al., 2018). In this intricate network, GA plays a significant role in counteracting the inhibitory effects of ethylene and CK on the rice MRL trait (Zhou et al., 2020b; Qin et al., 2022a).

In this study, the abundance of phosphorylated Q8L4D3 is positively associated with the MRL phenotype in rice, particularly in the roots from WA and VBH cultivation systems (Fig. 5). Q8L4D3 is a DnaJ protein (heat shock protein 40, Hsp40) characterized by its J-domain, which interacts with DnaK (Hsp70) chaperones to regulate protein folding by stimulating the ATPase activity of DnaK (Walsh et al., 2004). The expression levels of DnaJ and DnaK respond to the environmental stimuli (Zhou et al., 2023). Enhancing the expression of DnaJ proteins markedly increased MRL in Arabidopsis and Medicago sativa L. under stress conditions (Zhichang et al., 2010; Liu et al., 2023). In rice, both morphological development and environmental adaptation are positively associated with DnaJ expression, likely due to its regulatory role in the crosstalk between AUX, CK, and GA (Wang et al., 2019, 2022). Similar results have been observed in Arabidopsis and yeast (Fliss et al., 1999; Bekh-Ochir et al., 2013), highlighting the conserved role of DnaJ in growth regulation through mediate hormonal signaling. From protein-protein interaction analysis (Fig. 6), nitrilase (NIT) and cGMP were identified as key partners that influence root growth by modulating AUX signaling (Nan et al., 2014; Lehmann et al., 2017). Furthermore, the activities of DnaJ and DnaK are regulated by phosphorylation (Kostenko, Jensen & Moens, 2014; Zheng et al., 2016). Hence, Q8L4D3 may enhance rice MRL by optimizing the balance of AUX, CK, and GA signaling pathways (Fig. 7).

Phosphorylated RNA polymerase-associated protein Ctr9 promotes MRL trait

The polymerase-associated factor 1 complex (Paf1C) is composed of Cdc73, Ctr9, Leo1, Paf1, and Rtf1 (Chen et al., 2022a). This complex plays a vital role in regulating RNA polymerase II (Pol II)-mediated transcription by influencing histone modifications such as methylation, ubiquitination, and phosphorylation, thereby affecting chromatin structure and gene expression (Wier et al., 2013; Strikoudis et al., 2017; Ropa et al., 2018; Hou et al., 2019). In this study, the Paf1C component Ctr9 (Q0D6I4) was abundantly identified, particularly in root growth under VBH cultivation system (Fig. 5). Ctr9 is essential for morphological development (Shiraya et al., 2008; Ouna et al., 2012), potentially due to its regulatory role in the H3 lysine 4 trimethylation (H3K4me3) (Chaturvedi et al., 2016; Oh & Lee, 2016). A positive correlation between Ctr9 and H3K4me3 has been established (Bahrampour & Thor, 2016). The effects of H3K4me3 on plant growth and adaptation have been extensively studied by Foroozani, Vandal & Smith (2021). In Arabidopsis, H3K4me3 showed a positive correlation with MRL trait (Yao et al., 2013). Although phosphorylation has been shown to significantly affect the H3K4me3 histone modification (Andrews et al., 2016; Harris et al., 2023), a direct link between phosphorylated Ctr9 and H3K4me3 remains to be established.

Additionally, the protein network enrichment analysis of this study revealed a direct association between cAMP, cGMP, and Ctr9 (Fig. 6). Previous studies demonstrated that both cAMP and cGMP facilitate root growth by influencing hormonal signaling pathways, a process supported by phosphorylation (Isner, Nühse & Maathuis, 2012; Domingo et al., 2024). Specifically, cAMP promotes root growth via an ABA-dependent mechanism that upregulates defense proteins involved in the adaptive response, including those related to GA synthesis (Uematsu et al., 2007; Zhao et al., 2021; Wang et al., 2024). Conversely, cGMP modulates root growth by affecting AUX signaling through cGMP-dependent protein kinase (PKG) (Nan et al., 2014). Furthermore, the metabolism of phenylpropanoid-chemical components that enhances root elongation-is regulated by both cAMP and cGMP (Pietrowska-Borek & Nuc, 2013; Thwe et al., 2016). Based on these early findings, it can be hypothesized that the positive correlation between phosphorylated Ctr9 and the rice MRL trait may result from modulation of H3K4me3, hormone signaling (AUX and GA), and phenylpropanoid, as illustrated in Fig. 7. However, further investigation into the relationships among phosphorylated Ctr9, cAMP, and cGMP is needed.
