Transcriptomic and coexpression network analyses revealed the regulatory mechanism of Cydia pomonella infestation on the synthesis of phytohormones in walnut husks

Introduction

Walnut (Juglans regia) belongs to the Juglandaceae family and is a perennial deciduous tree that is widely distributed worldwide and is rich in nutrients such as fat, protein and phenolic substances (Moser, 2012; Leslie et al., 2015). According to statistics from 2018, the walnut cultivation area in China is approximately 487,000 ha, and the area cultivated in the Xinjiang Uyghur Autonomous Region accounts for nearly three-quarters of the total walnut cultivation area. However, the total production of walnuts in China is 1,785,000 t, which is 47.65% of the total global production. The Xinjiang Uygur Autonomous Region accounts for approximately 40% of the walnuts produced nationwide (Ma et al., 2019). However, the damage caused by insects to walnut production and quality has declined significantly in the Xinjiang Uyghur Autonomous Region.

The codling moth (Cydia pomonella) is a pest of pome fruit (apples and pears) worldwide and is highly destructive, adaptable, and stress resistant with high fecundity (Chen & Dorn, 2010). Notably, from 2016–2017, due to the C. pomonella outbreak in the apple orchards of Hotan Xinjiang, many apple trees were cut down, resulting in a lack of hosts. In 2018, it was discovered that there were many fallen fruits in the walnut orchards during the fruit maturity period. After quarantine, the insect pest responsible was found to be C. pomonella. For the first time, we discovered C. pomonella infestations in walnuts and an outbreak in Hotan, Xinjiang. This resulted in a 20–39% loss in walnut production, which has significantly limited the development of the walnut industry in Xinjiang (Cao, Ye & Adil, 2023). Walnut fruit is damaged by the larvae of C. pomonella, resulting in browning around the damaged area, as well as fruit rot and dropping (Wang et al., 2019b). At present, chemical control of C. pomonella (via chemical pesticides) is the main method used in pome fruit production. Although chemical pesticides have been used to control C. pomonella, they have not had marked effects. Chemical pesticides have been used to control C. pomonella Moreover, the use of chemical pesticides also causes environmental pollution (Ju et al., 2021). The breeding of resistant walnut plant cultivars is a good strategy for combating pest infestations, but the molecular mechanisms involved in the defence of walnut plants against C. pomonella damage are still unclear.

In nature, plants are constantly challenged by a variety of insects, including members of Coleoptera, Lepidoptera, and Hymenoptera. To survive or fend off attacks, plants have evolved many defence systems to resist insect attacks during long-term plant–insect interactions (Acevedo et al., 2015). The direct defence system of plants inhibits insect feeding by producing toxic compounds (Chen, 2008; Howe & Jander, 2008). For example, flavonoids are induced in poplar (Populus) in response to gypsy moth larval (Lymantria dispar) herbivory, which affects the duration of the developmental period and the survival rate of gypsy moth larvae (Wang et al., 2019c). Furthermore, flavonoids in ginkgo leaves have negative anti-herbivory effects on the fall webworm (Hyphantria cunea) (Pan et al., 2016). Our previous study revealed that the flavonoid content in walnut fruit increased after C. pomonella infestation, indicating that flavonoids may be involved in the defence of walnut plants against C. pomonella (Cao, Ye & Adil, 2023). The defence system of plants is mediated by phytohormones, including but not limited to jasmonate (JA), salicylic acid (SA), and abscisic acid (ABA) signalling (Tzin et al., 2015; Thaler, Humphrey & Whiteman, 2012). Plant receptors recognize insect feeding via elicitors, which may originate from insect saliva or even be products of endosymbiotic bacteria (Chaudhary et al., 2014; Jiang et al., 2019). Upon insect infection, a series of defence responses occur through the recognition of insect elicitors, in which calcium- and ROS-related signalling plays an important role in triggering the activation of defence pathways such as the JA, SA, and ABA pathways. However, the accumulation of JA, SA and ABA plays an important role in regulating plant-induced resistance to insects (Kerchev et al., 2012; Qiao et al., 2023; Wang et al., 2019a; Kawazu et al., 2012).

The JA signalling pathway is involved mainly in plant defence against herbivorous insects and some pathogens (Howe & Jander, 2008; Fürstenberg-Hägg, Zagrobelny & Bak, 2013; Machado et al., 2016). In plant defence responses, the importance of JA signalling has been demonstrated, and a lack of JA biosynthesis or signalling results in severely hindered defence responses (Kessler, Halitschke & Baldwin, 2004; Wang et al., 2008). At the transcriptional level, transcriptional reprogramming due to mechanical damage or herbivory involves JA-signalling mediated (Reymond et al., 2004). For example, the defence response related to the JA signalling pathway is induced by insect infestation in maize and rice (Qi et al., 2018). Among them, the core components of the JA signalling pathway include mainly LOX, AOS, OPR, JAZ, etc., and the transcription factors downstream of JAZ, such as MYCs (Griffiths, 2020). In addition to MYCs, many transcription factors, such as ORA59, ERF1, bHLH3/13/14/17, and JAM1/2/3, have been identified as key regulators of JA-mediated defence responses, (Zhu et al., 2011; Mao et al., 2016; Song et al., 2013; Sasaki-Sekimoto et al., 2013). Salicylic acid (SA) plays an important role in plant innate immunity, and its synthesis occurs via the isochorismate and phenylalanine ammonia-lyase pathways in plants (Chen et al., 2009; Dempsey et al., 2011). The SA signalling pathway is commonly involved in plant defence against piercing-sucking insects and saprophytic pathogens (Pieterse et al., 2012). For example, SA-induced defence responses are effective against sedentary sucking insects, such as aphids (Zhang, Xue & Zhao, 2015). Furthermore, some insects carry viruses or microorganisms that can trigger SA accumulation. Tomato spotted wilt virus transmitted by thrips feeding increases SA concentrations in Arabidopsis, leading to enhanced production performance and a preference of thrips for infected plants (Abe et al., 2012). Flagellin from Pseudomonas sp., present in the mouth of L. decemlineata, can induce SA accumulation in tomato leaves after feeding, thereby inhibiting JA-dependent defences, such as protease inhibitors and polyphenol oxidase, as well as herbivory-induced resistance (Chung et al., 2013). Plants synthesize ABA via the carotenoid pathway (Arc et al., 2013). The dynamics, signal transduction and function of abscisic acid in plants were discussed and reviewed in detail by Chen et al. (2020). At present, the biosynthesis of ABA has been extensively studied in Arabidopsis. The ABA signalling pathway is generally involved in the defence of plants against leaf-chewing herbivores such as caterpillars (Chen et al., 2020; Fernández de Bobadilla et al., 2022). ABA deficiency increases plant susceptibility to herbivory (Dinh, Baldwin & Galis, 2013). In addition, ABA is involved in signalling processes that induce JA-dependent defence responses in systemic tissues (Vos et al., 2013). ABA induces the expression of COI-dependent MYCs, which induce plant resistance to insects by regulating many wound/herbivory response genes, such as VSPs, LOXs, and glucosinolate biosynthesis genes (Schweizer et al., 2013). However, although phytohormone-mediated signalling pathways have been extensively studied in plant defence against herbivorous insects, phytohormone-mediated responses to C. pomonella damage in walnut husks are still unclear. Analysis of this mechanism is crucial for formulating effective prevention and control strategies, and more targeted exploration is needed.

The walnut variety Zha 343 is characterized by vigorous growth and high, stable yield. It is also the main variety grown in Hotan, Xinjiang. C. pomonella is a major quarantine pest in China. In the present study, we investigated the effects of walnut husks on the growth and development of C. pomonella larvae. Furthermore, we clarified the changes in the levels of major defence-related phytohormones (ABA, SA, JA, JA-Ile, Ja-Val and MeJA) in walnut husk at different time points (0, 12, 24, 36, 48 and 72 h) after C. pomonella infection. Afterwards, based on the walnut husk transcriptomic data, we systematically analysed the DEGs and the changes in the expression of genes related to phytohormone biosynthesis and signal transduction at different time points after C. pomonella infestation, and analysed the expression patterns of key genes in the flavonoid pathway. Finally, three gene regulatory networks closely related to changes in phytohormone content were constructed through WGCNA, and several key hub genes were identified. The results provide new insights into the study of insect resistance in walnut fruit and lay the foundation for the elucidation of defence mechanisms and the breeding of new insect-resistant walnut varieties.

Materials and Methods

Quantitative study of phytohormones

The quantification of abscisic acid (ABA), salicylic acid (SA), jasmonic acid (JA), JA-isoleucine conjugate (JA-Ile), methyl jasmonate (MeJA) and jasmonic acid-valine (JA-Val) from walnut husks was performed via high-performance liquid chromatography (HPLC) mass spectrometry (Pan, Welti & Wang, 2010). The determination of phytohormone levels was carried out via MetWare (http://www.metware.cn/) on the AB Sciex QTRAP 6500 LC‒MS/MS platform (https://sciex.com.cn/). Each treatment was replicated three times.

Results

Variation characteristics of phytohormone concentration

Since phytohormones are involved in plant defences against insect infestation, we tested the levels of several phytohormones during different periods. The trends of the SA, ABA, and MeJA levels initially increased but then subsequently decreased. The SA concentration peaked 24 h after C. pomonella infestation, and the levels of ABA and MeJA peaked 48 h after infestation (Figs. 1A, 1B, 1F). The concentrations of JA, JA-Ile, and JA-Val tended to increase within 72 h of infestation (Figs. 1C–1E).

Transcriptomic analysis of the response of walnut husks to C. pomonella feeding

Our LC‒MS/MS datasets reliably captured changes in phytohormones such as SA, ABA, and JA (Fig. 1). We next sought to analyse the effects of C. pomonella damage on walnut husk hormones at different times through transcriptome-based sequencing. A comparative analysis of the transcriptome of the walnut husks was performed at 0, 12, 24, 36, 48, and 72 h after infestation. The total number of clean reads in the RNA-seq library ranged from 41,402,492 to 48,358,932. After low-quality reads were removed, a total of 120.34 Gb of clean data was obtained for subsequent analysis. A total of 936 million reads were generated. Approximately 90% of the unique matches in the total number of clean reads matched the reference genome. The quality assessment of the transcriptome data revealed low error rates (0.03%), whereas the Q30 was very high (>91%) (Table S3).

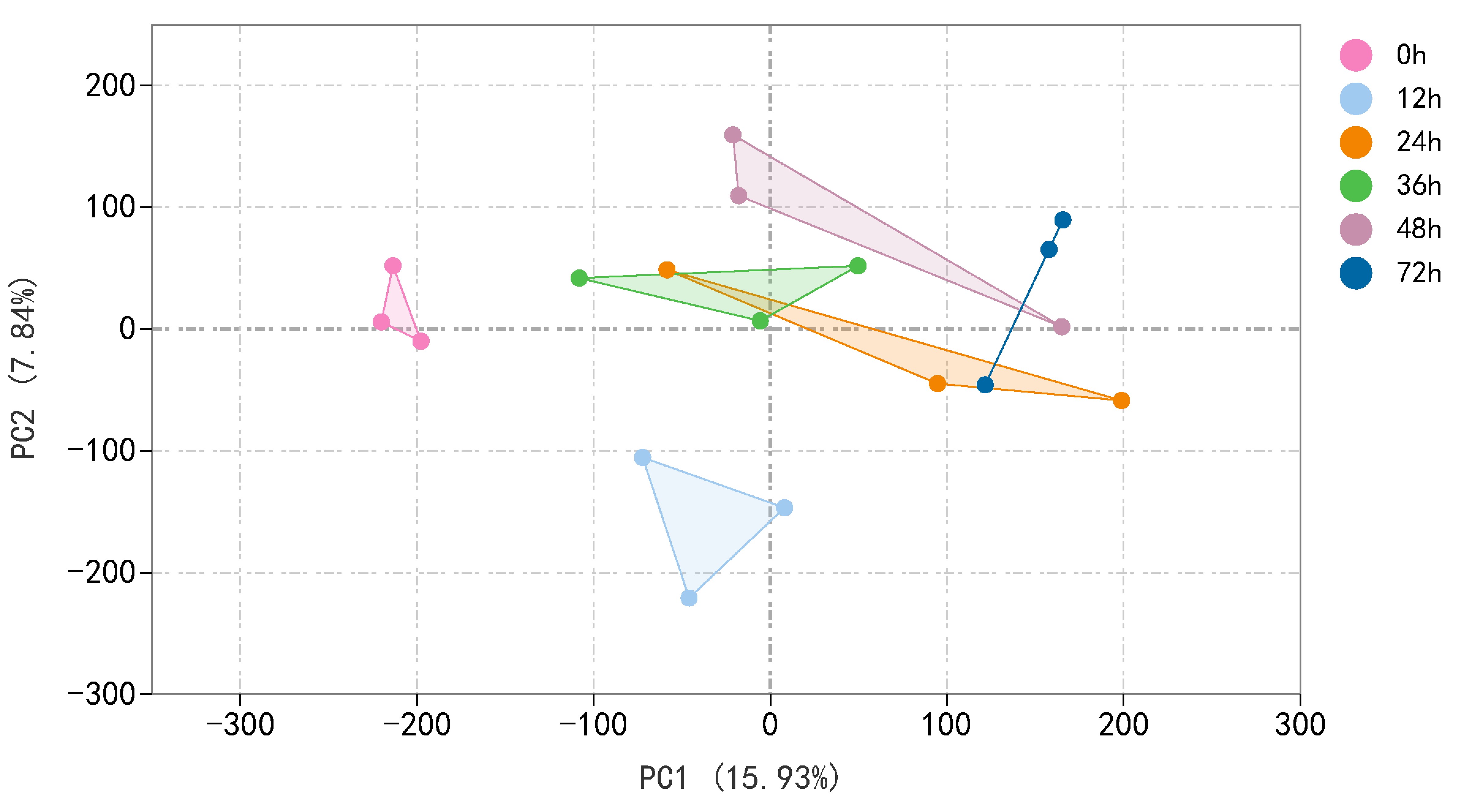

The transcript level was analysed via the fragments per kilobase of transcript per million mapped reads (FPKM) value, and a total of 31,124 gene transcripts were detected in all the samples (Table S4). Gene expression levels for each replicate were assessed via principal component analysis (PCA) (Fig. S2). Using an absolute value of log2 (fold change) ≥1 and a FDR < 0.05 as the screening conditions for DEGs, a total of 11,662 DEGs were screened and further analysed. There were 3,988 (2,533 upregulated, 1,455 downregulated), 4,510 (3,063 upregulated, 1,447 downregulated), 3,357 (2,069 upregulated, 1,288 downregulated), 2,911 (1,971 upregulated, 940 downregulated), and 5,929 (3,703 upregulated, 2,226 downregulated) DEGs for the 12, 24, 36, 48, and 72 h samples, respectively (Fig. 2A, Tables S5 and S6). The distributions of upregulated and downregulated DEGs at the five time points were calculated and plotted in a Venn diagram. The expression of 691 DEGs was upregulated at 12 h after larval infestation and then returned to normal, and the expression of the other 674 DEGs was upregulated at 72 h (Fig. 2B).

The DEGs from each time point were further analysed via KEGG enrichment analysis to uncover the major pathways (Table S7). With p <0.05 as the screening criterion, DEGs were screened at 12, 24, 36, 48, and 72 h after infestation, and the results revealed 21, 29, 24, 19, and 28 pathways, respectively, from the KEGG database. Among these significant pathways, the biosynthesis of secondary metabolites, metabolic pathways, alpha-linolenic acid metabolism, and phenylpropanoid biosynthesis were involved in the response of the walnut husk to C. pomonella at all time points after infestation (Fig. 2C). The top 10 most important pathways at each time point were further summarized, and two pathways, biosynthesis of secondary metabolites and metabolic pathways, had the most enriched genes (Fig. 2D).

Phytohormone and metabolite biosynthetic genes

Defence responses mediated by phytohormone signal transduction pathways play an important role in plant defence against herbivorous pests. Therefore, we further analysed the expression of key genes involved in the SA, ABA, and JA synthesis pathways. Phenylalanine ammonia lyase (PAL) is the major gene involved in the PAL pathway for SA biosynthesis. Five PAL genes were significantly upregulated. (Fig. 3A). Among the genes involved in ABA biosynthesis and signal transduction, the transcripts of zeaxanthin epoxidase (ZEP), xanthoxin dehydrogenase (ABA2), and the abscisic acid receptor PYL family (PYL) were significantly upregulated after C. pomonella feeding damage. Moreover, 9-cis-epoxytenoid dioxygenase (NCED) was significantly downregulated after C. pomonella feeding damage, whereas ABA-responsive element binding factor (ABF) was upregulated only at 36 and 48 h (Fig. 3B). Among the genes involved in JA biosynthesis and signal transduction, lipoxygenase (LOX), allene oxide synthase (AOS), allene oxide cyclase (AOC), 12-oxophytodienoate reductase (OPR), and the jasmonate-ZIM domain (JAZ) were significantly upregulated following C. pomonella infection. The transcription factor MYC2 is a global regulator of JA signalling (Ogawa et al., 2017); notably, only MYC2 (LOC108991342) was significantly upregulated at 72 h compared with 0 h, and the other transcription factor MYCs were significantly upregulated at 72 h after C. pomonella infestation (Fig. 3C). Studies on genes related to flavonoid biosynthesis have shown that the transcript levels of phenylalanine ammonia-lyase (PAL), trans-cinnamate 4-monooxygenase (CYP73A), 4-coumarate-CoA ligase (4CL), chalcone synthase (CHS), chalcone isomerase (CHI), flavanone 3-hydroxylase (F3H), anthocyanidin synthase (ANS), and leucoanthocyanidin reductase (LAR) are significantly upregulated in walnut husks following C. pomonella damage. Three of these genes were involved in the synthesis of coumaroyl-CoA (the initial metabolite of flavonoid biosynthesis), and five genes are involved in the biosynthesis of flavonoids (Fig. 3D).

Identification of gene coexpression modules via WGCNA

Weighted gene coexpression network analysis (WGCNA) is a method for identifying gene networks with related functions or traits and revealing putative hub genes with specific effects (Langfelder & Horvath, 2008). WGCNA was used to group genes sharing the same expression pattern. The 11,662 DEGs were clustered into 16 different modules (Fig. 4A, Table S8), and these modules are displayed in different colours. Using the levels of ABA, SA, JA, JA-Ile, JA-Val, and MeJA in the corresponding samples as the phenotypic data, the gene module–trait correlation was analysed, an intermodule correlation heatmap (Fig. 4B) was generated, and each branch of the tree corresponded to a group of highly related genes. There was a high degree of topological overlap among genes within the same module. The module that correlated strongly with ABA and MeJA was the green module (correlation value, cor = 0.61, p value = 0.0072), which contained 741 genes. The turquoise module was strongly correlated with SA (correlation value, cor = 0.58, p value = 0.012), which contained 2,440 genes. The module strongly correlated with JA, JA-Ile, and JA-Val was the magenta module (correlation value, cor = 0.60, p value = 0.0085); this module included 609 genes (Fig. 4C).

Analysis of the turquoise, green, and magenta modules

Moreover, the KEGG database was used to explore the main biological pathways associated with the turquoise, green, and magenta modules. The DEGs in the turquoise module were enriched mainly in metabolic pathways, biosynthesis of secondary metabolites, and the MAPK signalling pathway (Fig. 5A). The metabolic pathways, photosynthesis, and circadian rhythm-plant pathways were enriched mainly in the DEGs in the green module (Fig. 5B). The phytohormone signalling, ABC transporter, and alpha-linolenic acid metabolism pathways were enriched mainly in the DEGs in the magenta module (Fig. 5C). This finding is fundamentally consistent with the pathway enrichment of DEGs whose expression was upregulated. These findings indicate that these phytohormones may be involved in the walnut husk defence response against C. pomonella by regulating the expression of genes related to the abovementioned signalling pathways. Among these genes, 94 in the turquoise module were related to the MAPK signalling pathway, and 32 in the magenta module were related to the phytohormone signalling pathway. The genes related to these two pathways were further analysed, and the heatmap for the cluster analysis results revealed that in the turquoise module, in response to codling larval herbivory, the number of genes in the MAPK signalling pathway gradually increased, and the expression of these genes was upregulated at 24 h. These results suggest that the genes in the MAPK signalling pathway may play an important role in the regulatory network of SA biosynthesis (Fig. 5D, Table S9). In the magenta module, the genes related to the phytohormone signalling pathway were analysed, and the genes related to jasmonic acid signalling were significantly enriched after C. pomonella damage, during which the expression level continued to increase. These genes are involved in the JA pathway and may play an important role in the regulatory network (Fig. 5E, Table S10).

Identification of the hub genes of each module

Hub genes are highly connected nodes in expression networks and are involved in many biological processes and interactions (Zhang & Horvath, 2005). We screened the top 200 genes with the highest correlation in the module as hub genes. As integral players in plant growth, transcription factors (TFs) regulate many target genes, thereby affecting biological processes such as plant insect resistance. Then, 15, 21, and 18 hub transcription factors in the turquoise, magenta and green modules, respectively, were screened out, and the expression of the key transcription factors was analysed (Table S11). In the turquoise module, the expression of transcription factors, including AIL6 (LOC108979694), MYB4 (LOC108991021), PRE6 (LOC109019220), WRKY71 (LOC108990221), WRKY31 (LOC108984287), ERF003 (LOC109019370), and WRKY75 (LOC109003208), was the focus (Fig. 6A). The relative expression of these genes was significantly upregulated after C. pomonella infestation, and the range of upregulation levels was greatest at 24 h after infestation (Fig. 6B). In the green module, the transcription factors bHLH79 (LOC108990159), PCL1 (LOC109017731), APRR5 (LOC109007532), ABI5 (LOC108982947), and ILR3 (LOC109020090) were the focus of interest (Fig. 6D). According to the expression pattern, the expression level was significantly upregulated at 48 h after C. pomonella infestation (Fig. 6E). The transcription factors we focused on in the magenta module included ERF27 (LOC108998614), bHLH35 (LOC109013840), bHLH18 (LOC108988687), TIFY5A (LOC108990250), WRKY31 (LOC108980184), and MYB44 (LOC10899608) (Fig. 6G). Similar to the expression patterns of the TFs in the other two modules, the expression of the TFs of interest in the magenta module was significantly upregulated at 72 h after C. pomonella infestation (Fig. 6H). To visualize the reliability of the RNA-seq data, qRT‒PCR was used to analyse the expression levels of these 18 hub genes, and the correlation analysis of the RNA-seq and qRT‒PCR data showed that the R² for each module was greater than 0.90. These results indicated that the hub genes were reliable (Figs. 6C, 6F, 6I). Furthermore, on the basis of the expression patterns of these genes, these genes are considered key candidate genes for the response of walnut husks to C. pomonella feeding and for the regulation of walnut shell defence against C. pomonella infestations.

Discussion

C. pomonella is a major global pest of pome fruits (apples and pears) and walnuts (Schifani, Giannetti & Grasso, 2023). C. pomonella begins to damage walnut fruits during the fruit enlargement period (30 days after flowering) and continues to damage walnut fruit throughout its developmental stages. Currently, research on C. pomonella in walnut orchards has focused mainly on its biological characteristics, detoxification, and control (Curtiss et al., 2023; Piskorski & Dorn, 2011; Kadoić Balaško et al., 2020). However, there have been few reports on the defence adaptations of C. pomonella host plants and their response mechanisms. In this study, we analysed the transcriptome dynamics of the husks of the field-grown walnut Zha343 cultivar following C. pomonella attack. At present, no research has reported the transcriptomic response of walnut husk at different time points of C. pomonella infestation during the hardcore stage of walnut fruits. In the present study, transcriptome analysis elucidated the response of walnut husk to C. pomonella infestation.

Phytohormones participate not only in the growth and development of plants but also in plant defences against biotic stress (Gasperini & Howe, 2024; Singh et al., 2024). The SA signalling pathway is triggered mainly by the piercing and sucking mouthparts of insects (Zeng, Watanabe & Yang, 2019). In the present study, we found that the SA concentration did not continually increase, but rather, first increased but then decreased, and the levels of ABA and MeJA exhibited a similar trend. These results are consistent with those of previous studies in which the levels of SA and ABA in maize first increased but then decreased after Asian corn borer (Ostrinia furnacalis) infestation (Guo et al., 2019). However, in a previous study of tea trees, an increase in the SA content in response to herbivory by the tea geometrid moth (Ectropis obliqua hypulina) was reported (Liao et al., 2019). In addition, we found that the levels of JA, JA-Ile, and JA-Val in the walnut husks infested by C. pomonella gradually increased during the infestation process. However, in tea trees, JA levels decrease with time due to damage caused by the green tea leafhopper (Empoasca onukii) (Qiao et al., 2023). We speculated that the phytohormone levels vary in different plant responses to insect pests and that in the defence of walnut plants against C. pomonella, SA, ABA and MeJA may participate in the initial stress response, and JA, JA-Ile, and JA-Val may play a role in long-term and sustained responses. The temporal variation in the levels of different phytohormones detected in walnut plants after C. pomonella infection suggested a possible synergistic or antagonistic effect on defence hormone activation.

The variation in phytohormone levels during plant defence against insects might be related to the activation of various defence genes and the production of direct defence and indirect defence compounds (Verma, Ravindran & Kumar, 2016; Li et al., 2022). The transcriptional response of plants to insect attack involves dynamic, complex reprogramming of signal transduction and biosynthesis that changes over time (Ye et al., 2021; Kant et al., 2004). SA is produced in plants through two metabolic pathways: the isochorismate (ICS) pathway and the phenylalanine ammonia-lyase (PAL) pathway (Spoel & Dong, 2024; Mishra & Baek, 2021). In this study, the transcriptomic analysis revealed that all the PAL genes were upregulated after C. pomonella damage, suggesting that the production of SA in walnuts after C. pomonella infestation might occur through the PAL pathway. Similarly, in a study of maize leaves after Asian corn borer infestation, all PAL genes were significantly upregulated, whereas the expression of ICS genes was downregulated (Guo et al., 2019). We speculated that PAL genes were upregulated after C. pomonella damage, suggesting that the production of SA in walnuts is a response to C. pomonella infestation and needs to be further investigated. Abscisic acid (ABA) plays an important role in drought, salt, pest, and injury responses (Chen et al., 2020). The populations of the aphid Myzus persicae were found to be smaller on the Arabidopsis ABA-deficient aba1-1 mutant than on the Arabidopsis wild type (Hillwig et al., 2016). The genes involved in the ABA signalling pathway (NCED and ABR) were found to be upregulated in aphid-infested alfalfa (Medicago truncatula), resulting in stomatal closure and reduced leaf transpiration (Sun et al., 2015). However, the expression of NCED3A, NCED3B, NCED6A, and NCED9A were down-regulated in bananas treated with Fusarium oxysporum race 4 (Zeng et al., 2023). In this study, the expression of NCED in walnut husks was downregulated after different time of infestation by C. pomonella. Therefore, we speculated that this result may be caused by secondary infection of other microorganisms in the environment after the walnut husk was damaged by C. pomonella. JA also participates in regulating plant defence against herbivorous insect attacks (Ruan et al., 2019). Previous studies have shown that genes related to JA biosynthesis (such as LOX, AOS, OPR, and JAR) were significantly upregulated in maize leaves after infection with the Asian corn borer (Guo et al., 2019). In this study, the expression of key genes involved in JA biosynthesis and signal transduction (LOX, AOS, AOC, OPR, JAZ, and MYC2) in walnut plants was significantly upregulated and continued to increase until 72 h after injury, and JA accumulation increased during cooccurring moth infection, suggesting that JA plays a role in regulating walnut defence against infestation by C. pomonella. The transcriptional dynamics of C. pomonella fed field-grown walnut husks require further study. In brief, the SA, ABA, and JA genes in the synthetic pathway respond to C. pomonella infestation, indicating that the plant response to insect damage is a complex regulatory mechanism involving receptors that receive phagocytosis signals and internal signal transduction and response. Phytohormones, important signalling substances in plants, play diverse roles, including the regulation of insect resistance and the control of disease caused by insect damage.

Flavonoids protect plants from pathogen and insect infestation (Ramaroson et al., 2022; Yang et al., 2023). The biosynthesis and biological functions of flavonoids have been reported. L-Phenylalanine to 4-coumaroyl-CoA, which is catalysed by PAL, 4CL and cinnamic acid 4-hydroxylase (C4H); 4-coumaroyl-CoA to flavonone, which is catalysed by CHS and CHI; and flavonones to various types of flavonoids, which are the three stages of flavonoid biosynthesis (Shen et al., 2022). In the present study, a total of eight genes involved in flavonoid synthesis were significantly upregulated after C. pomonella infestation. These results suggest that the flavonoid pathway might be involved in the protection of walnut husks from infestation by C. pomonella in the natural environment.

The WGCNA results revealed a series of transcription factors related to the walnut husk defence response to C. pomonella infestation. Seven transcription factors (AIL, MYB, PRE, WRKY, and ERF) were identified as hub genes in the SA-related module. WRKYs have been reported to promote the accumulation of SA and to trigger the early defence response of tea plants against tea green leafhoppers (Yang et al., 2019). The levels of JA, JA-Ile, and JA-Val in the same module changed after C. pomonella infestation. ERF27, bHLH35, bHLH18, TIFY5A, WRKY31, and MYB44 were identified as hub genes in the magenta module. JA biosynthesis has been reported to be regulated by a series of TFs, including MYC, MYB, ERF, WRKY, and NAC, at the transcriptional level (Ruan et al., 2019). Several JAZ-interacting transcription factors, including MYC, bHLH, and the WD-repeat/bHLH/MYB complex, are involved in plant-insect resistance (Campos, Kang & Howe, 2014; Howe, Major & Koo, 2018). Similarly, the levels of ABA and MeJA exhibited similar changes after C. pomonella infestation, and they were in the same coexpression network. Five transcription factors (bHLH, PCL, APR, bZIP, and ILR) were identified as hub genes in the green module. The bZIP transcription factor family has been reported to play a crucial role in the regulation of ABA-mediated phytohormone signalling (Zong et al., 2016). The genes in the coexpression module related to JA, JA-ile, JA-val, SA, ABA and MeJA identified in this study may play an important roles in regulating the response of walnut husk to damage caused by the moth. However, the molecular functions of these genes in walnut plants require further investigation.

In summary, in this study, the resistance of walnut husks to C. pomonella larvae were investigated, the transcriptional dynamics underlying the defence response of walnut husks against C. pomonella larvae were analysed at different time points, and the roles of the JA, SA, and ABA signalling pathways as well as flavonoid synthesis pathways in the defence response were highlighted. The hub genes involved in the SA-, ABA-, JA-, JA-Ile-, JA-Val-, and MEJA-mediated defence responses of walnut husks to C. pomonella were screened via the construction of a coexpression network. This study laid the foundation for the selection of resistant walnut varieties and the ecological control of C. pomonella. In follow-up studies, the role of these hub genes in the walnut husk defence mechanism against C. pomonella will be further identified.

Conclusions

By combining transcriptome and hormone analyses, this study revealed the defensive effects of walnut husks on combating moth damage. Our results suggest the following conclusions: (i) The infestation of C. pomonella at different time points induced a large number of DEGs in walnut husks, with the expression levels of these DEGs showing different trends within 0–72 h of C. pomonella damage. (ii) After different durations of C. pomonella infestation, DEGs involved in biosynthesis of secondary metabolites, metabolic pathways, alpha-linolenic acid metabolism, and phenylpropanoid biosynthesis were produced, indicating that the resistance of walnut husks activated by C. pomonella infestation was controlled by multiple plant stress resistance pathways. (iii) Genes closely related to phytohormone synthesis (SA, ABA, and JA) and flavonoid biosynthesis, which were crucial for insect resistance in walnut husks, were strongly expressed during C. pomonella infestation, suggesting that the SA, ABA, and JA signalling pathways, along with the flavonoid biosynthesis pathway, were involved in the resistance response of walnut husks induced by C. pomonella infestation. Taken together, our study reveals the defence response of walnut husks to C. pomonella infestation, providing a basis for the breeding of insect-resistant walnut varieties.
