Diversity and conservation of mammals in indigenous territories of southern Mexico: proposal for an “Archipelago Reserve”

Study area

La Chinantla is in northeast Oaxaca, in the foothills of the Sierra Madre de Oaxaca and in the Papaloapan River basin. It comprises 14 municipalities that are in the subregions of Sierra Madre de Oaxaca and Planicie Costera del Golfo (Ortiz-Pérez, Hernandez-Santana & Figueroa-Mah-Eng, 2004) (Fig. 1).

The climate in La Chinantla is hot and humid in the lowlands, and cool and humid in the highlands with an average annual temperature of 16 °C and 25 °C, respectively (Meave, Rincón & Romero-Romero, 2006). The region has high humidity and annual rainfall between 3,600 and 5,800 mm. Its altitude ranges from 0 to 3,000 masl, with slopes between 6° and 45° in 80% of the territory (Meave, Rincón & Romero-Romero, 2006). Tropical rainforests (TRF) and montane cloud forests (MCF) predominate (INEGI, 2016).

Dividing the study area into zones

Based on the altitudinal gradient and the types of vegetation, we divided the study region in four zones. Zone 1: 0 to 400 masl and warm climates, lowland TRF dominates, combined with secondary vegetation (SV), agriculture (A), and livestock areas; contains 10 ADVCs. Zone 2: 401 to 1000 masl, with warm and semi-warm climates, TRF in the midlands, sub-deciduous tropical forest (SDTF) combined with SV, A, and livestock areas; contains nine ADVCs. Zone 3: 1,001 to 1,500 masl, with humid subtropical climates, MCF vegetation, mixed with small fragments of highland TRF, SV, and to a lesser extent A; contains four ADVCs. Zone 4: >1,501 masl, with temperate and humid climates and temperate pine-oak forests (P-OF) mixed with small fragments of MCF, SV, and A; contains three VCAs and one ADVC (Fig. 1).

Obtaining records

The records used for this study came from four sources:

1. Primary data collection. The collection of specimens was carried out by four research teams, led by the authors. Approximately 40 visits were made to the study area, around four per year, with an average of three consecutive days each, covering both the rainy and dry seasons, from the year 2010 to 2020. During each visit, efforts were made to cover the widest area both inside and outside the ADVCs, considering all altitudinal gradients present, and changing sampling sites daily.

Conventional sampling techniques were used for different mammal groups: small mammals (<100 g), such as shrews and rodents; bats; and medium to large mammals (>101 g) (Medellín, 1994). During each visit, small mammals were captured using an average of 100 Sherman traps (7.6 × 8.9 × 22.5 cm) baited with a mixture of peanut butter, vanilla extract, and oats. The traps were set daily along two 500 m linear transects, either within the vegetation or near water bodies, with a 10 m spacing between each trap. The sampling effort was 2,171 trap-nights per year of work. Additionally, 100 pitfall traps were placed during each sampling period at 2 m intervals in areas with leaf litter and near fallen logs, with a depth of 30 cm. For both cases, the traps were set in the afternoon and checked the following morning.

Bats were captured using mist nets (12 × 2.6 m). During each visit, an average of three nets were set up in locations near water bodies or within the vegetation. The nets remained open for eight hours each night, over three consecutive days. The sampling effort per site was calculated by multiplying the length and width of the mist nets by the number of hours they were open, in addition to the number of nights and the number of nets used. The result was expressed as m² net/hour based on the method proposed by Medellín (1994). The total sampling effort per year was 1,123 m of net in 96 h, divided into 12 nights sampling. Thus, the sampling effort was 26,880 m of net per night.

For small mammals and bats, once captured, somatic measurements, reproductive condition, weight, sex, and age data were obtained. Most of the specimens were released at the same capture site, except for a minimum number of individuals that were collected and prepared as museum specimens using taxidermy techniques following the recommendations of Hall (1981). Subsequently, they were deposited in the Mastozoological Collection of the Centro Interdisciplinario de Investigación para el Desarrollo Integral Regional, Unidad Oaxaca (OAX.MA.026.0497). Specimens were collected under a scientific collection permit issued by the Mexican Ministry of Environment and Natural Resources (FAUT-0037; SEMARNAT).

For medium to large mammals, two randomly distributed linear transects of approximately 2.5 km in length were traversed in each locality to search for signs (tracks and feces) during each visit. The transects were walked daily by two observers. Once signs were located, data on tracks was collected (geographic location, length and width measurements), photographs were taken, and plaster casts were made. To complete the inventory, four Tomahawk-type traps with double folding doors (24 × 6 × 6 inches) were used, baited with ripe fruits and sardines. The traps were placed within the vegetation and near water bodies on the first day of work and checked daily in the morning. In case of any capture, photographs of the individual were taken, and data on species, sex, age, and if possible, somatic measurements was recorded. All specimens were released at the same capture site.

For all collection sites, geographic coordinates and elevation were obtained using a Global Positioning System (GPS) with the WGS84 datum.

2. Databases. We obtained records of wild mammals in museums and scientific collections; five domestic: la Colección Nacional de Mamíferos (CNMA), la Colección de la Escuela Nacional de Ciencias Biológicas del IPN (ENCB), la Colección del Museo de Zoología de la Facultad de Ciencias de la UNAM (MZFC), la Colección de la Universidad Autónoma Metropolitana-Iztapalapa(UAMI) y la Colección del Centro Interdisciplinario de Investigación para el Desarrollo Integral Regional, Unidad Oaxaca (CIIDIR-OAX.), IPN (OAXMA). The foreign collections were ten: Field Museum Natural History (FMNH), American Museum of Natural History(AMNH), Texas A&M University (TWWC), Angeles County Museum (LACM), Museum of Zoology, University of Michigan (UMMZ), Texas Tech University(TTU), University of New Mexico, Museum of Southwestern Biology (MSB), Carnie Museum of Natural History (CM), University of Florida, Florida Museum of Natural History (UF) y Natural History Museum, Kansas University (KU). Data were also obtained from the Global Biodiversity Information Facility (GBIF) portal.

3. Literature review. A review of the scientific literature was carried out in databases including Scopus, Scielo, Redalyc, Google Scholar, and Elsevier for the years 1969–2022. We use the keywords “mammals”, “mamíferos” or “Chinantla”. Topics such as distribution, new records of species, and expansion of taxa distribution areas were reviewed. Each scientific article discovered underwent a meticulous review to ascertain the presence of the required information. After this evaluation, the ensuing data was extracted: municipality, type of vegetation, and species.

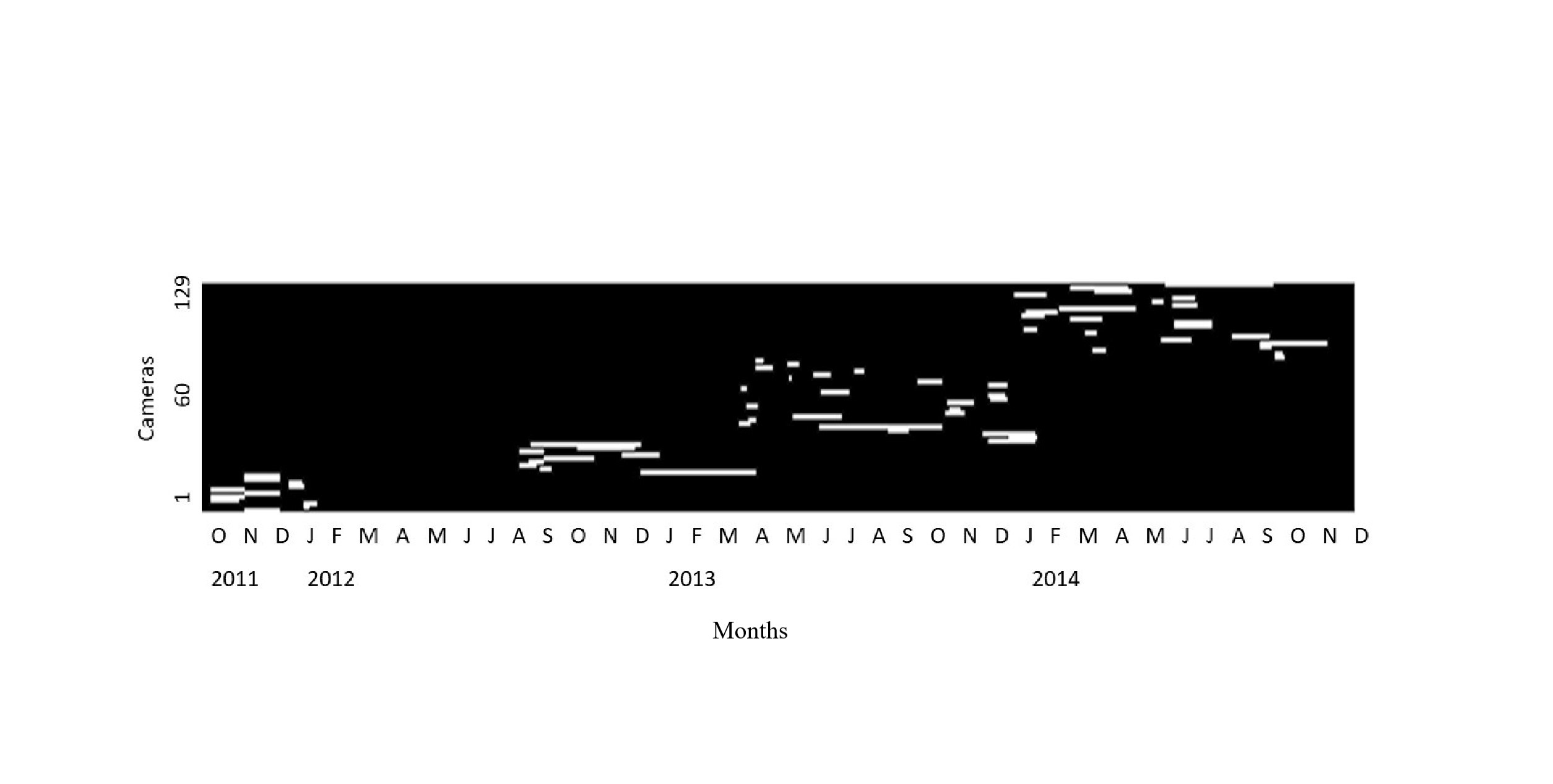

4. Community monitoring. The community monitoring was done by the local inhabitants. The authorities, as well as the residents of each community where the camera traps were deployed, provided their endorsement to the National Commission of Protected Natural Areas (CONANP). We formally request the information that has been generated through community monitoring within the Chinantla ADVCs from CONANP (DRFSIPS-0095-2019). We have carefully reviewed all the photos and videos captured during the monitoring conducted between 2011 and 2014, with the aim of creating a database containing independent events (see details below). Community monitors placed 5 camera trap models (Bushnell. n = 97; Moultrie; n = 26; Wildview, n = 3; Ltl Acorn, n = 2; and Stealth Cam, n = 1). The cameras were programmed to operate 24 h a day and to capture photos (1–5 photos) and/or videos (10–30 s long). The traps were placed on trees or stakes 10–40 cm above the ground, generally one meter from the roads where the monitors had observed fauna or tracks. We use for the analysis only the independent events: (1) consecutive photographs of different individuals of the same or different species, (2) consecutive photographs of individuals of the same species taken more than 24 h apart, (3) nonconsecutive photos of individuals of the same species (O’Brien, Kinnaird & Wibisono, 2003). Our analysis used data from 129 camera trapping stations over a four-year period (2011–2014) in 18 indigenous communities in the region. The total sampling effort was of 4,373 trap-nights; 2,257 in Zone 1 (61 camera traps), 1,354 in Zone 2 (45 camera traps), 540 in Zone 3 (19 camera traps) and 222 in Zone 4 (four camera traps). The details of dates and time in which the camera traps in the field can be observed in Fig. S1.

Data analysis

The collected specimens were identified using specialized guides (Ceballos & Oliva, 2005; Aranda-Sánchez, 2012; Álvarez Castañeda, Álvarez & Gonzáles-Ruiz, 2017). The nomenclature was updated following Ramírez-Pulido et al. (2014), with some recent modifications. Specialized literature (Hall, 1981; Ceballos & Oliva, 2005; Carraway, 2007; Briones-Salas, Cortés-Marcial & Lavariega, 2015) was consulted to identify taxa endemic to Mexico and Oaxaca.

Species richness was counted as the total number of species recorded in the entire region and the four zones. We created species accumulation curves for species richness based on rarefaction and extrapolation (Chao & Jost, 2012) using the program iNEXT (Chao, Ma & Hsieh, 2022).

Beta diversity was obtained using the Jaccard qualitative similarity index; this index compares species communities between two sites to determine which species are shared and which are distinct. Using this measure, we assess the disssimilarity between pairs of communities for all mammals, small mammals, bats, and medium to large mammals from the four sites and ranged from 0 (shared species between two sites) and 1(sites do not have the same composition). We measured total β diversity and the turnover and nestedness components between zones based on the Jaccard index (Baselga et al., 2018). We calculated: (1) total β diversity (βju), (2) turnover β diversity (βtu), and (3) nestedness β diversity (βne). These parameters were computed using the betapart package (Baselga et al., 2018) in R (version 3.3.3; R Core Team, 2017), utilizing the Incidence-based pair-wise dissimilarities function, beta.pair. Additionally, we employed the unweighted pair group method for arithmetic averages (UPGMA). The analyzes were performed in the program PAST.

Conservation and protection statuses for the species were recorded based on the IUCN Red List (IUCN, 2022), the appendices of the CITES (CITES, 2013), and NOM-059-SEMARNAT-2010 (SEMARNAT, 2010).

Species richness

A total of 134 species were recorded for the entire region, comprising 11 orders, 26 families, and 86 genera, representing 62%, 100%, 89.6%, and 72.8%, respectively, of all the mammals in the state of Oaxaca (Table 1). The orders with the highest number of species were Chiroptera (n = 52) and Rodentia (n = 38). Only one species was recorded in each of the following orders: Cingulata, Pilosa, Primates, and Perissodactyla (Table 1). By categories, small mammals accounted for 41 species, bats for 52, and medium and large for 41. Seventy-three species were recorded during collection and 26 through community monitoring; 103 and 54 species records were recovered from databases and literature search (Alfaro, García-García & Santos-Moreno, 2006; Ibarra et al., 2011; Lira-Torres et al., 2006; Ortiz-Martínez et al., 2012; Perez-Lustre, Contreras-Diaz & Santos-Moreno, 2006; Del Rio-García et al., 2014), respectively (Table 1; Fig. 2). In terms of the types of vegetation cover, the highest species richness was recorded in the Pine Oakforest (n = 88), followed by the Tropical Rainforest (n = 85; Table 1; Fig. 2). For small mammals, five families were recorded—Cricetidae had the most species (n = 29), while Geomyidae and Heteromyidae had fewer (two species each). Five families of bats were recorded, with Phyllostomidae presenting the highest number of species (n = 31) and Molossidae the lowest(n = 3). The medium and large mammals group contained 17 families—Felidae had most species (n = 6; Table 1).

A higher species richness was recorded in Zone 1 for the assemblage of mammals (n = 89), bats (n = 43), and medium to large mammals (n = 32). However, in the case of small mammals, species richness was Zone 3 (n = 35 and Zone 4; n = 29) (Figs. 3 and 4, Table 2).

For all mammal groups, species extrapolation curves suggest that Zone 1 and 3 have similar species diversity, higher than Zone 2 and 4, although, between Zone 1 and Zone 4, confidence intervals do not overlap (Fig. 3). For small mammals, the zones with higher altitude (Zone 3 and Zone 4) showed the highest species richness, while the lower altitude zones (Zone 1 and Zone 2) were more similar in their composition (Fig. 4A). For bats, the highest species diversity was recorded in the lower zone (Zone 1, n = 43), while the diversity was lower in higher zones, with overlap was only between Zone 1 and Zone 4, unlike to Zone 2 and Zone 3, that it was statistically different (Fig. 4B). The curves for medium to large mammals suggest that the lower altitude zones (Zone 1 and Zone 2) are more similar and have higher diversity, while the higher altitude zones (Zone 3 and Zone 4) show lower species diversity, although, all confidence intervals overlap (Fig. 4C). It is worth noting that neither the diversity interpolation nor the extrapolation curves reached an asymptote for any of the four groups in any of the zones, indicating the need for additional sampling (Figs. 3 and 4).

Beta diversity

Considering all mammal species, 18 were shared across the four zones (14%). In Zone 1, 19 species were exclusive, while in Zone 2, only three species were exclusive. Zones 1 and 4 had the highest degree of species dissimilarity (DI = 0.70; Table 2). For small mammals, five were shared across the four zones. In Zone 3, five species were exclusive, while Zone 2 had no exclusive species. The highest dissimilarity index for small mammals was observed between Zones 1 and 4 (DI = 0.81). For the bat, five species were shared across the four zones. Zone 1 recorded the highest number of exclusive species (n = 17), while only one exclusive species was recorded in Zone 3. Zones 1 and 2 presented the highest value of dissimilarity (SI = 0.79). Finally for the medium to large mammal, eight species were shared among the four zones. In the lower zone (Zone 1), five exclusive species were recorded, while in Zone 3, only one exclusive species was registered. Zones 3 and 4 exhibited the highest dissimilarity index (DI = 0.66; Table 2). In general terms, it was observed that the species turnover component had a much greater impact on the total beta value for the four groups compared to the nestedness component.

For the assemblage of mammals and small mammals, the similarity dendrograms showed two groups, one for species from the highest altitude zone (Zone 4) and the other containing the remaining zones. For bats, species from Zone 2 are separated from the other zones. For medium to large mammals, species from Zones 2, 3, and 4 form a separate group from those in the lower altitude zone (Zone 1) (Fig. 5).

State of conservation

Twenty-four species are listed in NOM-059 (SEMARNAT, 2010), 18 in the list of the International Union for Conservation of Nature (IUCN), and seven in CITES (Table 1). The first two lists shared seven species: Cryptotis magnus (Zone 1–4), Vampyrum spectrum (Zone 1), Ateles geoffroyi (Zone 1 and 3), Leopardus wiedii (Zone 1, 2 and 3), Panthera onca (Zone 1, 2 and 3), Lontra longicaudis (Zone 1), and Tapirus bairdii (Zone 1) (Table 1).

Species richness and diversity

Our results highlight the value of indigenous lands for mammal conservation, specifically through community conservation areas. Despite the absence of formal protected natural areas in the region, the mammalian richness in this Mexican region remains remarkably high. La Chinantla ranks as the second location in Mexico with the highest mammalian richness (n = 134), below La Selva Zoque, which is located across three states in southern Mexico: Oaxaca, Chiapas, and Veracruz (n = 149) (Lira-Torres, Galindo-Leal & Briones-Salas, 2012). Please note that La Selva Zoque (∼1,000,000 ha) is considerably larger than La Chinantla (∼58,765.78 ha)(CONANP-Oficina Chinantla). Nevertheless, the recorded species count is nearly identical, underscoring the significance of indigenous territories for mammalian conservation. It is important to point out that mammalian richness in La Chinantla is greater than at other highly biodiverse sites in Mexico, such as La Selva Lacandona, Chiapas (n = 125) (March & Aranda, 1992); La Reserva de la Biósfera el Triunfo, Chiapas (n = 112) (Espinoza-Medinilla, Anzures Dadda & Cruz-Aldan, 1998); and La Sepultura Biosphere Reserve, Chiapas (n = 98) (Espinoza-Medinilla et al., 2004).

The great richness of species in La Chinantla is the result of the diversity of ecosystems found there, such as the Montane cloud forest, Tropical rainforest, and Pine-Oak Forest, which in most of our coverage were in a good state of conservation (Pennington & Sarukhán, 2005). Several factors may be contributing to this, such as the inaccessibility to certain areas, but above all, the conservation work that the residents of La Chinantla carry out through conservation zones, such as the ADVC (Acevedo, Lugo Espinosa & Ortiz Hernández, 2021). In addition to the strategies employed by the Chinantecos to safeguard their territory, they establish various rules of utilization and access within the framework of an internal regulation. These rules include restrictions on hunting, extraction of plant species, removal of vegetation cover for agricultural and livestock activities, among others (Anta-Fonseca & Mondragón-Galicia, 2006).

Species richness was higher in the lower zone (Zone 1), mainly comprising well-preserved Tropical Rainforest (TRF) and remnants of TRF with secondary vegetation (Pennington & Sarukhán, 2005; Meave et al., 2017). These vegetation types are well-represented within the 10 ADVCs present in the area, which likely contributes to the presence of many species. Zone 3 exhibited the second highest richness, despite having the lowest tree cover in the region (INEGI, 2016). However, there are numerous well-preserved TRF remnants and different successional stages interspersed with agricultural sites.

Bats had the greatest species richness, much of it in the lower zone. This could be explained by high coverage of tropical rainforest and fruit crops, where the species have been observed to find food and shelter in other tropical environments in America (Lira-Torres, Galindo-Leal & Briones-Salas, 2012; Briones-Salas, Lavariega & Lira-Torres, 2019). On the other hand, several species were recorded only in this area, some of which are considered “rare” such as Balantiopteryx io, Diclidurus albus, Micronycteris microtis, Mimon cozumelae, and Vampyrum spectrum. Some studies have shown that the presence of these species are good indicators of low habitat disturbance (Fenton et al., 1992; Wilson, Ascorra & Solari, 1996; Castro-Luna & Galindo-González, 2012). It is important to highlight that some bats in La Chinantla are also distributed in North America (e.g., Dasypterus mexicanus, D. xanthinus, and Myotis volans), South America (e.g., Balantiopteryx plicata, D. albus, and Saccopteryx bilineata), and Mesoamerica (e.g., B.io, Dermanura tolteca and Glossophaga leachii) (Villa & Cervantes, 2003). The area’s combination of tropical, semitropical, and temperate environments contributes to this high diversity of bats and has been observed elsewhere in Mexico (Briones-Salas & Sánchez-Cordero, 2004).

Small mammals exhibited the second highest species richness, dominated by species from the family Cricetidae, which can establish themselves in a wide range of environments, including disturbed sites (Linzey et al., 2012; Martin-Regalado et al., 2019). Another highly represented family in La Chinantla was Soricidae, with nine species. Four of these species were collected in sites with high humidity and good conservation status, primarily Pine-Oak Forest and Montane Cloud Forest, as documented by other authors (Carraway, 2007). Unlike bats, the highest species richness of small mammals was recorded in higher altitude zones. In fact, over half of the species ( n = 30) were exclusively found in these areas, including six species endemics to Oaxaca. Some authors have found high rodent diversity at elevated altitudes (Mccain, 2005; Martin-Regalado et al., 2019). It is worth mentioning that the six endemic species from Oaxaca, such as Habromys chinanteco and H. ixtlani, are found in sites protected by indigenous communities. The pattern observed for rodents is similar to that observed in the Andes of Peru and Chile, where speciation is proposed to have occurred in the highlands (Marquet, 1994).

Regarding medium and large mammals, most species were recorded in the lowland and warm areas of La Chinantla, although there was some overlap in confidence intervals between Zones 1, 2, and 3, indicating that their assemblages are very similar. Several species in Zone 1 were recorded in agricultural areas and secondary vegetation, such as Odocoileus virginianus, Procyon lotor, Nasua narica, and Herpailurus yagouaroundi, many of which are common and tolerant to disturbance (Briones-Salas, Lavariega & Lira-Torres, 2019). Similar findings have been described in the Istmo de Tehuantepec, Oaxaca, Mexico, in human-modified environments dominated by agricultural and livestock activities (Cortés-Marcial & Briones-Salas, 2014). It is important to mention that most of these records were made within VCAs by community monitors, reflecting the crucial role of indigenous communities in biodiversity knowledge and conservation.

The presence of all six species of felids distributed in Mexico is noteworthy, particularly Panthera onca, which has a comparable density to the Eden Reserve located in Yucatan and northern Sonora (Rosas-Rosas & Bender, 2012; Ávila Nájera et al., 2015; Lavariega et al., 2020). Meanwhile, although no population studies have been conducted on Puma concolor, the species has been recorded throughout La Chinantla (Figel et al., 2009; Silva-Magaña & Santos-Moreno, 2020). On the other hand, the bobcat, Lynx rufus, was found in the Pine-Oak Forest at the higher parts of the region. Another species of interest is Ateles geoffroyi, which was found in Zones 1 and 3 in the Tropical Rainforest and Montane Cloud Forest (Briones-Salas et al., 2006); even in the lowest zone, an ADVC called “Cerro Chango” was established due to the presence of groups of this species. Zone 3 had the lowest species richness, with only a few species recorded: the pocket gopher Orthogeomys grandis, the bobcat L. rufus, the hog-nosed skunk Spilogale angustifrons, and the ringtail Basariscus astutus.

Similarity indices

The greatest similarities between the four groups of mammals were recorded between neighboring areas. This indicates that there is an exchange of species between nearby zones. The analysis of beta diversity components indicates that the species turnover component was larger than nestedness, contributing to beta diversity in the Chinantla region. The intermediate zones may function as corridors that connect the upper and lower parts of La Chinantla. The landscape of the region presents a mosaic composed of Tropical Rainforest, Montane Cloud Forest, small areas of coffee plantations, cultivated areas, and pastures that may allow organisms move through.

Conservation

The Chinantecos play a crucial role as custodians of endangered species, as 33% of the total registered species are classified under some level of risk. For three of these species, La Chinantla is the northern limit of their distribution in the American continent with adequate habitat to maintain populations: the tapir Tapirus bairdii (Vivas-Lindo et al., 2020); the spider monkey A. geoffroyi (Vidal-García & Serio-Silva, 2011; Calixto-Pérez et al., 2018); and the spectral vampire V. spectrum, which finds refuge sites in the remnants of the region’s Tropical Rain Forest.

The study region is also a potential habitat for four medium-sized cats—H. yagouaroundi, Leopardus pardalis, Leoparuds weidii, and L. rufus—and for the last one, the zone represents its most southeastern distribution area (Monroy-Vilchis, Zarco-González & Zarco-González, 2019). This area has a substantial population of P. onca, the largest of these cats (Lavariega et al., 2020); it is also a biological corridor that connects populations in north of the country (Rodríguez-Soto et al., 2011).

La Chinantla region has a mosaic of landscapes that makes it heterogeneous in terms of vegetation, topography, and climate; this region also has high species richness and diversity and should be considered in state and national conservation policies. The establishment of 31 ADVCs by indigenous communities has significantly contributed to the conservation of mammals and other taxonomic groups. The Chinantecs who settle in the place have carried out community monitoring actions over the past 12 years, not only with mammals but other groups too such as birds (Ortega-Álvarez et al., 2012; Noria-Sánchez, Prisciliano-Vázquez & Patiño Islas, 2015), amphibians, and reptiles (Simón-Salvador et al., 2021). This has undoubtedly contributed to the knowledge and conservation of La Chinantla’s wild fauna.

Finally, the ADVCs in the region function as islands of conservation and protection for germplasm of the native fauna. We believe that strategies such as the establishment of biological corridors that connect these ADVCs will help enhancing the genetic exchange of populations and the dispersal of mammals in the area. Our study reveals that beta diversity is an important component in the region, as there is a high species turnover among different altitudinal gradients in this mountainous system. This could represent a first step towards identifying a suitable region for establishing an Archipelago Reserve, as proposed by other studies in Mexico (Moctezuma, Halffter & Arriaga-Jiménez, 2018; Garcia-Grajales & Buenrostro-Silva, 2009) and other Central American countries (Anderson & Ashe, 2000).

Archipelago Reserves also take a social approach that coincides with the Chinantecs’ strategies. This approach strengthen species conservation by using a community scheme through local and regional strategies. In addition, government programs have played an important role in channeling economic incentives through programs such as payment for environmental services and ADVCs certification, which make it possible to meet various conservation objectives. This would greatly support biodiversity, particularly for species that are endemic to the country and/or are classified in some threat category by national or international standards. Archipelago reserves are a novel and compelling proposal for biodiversity conservation as they seek to protect a set of complementary areas, such as the ADVCs in La Chinantla, which together safeguard an substantial portion of Mexican biodiversity. Considering the region’s high richness of mammals and other taxonomic groups, establishing protected areas by indigenous communities can be an alternative to the lack of officially designated protected areas.
