Identification and characterization of novel sesquiterpene synthases TPS9 and TPS12 from Aquilaria sinensis

Plant materials and treatment

A. sinensis trees were grown in the Hainan branch of the Institute of Medicinal Plant Development (IMPLAD). Different tissues were collected from two-year-old trees, and materials for transcription sequencing were obtained from seven-year-old trees treated using the whole-tree agarwood-inducing technique (Agar-Wit) (Wei et al., 2010). All collected materials were stored in liquid nitrogen until further analysis. A. sinensis calli were induced from fresh young leaves as previously described by Liu et al. (2015a). Healthy, faint yellow, and compact calli were sub-cultured in darkness at 25 °C in Murashige-Skoog (MS) medium. For heat treatment, the same well-grown calli were transferred from 25 °C to 42 °C. For other stress treatments, calli were transferred to MS medium supplemented with 100 µM MeJA, 100 µM SA, 100 µM ABA, 400 mM mannitol, 50 mM H₂O₂, 300 mM NaCl, and incubated for different time points. Untreated calli were simultaneously sampled over the same period and used as controls. All samples were shock-frozen in liquid nitrogen and stored at −80 °C for qRT-PCR analysis.

Bioinformatic analysis and characterization of TPS9 and TPS12

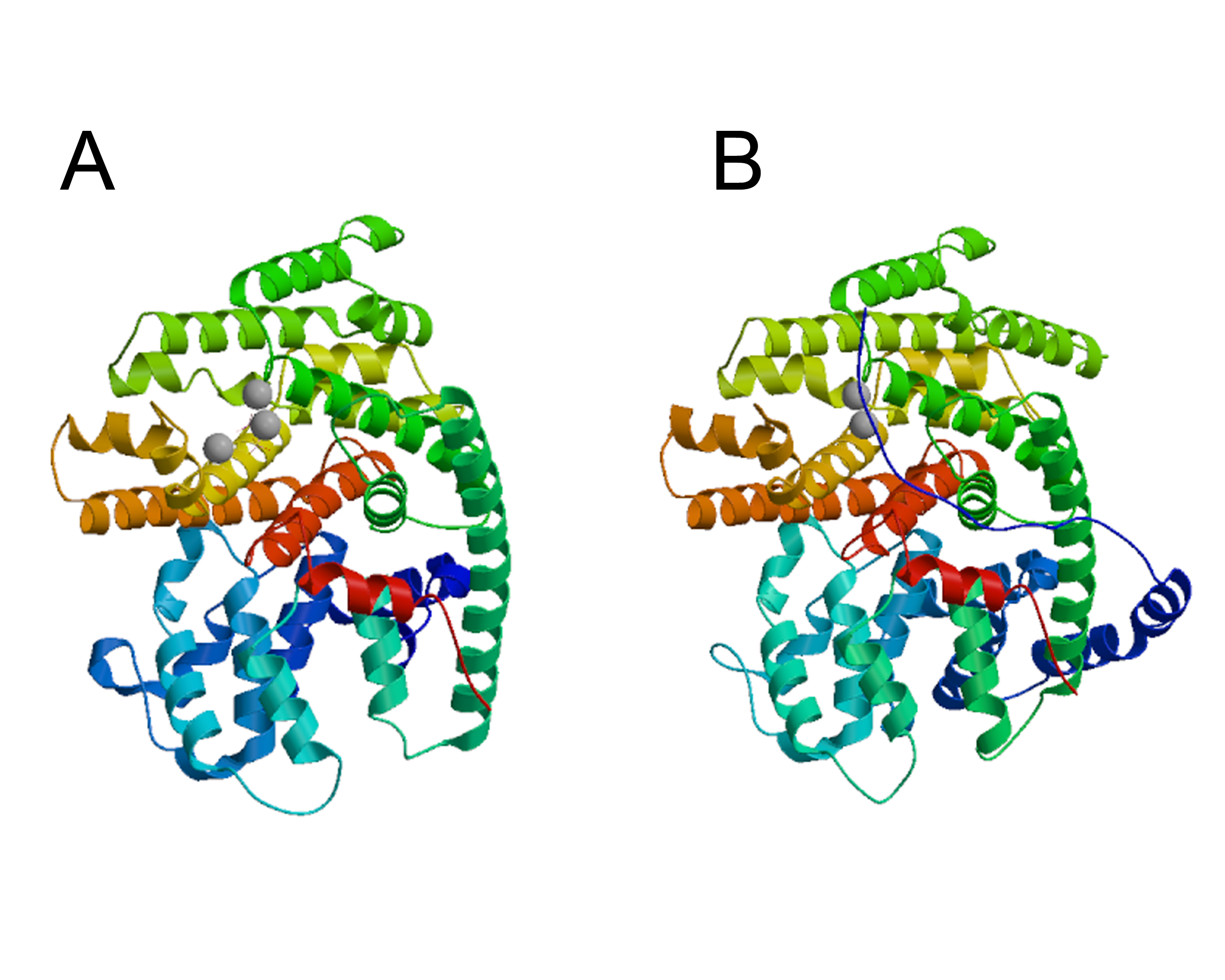

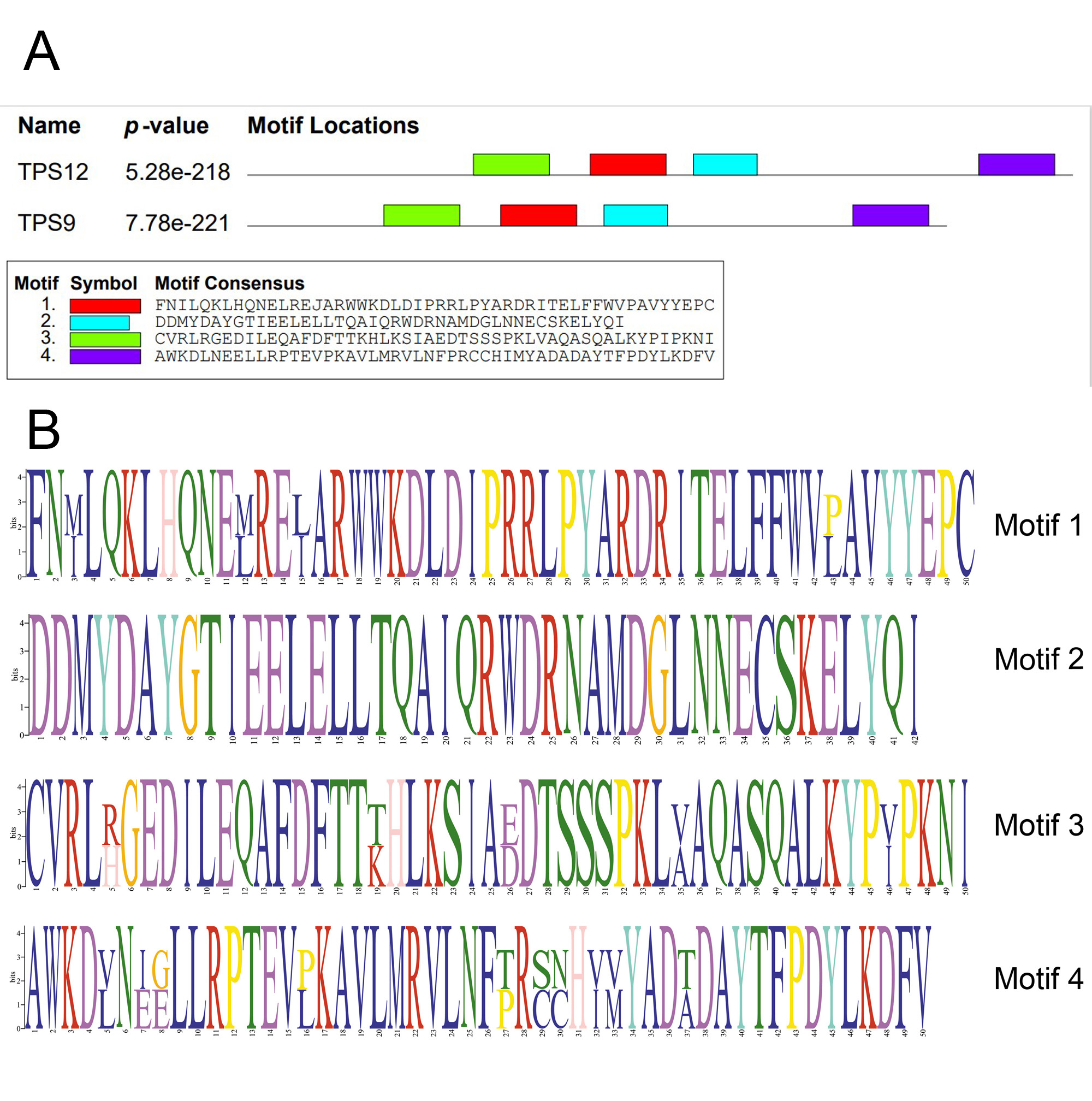

The Expasy Proteomics Server (http://www.expasy.org) was used to calculate physical and chemical parameters of TPS9 and TPS12, such as molecular weight (MW), theoretical isoelectric point (pI), stability, and instability index. Conserved motifs of TPS9 and TPS12 were predicted using Multiple Expectation Maximisation for Motif Elicitation (MEME) with the default parameters. The SWISS-MODEL was used to analyse the molecular modelling of TPS9 and TPS12 proteins. Trans-membrane domains were predicted using TMHMM 2.0 and TMpred software. DNAMAN was used for multiple alignment analysis of the TPS9 and TPS12 amino acid sequences, ExPASy and three softwares, including SCLpredT, Predotar, and Wolf Psort, were used to predict the physiological and biochemical properties and subcellular localisation of TPS9 and TPS12. Phylogenetic analysis was performed using MEGA5 using the neighbour-joining method with 1,000 bootstrap replicates.

Isolation of total RNA and real-time qRT-PCR

Total RNA was extracted from the treated calli and plants using the Total RNA Rapid Extraction kit RN38-EASYspin Plus (Aidlab, Gdansk, Poland). A total RNA of 1 µg was reverse-transcribed to cDNA using the PrimeScript™ RT Reagent Kit (Takara, Shiga, Japan) according to the protocol described by the manufacturer. The cDNA was stored at 20 °C for qRT–PCR analysis and gene cloning. PCR amplifications were performed using SYBR^® Premix Ex Taq™ II (Takara, Shiga, Japan) on a Light Cycler^® 480II (Roche Diagnostics, Indianapolis, IN, USA). The PCR cycling conditions were the same as has described by Yu et al. (2021) previously. The glyceraldehyde-3-phosphate dehydrogenase (GADPH) gene was used as an internal control. Three independent biological replicates were included, and the relative expression levels of TPS9 and TPS12 were calculated using the 2^−ΔΔCT method (Livak & Schmittgen, 2001).

Construction of pET21a-TPS9 and pET28a-TPS12

Full-length sequences of TPS9 and TPS12 with restriction enzyme sites were amplified using primers F1 (TCTACACCAGCACTTGCCCTCTAC) and R1 (TACAACTCCTTCACTG CTTCCTGC), F2 (GCATTTCGCTGCTGTTTC), and R2 (AATGGATTTGAGGTGGGTC). The resultant fragments of TPS9 and TPS12 were digested with restriction enzymes XhoI and BamHI and inserted into the expression vectors pET21a and pET28a, respectively, which were also digested with the same restriction enzymes. The ligation product was transformed into E. coli DH5 α competent cells and spread on Luria-Bertani (LB) medium containing 100 µg/mL ampicillin and 50 µg/mL kanamycin. Positive clones were extracted and confirmed using digestion and sequencing. All bacterial strains were stored in the −80 °C refrigerator in the laboratory.

Expression of TPS9 and TPS12 in E. coli

Recombinant plasmids pET21a-TPS9 and pET28a-TPS12 were transformed into E. coli BL21(DE3) competent cells. Empty vectors pET-2a and pET-28a were transformed into E. coli BL21(DE3) cells as negative controls. Positive clones were selected and inoculated into LB medium containing 100 µg/ml ampicillin or 50 µg/ml kanamycin. The expression of pET21a-TPS9 and pET28a-TPS12 was induced under different IPTG concentrations (0.2 or 0.5 mM), incubation times (4, 6, 8, or 24 h), and temperatures (16 or 36 °C) to determine the optimal induction conditions. Then, positive clones of pET21a-TPS9 and pET28a-TPS12 were inoculated into LB medium containing 100 µg/mL ampicillin or 50 µg/mL kanamycin on a large scale after OD₆₀₀ reached 0.6−0.8. Bacterial cells were induced with 0.5 mM isopropyl β-D-thiogalactopyranoside (IPTG) for 6 h at 36 °C and proteins were obtained by ultrasonic decomposition for 1 h. The solution was centrifuged for 20 min at 5,000 rpm and 4 °C, and the supernatant was discarded. The target protein was detected using 10 µL of the sample for separation using 10% SDS-PAGE.

Western blot analysis

Proteins were separated by 10% SDS-PAGE and transferred onto 0.45 µm polyvinylidene fluoride membranes (Millipore, Burlington, MA, USA). The membranes were blocked with TBST buffer (20 mM Tris–HCl, 150 mM NaCl, and 0.05% (v/v) Tween 20) containing 5% fat-free milk powder and incubated at 4 °C for 4 h. The membrane containing the two expression vectors, TPS9-pET21a and TPS12-pET28a, with His-tag, was incubated overnight at 4 °C with anti-His antibody diluted at 1:2,000 (Transgen, Beijing, China), washed twice with TBST at 4 °C, and incubated with a secondary antibody conjugated to alkaline phosphatase diluted at 1:8,000 (Transgen, Beijing, China).

Heterologous protein production and enzymatic assays

E. coli cells with positive clones of pET21a-TPS9 or pET28a-TPS12 were inoculated into 200 ml LB medium until OD₆₀₀ reached 0.6−0.8. To increase the protein expression level, a longer incubation time was needed, and thus, bacterial cells were induced with 0.5 mM isopropyl IPTG for 12 h at 37 °C. The bacterial solution was concentrated to 10 ml by centrifuging at 4 °C, followed by ultrasonic decomposition for 1 h. The solution was placed into 20 ml sample bottles with 60 µM FPP (Sigma, St. Louis, MO, USA) or 60 µM GPP (Sigma, St. Louis, MO, USA) and kept for 60 min in a water bath at 30 °C. According to the protocol by the manufacturer, vapour from the bottle was extracted with a solid phase micro extraction (SPME) fibre (100 m polydimethylsiloxane, Supelco, Bellefonte, PA, USA) for 90 min in a water bath at 75 °C, following injection of the sample into the gas chromatograph.

GC-MS analysis

GC-MS analysis was performed using a Perkin Elmer Clarus 600 (Waltham, MA, USA) gas chromatograph equipped with an Agilent DB-5MS capillary column (internal diameter, 30 m × 0.25 mm; film thickness, 0.25 mm) and a Varian 600 mass spectrometer with an ion-trap detector in full scan mode under electron impact ionisation (70 eV), as described by Liu et al. (2015b). The carrier gas was helium and the flow rate was at one mL min ⁻¹. Samples were injected in the splitless mode at 250 °C. Thehe temperature operating conditions were as follows: 30 °C for 3 min, then increasing to 200 °C at a rate of 4 °C min ⁻¹, and maintaining that temperature for 5 min (Chen et al., 2011b; Xu et al., 2013). 1 µL C₇-C₄₀ n-alkanes was injected separately and ran in the same program as the essential oils.

Identification of components

Sesquiterpenes were identified by comparing their Kovats retention indices (RI) with those from the literature (Cavalli et al., 2003; Gkinis et al., 2003; Siani et al., 2004; Tzakou et al., 2004; Ghasemi et al., 2005; Li et al., 2006; Tepe et al., 2006; Vujisic et al., 2006; Pérez, Navarro & de Lorenzo, 2007; Saroglou et al., 2007; Basta et al., 2007; Hammami, Kamoun & Rebai, 2011), and comparing the mass spectra obtained with those stored in the NIST MS database and with mass spectra from the literature (Chen et al., 2011b; Liu et al., 2015b; Xu et al., 2013). The Kovats retention indices were determined in relation to a homologous series of n-alkanes (C₇–C₄₀) under the same operating conditions. Kovats retention indices was calculated as $RI=100n+100n\frac{t_x-t_n}{t_{n+1}-t_n}$, where t_x is the retention time of the compound to be measured, t_n is the retention time of the alkane that elutes prior to the compound, t_n+1 is the retention time of the next eluting alkane, and n is the carbon number for the preceding alkane. Further identification was made by comparing their mass spectra with these stored in NIST 11 and with mass spectra from the literature (Chen et al., 2011b; Liu et al., 2015b; Xu et al., 2013). We did not use an internal standard because it is difficult to choose one that is suitable for all samples.

Isolation and bioinformatics analysis of TPS9 and TPS12

Agarwood formation and accumulation under natural conditions may take even decades. In our previous studies, we mainly focused on sesquiterpene synthases induced soon after wounding treatment (Xu et al., 2014; Xu et al., 2021). However, sesquiterpene synthases induced subsequently, which are key regulators contributing to agarwood accumulation, have not yet been identified. TPS9 and TPS12 attracted our attention because transcriptomic studies of A. sinensis showed high expression levels of these synthases at the later stages of the plant response to external stimuli, suggesting a potential biological function in agarwood accumulation. Based on the sequences obtained from genome sequencing, we used PCR technique with specific primers to clone two sesquiterpene synthase genes, named TPS9 and TPS912. The isolated cDNAs have open reading frames (ORFs) of 1,383 and 1,632 base pairs, encoding predicted proteins of 460 and 543 amino acid residues, respectively. Aspartate-rich motifs, including the Rx8W, DDxxD, and NSE/DTE motifs, which are conserved in TPSs, were also found to be present in the amino acid sequences of TPS9 and TPS12 (Fig. 1). Predicted molecular weights were approximately 53.3 and 62.9 kDa for TPS9 and TPS12, respectively. Other physiological and biochemical properties of the two proteins are listed in Table S1; further, a three-dimensional structural model constructed using SWISS-MODEL showed that the two structures were similar (Fig. S1). The MEME motif search tool was used to predict the conserved motifs of TPS9 and TPS12; as a result, four putative motifs were identified (Fig. S2). The arginine-rich N-terminal RR(x8)W motif required for cyclisation in TPSs, the highly conserved aspartate-rich DDxxD motif required for Mg²⁺or Mn²⁺ binding, and the NSE/DTE motifs were found in the amino acid sequences of both TPS9 and TPS12. Analysis using SignalP, TMHMM, and ProtScale predicted that both TPS9 and TPS12 have no transmembrane or signal peptide and are soluble proteins.

To identify the phylogenetic relationship between TPS9 and TPS12 and subfamilies of the plant TPS family, an unrooted phylogenetic tree of TPS9 and TPS12 in A. sinensis and TPSs in 23 other plant species was constructed using MEGAX software with the neighbour-joining method (Fig. 2). Based on amino acid sequence homology, the plant-TPS family is divided into six subfamilies designated TPSa to TPSf (Bohlmann, Meyer-Gauen & Croteau, 1998). Our data showed that TPS9 and TPS12 belong to the TPSa family.

Expression of TPS9 and TPS12 in E. coli

To obtain TPS9 and TPS12, full-length TPS9 and TPS12 were each ligated into the pET-21a expression vector and coded proteins were expressed in E. coli BL21 (DE3). The results showed that TPS12 did not express any protein. We then changed pET-21a to the pET-28a expression vector, and the TPS12-encoded protein was expressed in E. coli BL21 (DE3). SDS-PAGE analysis of crude extracts from transformed E. coli BL21 (DE3) showed the expected molecular mass with excessive amounts of polypeptides. As shown in Fig. 3, at 0.5 mM IPTG and 36 ° C for 2 h, TPS9 and TPS12 showed expression levels that did not change markedly when incubation periods were extended. After lysis, the sediment and supernatant were analysed by 10% SDS-PAGE. The results confirmed that most recombinant pET21a-TPS9 and pET28a-TPS12 proteins were in the non-soluble fractions, contradicting the results predicted by SignalP, TMHMM, and ProtScale. We speculated that the prokaryotic expression system might not be suitable for expressing TPS9 and TPS12, as TPS9 and TPS12 are eukaryotic genes.

Function characterization of TPS9 and TPS12 by in-vitro enzyme assay

Analysis by SDS-PAGE showed that most recombinant pET21a-TPS9 and pET28a-TPS12 were inclusion body proteins with no activity. Additionally, Western blot analysis showed a small amount of protein present in the supernatant. As functional enzymes are able to show catalytic activity even when present in small quantities, we attempted to detect such catalytic function in vivo using total protein.

As expected, the total protein extract harbouring TPS9 and TPS12 showed activity when FPP was used as a substrate (Table 1 and Fig. 4). The volatile crude extract from E. coli BL21 (DE3) was examined by GC-MS, which indicated that the two enzymes are able to produce sesquiterpenes. Based on mass spectrum analysis using an equipped database, unknown sesquiterpenes, unidentified sesquiterpene RI 1404 (Rt = 12.642 min), β-farnesene (Rt = 12.711 min), cis-sesquisabinene hydrate (Rt = 15.837 min), and cedrol (Rt = 16.066 min) were detected by GC–MS in TPS9; the products contained major amounts of cis-sesquisabinene hydrate (34.61%), β-farnesene (31.79%), and smaller amounts of unidentified sesquiterpene RI 1404 (19.04%) and cedrol (14.56%). Incubation of TPS12 with FPP resulted in the formation of four sesquiterpenes, β-farnesene (41.11%), nerolidol (31.07%), γ-eudesmol (1.77%), and hinesol (26.05%), at retention times of 12.713, 14.842, 16.875, and 17.493 min, respectively (Fig. 4). Among them, nerolidol is a characteristic sesquiterpene present in agarwood which has also been detected in A. malaccensis from Cambodia (Chen et al., 2012; Gao et al., 2014; Pripdeevech, Khummueng & Park, 2011). Various studies have found that nerolidol plays a vital role in neuroprotection and has inhibitory effects on leishmanial, schistosomal, malarial, nociceptive, and tumour activities (Chan et al., 2016; De Carvalho et al., 2018; Fonseca et al., 2016; Iqubal et al., 2019). In addition, γ-eudesmol and hinesol have also been found in essential oils from A. sinensis (Chen et al., 2012; Gao et al., 2019; Xu et al., 2013) both showing pharmacological anti-tumour effects (Bomfim et al., 2013; Guo et al., 2018).

Further, the identities of the monoterpene products produced by the sesquiterpene synthases TPS9 and TPS12 were detected by GC-MS, and both incubation of TPS9 and TPS12 with GPP yielded monoterpene products (Table 1 and Fig. 5). Incubation of TPS9 with GPP resulted in the formation of seven monoterpenes, β-myrcene (2.37%), limonene (1.1%), 3-carene (1.8%), unidentified monoterpene RI 1005 (1.34%), citronellol (39.73%), geraniol (49.73%) and citral (3.93%), with retention times of 5.712, 6.323, 6.436, 6.605, 9.328, 9.739, 9.927 min, respectively. Four monoterpenes, β-myrcene (3.39%), unidentified monoterpene RI 1006 (2.38%), unidentified monoterpene RI 1089 (2.00%), citral (92.30%), with retention times of 5.724, 6.616, 7.936, 9.769 min, respectively. The same products of TPS9 and TPS12 were β-myrcene, and citral. Citronellol and geraniol were the principal monoterpene products of TPS9, but they were not detectable as products of TPS12. Among them, it is reported that myrcene and β-pinene also the common products generated by various sesquiterpenes synthase with GPP as substrate (Nagegowda et al., 2008; Srivastava et al., 2015; Steele et al., 1998; Tholl et al., 2005). Limonene is the principal monoterpene product of both δ-selinene synthase and γ-humulene synthases in Abies grandis (32), and it is also generated by At5g23960 TPS from Arabidopsis. Pinene, myrcene, limonene and cital are detected in the essential oil of Tunisian Conyza bonariensis (Mabrouk et al., 2011).

Expression patterns of TPS9 and TPS12 in different tissues and growth phases of A. sinensis

To investigate the temporal and spatial expression profiles of TPS9 and TPS12 in different tissues, the expression levels of TPS9 and TPS12 were analysed from transcriptome data in seven tissues, including agarwood, branches, stems, roots, old leaves, young leaves, buds, and flowers (Figs. 6A, 6C). The results showed similar expression profiles for both TPS9 and TPS12, except that TPS9 was not expressed in stems, young leaves, or buds, while TPS12 was not expressed in branches, stems, or young leaves. The largest amounts of transcripts of TPS9 and TPS12 were found in flowers. These results suggest that TPS9 and TPS12 probably contribute to flower fragrance, likely playing a role in the synthesis of various aromatic compounds. Furthermore, they seemingly have a function in flower development and other physiological processes occurring in flowers, similar to At5g44630 and At5g23960, which are responsible for the biosynthesis of sesquiterpenes emitted from Arabidopsis flowers (Tholl et al., 2005). In addition, high expression levels of TPS9 and TPS12 were observed in agarwood, which, according to their function, produced volatile sesquiterpenes. These results indicate that the two newly identified sesquiterpene synthases probably have positive roles in agarwood formation.

There is a general consensus that agarwood is only formed in injured A. sinensis trees. To further evaluate whether TPS9 and TPS12 are involved in agarwood formation, we analysed transcriptome data and whole-tree inducing materials, including different treatment times and layers (healthy layer, H; agarwood layer, AT and A; transition layer, T; and decomposed layer, D) (Fig. 6B). In contrast to ASS1, sesquiterpene synthase δ-guanine synthase from A. sinensis is immediately and significantly induced by wounding (Sun et al., 2020; Xu et al., 2016; Xu et al., 2013). Both TPS9 and TPS12 were induced much later, showing a very low level of expression at 15 days prior to induction. TPS9 was expressed in the agarwood and the decomposed layers 15 days after wounding treatment, and lasted until 21 month, with the highest expression level at 21 month (Fig. 6D). The relative expression level of TPS12 was extremely high in agarwood and decomposed layers at 15 days, and the expression was at a low level at later stages.

The response of TPS9 and TPS12 to various abiotic stress conditions

To examine whether TPS9 and TPS12 would respond to various abiotic stress, we analysed well-grown A. sinensis calli treated with heat, 100 µM MeJA, 100 µM SA, 100 µM ABA, 400 mM mannitol, 50 mM H₂O₂ and 300 mM NaCl at various times, and then used qRT-PCR to study the resulting transcript levels of TPS9 and TPS12. As shown in Fig. 7, TPS9 and TPS12 were induced by all additional stresses, and they showed different expression under the stresses. TPS9 seems to be more sensitive to heat and MeJA treatment while TPS12 induces dramatically after MeJA and NaCl treatment.

We previously reported that treatment with MeJA, heat shock, or salicylic acid (SA) induced the expression of sesquiterpene synthase and the production of sesquiterpenes (Liao et al., 2015a; Liao et al., 2015b; Liu et al., 2015b), and MeJA, SA are also known as universal inducer of plant defensive metabolite production, they are response to induce genes expression to biosynthesis secondary metabolites in plants (Hassanein, 2010; Schenk et al., 2000). Both TPS9 and TPS12 were positively induced by all three treatments but TPS12 was more sensitive to MeJA than TPS9, and significant induction (approximately 60-fold) of TPS12 was observed in response to stress at 24 h after treatment, after which there was a remarkable increase (nearly 1,000-fold) at 7 d after treatment, with the trend still continuing. Meanwhile, the expression level of TPS9 transcripts increased by approximately 40-fold at 6 h after treatment and the induced transcription level was maintained as the treatment continued. As for heat treatment, it increased the transcript levels of both TPS9 and TPS12 but the changes were not as significant as those observed under MeJA treatment. The expression of TPS9 and TPS12 both increased first, until levels peaked at 80- and 20-fold, respectively, at 36 h after treatment, and then decreased. Under salicylic acid (SA) treatment, the relative expression of TPS9 showed an up-down-up pattern and peaked at 24 h with an expression level approximately four times higher than that recorded prior to treatment. Meanwhile, the expression level of TPS12 remained stable during 72 h, increasing significantly, approximately five-fold, after nine days; then, the expression increased to a maximum level, approximately 80-fold greater than that observed for controls, at 13 days after treatment. ABA plays a central role in responses to biotic and abiotic stresses (Smet et al., 2006). Under ABA treatment, TPS9 expression level was increased to about 3-fold immediately and maintained stable until day 1, peaked at about 15-fold at day 5 and rapidly decreased to minimum value at day 10, which in accord with TPS12 expression. Mannitol is suitable for screening crop contained tolerance drought stress (Jing et al., 2009) and it has been found to be effective as a water stress-inducing agent in various plants, including Pelargonium (Hassanein, 2010), cassava (Jolayemi, Opabode & Badara, 2018), soybean (Neto et al., 2004). The TPS9 expression increased till maximum about 20-fold at day 1 and then the expression was gradually decreased until day 10. On the other hand, TPS12 gradually increased and peaked at day 5, and then rapidly decreased until day 10. For H₂O₂treatment, TPS9 transcript level peaked at day 5 for about 3-folds, and TPS12 expression showed up-down-up pattern and peaked at day 5. For NaCl treatment, the expression of TPS9 and TPS12 showed similar pattern, they both gradually increased and peaked at day 1, and then decreased at day 5.

These results suggest that TPS9 and TPS12 are induced at all treated stresses, implying they might play a crucial role in protecting plants from environment abiotic stresses. Furthermore, under all stresses treatment, TPS9 and TPS12 were typical genes that are induced in the later stages of the plant response to stress conditions.
