Characterization of auxin transporter AUX, PIN and PILS gene families in pineapple and evaluation of expression profiles during reproductive development and under abiotic stresses

Plant materials and sampling

The pineapple (Ananas comosus (L.) Merr. CV. MD-2) plants were grown in a greenhouse at Fujian Agriculture and Forestry University. Plant materials for expression pattern analysis were roots, leaves, flower buds, and six different developmental stages fruits which were S1, S2, S3, S4, S5, and S6, as described by Ming et al. (2015). The four flower organs tested in the expression profile analysis during pineapple reproductive development were calyxes, petals, stamens, and ovules during different development stages, as described by Su et al. (2017) and Ali et al. (2017). The flower organs at different developmental stages were defined based on the flower buds’ diameters in pineapple inflorescences. The calyxes at four developmental stages included calyxes during early flower developmental stage (Ca1) with buds’ width 5–7 mm, calyxes before flowering (Ca2) with buds’ width 8–9 mm, calyxes when flowering (Ca3), and calyxes after flowering (Ca4). The petals at three stages were petals during early flower developmental stage (Pe1) with buds’ width 5–8 mm, petals before flowering (Pe2) with buds’ width 8-9 mm, and petals when flowering (Pe3). The five different developmental stages in stamens were St1 with buds’ width <5 mm, St2 with buds’ width 5–8 mm, St3 with buds’ width >8 mm, St4 with just showing petals, and St5 with one mm petals visible. The seven different developmental stages in ovules were Ov1 with buds’ width <5 mm, Ov2 with buds’ width 5–8 mm, Ov3 with buds’ width eight mm, Ov4 with buds’ width >8 mm, Ov5 with just showing petals, Ov6 with one mm petals visible, and Ov7 with >2 mm petal visible to pre-flowering, as described by Su et al. (2017). These flower tissues materials were taken with three replicates and quickly frozen in liquid nitrogen, and stored at −80 °C until RNA extraction.

For stress treatments, the pineapple seedlings were carefully transferred into the solution with mannitol at 28 °C as drought stress, placed in 400 mM NaCl solution at 28 °C as salt stress, and kept in sterile water at 4 °C and 45 °C as cold stress and heat stress, respectively. All the pineapple seedlings were placed in the growth chambers with a 14:10 light: dark photoperiod at different temperatures. Roots and shoots were collected separately at 6 h, 12 h, 24 h, and 48 h after treatment, and parallel control samples were prepared at each time point. Three biological replicate samples were used for this study. The harvested samples were immediately frozen in liquid nitrogen, and stored in −80 °C environment until RNA extraction.

Database screening and identification of AcPINs, AcAUXs and AcPILSs

Two approaches were employed for the mining of all putative AUX, PIN and PILS auxin transporter familiy members in the pineapple genome. Firstly, BLASTP searches of the consensus protein sequences (PF01490, Pfam 03547 and Pfam PF03547) search were performed in phytozome (http://www.phytozome.net/). Secondly, protein sequences of putative AUX, PIN and PILS family members were downloaded from Search Interpro (http://www.ebi.ac.uk/ interpro/ISearch?query = PF01490 and PF03547). Resulting protein sequences were then used as queries to perform two database searches against MSU-RGAP (http://rice.plantbiology.msu.edu/) and NCBI (http://www.ncbi.nlm.nih.gov/). After removing the redundant sequences, the remaining protein sequences were then used as queries to screen for the presence of the conserved membrane transport protein domain using InterProScan Sequence Search (http://www.ebi.ac.uk/interpro/search/sequence-search). The AcAUX, AcPIN and AcPILS genes in pineapple were named according to sequence homology to these genes in rice and A. thaliana. Information about genomic DNA, full-length cDNA, coding sequence length for each gene and characteristics of proteins were obtained from phytozome (http://www.phytozome.net/). The predicted intron-exon structures of AcAUXs, AcPINs and AcPILSs were retrieved on the website of GSDS (Gene Structure Display Server) (http://gsds.cbi.pku.edu.cn/). Prediction of the putative transmembrane regions in AcAUX, AcPIN and AcPILS proteins was performed with the TMHMM Server v2.0 (http://www.cbs.dtu.dk/services/TMHMM/).

Chromosomal localization

The physical positions of AcAUXs, AcPINs, and AcPILSs genes were used to map these genes onto the corresponding pineapple chromosomes. The distribution of AcAUXs, AcPINs, and AcPILSs genes on chromosomes was drawn by using the MapChart software (Voorrips, 2002) and modified manually with annotation.

Phylogenetic analysis and sequence alignment

The multiple sequence alignment was performed based on amino acid sequences of AUX, PIN and PILS proteins by using ClustalX version 1.83, and the phylogenetic tree based on the full-length protein sequences of AUX, PIN and PILS proteins in pineapple, Arabidopsis and rice was constructed using MEGA 6.06 with 1000 bootstrap replications by Maximum likelihood method, Jones-Taylor-Thornton (JTT) model and complete deletion (Tamura et al., 2007; Cao et al., 2019). The combined trees with AUX, PIN and PILS proteins in pineapple, Arabidopsis, sorghum, and Brachypodium distachyon were generated using the same method, respectively. The conserved motifs within AUX, PIN and PILS proteins in pineapple, Arabidopsis and rice were identified by using the MEME motif search tool (https://meme-suite.org/meme/index.html) with default settings, except that the maximum number of motifs was defined as 10 and the maximum width was set to 100. The sequence conservation of AUX, PIN and PILS family members in amino acid was analyzed by DNAMAN software (Ma et al., 2011) and modified manually. The conserved amino acid residues and transmembrane (TM) domains were annotated according to DNAMAN analysis and TMHMM prediction, respectively.

Comprehensive expression analysis of AcAUXs, AcPINs and AcPILSs

RNA-Seq data of roots, leaves, flower buds, and five different developmental stages fruits were downloaded from NCBI (https://www.ncbi.nlm.nih.gov/Traces/study/?acc=SRP067011). Total RNA from different flower tissues in pineapple were extracted using Plant RNeasy Mini kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions. 1µg of RNA was used for cDNA synthesis and the final product was diluted 5 times in a total volume of 100 µl. The cDNA libraries for sequencing were constructed using the NEBNext Ultra™ RNA Library Prep Kit for Illumina (NEB). The transcriptome sequencing was performed on HiSeq 2500 platform using 100 bp pair-end protocols at this research center. The total reads acquired and sequencing depth in all samples were listed in Table S4. All clean reads from each sample were mapped to the reference genome with Tophat. Cufflinks was used to assemble transcripts and estimate their abundances in RNA-Seq samples (Trapnell et al., 2012). The RNA-Seq data preprocessing was performed as described by Trapnell et al. (2012) and Dai et al. (2017). The FPKM values in different tissues represented the expression values of Ac AUX, AcPIN, AcPILS genes. To make the signal values suitable for cluster display, all the original signal values were added by 1 to get the modified vaules, which were divided by the average of all of the values. The log modified values were used to conduct the hierarchical cluster display. For the comparative expression analysis of AUX, PIN and PILS genes in pineapple, Arabidopsis and rice, microarray expression data of these genes in Arabidopsis and rice were also downloaded from TAIR (http://www.arabidopsis.org/) and RiceGE (http://natural.salk.edu/database/RiceGE/) website, respectively. The hierarchical cluster displays were used to show the logarithmic values of the ratios from the previous step. According to the log values, expression levels of these genes were classified into four grades: high (more than 1), moderate (between 0 and 1), low (between −1 and 0), and extremely low (lower than −1), as described by Ma et al. (2011).

Identification of transgenic Arabidopsis plants with overexpression of AcAUX1

For the overexpression construct, the 1224 bp fragment of AcAUX1 coding sequence was amplified by PCR from the cDNA of pineapple root with the primer set AcAUX1 OE-FP (5′ggccgcccccttcaccATGCTGTCGGGGGTGCTG3′) and AcAUX1 OE-RP (5′cggcgcgcccaccctt TGGATGCTGCAGCGGG3′). The PCR products were then constructed into pENTER/ D-TOPO vector (Invitrogen) and then the positive clones were recombined with the destination vector pGWB505 by LR Clonase II enzyme (Invitrogen). The 35S:AcAUX1 recombinant construction was transformed into wild-type and aux1-T (SALK_020355C, Da Costa, Offringa & Fett-Neto, 2020) Arabidopsis (Columbia ecotype) using the Agrobacterium- mediated floral dip method. Then, the expression level of AcAUX1 in T1 generation positive seedlings was determined by qPCR. The T1 generation seeds were harvested individually to obtain T2 generation seedlings of different lines. The numbers of emergenced lateral roots in 7-day-old seedlings of wild-type, aux1-T, overexpression lines were observed, and student’s t-test was used to analyze the significant differences between WT/aux1-T and the overexpression lines.

Quantitative RT-PCR analysis

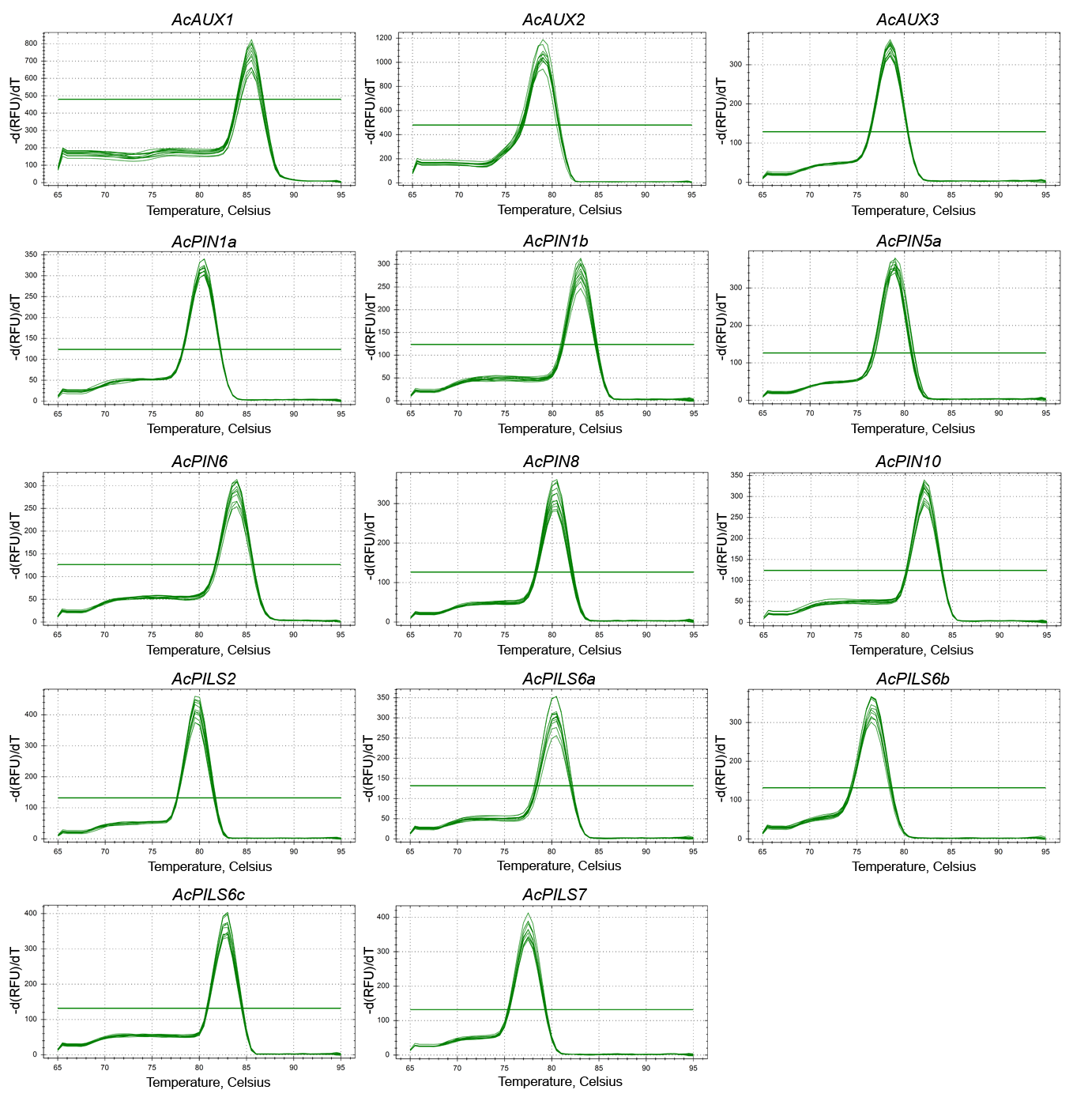

To confirm the relative transcript levels of the selected genes, the total RNA extraction from all pineapple samples, cDNA synthesis and qRT-PCR was performed, as described by Ali et al. (2017) and Zhang et al. (2020). The program was: denaturation at 95 °C for 30 s; 40 cycles of annealing at 95 °C for 5s and extension at 60 °C for 35s; 95 °C for15s. At least three independent biological replicates were performed in each case. AcActin was used as an internal control gene, and the relative expression levels of the examined genes were evaluated using the comparative C_T method, as described by Su et al. (2017). Error bars indicate standard deviations of independent biological replicates (n = 3). The gene-specific primers were listed in Table S5. The melt curves of qRT-PCR analysis for 14 genes in this study are showed in Fig. S9.

Identification of polar auxin transport genes in pineapple genome

To explore the entire polar auxin transport genes in pineapple, the conserved domains Pfam 01490, Pfam 03547 and Pfam PF03547 were used to identify AcAUX, AcPIN and AcPILS gene family numbers at Phytozome database (http://www.phytozome.net), respectively. Based on sequence similarity in proteins, Arabidopsis AUX/LAX, PIN and PILS proteins were used as queries employing BLAST algorithms to search against the Phytozome. After comprehensive search, a total of three AcAUX genes, 12 AcPIN genes and seven AcPILS genes in pineapple genome were found. The number of these auxin transport genes in pineapple was similar to that of Arabidopsis, rice, maize, and sorghum, but much less than that of Chinese cabbage and soybean (Chai & Subudhi, 2016). The AcAUX, AcPIN and AcPILS genes in pineapple were named according to sequence homology to these genes in rice and Arabidopsis. The genomic DNA, coding region and protein sequences of these genes were subsequently downloaded. The detailed information of AcAUX, AcPIN and AcPILS genes about gene names, locus ID, chromosome locations, intron numbers, mRNA length, ORF length for each gene, and characteristics of corresponding deduced polypeptides and the number of transmembrane regions are detailed in Table 1. In AcAUXs group, the three genes were located at three different chromosomes, AcAUX1 in LG13, AcAUX2 in LG03, and AcAUX3 in LG17. The ORF lengths of the three genes were in the range from 1224 bp (AcAUX1) to 1410 bp (AcAUX2). The sizes of the AcAUX proteins varied slightly ranging from 407 amino acids (AcAUX1) to 469 amino acids (AcAUX2), the corresponding molecular weight varied from 45.7 kDa to 52.5 kDa, and the predicted isoelectric points varied from 8.9 (AcAUX3) to 9.45 (AcAUX2) (Table 1).

In AcPINs group, the twelve genes were located at eight different chromosomes, three genes (AcPIN5a, AcPIN5b and AcPIN6) in LG01, two genes each in LG11 (AcPIN10 and AcPIN8) and LG12 (AcPIN9a and AcPIN9b), and one gene each in LG05 (AcPIN5c), LG06 (AcPIN1a), LG13 (AcPIN1b), LG14 (AcPIN2) and LG25 (AcPIN5d). The ORF lengths of the twelve genes were in the range from 243 bp (AcPIN5d) to 1926 bp (AcPIN10). The sizes of the AcPIN proteins varied evidently ranging from 80 amino acids (AcPIN5d) to 641 amino acids (AcPIN10), the protein molecular weight varied from 8.42 kDa (AcPIN5d) to 68.24 kDa (AcPIN2), and the predicted isoelectric points varied from 6.66 (AcPIN10) to 10.27 (AcPIN5d). It is noteworthy that the size of AcPIN5d proteins is the shortest, but the isoelectric point of this protein is the highest (Table 1). In AcPILSs group, the seven genes were located at seven different chromosomes, only one gene in a linkage group. The ORF lengths of the seven genes were in the range from 1251 bp (AcPILS6a) to 1668 bp (AcPILS5). The sizes of the AcPILS proteins varied slightly ranging from 416 amino acids (AcPILS6a) to 555 amino acids (AcPILS5), the corresponding molecular masses varied from 45.01 kDa to 61.95 kDa, and the predicted isoelectric points varied from 5.7 (AcPILS2) to 9.17 (AcPILS6a) (Table 1). These data showed that the sizes and molecular weight of the AcAUX, AcPIN and AcPILS proteins in the same subfamily were similar, and comparable with that of rice, and Arabidopsis. These characterizations indicated that members of the same subfamily were very conservative in structure among different species.

Phylogenetic analysis of AUX, PIN and PILS families

In order to evaluate the evolutionary relationships and functions among AUX, PIN and PILS genes, three combined phylogenetic trees were generated from alignments of the full-length sequences of the AUX, PIN and PILS proteins in Arabidopsis, rice and pineapple using maximum likelihood method (Fig. 1). Additionally, we also constructed the phylogenetic trees of AUX, PIN, and PILS family from six species including Arabidopsis, rice, pineapple, maize, sorghum, and Brachypodium distachyon (Figs. S1–S3) using the same method, respectively. The 12 proteins in AUX/LAX family were classified into three distinct groups with five numbers in group AUX1, four in group AUX2, three in group AUX3, respectively (Fig. 1A). The two orthologs in rice were found in both groups AUX1 and AUX2, but only one member from pineapple was found in the three groups. Only one member form the three species was found in group AUX3, respectively.

The phylogenetic analysis on PIN family revealed that these PINs could be divided into eight distinct groups: PIN1, PIN2, PIN3/4/7 (dicot-specific), PIN5, PIN6, PIN8, PIN9 and PIN10 (monocot-specific) (Fig. 1B). Within PIN1, PIN2, PIN5 and PIN8 groups, PINs from the three species were clustered separately. More than one member from rice and pineapple were found in groups PIN1 and PIN5. The members in groups PIN9 and PIN10 were also identified from rice and pineapple. No members have been found in the PIN6 group from rice, neither do in the PIN9 and PIN10 groups from Arabidopsis. The monocot-specific PIN9/PIN10 groups and the dicot-specific PIN3/4/7 might have evolved independently, respectively. The change in the number of PIN members suggested that the PIN family had undergone functional divergence during the course of evolution. The PILS proteins from the three species were classified into four groups: PILS1/3/4, PILS2, PILS5/7, and PILS6 (Fig. 1C). The only one number was identified from the different species in PILS2 group, and the ortholog between AcPILS2 and OsPILS2 were more closely related than their equivalents between AcPILS2 and AtPILS2. It was clearly demonstrated that PILS3 and PILS4 in pineapple and rice were absent in PILS1/3/4 group, and the other three groups consisted of the members from these species.

Chromosomal distribution and gene structure

To analyze the relationship between genetic distribution and gene duplication within the AcAUX, AcPIN and AcPILS gene family, the exact locations and orientation of these genes on the pineapple chromosomes were determined based on the Phytozome loci coordinate (http://www.phytozome.net). Chromosome mapping revealed that the 22 genes from AcAUX, AcPIN and AcPILS families were not evenly distributed on 15 chromosomes, and there was no substantial clustering of these genes in pineapple chromosomes (Fig. 2). The gene number on each chromosome varied from one to three, with only one gene each on chromosomes 2, 4, 6, 14, 17, 21, 22, 23 and 25, two genes each on chromosome 3, 5, 11, 12, and 13, three genes only on chromosome 1. Out of 22 genes, the orientations of 13 genes are reverse, and other nine genes are forward. Moreover, the orientation of three genes in chromosome 1 and two genes in chromosome 13 are all reverse (Figs. 2A and 2B).

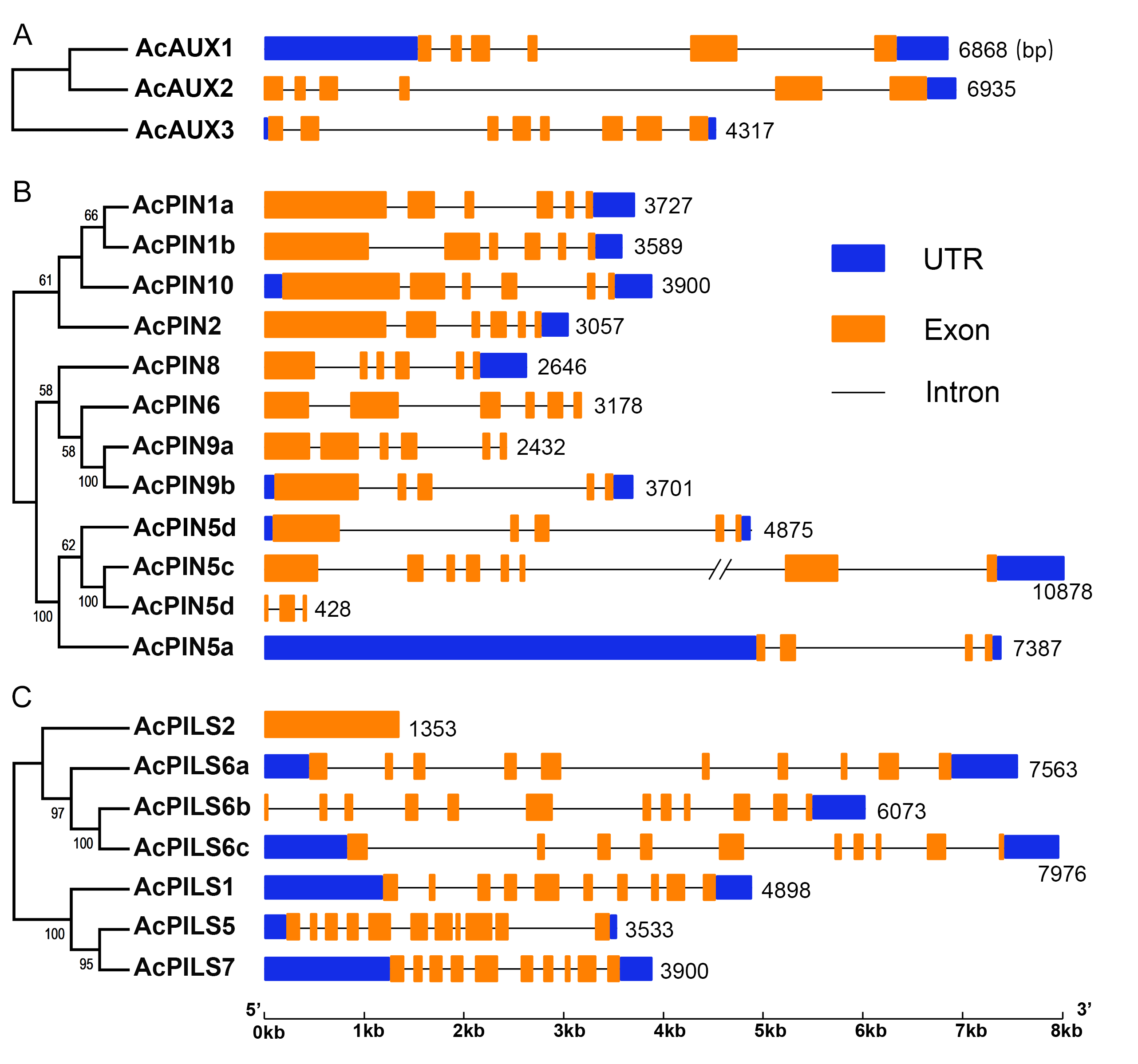

To analyze gene structure, the full-length cDNA sequences and the corresponding genomic DNA sequences of each AcAUX, AcPIN and AcPILS genes were compared to determine the numbers and positions of exons and introns by using GSDS (http://gsds.cbi.pku.edu.cn/). The results showed that the number of introns in the coding sequences of these genes ranged from two to eleven, excepting AcPILS 2 gene without introns (Fig. S4). Three AcPIN genes (AcPIN5d, 6 and 9a) and AcPILS2 gene had no untranslated regions. Within a given subfamily, most members tended to share similar intron/exon structure and gene length. For example, the two members (AcPIN1a, and 1b) in AcPIN1 subfamily each contain five introns and six exons, and are all nearly 3700 bp in length. These data suggested that the gene structures of the members in the same subfamilies could be conservative.

Transmembrane region prediction and multiple sequence alignment

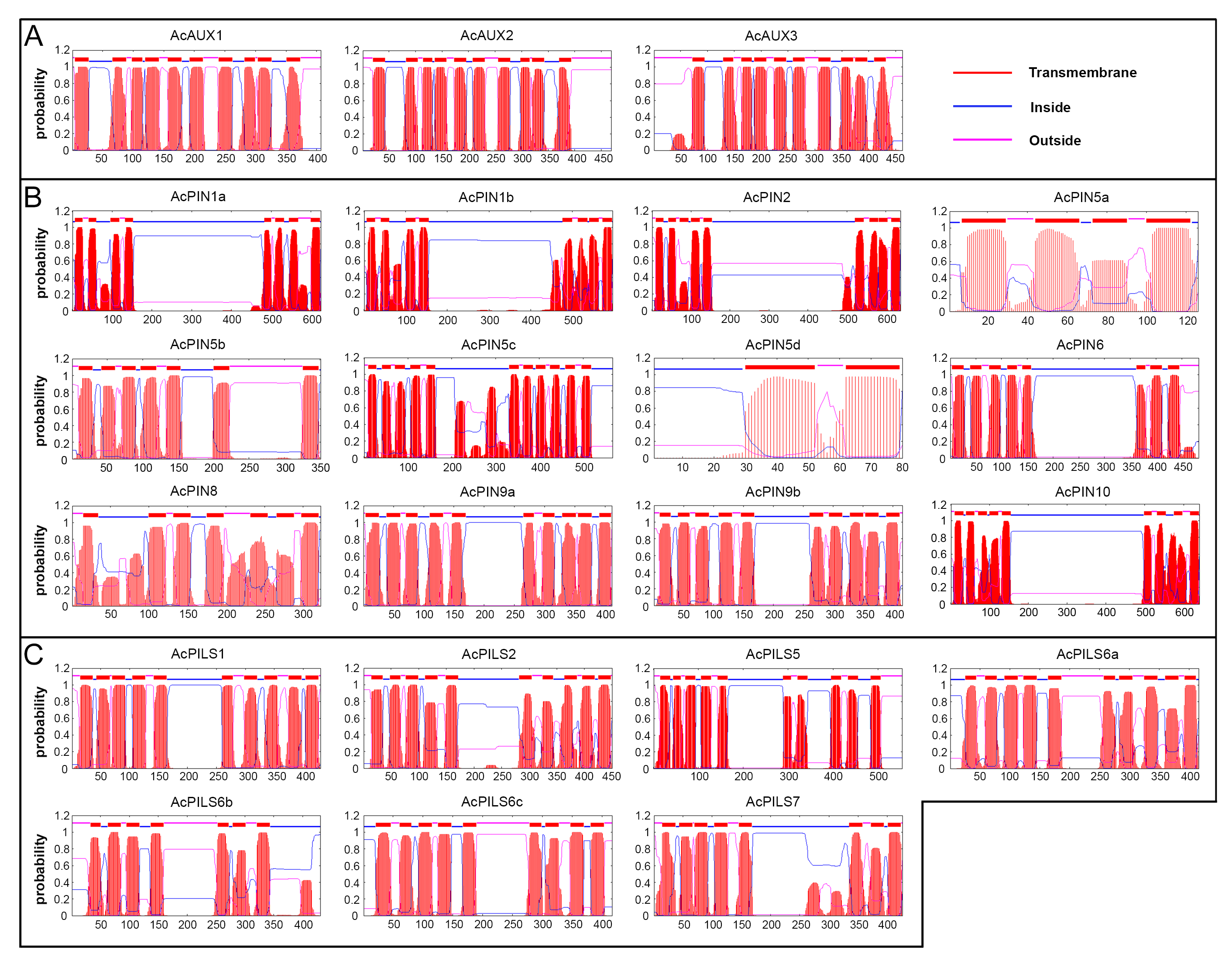

Using the TMHMM Server v2.0 (http://www.cbs.dtu.dk/services/TMHMM/), prediction of the putative transmembrane regions in AcAUX, AcPIN and AcPILS proteins in pineapple was performed (Fig. S5). The data showed that the three proteins from AcAUX family had ten putative transmembrane regions (Fig. S5A). The number of predicted transmembrane regions in AcPIN proteins varied from two to 11 (Fig. S5B). According to the length of the central hydrophilic domain, as in Arabidopsis, the pineapple PIN genes were also divided into two groups: the long PINs and the short PINs. The long AcPIN proteins with longer central regions comprise four members (AcPIN1a, 1b, 2 and 10), and their transmembrane domains were located at the N-terminus and C-terminus regions. The other AcPIN proteins without long central region belonged to short PINs, except for AcPIN6, whose long central region was found. The number of predicted transmembrane regions in AcPILS proteins varied from seven to ten (Fig. S5C).

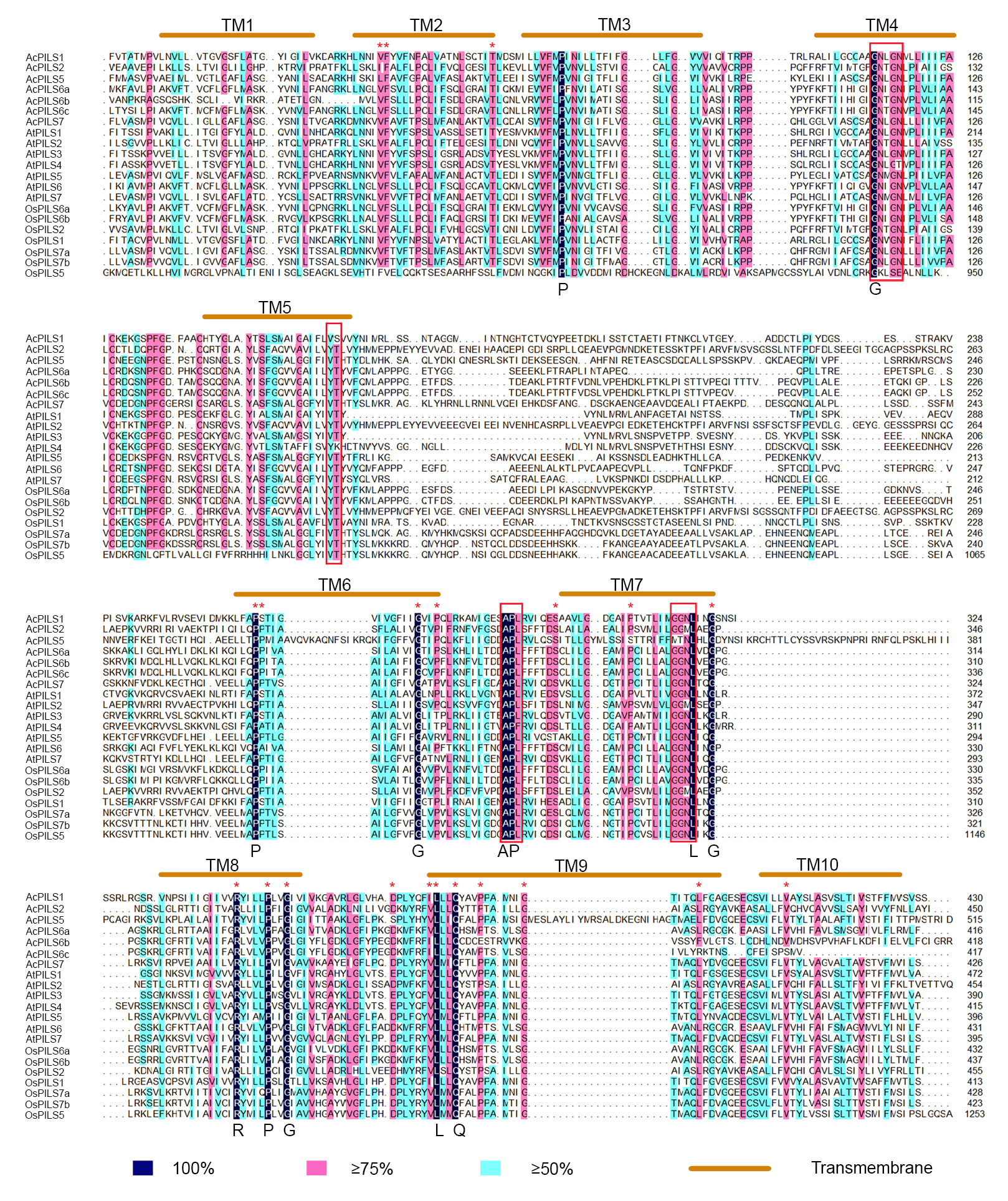

To clearly understand the sequence characteristics of AUXs, PINs and PILSs, we conducted a multiple sequence alignment using the deduced amino acid sequences of the AUX, PIN and PILS proteins from the three species (Fig. 3). The results showed that all of the AUX proteins were highly conserved. The amino acids residues that had been known to be important for the activity of auxin influx carriers (Swarup et al., 2004) were found to be completely conserved among the three AUXs family members (Figs. 3A–3D). The N-terminus and C-terminus regions in PIN proteins from the three species were conserved, but their central regions had no conserved sequences (Fig. S6). The alignment of the PILS proteins revealed that the conserved sequences were present in both the N- and C-terminal regions, and the central hydrophilic regions were highly variable. The major conserved domain ‘GNxGN’ at N-terminus was found, and the C-terminal regions contained two conserved domains, ‘APL’ and ‘GGNL’ (Fig. S7).

Conserved motifs in AUX, PIN and PILS proteins

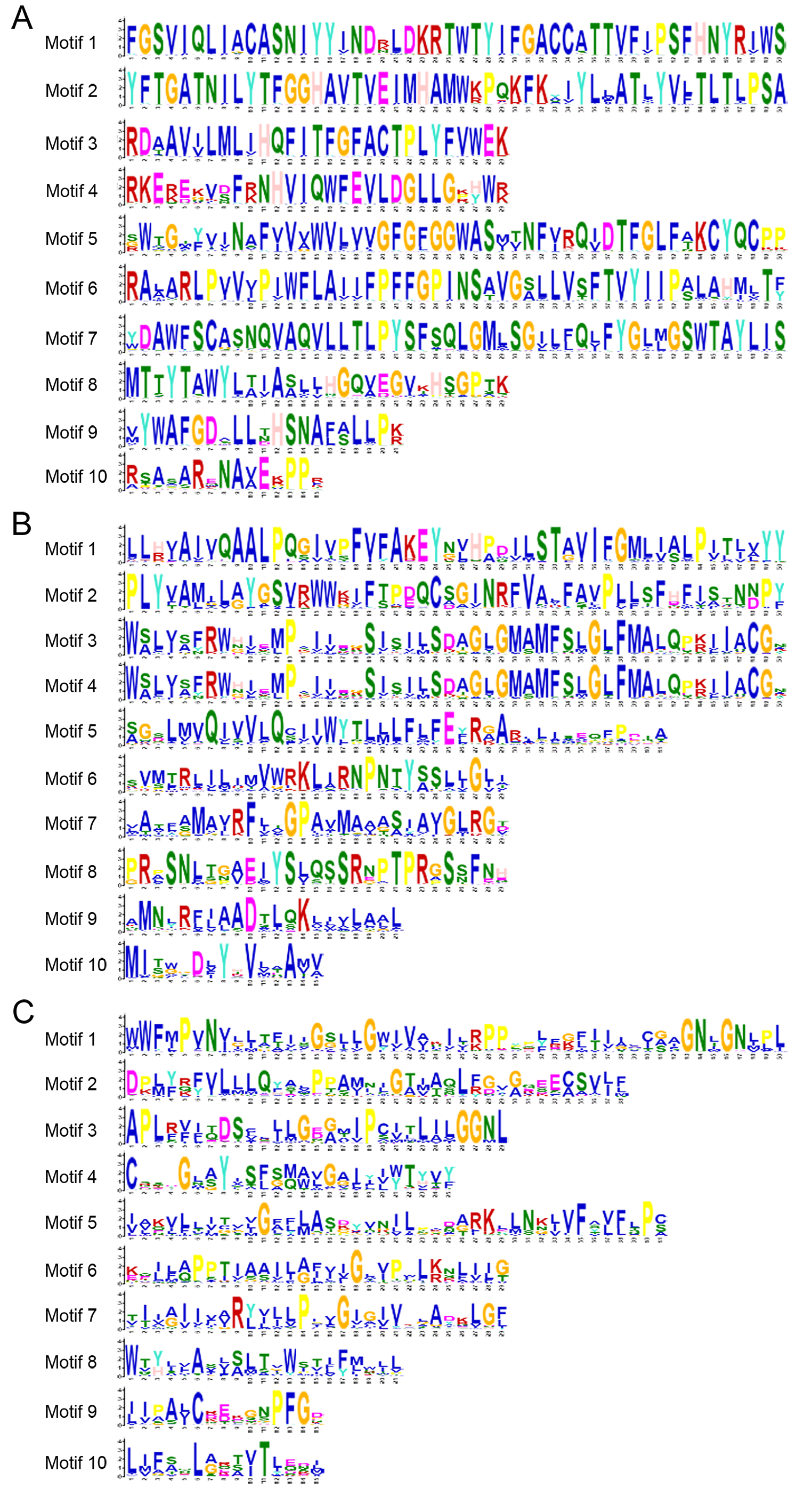

To further explore conserved motifs in AUX, PIN and PGP proteins, the MEME motif search tool was employed to identify the motifs shared in these proteins from the three species (Fig. 4, Fig. S8). As shown in Fig. 4A, the ten motifs in AUXs family were present in all of these proteins, excepting that no motif 7 were found in AcAUX1 and AcAUX2. In PINs family, the most motifs were widely distributed, and the motif 7 was completely conserved in 32 members (Fig. 4B). In contrast, the motif 8 was present in 17 of 32 proteins. The N-terminal motifs included motif 10, motif 2, motif 9, motif 4 and motif 5, and the C-terminal motifs consisted of motif 3, motif 6, motif 7 and motif 1. In AcPIN proteins, the motif 8 was absent in AcPIN1a, AcPIN5a, AcPIN5c, AcPIN5d, AcPIN8, AcPIN9a, AcPIN9b and AcPIN5b. Interestingly, AcPIN5a and AcPIN5d comprised motif 7 or/and motif 8. In PIILs family, the conserved motifs were distributed at N-terminus and C-terminus regions. AcPILS6b have no motif 5 at N-terminus and motif 8 at C-terminus, and the other motifs were present in AcPILS proteins except for AcPILS6c without motif 8 (Fig. 4C).

Expression profile of AcAUX, AcPIN, AcPILS genes in several tissues and fruits

The study of gene expression is of great significance to reveal gene function. To analyze the global expression profiles of Ac AUX, AcPIN, AcPILS genes in pineapple, transcriptome sequencing in several tissues including root, leaf, flower and fruits during different developmental stages of MD2 (Ananas comosus (L.) Merr. CV. MD-2) was performed (Ming et al., 2015) and the Illumina RNA-Seq data of MD2 was selected for expression analysis of these 22 genes in three families. The expression data of Ac AUX, AcPIN, AcPILS genes were represented by their FPKM values in different tissues.

The average log signal values for these 22 genes in the tissues examined were used to generate the hierarchical cluster display, and the heat map revealed the differential expression patterns of these genes, which could be divided into three major groups (Fig. 5A, Table S1). Three genes (AcPILS6b, AcPILS2 and AcPILS6c) in group I showed relatively high expression levels in the most organs, suggesting that these genes could play important roles during pineapple growth and development. Group II comprised twelve genes that showed extremely low expression level in the most examined organs, excepting that four genes (AcAUX2, AcPIN2, AcPIN5c and AcPIN1b) were found to express moderately in roots, two genes (AcPIN5a and AcPIN5b) in S1-3 fruits, and one gene (AcPIN9b) in leaf and flower (Fig. 5A), suggesting that these genes might be involved in control of growth and development under specific conditions in pineapple. Group III included seven genes that showed relatively high expression level in certain organs, such as two genes (AcAUX1 and AcAUX3) in roots, indicating that the genes might be involved in the regulation of root growth and development. Two genes (AcPILS6a and AcPILS7) were abundantly expressed in leaf and flower, and AcPILS6a in S4 fruit and AcPILS7 in S1 and S2 fruit showed high expression level, indicating that these genes could be involved in regulating leaf, flower or fruit development in pineapple. Moreover, AcPIN10 showed also high expression level in leaves and flowers. These results implied that those genes (AcPILS6a, AcPILS6b, AcPILS6c and AcPILS7) might perform function widely during the plant growth.

To confirm the expression pattern of these genes in different organs, the qRT-PCR analysis was performed in pineapple. The data showed that AcAUX3 and AcAUX1 were predominantly expressed in roots (Fig. 5B). The expression level of AcPILS6a, AcPILS7, and AcPIN10 in leaf and flower were obviously higher than that in root and fruit (Figs. 5C, 5E). AcPIN5a, AcPILS2, AcPILS6b and AcPILS6c exhibited higher expression level in fruit compared to the other three organs (Figs. 5D, 5E). These results were consistent with the expression profiling in transcriptome analyses, suggesting that these genes might be involved in regulating the corresponding organs development in pineapple.

Expression profile of AcAUX, AcPIN, AcPILS genes in ovules and other flower organs at different developmental stages

To further explore putative functions of auxin transport genes in reproductive organs during different development stages in pineapple, expression patterns of Ac AUX, AcPIN, AcPILS genes in ovules and other flower organs were researched by using transcriptome sequencing through the Illumina HiSeq 2500 platform (Su et al., 2017). Three biological replicates for each ovule and other flower organ sample were used in this study. As described above, the FPKM values of Ac AUX, AcPIN, AcPILS genes in different reproductive organs including calyxes, petals, stamens and ovules were selected for hierarchical clustering analysis (Fig. 6, Table S2).

The divergent expression patterns of Ac AUX, AcPIN, AcPILS genes were detected in this analysis. As shown in Fig. 6A, the very high transcript levels of AcPILS2 gene were observed in all of the four tissues (calyx, petal, stamen and ovule), while a slightly high level of AcPILS2 was observed in stamen and ovule at their early development stages, which indicated that AcPILS2 may be involved in all flower organ development. Similar expression patterns were observed in AcPILS6a, AcPILS6b and AcPILS6c, which showed relatively high expression level in calyxes, petals and mature stamens but low expression in ovules, suggesting that they could function in calyxes, petals and stamens development. Ac AUX1 showed relatively high expression in calyxes and petals at their late development stages. Similarly, AcPIN10 and AcPILS7 exhibited high expression in calyxes and petals at the different development stages, but low expression in stamens and ovules. On the contrary, AcPIN1b had relatively high expression in petals, stamens and ovules at the early development stages. Ac AUX2 was highly expressed in ovules at the early development stages but extremely low expression in mature ovules (Ov7), suggesting that Ac AUX2 could play specific roles in early ovules development in pineapple. Additionally, AcPIN2 was highly expressed only in calyxes, and AcPIN9b and AcPILS1 exhibited predominantly expression level only in stamens. AcAUX3 and AcPIN1a showed specially higher expression level in mature petal (Pe3) compared with the other tissues, indicating that AcAUX3 and AcPIN1a might regulate petal development during late stages in pineapple (Fig. 6A). In brief, during reproductive development in pineapple, only one gene (AcPILS2) was abundantly expressed in four types of tissues, three genes (AcPILS6a, 6b, 6c) in three types of tissues, four genes (AcAUX1, AcPIN10, AcPILS7 and AcPIN1b) in two types of tissues, and five genes (AcPIN9b, AcPILS1, AcAUX2, AcAUX3 and AcPIN1a) in only one type of tissues (Fig. 6B). These results indicated that these auxin transport genes might be involved in the regulation of different flower organs during reproductive development in pineapple.

Differential responses of AcAUX, AcPIN and AcPILS genes to abiotic stresses

To address whether polar auxin transporter genes are involved in abiotic stress responses in pineapple, the expression profiles of seven genes were evaluated in roots and shoots under different abiotic stress treatments. Total RNA of all samples were isolated from the roots and shoots in pineapple seedlings treated with salt, drought, cold and heat, and the expression level of the seven genes were investigated using quantitative RT-PCR. The results showed that the expressions of the four genes (AcAUX1, AcAUX2, AcAUX3, and AcPIN8) were up-regulated both in roots and shoots under the four abiotic stresses. On the contrary, the gene AcPIN5a was down-regulated under the abiotic stresses, as well as AcPIN10 and AcPILS6a in roots under the drought stress (Fig. 7).

Under salt stress treatment, six of the seven auxin transporter genes were evidently induced in roots and shoots, and the transcription levels of the most genes peaked at 12 h time point. And only one gene AcPIN5a was obviously reduced in roots and shoots (Fig. 7A). For the drought treatment, the two genes (AcAUX1 and AcAUX3) were up-regulated both in roots and shoots. The transcripts of AcAUX2 and AcPIN8 increased significantly in shoots at the early time points, but no change in shoots at 24 h and 48 h and in roots. AcPIN10 and AcPIN5a were down-regulated both in roots and shoots throughout the treatment time course, with the exception of AcPIN10 in shoots at 48 h. AcPILS6a was down-regulated in roots, but up-regulated in shoots under the drought stress (Fig. 7B).

In the cold treatment, except for AcPIN5a, the other six genes were continuously increased in roots and shoots throughout the treatment time course (Fig. 7C). Similarly, the four genes (AcAUX1, AcAUX2, AcAUX3, and AcPIN8) were also continuously induced in roots and shoots under heat stress. Interestingly, AcPILS6a was down-regulated in roots and shoots at 6 h time point, but up-regulated at 12 h, 24 h and 48 h under the high temperature treatment (Fig. 7D).

Comparison of the induction kinetics of the seven genes following treatment with different abiotic stresses revealed that the expression levels of the most genes increased under the four stress treatments, such as the three auxin influx transporter genes (AcAUX1, AcAUX2 and AcAUX3). The three genes (AcPIN10, AcPIN8, and AcPILS6a) showed different responses to the stresses in roots and shoots and at different time points. These data suggested that the polar auxin transporter genes had different induction kinetics in response to the abiotic stresses and could play a complex role in environmental signaling.

Comparative expression analysis of AUX, PIN, PILS genes in pineapple, rice and Arabidopsis

To investigate valuable clues for the study of gene function, a comparative analysis of the expression patterns of AUX, PIN and PILS genes in pineapple, rice and Arabidopsis was performed by using the average log signal values from RNA-Seq and microarray data of several tissues, including roots (R), leaves (L), flowers (F), and fruits or seeds/siliques (S).

After integrating the expression data from pineapple, rice and Arabidopsis, we found that several genes with close evolutionary relationships showed similar expression patterns in the three species (Fig. 8, Table S3). For example, four genes (AtAUX1, AcAUX1, OsAUX1 and OsAUX2) in AUX1 group were highly expressed in roots and were moderately or high expressed in leaves and flowers (Fig. 8AI). Two genes (AtLAX3 and AcAUX3) in AUX3 group were highly expressed in roots and were low or extremely low expressed in the other organs (Fig. 8AII). In PIN2 group, the expression levels of three genes were low or extremely low in most organs, except AtPIN2 and OsPIN2 that were highly or moderately expressed in roots, respectively (Fig. 8BI). All genes in PIN6, PIN5, PIN8 and PIN9 groups exhibited low or extremely low expression levels in all tissues examined (Fig. 8BII–Fig. 8BV). Three genes in PILS2 group were highly expressed in fruits or seeds/ siliques, and OsPILS2 showed high expression level in all other tissues (Fig. 8CI). In some cases, the expression pattern of several genes in pineapple differed from their Arabidopsis and rice homologs. For example, in PILS6 group, the expression levels of three AcPILS genes from pineapple were moderately or highly in most organs (Fig. 8CII), while AtPILS6 from Arabidopsis and OsPILS6b from rice were expressed at low or extremely low levels in the organs. These data revealed that functions of auxin transport genes in pineapple, rice and Arabidopsis could be conserved and divergent in the due course of growth and development. Our comparative analysis of the expression patterns of these genes will provide a foundation for future functional studies of auxin transport genes in pineapple, rice and Arabidopsis.

Overexpression of AcAUX1induces the formation of lateral roots inArabidopsis

As the phylogenetic analysis and multiple sequence alignment showed that the AUX gene family were highly conserved (Figs. 1 and 3), we asked if the function of AcAUX1 might be similar to AtAUX1. To address this question, we generated transgenic Arabidopsis plants that overexpressed the AcAUX1 coding region driven by the 35S promoter in Col-0 and aux1-T (Figs. 9A–9F). Expression analysis of the transgenic plants identified five and seven lines that overexpressed AcAUX1 in aux1-T and Col-0, respectively (Fig. 9B). Overexpression of AcAUX1 in the aux1-T mutant significantly increased lateral roots in the primary roots of the 7-day-old seedlings compared with aux1-T. Similarly, the transgenic Col-0 seedlings overexpressing AcAUX1 formed more lateral roots than the WT (Figs. 9C–9G). Therefore, these results strongly indicated that AcAUX1 facilitated lateral root formation in Arabidopsis and AUX1 acts in lateral root development to be conserved between Arabidopsis and pineapple.

Characterization of AUX, PIN and PILS family genes in pineapple

Polar auxin transporters are known to play an important role in many aspects of plant growth and development. A growing body of evidence has demonstrate that the auxin influx tansporter AUX/LAXs and efflux transporter PINs coordinate to regulate polar auxin transport from cell to cell, and PILSs, which are similar to PINs protein structure, are located at the endoplasmic reticulum and contribute to maintain the intracellular auxin homeostasis (Swarup & Bhosale, 2019; Sun et al., 2020). In previous publications, several genes from AUX, PIN and PILS families in many species were identified and functionally characterized in detail, such as genes in the AtAUX1/LAX family (Swarup et al., 2008; Péret et al., 2012; Swarup & Bhosale, 2019), the AtPIN family (Habets & Offringa, 2014; Wang et al., 2015; Omelyanchuk et al., 2016) and the AtPILS family (Barbez et al., 2012; Mohanta, Mohanta & Bae, 2015; Sun et al., 2020). Considering the potential functional significance of AUX, PIN and PILS family members and the fact that few family members have been described in tropical crops, it was timely and quite relevant for us to characterize the AUX, PIN and PILS gene family in pineapple.

In this study, we identified three AcAUX, 12 AcPIN and seven AcPILS genes in pineapple genome. The phylogenetic analysis indicated that the numbers in the several groups from pineapple AUX, PIN and PILS families were similar with that in Arabidopsis and rice, and there was only one number from the three species in several groups, such as AUX3, PIN2, PIN8, PILS2 groups (Fig. 1). But, the gene numbers from pineapple in PIN5 and PILS6 groups were more than that from Arabidopsis and rice, and the largest number found in AcPIN5 group was four. The increase in the number of AcPIN5 and AcPILS6 members reflects that expansion and rearrangement of the genome may be successfully undergone in the families, and these transporters increased in pineapple might play an important role in order to adapt to specific functions.

Chromosomal mapping of AcAUX, AcPIN and AcPILS family genes show their variable distribution on 15 pineapple chromosomes (Fig. 2). Gene structure analysis reveals that most members in the same subfamily are structurally conserved in the number of intron/exon and gene length (Fig. S4). The deduced amino acid sequences and motifs of the AUX, PIN and PILS proteins from the three species were highly conserved (Figs. 3 and 4), which indicates their close evolutionary relationship and the introduced classification of subfamilies.

Expression patterns divergence and putative function of AcAUX, AcPIN and AcPILS Genes in vegetative growth

The analysis on spatial and temporal expression patterns of AcAUX, AcPIN and AcPILS genes may provide useful information for establishing their putative functions. Our transcriptome and qRT-PCR analysis showed that the expression patterns of the 22 genes could be divided into three major groups. Some preferential or tissue-specific expression AcAUX, AcPIN and AcPILS genes were also identified. The four (AcAUX1, AcAUX2, AcAUX3 and AcPIN2) of the 22 genes were found to exhibit either preferential or tissue-specific expression in root, two (AcPILS6a and AcPILS7) in leaf and flower, another three (AcPILS2, AcPILS6b and AcPILS6c) in fruit (Fig. 5).

The previous reports have revealed that AtAUX1, AtLAX3, and OsAUX1 are primarily expressed in root and promoted lateral root formation in Arabidopsis and rice (Zhao et al., 2015), and AtLAX2 is also found to show the involvement in leaf venation patterning and normal xylem development (Moreno-Piovano et al., 2017). Our data showed that AcAUX1 and AcAUX3, orthologs of AtAUX1 and AtLAX3, were highly and specifically expressed in root, and AcPIN2 had almost preferential expression levels in root. Overexpression of AcAUX1 in the aux1-T mutant and Col-0 significantly increased lateral roots in the primary roots of the 7-day-old seedlings (Fig. 9), indicating that the function of AcAUX1 and AtAUX1 in lateral root development is conserved. In addition, AcPIN10 were predominantly expressed in leaf and flower (Fig. 5), similar with AtPIN1 (Benková et al., 2003; Reinhardt et al., 2003) and OsPIN1 (Xu et al., 2005; Wang et al., 2009). Similar expression patterns suggest that these genes might play important roles in root, leaf and/or flower development (Figs. 5 and 8). Moreover, the multiple sequence alignment showed that the important amino acids residues for the activity of auxin influx carriers were completely conserved among the three AUXs family members (Fig. 3). Therefore, combining their phylogenetic relationship, we infer that AcAUX1 and AcAUX3 might encode putative auxin influx carriers and participate in the root formation and development, and AcPIN10 might function in leaf and flower development in pineapple.

Putative roles of AcAUXs, AcPINs and AcPILSs in reproductive development and in response to abiotic stresses

Many evidences demonstrate that auxin signaling genes, including auxin influx and efflux carriers, are associated with stress response and reproductive development, and some AUX, PIN or PILS genes may be co-regulated by both environmental factors and developmental cues (Cooper et al., 2003; Jain et al., 2007; Habets & Offringa, 2014; Zhao et al., 2015; Swarup & Bhosale, 2019). The expressional analysis from RNA-Seq and qRT-PCR data in this study also indicated that several genes (such as AcAUX2, AcPIN10, and AcPILS6a), which were differentially expressed during at least one of the flower organ developmental stages, were obviously down- or up-regulated by one or more of the stress conditions (Figs. 6 and 7).

The multiple mutants’ analysis of AUX1/LAX family members revealed that aux1lax1lax2 triple mutant and aux1lax1lax2lax3 quadruple mutant had multiple gametophyte defects with about 29% ovules showing aberrant embryo sacs in Arabidopsis (Panoli et al., 2015). It has been demonstrated that the florescence branching and spikelets in the central spike reduce in a loss-of-function allele of ZmAUX1 termed Zmaux1-0 in maize (Huang et al., 2017). ZmPIN1, an auxin efflux carrier in maize, has been also implicated to involve in florescence development (Skirpan et al., 2009). The research in rice find that OsAUX1 and OsAUX2, two members in rice AUX family, are predominantly expressed in late florescence, and on the contrary, OsAUX3 and OsAUX5 are preferentially expressed in young florescence (Zhao et al., 2012). The analyses of OsAUX1 transcripts in 7-day-old WT seedlings treated with various abiotic stresses reveal that OsAUX1 is significantly down-regulated by drought and salt stresses (Zhao et al., 2015). Similarly, in our investigation, AcAUX2 exhibited a preferential expression level at several early developmental stages in ovule (Fig. 6), and the qRT-PCR analysis found that this gene was up-regulated in root and shoot under the four abiotic stresses (Fig. 7). Moreover, AcPILS6a exhibited a preferential expression level at several developmental stages in calyx, petal and stamen, and was up-regulated in root and shoot under the abiotic stresses, except for down-regulation in root under drought stress (Figs. 6 and 7). These data suggest that the auxin transporter genes may play important roles in plant growth and response to different abiotic stress conditions during reproductive development, and a number of AcAUX, AcPIN and AcPILS genes might be involved in main developmental processes and stress responses. And their direct relationship requires further experimental validation.
