A laboratory comparison of the interactions between three plastic mulch types and 38 active substances found in pesticides

Introduction

The use of plastic mulching has become a well-established technique to increase the profitability of many crops (Kasirajan & Ngouajio, 2012). The European Commission estimated in 2016 that 100,000 tons of plastic mulch is used per year in the European Union (European Commission, 2016). Plastic mulch is generally used for one or all of the following three reasons: decreasing evaporation, decreasing weed competition or increasing soil temperature (Steinmetz et al., 2016). After crop harvest, some farmers try to remove the plastic mulch but debris is left in the soil. Other farmers simply incorporate the plastic into the soil (Kasirajan & Ngouajio, 2012). Once the plastic is in the environment, the low degradation rate of plastic debris facilitates its accumulation (Rillig, 2012).

The plastic mulch degradation process can be explained by looking at three main underlying factors: abiotic conditions, microbial requirements and properties of the plastic mulch material (Hayes et al., 2012). The most common plastic used for mulching is Low Density Polyethylene (LDPE) (Kasirajan & Ngouajio, 2012). LDPE is a fully saturated polymer of hydrocarbons which makes it highly resistant (Crawford et al., 2017a). Consequently, LDPE mulch needs to be removed after harvest and LDPE debris accumulates in the environment. Some plastic producers have tried to improve the degradation processes of plastic to avoid plastic mulch removal and plastic debris accumulation. Pro-oxidant Additive Containing (PAC) plastics are polymers, mainly LDPE, which contain a pro-oxidant additive to enhance oxidation and photo-degradation (Selke et al., 2015). In the presence of light and under aerobic conditions, PAC plastics degrade quickly into small pieces. Small fragmented debris is more likely to be further degraded by microorganisms (Ahmed et al., 2018). PAC plastics are also known as “oxo-degradable” or “oxo-biodegradable” (Hogg et al., 2016). However, when incorporated into the soil, the degradation process is minimized due to the absence of UV-light (Hogg et al., 2016) and PAC debris may accumulate. Over the last few years, new mulching films that can be degraded by microorganisms in the soil have been developed (Hayes et al., 2017; Sintim & Flury, 2017). They are usually sold as “biodegradable” (Bio) mulch (Van den Oever et al., 2017). Biodegradable mulch can be made of a diversity of polymers (Kijchavengkul & Auras, 2008) either biobased, synthetic or a blend of both. Biodegradation of polymeric mulch films relies on three fundamental steps: the colonization of the polymer surfaces by soil microorganisms, the enzymatic depolymerization of the polymer by extracellular hydrolases secreted by the colonizing microorganisms and the microbial utilization of the hydrolysis products that are released from the polymer (Sander, 2019). Therefore, a larger contact area helps colonization and polymers containing functional groups that can be enzymatically hydrolyzed increase the degradation rate. About 3,000 tons of biodegradable plastic mulch are used each year in the European Union (European Commission, 2016). In order to properly manufacture plastic mulches, additives such as nucleating agents, plasticizers, performance additives and lubricants are required (Briassoulis, 2004; Hayes et al., 2012; Shen, Worrell & Patel, 2010). It is important to note that manufacturers do not normally share the chemical structures of the raw materials or the additives that are used in plastic production in order to protect their products from being duplicated.

In arid and semi-arid areas, where water deficits are common, the use of plastic mulching for irrigated crops is widespread. It is a technically and economically feasible strategy used to prevent evaporation and reduce water consumption. This is the case in regions such as the Loess plateau in China (Jiang et al., 2016) and in the Murcia Region of South-eastern Spain (Van der Meulen, Nol & Cammeraat, 2006). In addition to plastic mulch, pesticides are used in conventional agriculture to control weeds, insects and fungi (Van den Oever et al., 2017). The synergetic effect of plastic debris and pesticide residues on degradation and on the terrestrial environment is not sufficiently understood. Nerín et al. (1996) and Sharom & Solomon (1981) studied the sorption rates of nine different active substances in pesticides on LDPE and found a sorption rate between 20% and 100% after 15 days at 35 °C. Adsorbed active substances are less likely to be degraded (Kasirajan & Ngouajio, 2012) and may be released when ingested by an organism (Teuten et al., 2007). Furthermore, microplastics may be carriers for pesticide residues when transported through the terrestrial environment. The modification of the degradation patterns of active substances might affect the soil organism community due to the toxicity of the active substances. Moreover, the microbial activity plays a major role in Bio plastic degradation. Therefore, adsorption of active substances could potentially decrease plastic debris degradation.

Previous studies determined the occurrence of adsorbed organic contaminants on different plastic polymers (Crawford et al., 2017b; Hirai et al., 2011; Mato et al., 2001) and have characterized the sorption of different organic contaminants on plastics (Lee, Shim & Kwon, 2014; Liu et al., 2019; Mato et al., 2001; Ramos et al., 2015; Seidensticker et al., 2018; Teuten et al., 2007). Most studies were focused on the aquatic environment and coastal areas but Hüffer et al. (2019) showed that the sorption on polyethylene microplastics influenced the transport of hydrophobic organic pollutants in soils. More data are required to assess the sorption of commonly used pesticides on LDPE and on new types of plastic.

As a preliminary investigation to address these data gaps, the sorption of 38 active substances from 17 insecticides, 15 fungicides and six herbicides commonly used along with plastic mulching in South-eastern Spain, were tested on three types of plastic mulch: LDPE, PAC and Bio. The objectives of this research were to measure the sorption of a mixture of 38 active substances on plastic mulch and to compare the decay of adsorbed and non-adsorbed active substances. We hypothesized that sorption rates would be different for each specific active substance and each specific plastic. For example, the Bio mulch was believed to be the most prone to sorb active substances (Boivin, Cherrier & Schiavon, 2005; Crawford et al., 2017a). Furthermore, we hypothesized that sorption would reduce the degradation of active substances (Nerín et al., 1996; Ramos et al., 2015).

Materials and Methods

A laboratory single point sorption experiment was set up to test the sorption of a mixture of active substances on plastic mulches. Previously, eight vegetable farmers in the region of Murcia (Southeast Spain) were interviewed to discover which types of pesticides and plastic mulches were commonly used in the research area. All interviewed farmers used either LDPE, PAC or Bio plastic mulch in their crop production. All farmers used similar vegetable rotations and the type of plastic mulch used was not linked to the type of crop. We were able to assemble a full list of the active substances in the pesticides that were used by the farmers. Some active substances on the list were not analyzed due to logistical and financial limitations. The final list of 38 active substances from 17 insecticides, 15 fungicides and six herbicides is presented in Table S3.

Three plastic mulches: LDPE, PAC and Bio, were incubated with or without active substances. Additionally, one control treatment containing a mixture of the active substances without plastic was also tested. In total, seven treatments were set up in glass tubes (Table 1). All treatments were carried out in duplicate. Each tube contained five mL of a solution (either with or without the mixture of active substances) and a piece of 3 × 3 cm² plastic mulch, depending on the treatment (Fig. 1). Therefore, we can distinguish two phases: the plastic mulch and the incubation solution.

Results

Active substance sorption on plastic mulch

The mean sorption rate of all active substances on each type of plastic are shown in Fig. 2. The measured sorption rates did not follow a normal distribution (Shapiro–Wilks test, p < 0.001). LDPE and PAC plastics showed no significant differences for sorption of active substances (p > 0.05), with an average of ~23%. Bio mulch showed a significantly higher sorption rate than LDPE and PAC mulches (p < 0.05) with an average value of ~50%. In fact, 20 out of the 38 tested compounds showed a sorption rate >50% on Bio, whereas only nine and seven had a sorption rate >50% on LDPE and PAC mulches, respectively.

Sorption rates (%) of each active substance to the different plastic types (treatments LDPE+P, PAC+P and Bio+P) are presented in Fig. 3 and in Table S4. We observed that 14 compounds (37%) had a sorption rate >10% on all plastic mulches. Ten compounds had a sorption rate <1% on all plastics. Three compounds, Chlorpyrifos, Oxyfluorfen and Pendimethalin, had a sorption rate >80% on all plastics.

Active substances with higher log P values tended to show higher sorption rates. In fact, the sorption rate was positively correlated with log P (R² = 0.96, p < 0.001) (Fig. 4). Nevertheless, it is worth noting that active substances with the same log P and the same plastic type could have had significantly different sorption rates (e.g., Fig. 3; log P(Chlorpyrifos) = log P(Cyflufenamid) = 4.7 whereas mean sorption on LDPE was 88% for Chlorpyrifos and 45% for Cyflufenamid).

For the plastic mulch with no added active substances (LDPE+W, PAC+W and Bio+W), no active substances were found in the PAC or Bio extracts but low levels (maximum: 16 ng; average: 7.7 ng) were found in the samples with LDPE in one duplicate but not in the other duplicate. These very low levels (compared to the 5,000 ng of active substance added) are likely to have come from contamination in the liquid chromatography column.

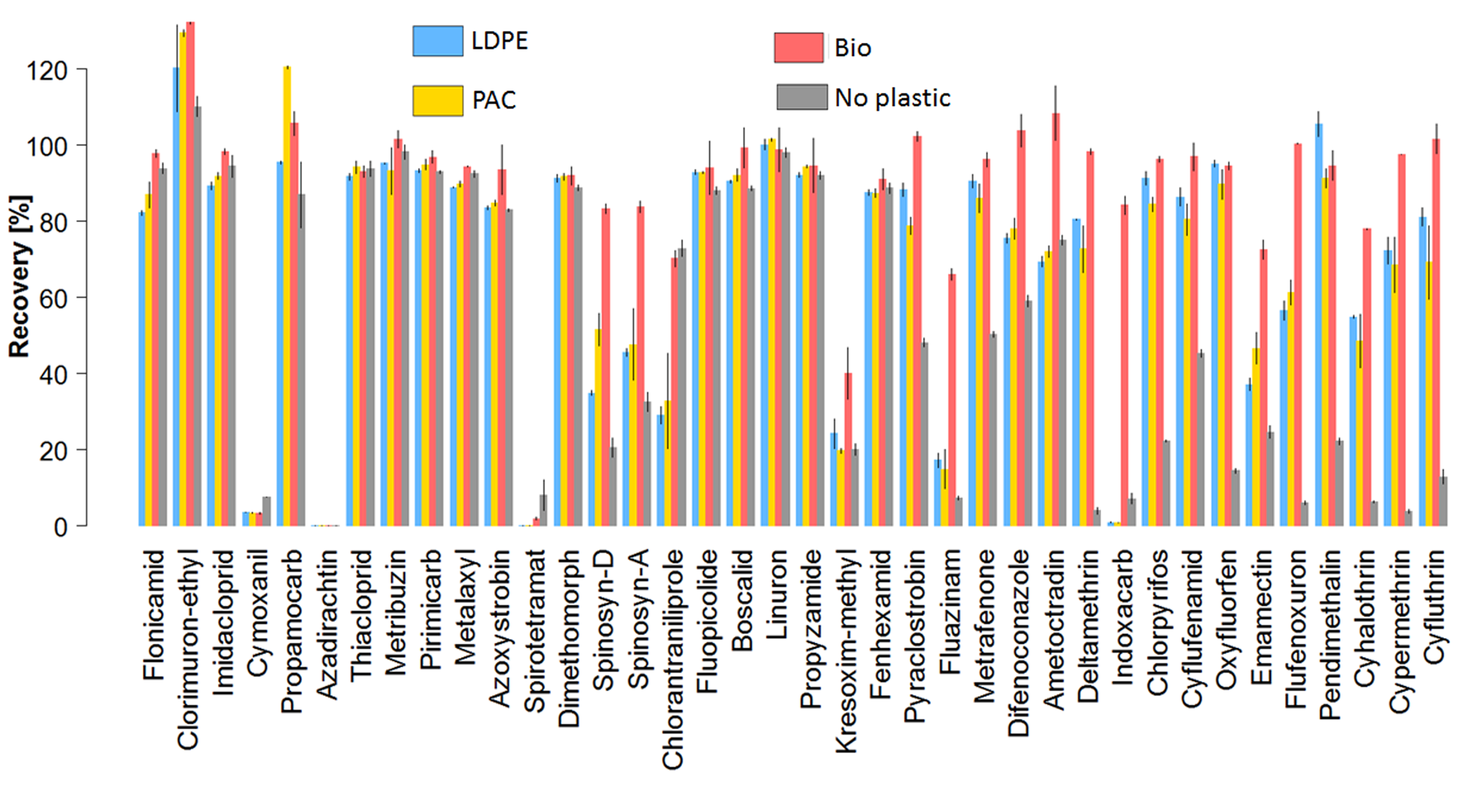

For active substance samples where no plastic was added, half of the compounds had a recovery ratio <50% and 29 compounds (75%) had a recovery ratio <90% (Fig. S2). It is worth noting that without plastic, active substances with higher log P tended to have lower recovery. Moreover, active substances with a shorter DT50 in water tended to have a lower recovery ratio; meaning that lower recovery is likely to be explained by higher decay during incubation. In the next section, we assumed that the missing percentage (1-recovery) was due to the degradation of the active substances during incubation.

Decay reduction due to sorption of active substances

The sorption of active substances significantly reduced their decay in comparison to the active substances without plastic mulch (Fig. 5). The estimated decay for active substances with sorption >80% was ~70% lower than the decay without plastics. We measured a decay reduction of ~27% for LDPE and PAC and ~37% for Bio for active substances with a sorption >0.01%. The decay reduction showed a significant linear relationship with the percentage of sorption (R² = 0.90, p < 0.001). The greater sorption on Bio directly reflected on a greater decay reduction for active substances.

Discussion

We did a single point sorption experiment. Based on previous studies, 15 days of sorption at 35 °C were enough to reach steady states (Nerín et al., 1996; Sharom & Solomon, 1981). Kinetic sorption experiments would be needed to calculate sorption coefficients. The active substance extraction procedure was partly based on Nerín et al. (1996) and was not tested again. In case of a low extraction rate, we underestimated the sorption on plastic and over-estimated the decay of active substance incubated with plastic. We don’t expect the extraction rate to perform differently for LDPE, PAC or Bio. Therefore, a low extraction rate would not change our conclusion.

The Bio mulch may have contained polybutylene adipate terephthalate and Bio mulch had a higher sorption than LDPE and PAC mulches. Higher sorption may be related to the chemical properties of the polymer used or to the specific surface area of the mulch (Aslam et al., 2013). Polybutylene adipate terephthalate may have a better affinity with the active substances than the LDPE because of aromatic-interactions and potential hydrogen bonds when the polymer is altered (Palsikowski et al., 2018). Aged polybutylene adipate terephthalate is able to form hydrogen bonds with organic chemicals (Weng et al., 2013). It is possible that the 15 day incubation at 35 °C caused an alteration in the Bio mulch and increased the formation of hydrogen bonds between the Bio mulch and the active substances. Additionally, biodegradable mulches tend to be made with smaller polymer fiber diameters that increase its specific surface area (Chinaglia, Tosin & Degli-Innocenti, 2018; Hayes et al., 2012) and its biodegradation (Brodhagen et al., 2015; Chinaglia, Tosin & Degli-Innocenti, 2018). A greater specific surface area would also increase the sorption (Liu et al., 2019).

Our study showed that for 20 compounds sorption on Bio mulch was higher than 50%. Sorbed active substances are likely to alter the degradation of the Bio mulch by affecting the soil microbiome (Oyeleke & Oyewole, 2019). According to the International Organization for Standardization 17556, biodegradable mulch should reach at least 90% biodegradation in the soil within 2 years (Carol et al., 2017). A field study showed that after 397 days in the soil, three different kinds of biodegradable mulches (Crown 1, BioAgri and SB-PLA-11) had various deterioration rates (100%, 65% and very little deterioration, respectively) (Cowan, Inglis & Miles, 2013). Plastic degradation studies should take into account that pesticides are likely to be sorbed on plastic and may reduce its biodegradation. On the other hand, the efficiency of pesticides in the soil (i.e., herbicides, fungicides) depends on their availability. Therefore, plastic mulch may decrease the efficiency of pesticides by decreasing their release into the soil when plastic mulch debris accumulates and the pesticides are sprayed on the soil. The aging of plastics (Liu et al., 2019) and the pesticide sorption in soils contaminated with plastics (Hüffer et al., 2019), for different soil types and organic matter contents, are factors that need to be studied to understand the interactions between plastic debris and pesticide residues.

Low Density Polyethylene and PAC mulches have similar sorption and their composition only differs in the additives that are added to them. Thus, the additives present in PAC mulch do not seem to change the sorption property of the original LDPE polymer. The sorption was much higher for the Bio mulch. As a consequence, knowing the exact chemical formulation of the polymers used to make plastic mulches and the specific surface area of the mulch are essential in understanding the mechanisms of the sorption of pesticides on plastic. Better, cheaper and faster analysis of plastic composition (Corradini et al., 2019; Mintenig et al., 2017) or regulations forcing producers to share the chemical formulation of polymers could help filling this knowledge gap.

The sorption on plastic varied for all active substances, being higher for those with higher log P. In fact, log P, as a measure of hydrophobicity (Leo, Hansch & Elkins, 1971), plays a key role in sorption processes (Aslam et al., 2013). Nevertheless, the log P did not predict the sorption for all active substances so mechanisms other than hydrophobicity must play a role (Guo et al., 2000). Some active substances may have had an impact on the sorption of some other ones, likely due to chemical interactions between them. Interactions between active substances might have changed the active substance degradation in solution as well as in the plastic matrix. These results highlight the need for more detailed studies to understand the mechanisms of pesticide sorption on plastic.

The highest degradation rates were obtained for active substances with low stability to hydrolysis and low stability in aqueous solution (aqueous hydrolysis DT50 (days) at 20 °C, pH 7 and degradation in water DT50 (days) (PPDB, 2018)). We can assume that the pesticide degradation in the glass tube was mainly due to hydrolysis (Fenner et al., 2013). Volatilization in the gaseous phase in the tube or incomplete solubilization could have played a role in the estimation of the decay. However, neither the decay reduction nor the sorption was correlated with the solubility, meaning that hydrolysis was the most likely process leading to the degradation. The decay of active substances from pesticides was reduced by sorption. It is commonly accepted that sorption limits pesticide degradation by reducing its partitioning into the liquid phase (Guerin & Boyd, 1997, O’Loughlin, Traina & Sims, 2000). Additionally, soil microorganisms degrade preferably or exclusively chemicals that are present in the soil solution (Boivin, Cherrier & Schiavon, 2005). Thus, sorbed active substances would undergo less degradation by microorganisms (Liang et al., 2011). Since plastic debris could be transported by wind and water (Liu, He & Yan, 2014), pesticide transport (Teuten et al., 2007) and degradation models (Silva et al., 2018b) should take into account the sorption of pesticides on plastic (Villeneuve et al., 1988).

The applied experimental design was based on Nerín et al. (1996) to reveal a potential of commonly used active substances from pesticides to be sorbed and protected from decay on conventional (LDPE) and new (PAC and Bio) plastic mulches. The sorption condition applied here does not reflect real conditions in fields. The 38 active substances were applied together at the same concentration, in the same solution. We can assume then that most hydrophobic active substances may have reduced the sorption of the rest of the substances due to the competitive sorption among all active substances. Competitive sorption would occur to a negligible extent in the field because fewer active substances would be applied simultaneously and the use of pesticides would be spread over the whole growing period resulting in seasonal variations. Moreover, the applied concentration of 1,000 ng·mL⁻¹ exceeded the solubility in water for some compounds. A non-dissolved fraction of the active substances may had formed a stock within the liquid medium. The incubation was done in glass tubes, in the dark, at 35 °C without temperature variation, stirring or oxygenation. In the field, active substances could undergo sorption on soil particles, degradation by light and by microorganisms or volatilization. Additionally, the presence of 10% acetonitrile in the incubation solution could have reduced the sorption of most hydrophobic contaminants in plastics and polymers (Teuten et al., 2007). Sorption percentages on plastic may be higher without acetonitrile and with less competitive sorption. However, sorption percentages could be reduced by additional degradation processes (Fenner et al., 2013; Kumar et al., 2018), volatilization and sorption to soil particles (Boivin, Cherrier & Schiavon, 2005). Finally, plastic degradation may change the chemical properties of the polymer or the specific surface area of the mulch (Hayes et al., 2017; Liu et al., 2019) and change the sorption of active substances (Aslam et al., 2013). Despite these last issues comparing the conditions of this experiment with actual conditions in the field, our study highlights the need for further research on plastic mulch-pesticide systems since there is a real interaction between both components, which could negatively affect pesticides and plastic degradation in the field. Thus, it is essential to address these topics under field conditions (Yang et al., 2018) taking into account new and aged plastics (Liu et al., 2019).

The sorption of active substances on plastic may change the toxicity of both the pesticides and the plastic. In fact, if plastic debris is ingested by organisms (Colabuono, Taniguchi & Montone, 2010; Huerta Lwanga et al., 2017) then the sorbed active substances could potentially be desorbed in organisms (Teuten et al., 2007). On the other hand, the sorption to plastic may reduce the bioavailability of active substances, especially reducing the peak concentration after pesticides application. The reduced exposure of soil organisms could be beneficial for the ecosystem. Contaminated plastics may as well release active substances in the soil solution and contribute to plastic toxicity (Machado et al., 2018; Qi et al., 2018). In a similar way, active substances sorbed on plastic may decrease the plastic’s degradation by soil organisms because of the toxicity of the active substances. Active substance sorption is of particular concern when it comes to the degradation of biodegradable mulch since the degradation of biodegradable mulch relies heavily on the activity of microorganisms in the soil. As a consequence, further studies are needed to assess the degradation of plastic debris, especially biodegradable plastics in soils where pesticides are sprayed.

Conclusions

This study reveals that sorption of active substances on plastic depends on both the chemical structure of the active substance and the type of plastic mulch. Sorption was higher for active substances with higher log P (octanol-water partition coefficient) and although it was similar between LDPE and PAC plastics, it was significantly higher on Bio mulch. Moreover, sorption of active substances on plastic reduced the decay of active substances. Therefore, the sorption of active substances can change the eco-toxicity and decay of both the active substances and the plastic debris. The sorption can also affect the transport pattern of active substances, especially when biodegradable plastic is used. More research is needed to evaluate the dynamics and consequences of the sorption of active substances from pesticides on plastic mulches in environmental conditions. With more research, scientists can propose guidelines for the use of plastic mulches in agro-ecosystems in order to avoid soil and water pollution.

Supplemental Information
