Characteristics of the complete mitochondrial genome of the monotypic genus Arctictis (Family: Viverridae) and its phylogenetic implications

View article
Bioinformatics and Genomics

Introduction

Arctictis binturong (Raffles, 1822), commonly called binturong or bearcat, is the largest known member of the Viverridae (Carnivora: Mammalia) and is characterized by coarse, black fur and a prehensile tail (Pocock, 1933). In forest ecosystems of Southeast Asia, the frugivorous binturong has co-evolved with fig trees to form a keystone relationship, wherein the animal facilitates and propagates seed germination while the fig tree provides a stable dietary source (Kinnaird & O’Brien, 2007). Binturongs are presently being poached for their meat, traditional medicines and the pet trade, and alongside habitat destruction, these factors have contributed to decreasing the numbers of binturong to a few geographical pockets across the species’ former range (Willcox et al., 2016). As a result of these increasing pressures, the binturong is listed as ‘Vulnerable’ on the IUCN Red List of Threatened Species (Willcox et al., 2016).

Nine subspecies of A. binturong have been described primarily on the basis of region-specific variations in fur color (Pocock, 1933; Cosson et al., 2006). In addition, shared morphological similarities with other viverrids like perineal scent glands and syndactyly of the third and fourth digits of the hind foot, along with the unique features of completely naked soles of the hind feet and a prehensile tail, have helped determine the phylogenetic position of binturong within the viverrid subfamily Paradoxurinae (Pocock, 1933; Gregory & Hellman, 1939; Veron, 2007). More recent molecular phylogenetic studies indicate that this subfamily also includes Paguma, Arctogalidia and Macrogalidia (Albert, 2001; Cosson et al., 2006; Patou et al., 2008; Nyakatura & Bininda-Emonds, 2012; Zhou, Wang & Ma, 2017). However, the genetic structure of the binturong has not been studied in detail (but see Cosson et al., 2006), which will be essential to validate the evolutionary and conservation genetic implications of the existence of nine geographically and morphologically disparate subspecies.

Mohd Salleh et al. (2017) reported the first mitochondrial genome of a binturong as part of a larger study to generate an expanded reference mitogenome dataset of mammals from Southeast Asia that could be applied for monitoring mammalian biodiversity using environmental DNA approaches. However, the sequence reported in that study came from an animal at the Tier Park Berlin Zoo of unknown provenance. Moreover, the sequence contains many missing nucleotides (Ns) and is therefore incomplete. To rectify this, we generated a complete (gapless) mitochondrial genome sequence from a wild-caught binturong of known provenance belonging to the Indian subspecies, Arctictis binturong albifrons. The aims of our study were to: (a) characterize the Arctictis mitogenome in comparison with other viverrids and feliforms, and (b) provide the first molecular phylogenetic and divergence dating analysis of the Arctictis in the context of Viverridae and other feliform families based on whole mitochondrial genomes.

Materials and Methods

Sampling, Extraction and PCR amplification

A blood sample of an individual identified as A. b. albifrons was collected and forwarded by the Veterinary Assistant Surgeon of the Sepahijala Zoo, Tripura (Vide Letter No. F5(D)VD/Sep/Sl No. 100-102, dated 19/07/2008) for DNA analysis, and deposited in the Genome Bank at the Laboratory for Conservation of Endangered Species, CCMB, Hyderabad, India. Genomic DNA was isolated from the blood sample by the phenol-chloroform-isoamyl alcohol method (Sambrook, Fritsch & Maniatis, 1989) and the DNA integrity was checked electrophoretically in a 0.8% agarose gel. The mitochondrial genome was amplified by long range PCR using the TaKaRa LA PCR kit v2 (Takara Bio Inc, USA) following the manufacturer’s recommendations. Three PCR products of 4.1 kbp, 8.8 kbp and 4.5 kbp were generated using three sets of primers (Table S1).

Genome sequencing, assembly and annotation

Next-generation sequencing libraries were constructed in three steps: enzymatic shearing, adapter ligation and fragment size selection. PCR product quality was first assessed using the Qubit® 2.0 Fluorometer (Life Technologies, USA). Amplified products were then subjected to enzymatic fragmentation to an average of 550 bp fragments using the Covaris M220 system (Covaris, USA). Libraries were prepared with the TruSeq DNA PCR-Free Sample Preparation Kit (Illumina, USA) following the manufacturer’s recommendations. The High Sensitivity DNA Analysis Kit (Agilent Technologies, USA) was used for quantification and size estimation of the libraries generated on a 2100 Bioanalyzer (Agilent Technologies, USA). The libraries were standardized to 1.5pM and sequenced using the NextSeq 500 sequencer (Illumina, USA). The paired end reads generated on Illumina were used for reference assembly. Raw sequences were extracted in the FASTQ format and checked for quality using the CLC Genomics Workbench v 9.0 software (https://www.qiagenbioinformatics.com/). Raw sequences filtering was performed by trimming adaptors. Nucleotides and sequence reads showing ambiguity or low quality scores (<Q20) were excluded from further analysis. High quality data obtained after filtering was assembled and annotated using CLC Genomic Work bench v 9.0. Mauve version 2.4.0 (Darling et al., 2004) was used for the comparative reference assembly. The binturong mitogenome sequence was analyzed using CLC Genomic Workbench v 9.0. to identify the mitochondrial gene locations, their order, and start and end points.

Genome analysis

The circular map of mitogenome was created using Geneious R 10.1 (Kearse et al., 2012). Sequences of the 13 protein-coding genes were translated into amino acid sequences using ORF finder (https://www.ncbi.nlm.nih.gov/orffinder/) to verify orthology with other feliform taxa and exclude the potential presence of NUMTs (nuclear-mitochondrial paralogues). The control region was extracted and scanned for the presence of palindromes and other repeats using the EMBOSS and REPFIND tools (Rice, Longden & Bleasby, 2000; Betley et al., 2002). We evaluated the base composition of the binturong mitogenome and those of 11 other feliform species using Geneious R 10.1 (Table S2).

Phylogenetic analysis and estimation of divergence times

The phylogenetic relationships of the binturong within Viverridae and Feliformia were reconstructed by aligning its 13 protein-coding gene sequences with those of 22 feliform species comprising five viverrids, 11 felids, two hyaenids, and one species each from Nandiniidae, Herpestidae, Eupleridae and Prionodontidae (Table S2). The Cuon alpinus mitogenome (Canidae, NCBI Accession No. NC_013445.1) was also included as outgroup to root the feliform tree. Sequences were aligned using MEGA 6.06 with the default parameters of CLUSTALW (Thompson, Higgins & Gibson, 1994) and then concatenated, resulting in an 11,313 bp alignment. Maximum likelihood phylogenetic analysis was conducted using raxmlGUI v1.3 (Silvestro & Michalak, 2012). Support for different nodes was estimated using 1,000 bootstrap replicates (ML + bootstrap option) under the GTR+I+G model, as estimated with jModeltest 2.1.5 (Darriba et al., 2012) and Bayesian Inference (BI) method using Mr. Bayes v.3.2.5.

We jointly estimated the phylogeny and divergence times between species within a Bayesian inference framework using the program BEAST v1.7.5 (Drummond & Rambaut, 2007). The 13 protein-coding genes were partitioned and the appropriate model of sequence evolution was determined by the BIC criteria in jModeltest 2.1.5 (Darriba et al., 2012). Substitution rates were estimated under a relaxed uncorrelated clock model [14] for 1 ×108 million generations, sampling every 1,000th generation to allow for adequate mixing. Base frequencies were set to “All equal” and the number of gamma categories was set to 4. Four fossil priors with a uniform probability distribution were used for calibration: (a) Minimum and maximum ages of split between Caniformia and Feliformia were set at 43 Mya and 63.8 Mya, respectively (Benton & Donoghue, 2007) (b) Minimum age of origin of Viverridae was set at 23 Mya (Hunt, 1991; Hunt Jr, 1996) (c) Minimum age of the split between Crocuta and Hyaena was set 9.5 Mya (Wozencraft, 2005); and (d) Minimum and maximum ages of origin of Felidae were set at 5.3 Mya and 23 Mya (McKenna & Bell, 1997). The first 25% of MCMC iterations were removed from the posterior sample as burn-in. Convergence was monitored in Tracer (Ver. 1.4) to determine if effective sampling sizes (ESS) were adequate (>200). Trees were summarized with Tree Annotator and represented as the maximum clade credibility tree.

Results and Discussion

Binturong mitogenome assembly and annotation

A total of 2,726,370 high-quality reads were obtained after filtering and trimming sequences. The assembly of the binturong mitogenome resulted in a total of 162 contigs with an N50 length of 1074 bp and the length of contigs ranging from 501 bp to 16,752 bp. After trimming ends, the A. b. albifrons mitogenome was 16,642 bp in length (Fig. 1). The assembly size of the binturong mitogenome reported by Mohd Salleh et al. (2017) is 17,067 bp, 425 bp longer than our assembly. However, this increased length is due to the presence of inserted Ns (missing nucleotides) within the sequence. The A. b. albifrons mitogenome is generally shorter when compared with those of nine other feliform species (Table S2). The A. b. albifrons mitogenome sequence was deposited in NCBI GenBank (accession number KX449332).

The complete mitogenome organization of A. binturong albifrons.

Figure 1: The complete mitogenome organization of A. binturong albifrons.

Transfer RNAs (tRNA) are labelled with their corresponding amino acid and are shown in pink; COI, COII and COIII refer to subunits of cytochrome c oxidase; Cytb referes to cytochrome b; 12S rRNA and 16s rRNA refer to ribosomal RNAs; ND1-ND6 refer to components of NADH dehydrogenase; ATPase 6 and ATPase 8 refer to classes ATPsynthase. Blue color: coding genes, green color: rRNAs and yellow color: control region.

Annotation yielded a total of 37 genes: 13 protein-coding genes (PCGs), 22 tRNAs, 2 rRNAs and the non-coding control (D-loop) region (Table 1). No NUMTs were detected among the 13 PCGs when they were translated into amino acids (no insertion, deletions, frame shift mutations or premature stop codons). Analysis of base composition showed a bias towards higher adenine and thymine content in the binturong mitogenome (Table 2), amounting to 64.63% and individual base proportions amounting to 32.80% A, 31.83% T, 16.46% G and 18.91% C. This pattern is consistent with the base composition of twelve other feliform species, with AT content ranging from 60.28% in Hyaena to 64.64% in P. larvata while a higher average bias was maintained within Viverridae (65.02%). The control region was 1,234 bp long, located from 15,408–16,642 bp in the binturong mitogenome (Fig. 1). The region included five mononucleotide T stretches, two of (T)4 and three of (T)5. A 12 bp long palindrome sequence (5′-TATCTATAGATA- 3′) was located between nucleotide positions 890-901 in the alignment of the control region sequences of the binturong and 11 other feliform species.

Table 1:
Characteristic features of the binturong mitogenome (H denotes Heavy Strand; L denotes Light Strand).
Gene Strand Start End Size (bp) Start codon Stop codon Base composition (%) AT SKEW GC SKEW
(A+T)% (G+C)%
tRNAFPhe H 1 69 68 60 39 0.26 −0.02
12S rRNA H 70 1,034 964 59 39 0.25 −0.17
tRNAVTyr H 1,035 1,103 68 59 39 0.22 −0.28
16S rRNA H 1,104 2,678 1,574 62 37 0.19 −0.08
tRNAL2 H 2,679 2,754 75 58 40 0 −0.1
nad1 H 2,755 3,697 942 ATG AGA 60 38 0 −0.4
tRNAIAsp H 3,698 3,767 69 72 26 0.08 0.15
tRNAQLeu L 3,768 3,841 73 66 32 0.09 −0.4
tRNAMHis H 3,842 3,911 69 55 42 0.01 −0.25
nad2 H 3,912 4,944 1,032 ATT AGA 65 33 0.13 −0.51
tRNAWSer H 4,945 5,015 70 57 41 0.12 −0.17
tRNAACys L 5,016 5,085 69 64 34 0.15 −0.35
tRNANVal L 5,086 5,159 73 60 39 0 −0.2
tRNACAla L 5,160 5,228 68 56 42 −0.07 −0.19
tRNAYVal L 5,229 5,297 68 60 74 0 0.4
cox1 H 5,298 6,831 1,533 ATG TAA 62 36 −0.1 −0.11
tRNAS2 L 6,832 6,901 69 63 35 0.17 −0.2
tRNADVal H 6,902 6,971 69 70 28 −0.05 0.2
cox2 H 6,972 7,653 681 ATG TAA 64 34 0.03 −0.2
tRNAKPhe H 7,654 7,722 68 72 26 0.08 0
atp8 H 7,723 7,921 198 ATG TAA 71 27 0.12 −0.5
atp6 H 7,922 8,597 675 ATG TAA 63 34 −0.01 −0.5
cox3 H 8,598 9,381 783 ATG TAG 61 37 −0.04 −0.4
tRNAGSer H 9,382 9,452 70 65 33 0.04 −0.09
nad3 H 9,453 9,798 345 ATA TA 64 34 0 −0.35
tRNARSer H 9,799 9,868 69 77 21 0.14 −0.04
nad4l H 9,869 10,163 294 ATG TAA 64 33 −0.09 −0.33
nad4 H 10,164 11,532 1,368 ATG TA 64 34 0.03 −0.41
tRNAHVal H 11,533 11,602 69 76 22 0.02 0s
tRNAS1Ala H 11,603 11,662 59 65 33 0.07 −0.09
tRNALSer H 11,663 11,733 70 68 31 0.2 0.09
nad5 H 11,734 13,540 1,806 ATT TAA 65 34 0.01 −0.4
nad6 L 13,541 14,063 522 ATG TAA 62 35 0.32 −0.4
tRNAEPhe L 14,064 14,133 69 69 29 0.13 −0.24
Cob H 14,134 15,268 1,134 ATG AGA 60 38 0 −0.31
tRNATCys H 15,269 15,340 71 63 34 0.04 −0.11
tRNAPTrp L 15,341 15,407 66 55 43 0.23 −0.39
Control region H 15,408 16,642 1,234 61 37 0.01 −0.29
DOI: 10.7717/peerj.8033/table-1
Table 2:
Genome length, base composition, (A+T) percentage and AT and GC skewness in mitogenomes of binturong and nine other feliforms.
Species Size (bp) A% G% T% C% (A+T)% AT skew GC skew
WHOLE MITOCHONDRIAL GENOME
A. binturong 16,642 32.75 16.45 31.81 18.99 63.64 0.07 −0.19
A. binturong 17,067 33.1 12.9 29.2 23.5 62.3 0.06 −0.29
C. bennettii 15,785 34.2 12.3 31.0 22.6 65.2 0.04 −0.29
P. larvata 16,710 33.43 16.11 30.97 19.49 64.64 0.04 −0.09
G. servalina 16,938 32.90 16.72 30.08 20.30 62.98 0.04 −0.09
V. indica 16,583 32.99 16.41 30.66 19.94 63.65 0.04 −0.09
H. javanicus 16,758 32.38 17.00 29.96 20.66 62.34 0.04 −0.09
M. decemlineata 16,905 31.74 17.81 28.76 21.7 60.50 0.05 −0.09
H. hyaena 17,112 31.58 17.93 28.62 21.87 60.28 0.05 −0.09
F. catus 17,009 32.82 16.92 29.56 20.70 62.38 0.05 −0.09
P.pardicolor 16,718 32.50 16.77 30.76 19.98 63.25 0.03 −0.08
N. binotata 17,087 33.12 16.51 29.54 20.84 62.65 0.06 −0.11
PROTEIN CODING GENES (PCGs)
A. binturonga 11,313 30.99 12.71 33.15 23.15 63.46 0.03 −0.37
A. binturong 11,444 31.8 12.4 31.5 24.1 63.3 0.004 −0.31
C. bennettii 11,332 32 11.9 33.3 22.6 65.3 −0.01 −0.31
P. larvata 11,316 31.89 12.48 32.41 23.22 64.30 −0.01 −0.30
G. servalina 11,410 31.02 13.24 30.41 25.33 61.44 0.01 −0.32
V. indica 11,410 31.45 12.86 31.30 24.39 62.75 0.00 −0.31
H. javanicus 11,301 31.12 13.60 29.44 25.84 60.56 0.03 −0.31
M. decemlineata 11,295 29.83 14.71 27.33 28.13 57.16 0.04 −0.31
H. hyaena 11,310 30.22 14.50 27.54 27.74 57.77 0.05 −0.31
F. catus 11,292 30.94 13.74 28.79 26.52 59.74 0.03 −0.32
P. pardicolor 11,286 30.61 13.66 30.79 24.94 61.40 0.00 −0.29
N. binotata 11,303 31.74 12.64 28.23 27.39 59.97 0.06 −0.37
tRNA
A. binturonga 1,519 33.45 18.63 31.77 16.14 64.09 0.08 0.07
A. binturong 1,582 33.5 18.83 30.7 16.87 64.28 0.04 0.05
C. bennettii 1,516 33.9 18.46 31.26 16.2 65.16 0.04 0.06
P. larvata 1,517 34.14 18.20 31.09 16.58 65.22 0.05 0.05
G. servalina 1,512 33.71 18.79 30.63 16.86 64.35 0.05 0.05
V. indica 1,515 33.61 18.50 31.06 16.82 64.67 0.04 0.05
H. javanicus 1,514 32.77 19.07 31.09 17.07 63.86 0.03 0.05
M. decemlineata 1,512 32.41 19.75 30.38 17.46 62.79 0.03 0.06
H. hyaena 1,512 31.91 20.07 30.07 17.95 61.98 0.03 0.06
F. catus 1,515 33.62 18.80 30.77 16.81 64.39 0.04 0.05
P. pardicolor 1,514 33.39 18.54 31.55 16.51 64.94 0.03 0.05
N. binotata 1,513 33.60 18.83 31.17 16.40 64.77 0.04 0.07
rRNA
A. binturonga 2,538 37.31 16.97 23.93 21.80 60.5 0.22 −0.13
A.binturong 2,537 37.24 18.8 24 21.75 61.2 0.21 −0.12
C.bennettii 2,537 37.24 17.06 25.10 20.57 62.34 0.19 −0.09
P. larvata 2,537 36.68 17.39 23.73 22.19 60.41 0.21 −0.12
G.servalina 2,532 36.50 17.63 23.84 22.03 60.34 0.21 −0.11
V.indica 2,530 37.05 17.25 23.84 21.86 60.89 0.22 −0.12
H. javanicus 2,534 36.82 17.62 22.09 23.47 58.91 0.25 −0.14
M. decemlineata 2,535 36.46 17.96 21.95 23.63 58.41 0.25 −0.14
H. hyaena 2,533 35.96 18.33 22.04 23.67 58.00 0.24 −0.13
F. catus 2,538 36.52 18.05 22.86 22.57 59.38 0.23 −0.11
P. pardicolor 2,544 35.35 18.22 24.21 22.22 59.55 0.19 −0.10
N. binotata 2,538 37.35 17.13 21.86 23.66 59.21 0.26 −0.16
CONTROL REGION
A. binturonga 1,191 30.98 15.95 31.23 21.83 62.22 0.00 −0.16
A.binturong 1,304 37.96 8.81 26.84 26.38 64.8 0.17 −0.49
C.bennettii 1,292 33.9 9.90 32.26 23.14 66.16 0.02 −0.40
P. larvata 1,260 31.27 14.92 24.29 29.52 55.56 0.13 −0.33
G.servalina 1,497 32.33 14.43 25.92 27.32 58.25 0.11 −0.31
V.indica 1,135 31.28 14.80 27.05 26.87 58.33 0.07 −0.29
H. javanicus 1,318 31.26 14.57 27.54 26.63 58.80 0.06 −0.29
M. decemlineata 1,423 32.19 15.04 25.37 27.41 60.5 0.12 −0.29
H. hyaena 1,673 33.17 14.88 23.79 28.15 56.96 0.16 −0.31
F. catus 1,560 32.12 14.74 26.35 26.79 58.46 0.10 −0.29
P. pardicolor 1,271 31.63 15.18 25.96 27.22 57.59 0.03 −0.08
N. binotata 1,638 31.93 14.53 25.89 27.66 57.81 0.10 −0.31
DOI: 10.7717/peerj.8033/table-2

Notes:

Sequence generated in this study.

Phylogenetic relationships and divergence time estimates

Maximum likelihood and Bayesian inference analyses (Fig. S1) of the concatenated sequences of the 13 PCGs (11,313 bp) support the monophyly of Viverridae among feliforms, the monophyly of Paradoxurinae among viverrids, the clustering of Paradoxurinae and Hemigalinae, as found by Veron et al. (2017), and the clustering of Genettinae with Viverrinae as proposed by Veron (2007) and Eizirik et al. (2010). The monophyly of Viverridae was strongly supported in both the analyses, with a Bayesian Posterior Probability (bpP) of 1 and a bootstrap support (BS) of 100%. Viverrid monophyly was also observed by Patou et al. (2008) and finds morphological support as the species therein share a characteristic union of the third and fourth digits in the hind foot and a hypocarnivorous dentition (Patou et al., 2008; Veron, 2007). Within Viverridae, Paradoxurinae (A. binturong and P. larvata) and Paradoxurinae + Hemigalinae (C. bennetti) were both monophyletic, each with bpP of 1 and BS = 100%. Finally, Genettinae and Viverrinae were found to have a sister relationship with maximum bpP support and BS = 94%. Inferred relationships among other feliform familes were well supported and congruent with previous studies (Veron & Heard, 2000; Gaubert & Veron, 2003; Yoder et al., 2003; Flynn et al., 2005; Koepfli et al., 2006; Eizirik et al., 2010).

Divergence time estimation (Fig. 2) showed that Viverridae began diversifying around 22.65 Mya (95% Credibility Interval (CI) [20.78 Mya –24.54 Mya]), close to the dates estimated in earlier studies (Gaubert & Veron, 2003; Koepfli et al., 2006; Patou et al., 2008; Zhou, Wang & Ma, 2017) but more recent than that suggested in other studies (Gaubert & Cordeiro Estrela, 2006; Eizirik et al., 2010). The estimates obtained from this study and most others agree with the temporal position of the earliest evidence for Viverridae, represented by the late Oligocene-early Miocene fossil Herpestides, which has been dated at 23 Mya (Johnson et al., 2006; Morlo, Miller & El-Barkooky, 2007). The split between Arctictis and Paguma in Paradoxurinae was estimated at 12.57 Mya (95% CI [8.66 Mya –16.51 Mya]), which agrees with the date of origin of Paradoxurinae suggested to be during the Miocene (Gaubert & Cordeiro Estrela, 2006; Veron, 2007). Divergence times estimated for the origin of Feliformia (41.80 Mya, CI [26.82–63.98]) and the feliform families are consistent with those reported in previous studies (Gaubert & Cordeiro Estrela, 2006; Koepfli et al., 2006; Eizirik et al., 2010; Zhou, Wang & Ma, 2017).

Mean divergence date estimates among 24 feliform species.

Figure 2: Mean divergence date estimates among 24 feliform species.

The 24 feliform species (listed in Table S2 ) includes five from Viverridae showing divergence of Viverridae and sub-families Paradoxurinae (Arctictis binturong and Paguma larvata), Genettinae (Genetta servalina), Hemigalinae (Cynogale bennetti), and Viverrinae (Viverricula indica). Blue bars spanning nodes show 95% highest posterior density (HPD) for divergence times. Timescale in millions of years ago (Mya) is shown at the bottom. The Asiatic dhole (Cuon alpinus) was used as the outgroup to root the feliform tree.

Conclusions

We have reported the first complete (gapless) mitogenome of the binturong, representing the Indian subspecies Arctictis binturong albifrons. The binturong mitogenome, along with the one previously reported by (Mohd Salleh et al., 2017), provides a starting point for further testing the distinctiveness and diversity of the nine putative subspecies of binturong and thereby provide critical information for designing conservation management plans for this vulnerable species.

Supplemental Information

PCR Primer information used in this study

DOI: 10.7717/peerj.8033/supp-1

Mitogenomes used for comparative characterization and phylogenetic analysis, name of species, family and accession numbers

The accession no. (KY117560) supplied for Binturong in Mohd Salleh et al. (2017) is in fact the accession for “Muntiacus muntjak mitochondrion, partial genome”. The Binturong sequence was obtained by contacting the authors directly.

DOI: 10.7717/peerj.8033/supp-2

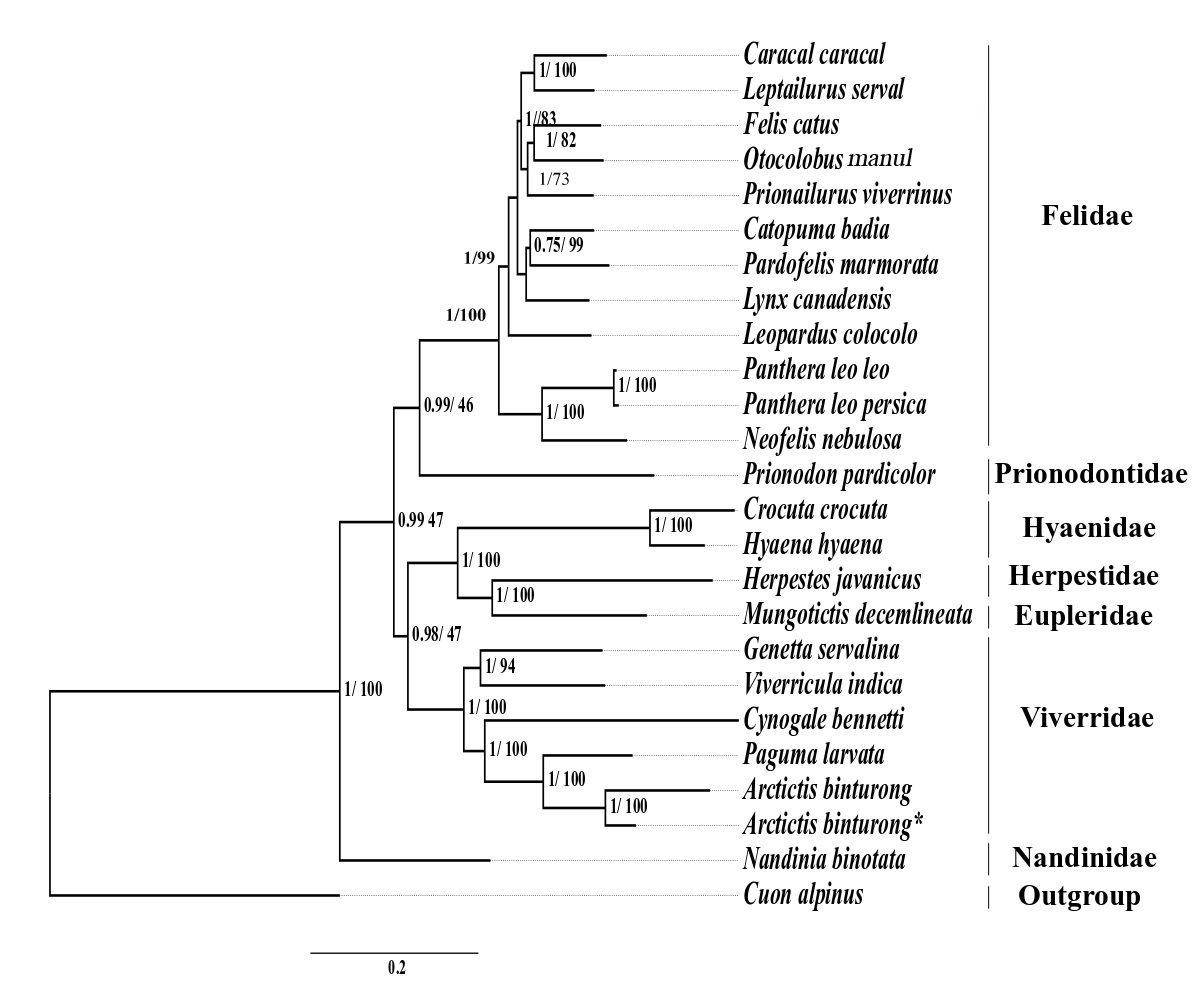

Phylogenetic relationships among mitogenomes of Feliformia, reconstructed from concatenated sequences of 13 PCGs using Bayesian inference and the maximum likelihood method

Posterior probability support from Bayesian inference and bootstrap support from maximum likelihood analysis are shown at each node, respectively. Scale bar indicates the number of substitutions per site. The Asiatic dhole (Cuon alpinus) was used as the outgroup to root the feliform tree.

DOI: 10.7717/peerj.8033/supp-3
