Introduction

Obesity is a metabolic disease resulting from the increase of body fat. Obesity is referred as a global epidemic due to its rapid growth rate. In 2004, WHO estimates that more than one billion people are overweight and, of these, 300 million can be considered as obese. Obesity happened in both the developed and developing countries. A progressive increase in obesity rate is found in countries such as United States, Brazil, England and Japan (James et al., 2001). Prevalence cases of childhood obesity are increasing as well (Deckelbaum & Williams, 2001). It is estimated that if no action is taken against this, these figures could double in 2025. Obesity is often correlated with coronary heart disease, diabetes mellitus, and certain types of cancer. This results in an increased in the global anti-obesity market, which is currently about USD 240 billion.

Diacylglycerols (DAG) oil has metabolic characteristics that are distinct from triacylglycerols (TAG) oil. The consumption of DAG oil is claimed to be able to reduce postprandial serum TAG levels and thus beneficial for the prevention and management of obesity (Lo et al., 2008). DAG can be produced from various types of vegetable oils including palm oil. However, the slip melting point of palm based DAG fat is high (more than 50°C) hence, limiting its application in food products. Moreover, the high solid fat content of palm-based DAG fat, which is about 17% at body temperature, results in an undesirable mouth feel. Modification such as fractionation is necessary in order to improve their properties.

Fractional crystallization is a reversible modification process, carried out in 2 stages; crystallization and followed by separation (Kellens et al., 2007), done through dry-fractionation. Dry fractionation has gained popularity because of its cheaper process and greener technology. Also, there is no harmful effluent, no chemical used and no loss in yield. Because palm oil contains a mixture of high and low melting glycerides, higher melting glycerides will crystallize into solid (stearin) fraction which can be used for margarine and shortening, while the low melting glycerides remain in a liquid form called olein used for frying media.

The dry fractionation process is simply a controlled crystallization of the melted oil, followed by separation of solid from liquid fraction. Three steps are involved in crystallization process; super cooling of the melt, nucleation and crystal growth (Zaliha et al., 2004). The separation is an important step since the amount of liquid fat entrapped in the filter cake will affect the physical properties of this fraction, called stearin, to a great extent. The entrapment of the liquid fat is due to occlusion within crystallized particles or aggregates as well as retention between particles (Hamm, 1995). The formations of mixed crystals in the form of agglomerated spherulites, which adsorb liquid within crystals, and depend to a considerable extent to the crystallisation conditions employed (Patience, Hartel & Illingworth, 1999). The amount of liquid oil remaining between crystals in the filter cake is determined by the number, size, shape and chemical composition of the crystals and the mechanism of filtration (Amer, Kupranycz & Baker, 1985). In fats and oil industries, dry fractionation is commonly used to produce a value added stearin and oleic fraction such as palm oil, coconut oil, high-olein high-stearic sunflower oil, milk fat (Bootello et al., 2011; Chaleepa, Szepes & Ulrich, 2010; Lopez & Ollivon, 2009). Dry fractionation is preferable compared to the solvent fractionation as no chemical is involved in this process and it is more economical.

In this study, we performed dry fractionation of palm-based DAG (PDAG) fat at various cooling rates (0.05, 0.5, 1.0, 1.5, 2.0, 2.5 and 3.0°C/min), end-crystallisation temperatures (30, 35, 40, 45 and 50°C) and agitation speeds (30, 50, 70, 90 and 110 rpm) to see the effects of these parameters on the properties and yield of the solid and liquid portions of the DAG fat. Fractionation of this functional oil PDAG can help to extend the applications of PDAG in food application with its stearin and olein fraction. Dry fractionation is only applicable for PDAG but not for other soft oils.

Materials & Methods

Materials

PDAG fat was produced from refined palm oil (RBDPO), provided by Sime Darby Jomalina Food Industries Sdn. Bhd. (Telok Panglima Garang, Selangor, Malaysia), through 1,3-lipase glycerolysis using Novozyme 435 lipase (Novozyme, Denmark) according to Malaysia Patent 201004803. Free fatty acid (FFA) and monoacyglycerides (MAG) were removed using short-path distillation (SPD) to achieve DAG purity of more than 80% (w/w). All chemicals used were of analytical grade except for GC and HPLC purposes, the solvents used were HPLC grade.

Fractional crystallization

The PDAG fat (400 ml) with free fatty acid (FFA) of less than 0.16% was subjected to dry fractionation using Mettler Toledo LabMax (Greifensee, Switzerland) reactor. The oil was first heated in the reactor for 20 min at 70°C with stirring at 100 rpm to destroy all crystals. The oil was then agitated and cooled at controlled manner to the desired end-temperature. The examined process parameters were summarized in Table 1. The oil was hold in the crystalliser for stabilization followed by separation of the semi-slurry into olein and stearin using hydraulic filter press. The slurry was first fed into the filter press with a minimum pressure 2.0 bar/min. The filling period was 10 min with a maximum pressure 6.0 bar/min. The olein and stearin fraction were weighed and analysed.

Table 1:
Experimental conditions.
Parameter Ct Cr As
Ct (°C) 30, 35, 40, 45, 50 35 (constant) 35 (constant)
Cr (°C/min) 0.05 (constant) 0.05, 0.5, 1.0, 1.5, 2.0 0.05 (constant)
As (rpm) 90 (constant) 90 (constant) 30, 50, 70, 90, 110
DOI: 10.7717/peerj.72/table-1

Notes:

Ct = crystallisation temperature; Cr = cooling rate; As = agitation speed.

Iodine value (IV) determination

IV was determined according to the AOCS official method Cd 1-25 (1993).

Fatty acid composition (FAC) analysis

Fatty acid composition was determined by the rapid method of AOCS Official Method Cd 14c-94 (1993). Analysis of fatty acid compositions was done by gas chromatography (Model: Autosystem XL, Perkin Elmer, USA). Fatty acids present in oil were first converted to fatty acid methyl esters (FAME) before injecting into polar SP™(Supelco, Bellefonte, PA) capillary column (0.25 mm i.d. × 60 m × 0.2 µm), to obtain the fatty acid profiles. Temperatures maintained in the analysis were column oven: 130°C, injection block: 250°C and detector temperature: 250°C. Carrier gas was nitrogen at 20 psi. The injection volume was 1 µl.

Analysis of acylglycerol composition

PDAG fat, olein and stearin fractions (100 µl) were dissolved in solutions of acetone: acetonitrile (60:40) (v/v) (900 µl) and then analyzed for triacyglycerol composition using reversed-phased high performance liquid chromatography (Waters 2695, Connecticut, USA) using AOCS method Ce 5C-93. The TG was separated using packed Supercosil™ LC-18 column (25 cm × 4.6 mm i.d. × 5 µm) and eluted from the column using an acetone/acetonitrile (25:75 vol/vol) mobile phase at flow rate of 2 ml/min. The sample injection volume was 1 µl. Detection of the TG was done using refractive index detector (Waters 2414, Connecticut, USA).

Slip melting point (SMP)

SMP was measured according to AOCS Method Cc.3.25 (1993). Capillary tubes were filled with a 1 cm high column of melted fat. The capillary tubes were then rolled against a piece of ice before being chilled in a refrigerator at 101°C for 16 h to solidify the fat. The tubes were subsequently attached with a rubber band to a thermometer and suspended in a 600 ml beaker of boiled distilled water. The bath temperature was adjusted to 8–10°C below the SMP of the sample, and heat was applied using a heating coil element to increase the bath temperature at a rate of 1°C/min. The temperature at which the fat column rises was reported as the SMP.

Solid fat content (SFC)

SFC was measured according to Malaysian Palm Oil Board (MPOB) Test Method p4.8 (2004) using pulsed nuclear magnetic resonance (NMR) spectrometry (Bruker NMS 120 minispec). The SFC of PDAG fat, olein and stearin fractions was measured at each separation temperature. The sample in the NMR tube was first melted at 70°C for 30 min, followed by chilling at 0°C for 90 min prior to measurement. Melting, chilling and holding of sample were carried out in pre-equilibrated thermostat water bath. The SFC temperature was set to 10, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65°C. The percentage of SFC was based on three measurements.

Thermal behavior by differential scanning calorimetry (DSC)

Thermal properties of the oil sample (3–5 mg) was measured using a Perkin Elmer DSC Diamond with hyperDSC (PerkinElmer Ins., Bridgeport Avenue, Shelton, USA). The data processor was PerkinElmer Diamond DSC Auto-sampler. Nitrogen (99.99% purity) was use as the purge gas and flowed at 20.0 ml/min. The DSC instrument was calibrated with indium (m.p. 156.6°C).

Statistical Analysis

Statistical analysis software (Xlstat’s, Addinsoft, New York, USA) was used to perform statistical analysis. Analysis of variance (ANOVA) with Duncan’s multiple range tests was performed to determine significant of difference at P < 0.05. Analysis was conducted in triplicates.

Results and Discussion

IV, SFC and percentage of yield

IV is a measure of the degree of unsaturation of fats and oils. It is one of the parameters commonly used to measure the quality of olein (Haryati et al., 1998). Fractionation of PDAG fat changes the chemical composition of liquid and solid fractions. As the crystallisation proceeds, the more unsaturated fatty acid gradually concentrate in liquid phase, known as olein, leaving behind the more saturated in solid phase, stearin. The fatty acid composition is altered, as expected. The unsaturated fatty acid, were present in higher concentrations in olein fractions.

Table 2 shows the effect of different crystallisation temperature on chemical composition of olein and stearin fractions obtained by dry fractionation of PDAG fat. The present result shows that crystallisation temperature has effect on the IV of olein fraction but not on stearin fraction. A clear correlation (R2 = 0.812) between IV of olein and crystallisation temperature was observed. Olein fractionated at higher crystallisation temperature had lower IV. A reduction in IV of olein fraction was observed as the crystallisation temperature increased from 30 to 50°C. However, there is no significant difference (P > 0.05) in IV of olein fraction fractionated at crystallisation temperature of 30, 35 and 40°C. As crystallization temperature decreased, more unsaturated components were concentrated at the liquid fraction which contributed to higher IV (Table 2). A clear correlation (R2 = 0.9490) between crystallisation temperature and the amount oleic acid, C18:1, was also observed (Table 2). A significant decrease (P < 0.05) in oleic acid resulted in lower amount of monounsaturated fatty acids (MUFA) and polyunsaturated fatty acids (PUFA). One can also observed that saturated fatty acids (SAFA) gradually increased as crystallisation temperature increased and this might be the result from the increasing palmatic acid concentration. This demonstrated that olein fractions have become more saturated thus, contributed to lower IV for olein fractions. This conclusion is in line with the results of Arnaud & Collignan (2008) who studied the effect of the temperature and time on crystallisation, filtration and fraction properties on chicken fat fractionation and showed that the longer crystallisation time and the high suspension viscosity might possibly preserve the crystalline integrity at low temperatures. In a study by Mamat et al. (2005) on palm and sunflower oil blends fractionated using different temperatures, it was reported that higher IV can be obtained due to higher PUFA propotion found in liquid fraction when lower fractionation temperature was applied. However, no correlation (R2 = 0.2499) between IV of stearin and crystallisation temperature was observed in the present study. This is probably related to an inconsistency in separation processes. In our study, separation was done by manual pressing therefore; the pressure and the duration of pressing were not effectively controlled. Hence, an increase in olein entrapment might have contributed to an increase in IV of stearin and vice versa. The IV for PDAG fat (49.86) was intermediate between olein and stearin fractions as PDAG fat has equal proportion of saturated and unsaturated fatty acids (Table 2).

Table 2:
Effect of different crystallisation temperature on chemical composition of olein and stearin fractions obtained by dry fractionation of PDAG fat.
Layer Ct Acylglycerol Composition (%) Fatty Acid Composition (%) IV Yield (%)
MAG DAG TAG C16:0 C18:1 SAFA MUFA PUFA
Ol - 97.89 ± 0.06 2.64 ± 0.07 44.08 ± 0.12 39.86 ± 0.15 49.92 ± 0.15 40.01 ± 0.10 10.06 ± 0.15 49.86 ± 0.25 -
30 - 96.23 ± 0.06c 3.78 ± 0.07b 33.53 ± 0.11e 49.11 ± 0.26a 38.27 ± 0.18e 49.30 ± 0.18a 12.22 ± 0.26a 59.97 ± 0.31a 37.54 ± 0.06e
35 - 96.13 ± 0.08c 3.88 ± 0.07b 34.31 ± 0.19d 48.35 ± 0.10b 39.22 ± 0.17d 48.53 ± 0.20b 12.03 ± 0.15a 59.74 ± 0.24a 52.45 ± 0.05c
40 - 96.42 ± 0.10b 3.57 ± 0.08c 34.89 ± 0.18c 47.81 ± 0.15c 39.88 ± 0.10c 48.00 ± 0.26c 11.90 ± 0.30a 59.73 ± 0.28a 42.95 ± 0.05d
45 - 90.72 ± 0.10d 9.30 ± 0.07a 36.73 ± 0.12b 46.22 ± 0.11d 41.93 ± 0.28b 46.40 ± 0.20d 11.46 ± 0.26b 57.64 ± 0.36b 55.83 ± 0.08b
50 - 96.72 ± 0.05a 3.27 ± 0.07d 38.65 ± 0.20a 44.55 ± 0.10e 43.99 ± 0.17a 44.72 ± 0.10e 11.07 ± 0.16b 55.41 ± 0.39c 59.36 ± 0.04a
St 30 - 99.28 ± 0.06d 0.71 ± 0.04a 67.61 ± 0.19d 16.18 ± 0.19a 75.91 ± 0.21d 19.42 ± 0.17a 4.58 ± 0.08a 24.19 ± 0.31b 62.46 ± 0.04a
35 - 99.80 ± 0.06a 0.19 ± 0.06d 67.47 ± 0.20d 19.58 ± 0.17a 75.62 ± 0.27d 19.64 ± 0.20a 4.64 ± 0.05a 24.91 ± 0.41a 47.55 ± 0.05c
40 - 99.35 ± 0.08cd 0.63 ± 0.09ab 70.14 ± 0.24a 17.28 ± 0.26d 78.51 ± 0.28a 17.34 ± 0.26d 4.07 ± 0.08c 21.54 ± 0.36d 57.05 ± 0.03b
45 - 99.56 ± 0.06b 0.44 ± 0.05c 69.33 ± 0.10b 17.99 ± 0.21c 77.61 ± 0.18b 18.05 ± 0.10c 4.26 ± 0.14b 22.69 ± 0.21c 44.17 ± 0.04d
50 - 99.41 ± 0.05c 0.60 ± 0.06b 68.41 ± 0.19c 18.76 ± 0.11b 76.55 ± 0.17c 18.83 ± 0.18b 4.52 ± 0.08a 23.23 ± 0.23c 40.64 ± 0.06e
DOI: 10.7717/peerj.72/table-2

Notes:

Ct = crystallization temperature = 30, 35, 40, 45, 50°C, Ol = Olein, St = Stearin, SAFA = Saturated fatty acid, MUFA = monounsaturated fatty acid, PUFA = polyunsaturated fatty acid. Each value in table represents the mean ± standard deviation of sample analysis from triplicate analysis. Mean within each column with different superscripts letter a, b, c, d, e are significantly (P < 0.05) different, a, b, c, d, e (P < 0.05).

Cooling rate influenced the nature of crystals obtained. The effect of different cooling rates on chemical compositions of olein and stearin fractions obtained by dry fractionation of PDAG fat is shown in Table 3. Similar to the effect of crystallisation temperature, the IV of the olein fraction is influenced by the cooling rate but not the stearin fraction. A clear correlation (R2 = 0.7373) between IV of olein and cooling rate was identified in this study. As cooling rate increased, the iodine value of olein fractions decreased. Table 3 shows SAFA increased while MUFA decreased as cooling rate increased for olein fractions. Significant decrease (P < 0.05) in MUFA composition was influenced by the reduction of oleic acid (C18:1). This contributed to lower IV for olein fractions. However there is no significant difference (P > 0.05) in IV for cooling rates of 0.05, 0.5, 1.0 and 1.5°C/min. This finding is similar to what was reported by deMan (1964) and Schaap & Rutten (1976) who found little difference in slip point, solid fat content (SFC), yield, hardness, thermal melting curves, and fatty acid composition over the ranges from 0.01 to 1°C/min of cooling rate. However, in this study, no correlation (R2 = 0.010) between IV and cooling rate was observed for the stearin fractions, probably due to inconsistency in the separation steps as mentioned earlier. The increment in IV for the stearin fraction was simply due to the presence of higher quantity of entrained olein in the stearin fractions which resulted in higher stearin yield as showed in Table 3. Increased IV due to olein entrapment was evidenced by the increase and decrease in oleic acid and palmatic acid, respectively, i.e. higher MUFA and lower SAFA contents were detected. According to deMan (1964), a slower crystallisation process will led to a decreased solid fat content, the hardness of milk fat, as well as the aggregation of small crystalline particles into larger crystalline particles.

Table 3:
Effect of different cooling rates on chemical composition of olein and stearin fractions obtained by dry fractionation of palm-based diacylglycerol fat.
Layer Cr Acylglycerol composition (%) Fatty acid composition (%) IV Yield (%)
MAG DAG TAG C16:0 C18:1 SAFA MUFA PUFA
Ol 0.25 ± 0.05 86.53 ± 0.10 13.23 ± 0.06 43.52 ± 0.02 39.62 ± 0.07 50.49 ± 0.12 39.86 ± 0.14 9.64 ± 0.22 49.51 ± 0.21 -
0.05 0.30 ± 0.05b 78.04 ± 0.07b 21.66 ± 0.09c 34.98 ± 0.28c 47.10 ± 0.18b 41.27 ± 0.16d 47.29 ± 0.23b 11.44 ± 0.18a 58.83 ± 0.21a 75.56 ± 0.04b
0.5 0.40 ± 0.05a 78.06 ± 0.10b 21.54 ± 0.08c 34.44 ± 0.27d 47.53 ± 0.24a 40.68 ± 0.12c 47.73 ± 0.14a 11.61 ± 0.22a 58.44 ± 0.22a 71.68 ± 0.02d
1.00 0.25 ± 0.04b 68.00 ± 0.13d 31.75 ± 0.07a 35.27 ± 0.12bc 46.91 ± 0.10bc 41.39 ± 0.15c 47.10 ± 0.13b 11.51 ± 0.22a 58.45 ± 0.35a 76.69 ± 0.03a
1.50 0.40 ± 0.06a 77.66 ± 0.07c 21.94 ± 0.06b 35.60 ± 0.17b 46.59 ± 0.21c 41.89 ± 0.27b 46.78 ± 0.15c 11.32 ± 0.23ab 58.38 ± 0.20a 73.49 ± 0.06c
2.0 0.25 ± 0.04b 80.34 ± 0.10a 21.94 ± 0.06a 37.19 ± 0.21a 45.28 ± 0.16d 43.52 ± 0.28a 45.46 ± 0.17d 11.01 ± 0.21b 57.32 ± 0.18b 68.85 ± 0.03e
St 0.05 0.42 ± 0.04b 97.40 ± 0.05a 2.60 ± 0.03e 71.04 ± 0.19c 16.18 ± 0.19d 80.00 ± 0.23a 16.26 ± 0.11d 3.75 ± 0.20c 21.80 ± 0.20e 24.44 ± 0.06d
0.5 0.65 ± 0.07a 95.66 ± 0.05c 3.69 ± 0.05c 65.28 ± 0.19c 16.18 ± 0.19d 80.00 ± 0.23a 16.26 ± 0.11d 3.75 ± 0.20c 27.63 ± 0.27b 28.32 ± 0.08b
1.00 0.60 ± 0.06a 96.09 ± 0.14b 3.31 ± 0.08d 66.99 ± 0.14bc 19.61 ± 0.24c 75.80 ± 0.11b 19.71 ± 0.16c 4.50 ± 0.26b 24.77 ± 0.15d 23.31 ± 0.09e
1.5 0.65 ± 0.07a 94.52 ± 0.08d 4.83 ± 0.05b 65.34 ± 0.16b 20.94 ± 0.28b 74.12 ± 0.16c 21.00 ± 0.23b 4.88 ± 0.10a 27.00 ± 0.30c 26.51 ± 0.09c
2.0 0.65 ± 0.07a 94.52 ± 0.08e 4.83 ± 0.05a 63.63 ± 0.28a 22.41 ± 0.22a 72.23 ± 0.10d 22.52 ± 0.13a 5.24 ± 0.16a 28.05 ± 0.20a 31.17 ± 0.03a
DOI: 10.7717/peerj.72/table-3

Notes:

Cr = cooling rate = 0.05, 0.5, 1.0, 2.0°C/min, Ol = Olein, St = Stearin, SAFA = Saturated fatty acid, MUFA = monounsaturated fatty acid, PUFA = polyunsaturated fatty acid. Each value in table represents the mean ± standard deviation of sample analysis from triplicate analysis. Mean within each column with different superscripts letter a, b, c, d, e are significantly (P < 0.05) different, a, b, c, d, e (P < 0.05).

There are many factors that can influence lipid crystallization. One of the most notable is the process by which the melted sample is cooled down. This includes the cooling rate, crystallisation temperature and also agitation speed. The main function of agitation during fat fractionation was suspending the crystal aggregates and enhancing the heat transfer. Table 4 shows the effect of different agitation speed on chemical composition of olein and stearin fractions obtained by dry fractionation of PDAG fat. For the experimental conditions described here, IV did not seem to be affected by agitation. No correlation between IV and agitation speed was observed in olein (R2 = 0.096) and stearin (R2 = 0.139) fractions. However, stearin fractionated at 50 rpm has highest IV (Table 4) which was possibly because of high olein entrapment resulting in high stearin yield. In contrast with the study conducted by Vanhoutte et al. (2003) on the filtration properties and crystallisation kinetics of milk fat fractionation. They performed experiments at 13 to 25 rpm to investigate the effect of higher agitation speed and found that more intense agitation produced softer stearin as a result of more oil inclusion. The result was explained by higher shear rates, which break down crystal aggregates. Agitation rate had a marked effect on crystal size. Higher agitation rate had a dramatic effect on crystal size resulting in formation of many small crystals (Herrera & Hartel, 2000), which is perhaps evidence of secondary nucleation caused by crystal contact mechanism (Hartel, 2001). Martini, Herrera & Hartel (2002) reported that blends of a high milk fat fraction and sunflower oil crystallised without agitation appeared to be more densely arranged within the crystal and to have bigger crystal sizes than samples crystallized in dynamic conditions. Breitschuh & Windhab (1996) showed that higher agitation promotes co-crystallization, probably due to an enhanced heat transfer.

Table 4:
Effect of different agitation speed on chemical composition of olein and stearin fractions obtained by dry fractionation of palm-based diacylglycerol fat.
Layer As Acylglycerol composition (%) Fatty Acid composition (%) IV Yield (%)
MAG DAG TAG C16:0 C18:1 SAFA MUFA PUFA
Ol 0.25 ± 0.05 92.53 ± 0.10 7.22 ± 0.06 43.52 ± 0.02 39.62 ± 0.07 49.49 ± 0.12 40.86 ± 0.14 10.64 ± 0.22 51.51 ± 0.21 -
30 0.36 ± 0.04a 93.03 ± 0.06a 6.61 ± 0.07d 33.34 ± 0.18c 49.28 ± 0.15a 38.07 ± 0.18c 49.48 ± 0.11a 12.45 ± 0.25a 61.62 ± 0.28b 38.85 ± 0.05d
50 0.38 ± 0.04a 92.39 ± 0.04d 7.23 ± 0.05c 33.85 ± 0.18b 48.80 ± 0.20b 38.64 ± 0.28b 49.00 ± 0.30b 12.38 ± 0.12a 61.18 ± 0.30bc 36.12 ± 0.10e
70 0.38 ± 0.04a 90.91 ± 0.06e 8.71 ± 0.04a 34.31 ± 0.17a 48.43 ± 0.20b 39.15 ± 0.15a 48.63 ± 0.22b 12.25 ± 0.35a 60.88 ± 0.38c 42.06 ± 0.07c
90 0.36 ± 0.02a 92.51 ± 0.04b 7.13 ± 0.11c 34.02 ± 0.17ab 48.65 ± 0.20b 38.80 ± 0.20ab 48.85 ± 0.25b 12.36 ± 0.14a 61.08 ± 0.22bc 50.30 ± 0.02b
110 0.33 ± 0.04a 91.96 ± 0.09d 7.71 ± 0.05b 33.06 ± 0.16c 49.47 ± 0.25a 37.77 ± 0.20c 49.67 ± 0.27a 12.56 ± 0.26a 62.18 ± 0.27a 54.92 ± 0.08a
St 30 0.25 ± 0.04ab 95.36 ± 0.06c 4.39 ± 0.07a 68.32 ± 0.16a 18.71 ± 0.19d 76.75 ± 0.18a 18.78 ± 0.23d 4.48 ± 0.25b 23.65 ± 0.25d 61.15 ± 0.06b
50 0.27 ± 0.03ab 95.91 ± 0.06b 3.82 ± 0.04b 64.54 ± 0.37d 21.99 ± 0.21a 72.58 ± 0.28d 22.08 ± 0.22a 5.36 ± 0.15a 27.68 ± 0.19a 63.88 ± 0.03a
70 0.23 ± 0.04b 97.68 ± 0.06a 2.09 ± 0.07c 66.14 ± 0.16b 20.55 ± 0.25c 74.37 ± 0.23b 20.63 ± 0.37c 4.98 ± 0.26a 25.62 ± 0.18c 57.95 ± 0.05c
90 0.31 ± 0.04a 95.33 ± 0.04c 4.36 ± 0.05a 65.80 ± 0.17b 20.86 ± 0.29c 74.01 ± 0.21b 20.94 ± 0.26c 5.05 ± 0.38a 25.71 ± 0.24c 49.71 ± 0.09d
110 0.24 ± 0.03b 95.91 ± 0.03b 3.85 ± 0.06b 65.17 ± 0.33c 21.42 ± 0.18b 73.29 ± 0.29c 21.49 ± 0.21b 5.22 ± 0.18a 26.36 ± 0.12b 45.08 ± 0.02e
DOI: 10.7717/peerj.72/table-4

Notes:

As = agitation speed = 30, 50, 70, 90, 110 rpm, Ol = Olein, St = Stearin, SAFA = Saturated fatty acid, MUFA = monounsaturated fatty acid, PUFA = polyunsaturated fatty acid. Each value in table represents the mean ± standard deviation of sample analysis from triplicate analysis. Mean within each column with different superscripts letter a, b, c, d, e are significantly (P < 0.05) different, a, b, c, d, e (P < 0.05).

The stearin yield is strongly dependent on the crystallisation temperatures and agitation speed but not cooling rate (Tables 2, 3 and 4). As crystallisation temperature increased, the yield of stearin fractions decreased (Table 2). This is because fewer crystals were formed at higher temperature hence reducing the amount of solid fractions. At the same time, intense agitation resulted in formation of small crystals which reduced the amount of solid fraction. Herrera & Hartel (2000) found that higher agitation rates led to formation of smaller fat crystals in a milkfat model system. The formation of smaller crystal resulted in poor separation hence reduced the amount of solid fraction. Similar result was also reported by Vanhoutte et al. (2003) on the effect of crystallisation temperatures but not agitation speed.

The acylglycerol composition can be altered from the feed oil as expected. The propotion of TAG was higher in the olein, whereas DAG is concentrated in the stearin fraction (Tables 2, 3 and 4). The influence of process parameters on the glyceride composition was insignificant compared to the changes in physical properties hence it was not investigated.

SFC

Figure 1A shows the SFC of PDAG fat and its fractions at different cooling rates. The olein fractions curves showed lower SFC compared to PDAG fat. It was observed that olein fractionated at lower cooling rates of 0.05, 0.5 and 1.0°C/min were completely melted at lower temperature (40°C) whereas, the SFC for olein fractionated at 1.5 and 2.0°C/min still retained at 0.97% and 3.1%, respectively. At cooling rate of 2.0°C/min, the SFC of olein fraction was highest due to high content of SAFA and low amount of unsaturated fatty acids. As crystallisation temperature decreased, the SFC for the olein fractions decreased. Ol 30 and Ol 35 completely melted at body temperatures whereas, the solid fat of Ol 40, Ol 45 and Ol 50 still retain at 2.42, 2.82 and 8.32%, respectively (Fig. 1B). Agitation speed does not affect the SFC of the olein fractions (Fig. 1C). The SFC of stearin fractions (Figs. 1A–1C) are all higher than the SFC of palm-based DAG fat and were melted at temperatures above 65°C. This is due to the fact that the stearin fractions contained higher amounts of saturated fat with high melting points and were crystallized out at higher temperatures during the fractionation process. One can observed that the SFC of stearin fractions is not influenced by these three parameters.

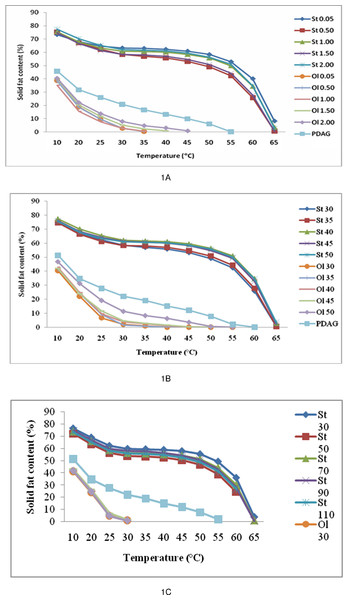

Figure 1: (A) Solid fat content of PDAG fat, stearin and olein fractionated at different cooling rate. St, stearin; Ol, olein; cooling rates in °C/min, 0.05, 0.50, 1.00, 1.50 and 2.00. (B) Solid fat content of palm-based DAG fat, stearin and olein fractionated at different crystallization temperature. St, stearin; Ol, olein; crystallization temperature in °C, 30, 35, 40, 45 and 50. (C) Solid fat content of palm-based DAG fat, stearin and olein fractionated at different agitation speed. St, stearin; Ol, olein; agitation speed in rpm, 30, 50, 70, 90 and 110.

SMP

The SMP of PDAG, olein and stearin fractionated at various cooling rates, crystallisation temperature and agitation speeds are shown in Table 5. PDAG fat has a SMP of 51.6°C. Upon fractionation, the SMP for the olein fractions were reduced to a range of 26 to 44°C. In contrast, the SMP of stearin fractions increased (60–62°C). This is due to an increase in the amount of saturated fatty acid (C16:0) and decreased in unsaturated fatty acids (C18:1) in the stearin fractions, as indicated in Table 2 to Table 4. SMP of the olein but not stearin fraction is influenced by the cooling rate. No significant difference (P > 0.05) in the SMP of the olein fractions was observed as the cooling rate increased from 0.05 to 1.00°C/min. However, fractionation of PDAG fat at higher cooling rate showed significant increase (P < 0.05) in the SMP of the olein fractions. Large increase in SMP was observed when cooling rate increased from 1.50 to 2.00°C/min. Based on our DSC study (Fig. 2C), olein fractionated at 2.00°C/min contained high proportion of high melting components resulting in high SMP. However, no significant difference (P > 0.05) was observed in the SMP of stearin fractions. Fractionation at higher crystallization temperature showed significant increased (P < 0.05) in SMP of olein fractions (Table 5).

Table 5:
Slip melting point of PDAG olein and stearin.
Cooling rate (°C/min)
0.05 0.50 1.00 1.50 2.00
Olein 30.0 ± 0.50c 30.0 ± 0.50c 30.0 ± 0.20c 31.8 ± 0.20b 37.8 ± 0.20a
Stearin 62.5 ± 0.20a 61.6 ± 0.30b 61.8 ± 0.30b 62.0 ± 0.30b 62.0 ± 0.10b
Crystallization temperature (°C)
30 35 40 45 50
Olein 28.6 ± 0.20e 28.0 ± 0.20d 32.0 ± 0.20c 34.4 ± 0.20b 44.0 ± 0.30a
Stearin 62.0 ± 0.20b 62.0 ± 0.40b 62.4 ± 0.20ab 62.6 ± 0.26a 62.6 ± 0.20a
Agitation speed (rpm)
30 50 70 90 110
Olein 26.5 ± 0.26c 27.0 ± 0.20b 27.4 ± 0.20ab 27.1 ± 0.26ab 27.5 ± 0.20a
Stearin 61.4 ± 0.17a 60.2 ± 0.20b 60.2 ± 0.36b 60.2 ± 0.20b 60.2 ± 0.10b
DOI: 10.7717/peerj.72/table-5

Notes:

Each value in table represents the mean ± standard deviation of sample analysis from triplicate analysis. Mean within each column with different superscripts letter a, b, c, d, e are significantly (P < 0.05) different, a, b, c, d, e (P < 0.05).

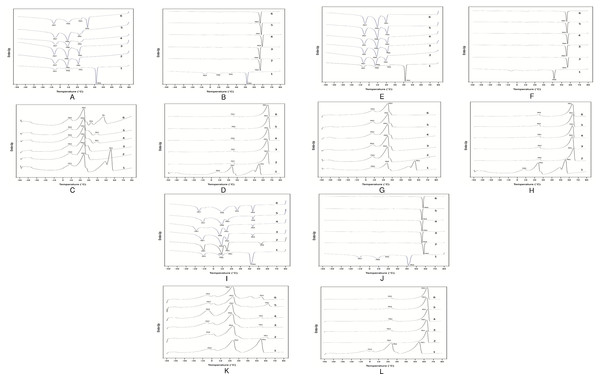

DSC crystallization (A, B, E, F, I, J) and melting curve (C, D, G, H, K, L) for olein (A, C, E, G, I, K) and stearin fraction (B, D, F, H, J, K) at different cooling rate (A–D), crystallization temperature (E–H) and agitation speed (I–L).

Figure 2: DSC crystallization (A, B, E, F, I, J) and melting curve (C, D, G, H, K, L) for olein (A, C, E, G, I, K) and stearin fraction (B, D, F, H, J, K) at different cooling rate (A–D), crystallization temperature (E–H) and agitation speed (I–L).

(A–D) 1; PDAG fat, Olein fractionated at 2; 0.05°C/min, 3; 0.50°C/min, 4; 1.00°C/min, 5; 1.50°C/min and 6; 2.00°C/min. (E–H) 1; PDAG fat, Olein/stearin fractionated at 2; 30°C, 3; 35°C, 4; 40°C, 5; 45°C and 6; 50°C. (I–L) 1; PDAG fat, Olein/stearin fractionated at 2; 30 rpm, 3; 50 rpm, 4; 70 rpm, 5; 90 rpm and 6; 110.

SMP of the olein fraction is affected by the crystallization temperature, but not for the stearin fraction. The SMP of olein increased from 28.6 to 44°C as crystallisation temperatures increased from 30 to 50°C. The melting thermogram (Fig. 2G) showed an increase in high melting components as crystallisation temperature increased. Increasing the crystallization temperature leads to the broadening of the crystallization exotherm which refers to a longer crystallisation process (Fig. 2E). This shows that olein fractions have become more saturated thus, contributed to higher SMP for olein fractions. Insignificant differences in the SMP of stearin fractions indicated that crystallisation temperature does not influence the SMP of the stearin. An increase in agitation speed showed no significant difference in the SMP of both olein and stearin fractions indicating that fractionation of PDAG fat is not influenced by agitation speed.

Thermal behavior properties

Figure 2 shows the crystallisation and melting curves of PDAG fat and its fractions at different cooling rate, crystallisation temperature and agitation speeds. The crystallisation and melting curves recorded by DSC showed different crystallisation and melting peaks for PDAG and its fractions. Two major endothermic peaks; 53.78 and 23.41°C and one minor peak; −4.34°C were observed in PDAG fat melting thermogram (Fig. 2C). PDAG stearin though showed two melting peaks and like its parent fats, the proportion of these peaks are different and also the first peak (Pk1) is shifted towards a higher temperature (Figs. 2D, 2H and 2L).

The proportion of low melting peak is reduced and that of the higher peaks are increased in stearin compared to its original fat due to the removal of the liquid fraction, which is reflected in SFC (Figs. 1A to 1C) and melting profiles (Figs. 2A to 2L). The SFC at all temperatures is increased in stearin compared to the original fat and thus the plasticity is improved (Figs. 2A to 2L). PDAG stearin showed one exothermic peak which attributed to the high melting component being shifted to a higher temperature compared to its original fat and this is expected due to the removal of liquid fraction (Figs. 2B, 2F and 2J). The stearin fractions did not show differences in melting and crystallization behaviors with changes in processing parameters. One can conclude that the melting properties of stearin fractions were not influenced by the cooling rate, crystallisation temperatures and agitation speeds.

The olein fractionated at different cooling rates showed 4 exothermic peaks similar to PDAG fat, indicating that the high melting components were not completely removed (Fig. 2A). However, olein showed very small high melting peak unlike parent fat or stearin part. The olein though showed 3 melting peaks like PDAG fat, but the proportion of these peaks are different (Fig. 2C). The proportion of high melting peak is reduced. One can conclude that fractionation of PDAG fat at cooling rates from 0.05 to 2.00°C/min produced harder olein. This is supported by the SFC profile which showed complete melting at temperature above 35°C (Fig. 1A).

Fractionation at higher crystallisation temperature produced olein with high proportion of high melting components. Cooling and melting thermograms (Figs. 2E and 2G) of olein fractionated at 50°C displayed one peak at higher temperature region at 32.68 and 45.99°C, respectively and this was attributed to the high melting components, which contributed to higher SFC (Fig. 1B). However, olein obtained from removal of stearin at lower temperatures showed two melting peaks and three exothermic peaks at lower temperature regions due to the removal of higher melting fractions. The olein fractionated at different agitation speed showed three crystallisation peaks (Fig. 2I) and two endothermic peaks (Fig. 2K). One can observe that agitation speed does not influence the melting and cooling properties of the olein fractions.

Conclusion

The dry fractionation process is environmentally friendly and a well established method used in the fats and oils industry to separate the olein (liquid fraction) and stearin fractions (solid fraction) of fats and oils so as to extend their applications especially in the food industry. It is important to know that different types of fats and oils require different types of operating parameters during fractionation. The influence of these parameters such as crystallization temperature, cooling rate and agitation speed during the fractionation process need to be taken into consideration in order to obtain a good quality olein and stearin fraction. In the present study, the effect of crystallisation temperature, cooling rate and agitation speed on physical (DSC, SMP, thermal behaviour) and chemical properties (IV) of the stearin and olein of palm-based diacylglycerol was studied. Crystallisation temperature and cooling has an influence on the chemical property of the olein fraction but not for the stearin fraction. On the other hand, agitation speed does not have any affect on both the chemical properties of olein and stearin fraction.
