Complex hydrothermal vent microbial mat communities used to assess primer selection for targeted amplicon surveys from Kama‘ehuakanaloa Seamount

Sample collection

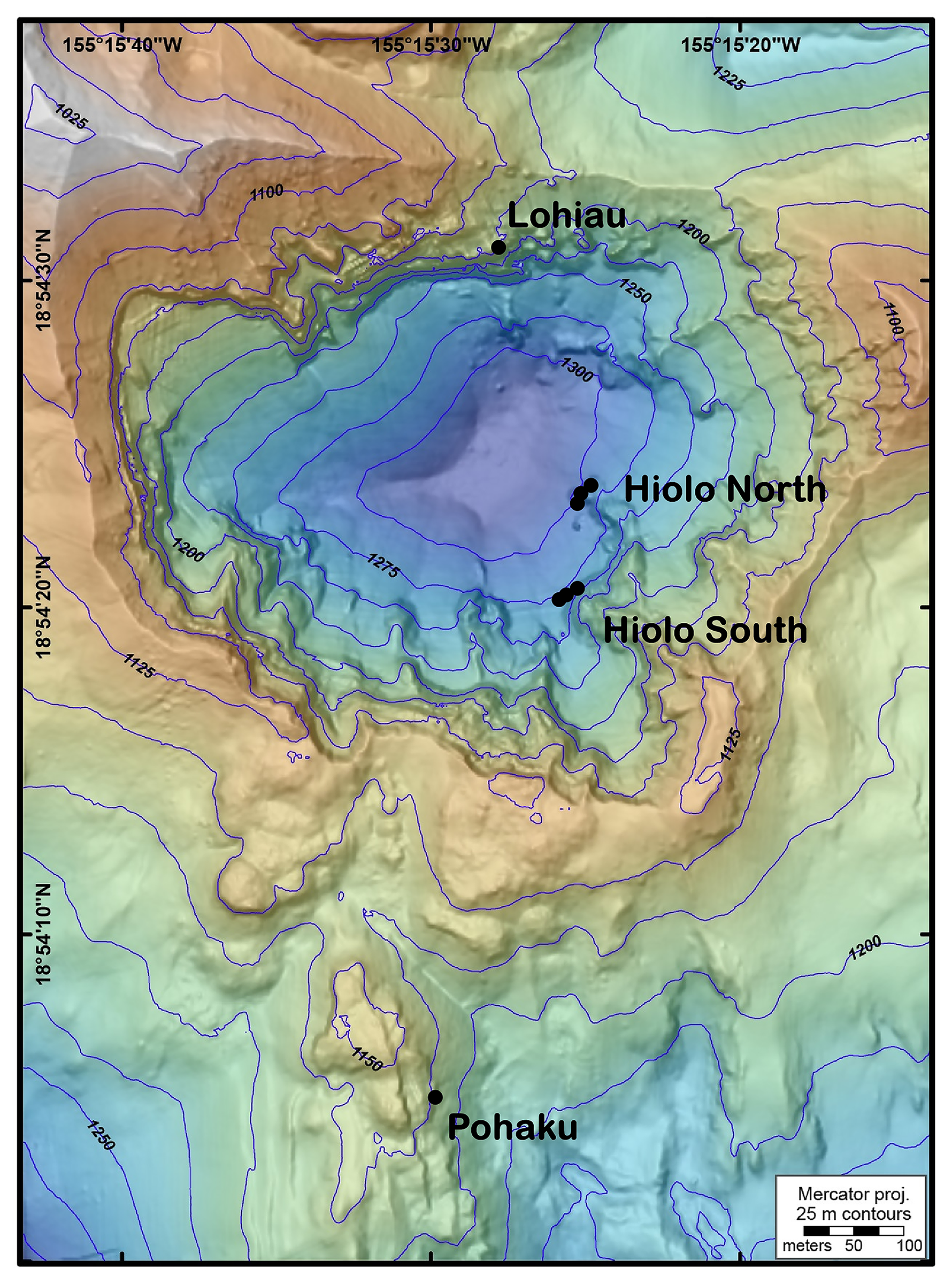

Samples were collected from Kama‘ehuakanaloa Seamount (formerly known as Lō‘ihi Seamount), an active undersea volcano at the leading edge of the Hawaiian hot spot (Clague et al., 2019). Four locations around the seamount were selected for sampling: Pohaku, at the southernmost edge of the caldera; Lohiau, on a small outcrop on the northern lip of the caldera; Hiolo North, within the eastern side of the caldera; and Hiolo South, just south of Hiolo North (Fig. S1). Metadata for each pair suction samples collected at each of the four locations is shown in Table 1. All venting locations emitted fluid that ranged from 20–48 °C and all were surrounded by abundant microbial mat (Scott, Glazer & Emerson, 2017; Fullerton et al., 2017).

Microbial mats were collected in March 2013 on the R/V Thomas G. Thompson cruise TN293 with ROV Jason II. Eight bulk mat samples were collected with an impeller-driven suction device into chambers using a double layer 202 µm Nytex catchment barrier. Samples were homogenized and then aseptically transferred to sterile 50 ml centrifuge tubes inside a cold room, preserved in RNAlater (ThermoFisher Scientific, Waltham, MA, USA), and stored at −80 °C until DNA extractions were performed in the lab.

DNA extraction, amplification, and sequencing

Genomic DNA was extracted from each sample in triplicate using the FastDNA SPIN Kit for Soil (MP Biomedicals, Santa Ana, CA, USA) after fluid removal, as previously described (Hager et al., 2017; Jesser et al., 2015). Extracted DNA was quantified using a Qubit 2.0 fluorometer (Thermo Fisher Scientific, Waltham, MA, USA).

Each sample collection was PCR amplified in quintuplicate using each primer set, for sixteen pooled amplicon sets across the eight sample collections. The V3V4 region of the SSU rRNA gene was amplified using 341F (5′-CCTACGGGNGGCWGCAG-3′) and 785R (5′-GGACTACHVGGGTATCTAATCC-3′), and the V4V5 region was amplified using 515F-Y (5′-GTGYCAGCMGCCGCGGTAA-3′) and 926R (5′-CCGYCAATTYMTTTRAGTTT-3′), then amplicons were cleaned and indexed according to Illumina MiSeq best-practices (Illumina, 2013). Amplicon libraries were quantified with a Qubit 2.0 fluorometer, and sequencing was performed with v3 chemistry on an Illumina MiSeq for 2 × 300 bp reads according to standard protocol (Illumina, 2013).

Sequence processing

Raw FASTQ files were first primer-trimmed with Cutadapt (Martin, 2011) using the linked-adapter protocol with the complete primer sequences; untrimmed sequences were discarded. Trimmed FASTQ files were then imported to R and each primer dataset was run independently using the DADA2 analysis pipeline, following established best practices as previously described (Callahan et al., 2016). Reverse primers were truncated at the position where the average quality score dropped below 20. The core inference algorithm was applied using pseudopooling. Taxonomy was assigned to the genus level using the DECIPHER R package with the IDTAXA command (Murali, Bhargava & Wright, 2018; Quast et al., 2013) aligning to the SILVA reference database v138 (Yilmaz et al., 2014). Finally, ASVs assigned to the class Zetaproteobacteria were analyzed by ZetaHunter (https://github.com/mooreryan/ZetaHunter) for classification to previously defined Zetaproteobacterial OTUs (e.g., zOTUs) (McAllister, Moore & Chan, 2018).

ASVs from each primer pair that were unidentified at the domain level were removed from the analysis. To combine the two datasets, ASVs identified to at least the domain level were then iteratively clustered down to the genus level such that ASVs binned inside a single genus were condensed into a single entry in the taxonomic table, ASVs that were unclassified at the genus level were clustered by family, and so on. Abundances of each ASV in each cluster were also condensed per sample. This compressed taxonomy is subsequently referred to as the “condensed taxa” and allows for direct comparisons between primer sets.

Diversity and statistical analysis

Rarefactions were plotted for the non-condensed ASV data per primer set using tidyverse and R version 4.1.3 (Wickham et al., 2019; R Core Team, 2022). Non-condensed ASV data were also used to generate bar plots and relative abundance pie charts for domain-, phylum-, class- and genus-level taxonomic rankings in each primer set. Alpha diversity metrics (Chao1 Richness, Shannon Diversity, Simpson Evenness) were calculated for non-condensed ASV data in each sample using the microbiome package. Prior to analysis, data in each metric were checked for normal distribution using the Shapiro-Wilke test. Differences between primer sets were assessed for statistical significance in each metric for the combined sample data: Analysis of Variance was used for Shannon Diversity and Chao1 Richness and Kruskal-Wallis was used for Simpson Evenness.

The condensed taxa sample data matrices were read into phyloseq (McMurdie & Holmes, 2013) and then transformed using variance stabilizing transformation (VST) with package DESeq2 (Love, Huber & Anders, 2014). The Euclidean distance matrix was calculated for the transformed data. Normalized data were PCoA plotted with ggplot2 (Wickham, 2016). The vegan package was used to analyze the distance matrix; first, beta dispersion by primer choice was validated as non-significant using betadisper2, and then PERMANOVA via adonis2 was performed using primer choice as the variable (Oksanen et al., 2022). PERMANOVA to assess location as a driver of variation between primer sets could not be conducted because the beta dispersion homogeneity assumption was not met for that variable.

To further examine statistically significant differences in community composition between primer sets, indicator species analysis was performed on the condensed taxa matrix. Using the multipatt command from the indicspecies package, the point biserial correlation coefficient was calculated for each taxon at minimum of 95% confidence with 10⁴ permutations (Cáceres & Legendre, 2009).

A repository of all scripts used in data processing for this project can be accessed at https://github.com/benedil/Iron-Mat-Primer-Compare/tree/main.

Sequence processing

The chosen sequencing approach resulted in sixteen community profiles representing eight collections each, divided by the two primer pairs. Amplicon processing through the DADA2 pipeline generated a total of 7,506 ASVs in 1,952,073 reads from the eight communities amplified by the V3V4 primers. This output represents 36.92% of the total input reads, since 54.61% to 75.11% of reads were removed from each single community during the DADA2 pipeline (i.e., filtering, denoising, merging, and chimera removal; Table S1). After removing ASVs that were unclassified at the domain level, the V3V4 dataset comprised 4,140 ASVs in 1,558,201 reads, meaning that 20.18% of filtered sequences could not be identified to at least the domain level. DADA2 processing of the eight communities amplified by the V4V5 primers generated a total of 5,130 ASVs in 2,950,958 reads. This translates to 47.83% of the total input reads, with 48.43% to 57.27% of reads removed from a single community during data processing with the DADA2 pipeline (Table S2). After removing ASVs that were unclassified at the domain level, the V4V5 dataset comprised 3,288 ASVs in 2,227,954 reads, meaning that 24.50% of filtered reads could be not identified to at least the domain level.

Community profiling

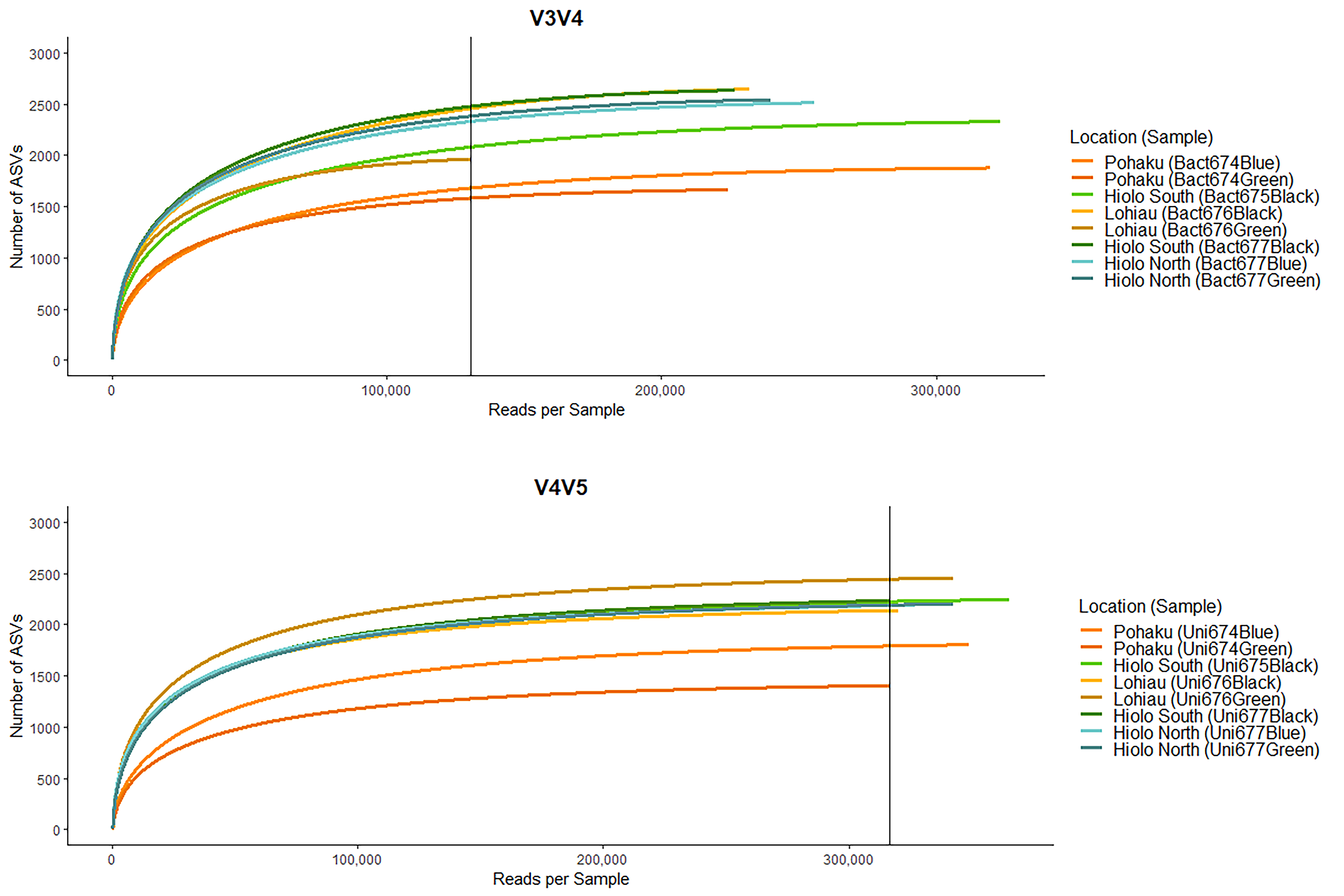

For the V3V4 primer set, rarefaction curves had a mean depth of 244,009 reads per community with a minimum of 130,311 and a maximum of 323,532. With the V4V5 primer set, rarefaction curves had a mean depth of 335,119 reads per community with a minimum of 316,860 and a maximum of 365,477. Plateau was reached in all communities from both primer sets when using rarefaction (Fig. S2).

After calculating alpha diversity metrics, no significant difference between primer sets in Chao1 Richness was found using Kruskal-Wallis and no significant difference in Shannon Diversity or Simpson Evenness was found using Analysis of Variance (Fig. 1). PERMANOVA analysis supported the hypothesis that the primer set was a significant driver of the differences observed among the taxonomic profiles (R² = 0.25, P = 0.001). PCoA of the normalized data explained 51.6% of the total variance in both principal coordinates and showed distinct clusters associated with each primer set at the 95% confidence interval (Fig. 2).

Domain Archaea

The V3V4 primer set generated 62 Archaeal ASVs spread over six phyla plus another group that was unclassified except at the domain level. Twenty-six ASVs were identified as Crenarchaeota, 13 as Thermoplasmatota, eight each as Hydrothermarchaeota and Halobacterota, three as Nanoarchaeota, three were unclassified at the phylum level, and a single ASV identified as Euryarchaeota. Phylum Asgardarchaeota was unrepresented in the V3V4 dataset (Fig. 3A). By relative abundance in domain Archaea, Thermoplasmatota was the most abundant phylum with 41.79% of reads, followed by Crenarchaeota with 22.81% and Hydrothermarchaeota with 20.49% (Fig. 3B).

The V4V5 primer set generated approximately two-thirds again as many Archaeal ASVs as the V3V4 primer set, with 103 ASVs spread over six phyla plus another group that was unclassified except at the domain level. Crenarchaeota was the dominant phylum in terms of both the number of representative ASVs, with 53, and in relative abundance within the domain Archaea (63.42% of archaeal reads; Figs. 3A and 3C). Phylum Thermoplasmatota was represented by 19 ASVs, 11 were classified as Nanoarchaeota (the next greatest by relative abundance, with 10.26% of reads), seven as Hydrothermarchaeota, four as Halobacterota, and three were unclassified at the phylum level. All but Crenarchaeota and Nanoarchaeota composed less than 10.00% of total archaeal reads (Fig. 3C). In contrast to the V3V4 samples, phylum Asgardarchaeota was represented by seven ASVs and phylum Euryarchaeota was unrepresented (Fig. 3A).

Of the eight identified divisions in the domain Archaea (inclusive of unclassified phyla), six differed by at least one order of magnitude in relative abundance between primer sets. Halobacterota and Crenarchaeota abundances were within the same order of magnitude between primers, although V4V5 had more than three times as many reads identified as Crenarchaeota than did V3V4. Both primers detected one phylum unique to their respective dataset. Phylum Euryarchaeota, unique to V3V4, was represented by a single ASV that accounted for 0.06% relative abundance. Meanwhile, phylum Asgardarchaeota, unique to V4V5, was represented by seven ASVs that accounted for 0.95% relative abundance (Figs. 3A–3C). Only Halobacterota abundances were similar between primer sets, despite differences in representative ASVs (Figs. 3A–3C).

Domain Bacteria

There were 4,078 ASVs recovered from the V3V4 primer set that classified to the domain Bacteria, belonging to 49 phyla (Fig. 4A). NB: Phylum Pseudomonadota was referred to as phylum Proteobacteria at the time of this analysis, so all instances of the term Proteobacteria in this work should be considered as synonymous with Pseudomonadota (Oren & Garrity, 2021). The phyla with the greatest number of ASVs were Proteobacteria with 1,322, followed by Planctomycetota with 498 ASVs, Bacteroidota with 262 ASVs, Patescibacteria (sometimes called Candidate Phyla Radiation, or CPR) with 206 ASVs, Verrucomicrobiota with 146 ASVs, and Chloroflexi with 135 ASVs. There were 709 ASVs unclassified below the domain level. By relative abundance, 12 phyla made up at least 1% of the reads, respectively (Fig. 4B). Proteobacteria made up fully half of the bacterial reads (50.73%), with the next most abundant phyla being Planctomycetota (8.11%), Bacteroidota (7.17%), Patescibacteria (6.32%), and the uncharacterized DTB120 (4.83%). Phyla with relative abundance between 0.99% and 0.10%, were led by Gemmatimonadota, Acidobacteriota, Zixibacteria, Verrucomicrobiota, and Bdellovibrionota. The lowest relative abundance phyla (those under 0.10% abundance) were the most numerous, with 22 different representatives, but their 77 ASVs altogether accounted for just 0.28% of total bacterial reads.

The V4V5 primer set generated 3,185 ASVs classified to domain Bacteria, representing 55 phyla (Fig. 4A). The phyla with the most representative ASVs were Proteobacteria with 979 ASVs, followed by Planctomycetota with 447 ASVs, Bacteroidota with 289 ASVs, Chloroflexi with 128 ASVs, and Verrucomicrobiota with 121 ASVs. There were 393 ASVs unclassified below the domain level. By relative abundance, eight phyla contributed greater than 1.00%, respectively (Fig. 4C). Proteobacteria made up more than half of all reads (58.44%), followed by Bacteroidota (9.80%), Planctomycetota (5.61%), Nitrospirota (5.42%), and DTB120 (4.77%). The top five most abundant phyla between 0.10% and 1.00% relative abundance were MBNT15, Gemmatimonadota, Zixibacteria, Patescibacteria, and Bdellovibrionota. There were 28 phyla with relative abundances below 0.10%, whose 103 ASVs comprised 0.37% of total bacterial reads.

There were several dissimilarities between the two bacterial taxonomic profiles. Two phyla were unique to the V3V4 dataset (GAL15 and Poribacteria) and eight phyla were unique to the V4V5 dataset (Caldatribacteriota, CK-2C2-2, Deferrisomatota, Edwardsbacteria, Elusimicrobiota, FCPU426, Latescibacterota, and TA06), although all unique phyla comprised less than 1.00% relative abundance in their respective datasets. Four phyla with greater than 0.10% relative abundance in at least one primer differed in that abundance by at least one order of magnitude: Patescibacteria (V3V4: 6.32%, V4V5: 0.50%), Campylobacterota (V3V4: 2.19%, V4V5: 0.33%), Acetothermia (V3V4: 0.34%, V4V5: 0.03%), and Deinococcota (V3V4: 0.002%, V4V5: 0.16%). Patescibacteria and Campylobacterota also differed more than any other taxa in numbers of representative ASVs between primer sets, with V3V4 having 3.5-fold more Patescibacteria ASVs and 3-fold more Campylobacterota ASVs. There were two additional taxonomic groupings with notable variation in ASVs between primers: phylum Proteobacteria and taxa unclassified below domain ranking (Fig. 4A). While those two groupings contained 659 ASVs unique to the V3V4 dataset (approximately 75% of the total number of ASVs unique to V3V4), all the unique ASVs were present in very low abundance (Figs. 4B and 4C). However, four out of the top five most abundant phyla in each primer set were the same and their numbers of representative ASVs were within the same order of magnitude. The one exception to this trend was in phylum Patescibacteria.

Phyla Proteobacteria (i.e., Pseudomonadota) and Campylobacterota

The V3V4 primer set generated 1,322 ASVs identified to phylum Proteobacteria and 83 phylum Campylobacterota ASVs. Within the two phyla, class Zetaproteobacteria was represented by 266 ASVs and made up 61.18% of total reads (Figs. 5A and 5B). In contrast, class Gammaproteobacteria was the most diverse with 623 ASVs, but accounted for just 21.39% of total reads. Next greatest by abundance was class Alphaproteobacteria with 350 ASVs constituting 13.14% of reads, followed by a mere 0.16% of reads consisting of 83 ASVs unclassified below phylum level in Proteobacteria (Fig. 5A). All phylum Campylobacterota ASVs were also classified as class Campylobacteria and composed 4.13% of reads.

Phylum Proteobacteria had 979 ASVs in the V4V5 dataset and phylum Campylobacterota had just 27 ASVs. Class Zetaproteobacteria repeated the trend observed in the V3V4 dataset but to an even greater extent: by relative abundance, Zetaproteobacteria were in the definitive majority with 74.98% of total reads but were represented by only 89 ASVs (Figs. 5A and 5C). Gammaproteobacteria profiles were also similar to V3V4, with an extensive collection of 531 ASVs comprising only 15.54% of total reads within the two phyla. Class Alphaproteobacteria had nearly the same number of ASVs as were present in the V3V4 dataset, but they made up only about two-thirds as much of the V3V4 relative abundance. Only 26 ASVs remained unclassified below the phylum level in Proteobacteria, and they accounted for 0.35% of total reads. Campylobacterota made up only 0.56% of total reads.

Two interesting differences among the taxonomic profiles within these data are the relative abundances of both Campylobacterota and Zetaproteobacteria. The relative abundances of Campylobacterota differed by an order of magnitude, with V3V4 having the greater representation. Zetaproteobacteria abundances differed to a lesser degree, with V4V5 containing approximately 15% relatively more Zetaproteobacteria reads. The relative discrepancy of Zetaproteobacteria reads at the class level translated to a difference of more than 10% in the relative abundance of Zetaproteobacteria between the two datasets as a whole; Zetaproteobacteria accounted for 32.28% of total identified reads in V3V4 and 45.54% of total identified reads in V4V5.

Indicator species analysis

Indicator species analysis revealed that of 916 representatives in the condensed taxa, 123 were significantly correlated with one primer pair or the other: 50 taxa correlated with the V3V4 primer set (Table S3), while 73 taxa correlated with the V4V5 primer set (Table S4). The V3V4-correlated taxa were distributed within twelve bacterial phyla; phylum Patescibacteria encompassed 18 taxa, the greatest number of indicator species represented by a single phylum in the V3V4 dataset. The most abundant classes were largely within phylum Patescibacteria, but classes Gammaproteobacteria and Planctomycetes were also well represented (Fig. 6A). By total relative abundance in the V3V4 dataset, the 50 correlated taxa accounted for 8.30% of the reads, with only 23 taxa in ten phyla each making up greater than 0.10% relative abundance. In contrast, the 73 V4V5-correlated taxa accounted for 49.30% of total V4V5 reads. The majority of that relative abundance was explained by the presence of a Zetaproteobacteria, which was the single most highly abundant taxon in the condensed taxa matrix. Thirteen phyla and one group unclassified at the phylum level held 26 taxa that each made up at least 0.10% relative abundance (Fig. 6B). The V4V5 primers correlated significantly with 25 phyla in total: six archaeal and nineteen bacterial. Phylum Proteobacteria had the greatest number of representatives in V4V5, with 21, although only five were in higher abundance. Bacterial classes Bacteroidia, Ignavibacteria, and the uncharacterized Nitrospirota class BMS9AB35 were well represented in the analysis, as well as the archaeal class Nitrososphaeria. While some taxa that correlated with one primer pair were completely absent in the other pair, others, like the Zetaproteobacteria, were found in the datasets of both primer pairs; the two sets of correlated taxa were not mutually exclusive between primers.

Class Zetaproteobacteria

There were 26 previously established Zetaproteobacteria OTUs (zOTUs) found with the V3V4 primer set (Fig. 7A). By far the most abundant was zOTU2, with 56.46% of the total zOTU reads (Fig. 7B). zOTU1 followed with 15.76%, then zOTU4 (8.20%), zOTU10 (7.11%), and zOTU14 (2.09%). The majority of the remaining zOTUs were represented by less than 1.00% of the zOTU reads (Fig. 7C). Additionally, 75 sequences were classified as “NewZetaOTUs”, all of which were found in very low abundance, each with fewer than 20 total reads.

The V4V5 primers retrieved 24 previously established zOTUs (Fig. 7A). As with the V3V4 dataset, zOTU2 was the most dominant taxon with 55.99% of the zOTU reads (Fig. 7D). zOTU1 was next in abundance with 9.45%, then zOTU14 (9.56%), zOTU10 (6.41%), and zOTU4 (4.63%). Similar to the V3V4 dataset, the majority of identified zOTUs were present in less than 1% relative abundance (Fig. 7E). Only 16 “NewZetaOTUs” were found by the V4V5 primers, all in very low abundance.

The V4V5 primers retrieved nearly twice as many total Zetaproteobacteria reads as did V3V4 (990,865 in V4V5 compared to 502,938 in V3V4). Both V3V4 and V4V5 identified the same eight zOTUs as most abundant and although the absolute number of reads in each zOTU, respectively, differed by up to nine-fold (zOTU14; Fig. 7A), when comparing the data by relative abundance the profiles were quite similar. This trend in absolute versus relative abundance is also observed in the lower abundance zOTUs (Figs. 7A, 7C and 7E). However, there are several exceptions to the similarities in the lower abundance zOTUs. Two zOTUs differed by at least one order of magnitude in relative abundance: zOTU18 (V3V4: 0.074%, V4V5: 1.047%) and zOTU26 (V3V4: 0.029%, V4V5: 0.001%). Additionally, there were zOTUs present in one dataset that were completely absent in the other: zOTU54 and zOTU12 were not found using the V3V4 primers, while zOTUs 52, 31, 23, and 40 were missing from the V4V5 data. All unique zOTUs, regardless of the dataset, were represented by less than 1% relative abundance, and all but two (zOTU52 in V3V4 and zOTU54 in V4V5) were represented by less than 0.1% relative abundance (Figs. 7D and 7E).
