Prediction of HIV-1 protease resistance using genotypic, phenotypic, and molecular information with artificial neural networks

Dataset description

Filtered genotype-phenotype data on the Stanford HIV drug resistance database was retrieved for PIs (Das & Arnold, 2013). We have organized this dataset with respect to isolates and inhibitors, and 498 protease mutations have been observed. For the HIV-1 PI: 1218 isolates for atazanavir (ATV), 678 isolates for darunavir (DRV), 1809 isolates for fosemprenavir (FPV), 1,860 isolates for indinavir (IDV), 1,562 isolates for lopinavir (LPV), 1907 isolates for nelfinavir (NFV), 1,861 isolates for saquinavir (SQV) and 908 isolates for tipranavir (TPV) have been analyzed for PI susceptibility. In the dataset, 436, 336, 480, 483, 472, 486, 489 and 409 different mutations have been observed for ATV, DRV, FPV, IDV, LPV, NFV, SQV, and TPV, respectively.

Representation of isolates

Four hundred ninety-eight unique mutations were observed in the eight protease inhibitors dataset. The binary barcoding technique was applied here to represent the isolates that occurred in the dataset, as also used in several studies of modeling genotype-phenotype data for various HIV-1 inhibitors (Lu et al., 2018). Thus, a 498-dimensional vector of binary entries with 0s and 1s uniquely representing any existing isolates is considered. Assume that the 498 unique mutations produce the vector X = [x₁, x₂, …, x₄₉₈] where x_i is a mutation pattern that occurred in the dataset. For instance, x₁ denotes the occurrence of the mutation A22S or x₄₇₈ denotes the occurrence of the mutation V82A. For example, the isolate I_j = [A22S, V 82A] can be barcoded as X = [1, 0, …, 0, 1, 0, …, 0] in which only the first and four hundred seventy-eighth position take value one, and the remaining entries have value zero. Any isolate can be obtained from any combination of these mutations, and the isolate j can be defined as $I_j=\left\{a_1,a_2,\dots ,a_n\right\}$ with

$a_k=\left\{\begin{array}{c}1,if{x}_k\in I_j\hfill \\ 0,otherwise.\hfill \end{array}\right.$

In this way, each isolate can be transformed into a unique 498-dimensional input vector used for the machine learning. The binary barcoding approach has the advantage of representing two or more mutational changes in the amino acids since each mutation has a unique position in the 498-dimensional input vector. For example, assuming that x₄₈₀ and x₄₈₁ denotes mutations V82F and V82I, the isolate I = [V 82F, V 82I] can be represented as X = [0, 0, …, 0, 1, 1, 0, …, 0]. It is important to note that, the genotype-fold change measurements are made on population of viruses, so that it is possible to find two separate mutations for a single residue.

Representation of inhibitors

To construct a drug-isolate-fold change model for the HIV-1 protease inhibitors, the molecular representations of the inhibitors have been built with binary Morgan fingerprints. The Morgan fingerprints provide an effective way of the vector representations of molecules and are widely used in machine learning models (Jespersen et al., 2021). The RDKit environment of the Python program has been used to convert the smile representations of ATV, DRV, FPV, IDV, LPV, NFV, SQV, and TPV inhibitors to a binary 512-bit vector representation. 234 out of 512 bits have been seen to provide unique characteristics for 8 PI. Thus, the molecular representation of each PI needs 234-dimensional vectors.

Artificial neural network (ANN) model for regression

An ANN model has been constructed with isolate-inhibitor inputs and fold change outputs with the machine learning and deep learning toolbox of the MATLAB program. Since isolates and inhibitors are uniquely represented by 498- and 234- dimensional vectors, the ANN model has 732-dimensional input. The ANN architecture includes 732-dimensional input, five hidden layer neurons, and one output neuron with hyperbolic tangent-sigmoid and linear activation functions. Logarithms of fold-change values in the dataset are taken as output variables of the neural network models. In the training process, the scaled conjugate gradient algorithm with MATLAB built-in function “trainscg” is utilized over GPU (Palmisano & Vella, 2011).

Ensemble processing

Since we have only eight inhibitors, measuring the molecular learning capacity of our ANN model is crucial. In this way, an ensemble learning procedure is used to improve the molecular learning performance of the model. For each PI, the 100 × 50 model has been trained with the data of the remaining seven inhibitors. From every 50 models, a model is chosen that yields the minimum mean square error for the interior test set of the corresponding PI data. Thus, 100 optimal models are obtained, and the final model is calculated as the average of these models.

Regression performance of molecular learning models

Eight feed-forward neural network models have been constructed with drug-isolate-fold- change (DIF) data by excluding one of the drugs from training in each case. The ANN model was trained with the remaining seven DIF data predicted the excluded results. The sizes of the training and test sets were changed according to the excluded PIs (mean values are 10,328 and 1,475 for training and test sets, respectively). The regression performances of each model are illustrated in Fig. 1 with corresponding R² values (square of the linear correlation coefficient). The best and worst results are obtained by predicting the outcomes of the drugs LPV and TPV with R² = 0.822 and R² = 0.359, respectively. Similarly, predicting the fold-change results of the inhibitor TPV was observed to be the worst in the literature (Yu, Weber & Harrison, 2014). The mean R² value of all predictions is 0.716 and the 95% confidence interval is [0.592–0.840]. The DIF-based ANN model provides accurate estimations even if the test data consists of unseen drugs. This observation implies that our ANN models accurately learn molecular information from the Morgan fingerprints. The detailed performance results of our DIF-based ANN models are presented in Table 1.

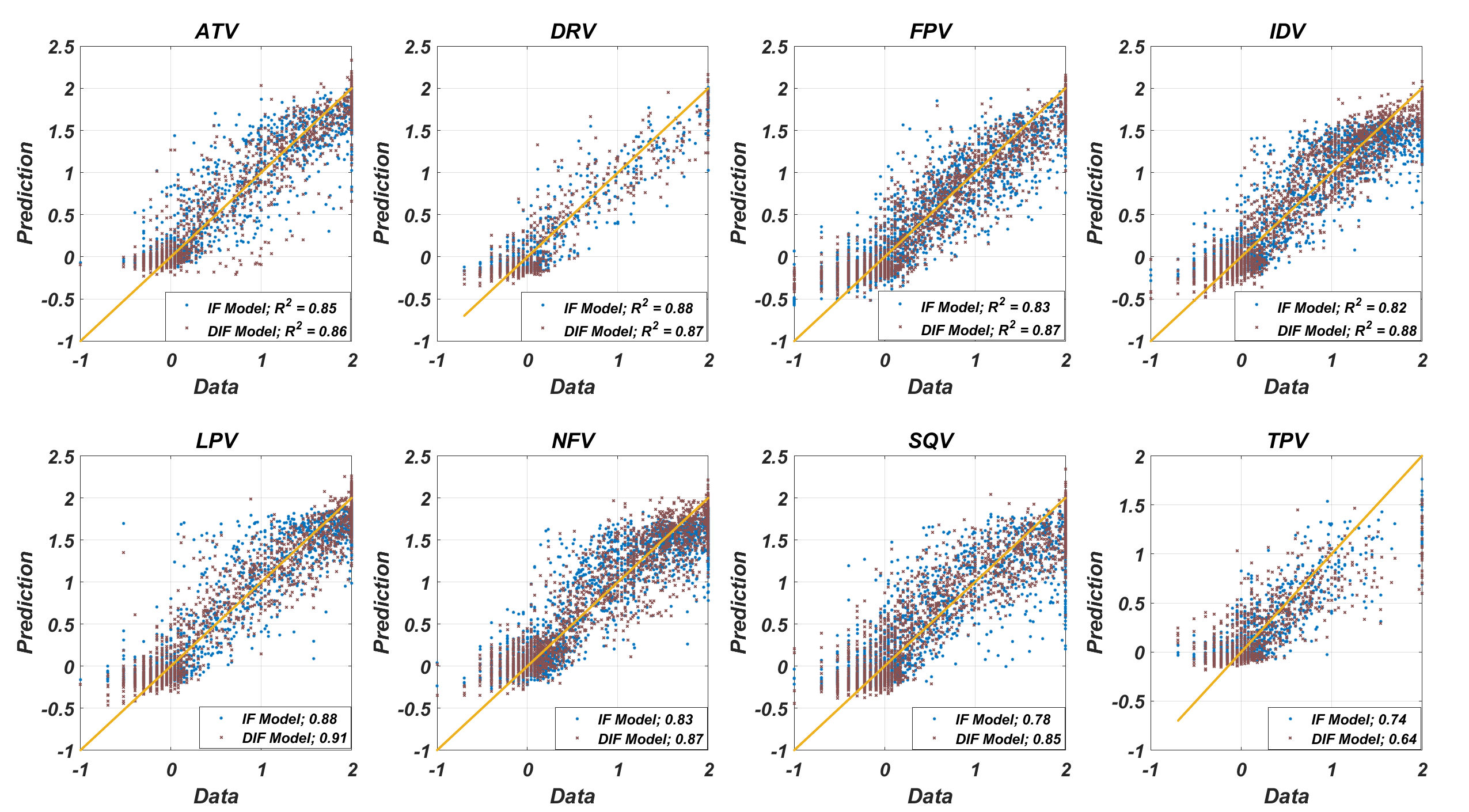

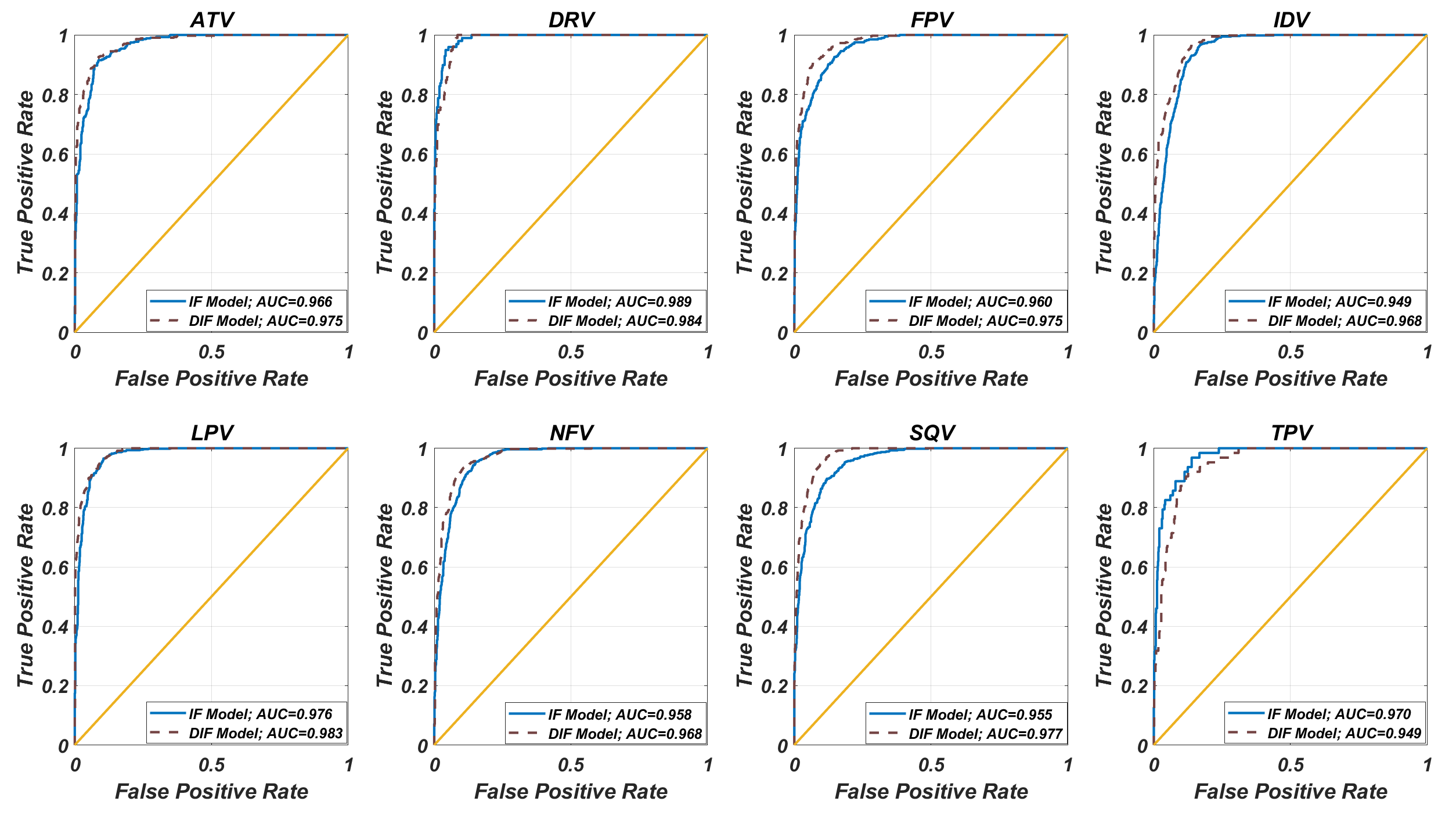

An inevitable question is how molecular information changes the regression and classification performance of our ANN models. To clarify this, we trained isolate-fold-change (IF) based ANN models for each inhibitor and compared them with the current DIF-based models. In Figs. S1–S2, the model performances have been compared by measuring R² and area under the curve (AUC) values for each PI. Table S1 also shows the accuracy, sensitivity, specificity, and Matthews correlation coefficient (MCC) scores of both DIF-based and IF-based models. These findings suggest that the DIF-based ANN model performs slightly better in terms of regression and classification for six of the eight PIs. The two models are compatible with the remaining two inhibitors (DRV and TPV). Therefore, the molecular information used by the DIF-based model provides a better predictive capability. It is very important to note that IF-based models can never predict fold-change values for novel molecules. The real distinction between DIF and IF-based models is that the DIF-based model can predict fold-change values for a novel drug. Hence, the DIF-based ANN model has both better learning capability from mutant information (by comparing to the IF-based model) and the ability to test novel molecules for a given isolate.

Prediction of drug resistance tendencies for each PI pair

The inhibition potential of each PI in the presence of various genotypes is known to be variable. Tendencies of the logarithmic fold change values for each PI pair provide valuable information about the resistance profiles of the inhibitors, as seen in Fig. 2. Prediction of these tendencies by the DIF-based ANN models and the corresponding 2D correlation coefficients are presented in Fig. 2 in a comparative way for each PI pair. For each PI, prediction has been made with the ANN model trained by the data of the remaining seven inhibitors with an ensemble learning approach. This procedure shows the molecular learning capacity of our ANN models from the Morgan fingerprints. The minimum and maximum 2D correlation coefficients are 0.892 and 0.954 for TPV-DRV and LPV-DRV couples (95% CI [0.930, 0.938]), respectively. Thus, the current DIF-based ANN models can distinguish the inhibitory potentials of each PI pair.

Classification of PIs with respect to possible common isolates

Our DIF-based ANN models can distinguish the fold change values of each PI in the presence of any isolate. In this way, a classification problem measuring the relationship log(FoldChange[A, Isolate]) > log(FoldChange[B, Isolate]) has been constructed, where A and B are possible protease inhibitors. These relations take values 0 and 1 depending on the inhibitors and isolates. Therefore, our ANN models have been trained with the data from seven inhibitors, with the exception of one particular inhibitor considered as test data. The corresponding receiver operating characteristic (ROC) curves are illustrated in Fig. 3. Area under the ROC curve (AUC) values are included in the figure. The best and worst AUC values have been obtained for the IDV-LPV and DRV-LPV pairs with 0.992 and 0.818 (95% CI: [0.950–0.978]), respectively. In this context, the current DIF-based ANN models have ability to capture the binary relations between any PI pair with high approximation performance.

Performance metrics of the current ANN models for capturing binary relations of PI pairs are presented in Table 2. As indicated in the table, the DIF-based ANN models have a high rate of true prediction for each PI pair. The mean accuracy, sensitivity, specificity and Matthews correlation coefficient (MCC) values have been computed as 0.954, 0.791, 0.791 and 0.688 (95% CI [0.932–0.952], [0.719–0.863], [0.719–0.863] and [0.600–0.776]), respectively. The most conspicuous result here is that the neural network models can classify the inhibitors for resistance profiles, even if that model did not see the corresponding inhibitors in the training process.

Testing the molecular learning model with the external data set

For the external dataset, we conducted a search for compounds that were comparable to the eight HIV PIs that were already available in the ChEMBL database (Sevenich et al., 2017). An initial set of 1,305 compounds and their biological activity values were extracted. First, compounds having 70% or less similarity to each drug were filtered out. Then, molecules with determined IC₅₀ values in mutant viruses were collected. The compounds with determined IC₅₀ values in mutant viruses were then gathered. Furthermore, the maximum Tanimoto similarities of these molecules to the current eight PIs were computed (using 512-bit Morgan fingerprints), and molecules with 40% or less structural similarity were filtered out. Finally, molecules with 1s in the discarded 278-dimensional fingerprint vectors, that is, molecules with information loss, were filtered out. A final dataset of 87 genotype-phenotype relationships involving 51 different molecules was obtained (see Data S1). Only six of these molecules are in the existing PI set (DRV, IDV, NFV, ATV, LPV) and only 20 of 87 genotype-phenotype relations belong to these six PIs. In the presence of eight distinct strains, there is a fold change difference in IC₅₀ values for these molecules. Fortunately, the data includes different molecules tested on the same protein, so we can evaluate the efficiency of our ANN model on ranking of these molecules.

We have used the eight existing PIs (see Fig. 4 for chemical structures) to construct an ANN model as described in the Methods and Material section. The main difference is the consideration of all molecules rather than the LVO procedure. The Morgan fingerprints of the new 51 molecules were determined, and then the similar mapping was used to reduce the 512-dimensional vectors into 234-dimensional inputs. It should be noted that the molecules were chosen in such a way that there are no 1s in the discarded 278 bits. This condition was specifically designed into the external dataset. In this approach, we ensure that no meaningful information for novel molecules is lost during the machine learning process.

Two different classification performances of our ANN model were observed to test its molecular learning potential. The first is the classification of resistant and susceptible strains for a given PI, with a threshold fold chance value of 3 (Shen et al., 2016). The goal of this classification task is to evaluate the resistance labeling performance of the current model for diverse molecules. As demonstrated in Table 3, the accuracy, sensitivity, specificity, MCC, and AUC metrics of our model for labeling the resistance in external data are 0.678, 0.536, 0.935, 0.468, and 0.843, respectively. Our ANN model performs satisfactorily statistically on the external dataset as a result.

Our major point is that the built ANN model is capable of ranking the efficiency of PIs for a given strain. The external dataset contains 853 pair of resistance scores for 51 different molecules. Our ANN model predicted these 853 pair of resistance scores as well, and we measured the ranking performance of the model. This testing approach is identical to the previously described tendency and ranking assessments of the eight existing PIs. For this classification task, the accuracy, sensitivity, specificity, MCC, and AUC scores have been 0.749, 0.767, 0.730, 0.497, and 0.819, respectively (see Table 3). As a result, our ANN model appropriately ranks the compounds based on their resistance profiles (see Fig. 5 for a representative example). The ROCs for both resistance classification and ranking classification performances of the ANN model can be seen in Fig. 6. The ANN model learned considerable information from the molecular structure of the eight PIs, according to the ROCs. In summary, if the external PIs have no information loss (no 1s in the discarded 278 bits within 512 bits) in comparison to the existing eight PIs, our ANN model has a high ability to rank these PIs.

One method for reducing and visualizing high-dimensional data is principal component analysis (PCA). It is widely used to describe the chemical space occupied by a set of molecules. When the descriptors of the compounds are used for analysis, it allows for the clustering of similar molecules as well as the distinguishing of diverse molecules. To verify the applicability of our model in terms of chemical similarity and diversity, we have performed the PCA on the external set molecules using 234-dimensional vectors employed for fold-change prediction. We only evaluated the unique molecules in the external set, and for molecules that were tested in several strains and had multiple fold-change prediction values, we have taken the values with the largest absolute prediction error (AE). As the first two components, PC1 and PC2, were able to represent more than half of the variance in the data and accurately depict the correlations between the similarities of the molecules, 234-dimensional vectors for each unique molecule were projected to 2D-space. Figure 7 displays the PCA plot for both training and external set compounds and colored according to the AE for fold-change prediction or training compound name. According to the figure, other training compounds other than the IDV were not involved in cluster formation with external set molecules. Though the same external set molecules were not forming clusters, still there were three clusters that contain three or more molecules. For each of these cluster, we have selected one representative structure and additionally we have found the maximum common substructure (MCS) using the FMCS algorithm implemented in RDKit. We discovered that for all compounds in the cluster with the representative structure A in Fig. 7, the fold-changes were predicted with low errors (AE <1.0). The compounds in this cluster have certain substructures with HIV inhibitors, such as a sulfonamide group, a bis-THF alcohol moiety, and a benzodioxole group  (Sevenich et al., 2017). The only structural difference in this cluster of compounds was observed on the side chain connecting to the phenoxy group. Our model, on the other hand, did not perform well for another cluster of compounds represented by structure B in Fig. 7. Despite the fact that the MCS for three compounds in this cluster were similar to the preceding cluster, represented by structure A, there were subtle differences that caused compounds to be in distinct clusters. For these, the cyclohexyl hydroxy or cyclopentyl hydroxy group was attached to the N of the sulfonamide group. Furthermore, the varying side group of the phenoxy group in the first cluster was shorter in the second cluster since there was only phenyl group. Compounds having structure C are represented in another cluster, as seen in Fig. 7. These compounds had a high resemblance to the IDV (see Fig. 4 for a 2D representation of the IDV), and the fold-change was predicted with minimal errors (AE <1.0). These compounds, like the IDV, have substructure groups such as piperazinecarboxamide, indenol derivative, and phenyl group. However, the compounds in this cluster have different attachment groups connected to piperazine ring instead of pyridine group in the IDV. We have also discovered that for the compound where the fold change estimation error above the threshold (AE ≥ 1.0), the exact value was 1.01, indicating that it is negligible. It should be noted, however, that this compound contains a Fluorine substituent, which is known to cause a significant increase in the inhibitory activity of compounds (Amano et al., 2022) and it may not be easily learnt using our model. This chemical similarity analysis revealed that our model can predict the fold change for similar compounds with low error, despite the fact that some of the external set molecules based on our descriptors were not similar (or in close proximity in the PCA plot in Fig. 7) to internal set molecules.
