Comparative transcriptomics in three Methylophilaceae species uncover different strategies for environmental adaptation

View article
PeerJ

Introduction

Bacteria of the family Methylophilaceae are ubiquitous in natural environments, with the exception of extreme environments, and are found in fresh and saline waters, soils, air, industrial waste-water treatment reactors etc., pointing to the environmental importance of this group (Chistoserdova, 2011a). Four official genera within Methylophilaceae have been described, Methylophilus, Methylobacillus, Methylovorus (Doronina, Ivanova & Trotsenko, 2005) and more recently Methylotenera (Kalyuzhnaya et al., 2006; Kalyuzhnaya et al., 2012). However, marine Methylophilaceae are sufficiently divergent to warrant naming at least one more genus, i.e., they are more than 5% divergent at the 16S rRNA gene sequence level from any Methylophilaceae classified to genus level (Giovannoni et al., 2008; Huggett, Hayakawa & Rappé, 2012). The marine Methylophilaceae also possess extremely small genomes compared to terrestrial Methylophilaceae, apparently as a result of massive gene loss (Giovannoni et al., 2008).

Some Methylophilaceae are very easy to cultivate, and these (mostly Methylophilus and Methylobacillus species) have served for decades as models for studying the biology of methylotrophs utilizing the ribulose monophosphate pathway (RuMP) for formaldehyde assimilation (Anthony, 1982). Based on these studies, Methylophilaceae have been assumed to be fast growers tolerating high concentrations of C1 substrates (i.e., substrates not containing carbon-carbon bonds), typically methanol and methylamine, resulting in high biomass yields (Baev et al., 1992). In fact, these properties have been exploited in commercial production of an animal feed protein from the biomass of Methylophilus methylotrophus (Anthony, 1982). The growth characteristics of these methylotrophs have been correlated with the presence and high activities of, respectively, methanol dehydrogenase (MDH) and methylamine dehydrogenase (MADH), which became key enzymes for these species (Anthony, 1982; Chistoserdova et al., 1991). However, Methylophilaceae have been recently described that differ from these earlier characterized species with respect to their growth properties and the presence of MDH and/or MADH. For example, abundant unclassified marine Methylophilaceae represented by strain HTCC2181 demonstrate extremely slow growth and are inhibited by millimolar concentrations of C1 substrates (Halsey, Carter & Giovannoni, 2012). The genomes of these organisms encode neither MDH nor MADH (Giovannoni et al., 2008; Huggett, Hayakawa & Rappé, 2012). Similarly, Methylotenera species isolated from Lake Washington grow extremely poorly on methanol and possess no conventional MDH (Kalyuzhnaya et al., 2006; Mustakhimov et al., 2013). However, culture-independent experiments indicated that these Methylotenera species are some of the major players in cycling of C1 compounds in the environment, as follows. In a previous study involving stable isotope probing (SIP) with 13C-labeled C1 compounds, Methylotenera sequences were enriched not only in communities accumulating heavy (13C) carbon originating from methylamine, but also in communities accumulating heavy carbon from methanol or methane (Kalyuzhnaya et al., 2008). In a more recent SIP-based study we demonstrated that Methylotenera species, and specifically species devoid of genes for MDH synthesis were the major functional types, and they dominated over Methylophilaceae types possessing genes encoding proteins required for MDH as well as over other methylotroph species present in the site, suggesting a specific selection for MDH-negative genotypes (Beck et al., 2013). This study also suggested that Methylotenera species may be cooperating with methane oxidizers of the family Methylococcaceae in metabolizing methane, based on rapid accumulation of 13C label in the DNA of Methylotenera species (Beck et al., 2013). However, the metabolic nature of this cooperation remains unknown. The ratios of different ecotypes of Methylophilaceae were found different in response to different environmental conditions, suggesting distinctive ecological roles. In general, ecotypes most closely related to the previously described isolates Methylotenera versatilis 301 and Methylotenera mobilis JLW8 dominated the functional methylotrophic communities in these experiments (Beck et al., 2013). We have previously noted significant divergence between these strains when compared at the whole genome level, potentially reflective of specific adaptations of these strains or specific environmental functions (Lapidus et al., 2011).

The goal of this study was to obtain further insights into the metabolic potential of different Methylophilaceae and ultimately into their function in the environment, through comparative transcriptomics. We assess transcriptomes of three model Methylophilaceae under conditions approximating their natural environment and compare these transcriptomes to each other and to transcriptomes of cultures grown in laboratory conditions, in order to uncover whether different strains employ specific strategies for environmental adaptation. Two organisms, M. versatilis 301 and M. mobilis JLW8 were used as model organisms representing the most abundant ecotypes in our study site, Lake Washington sediment (Beck et al., 2013). We used Methylovorus glucosotrophus SIP3-4 as a representative Methylophilaceae strain containing MDH. This strain was found at low abundance at our chosen study site (Beck et al., 2013).

Materials and Methods

Cultivation

M. mobilis JLW8 was cultivated in liquid mineral medium MM2 supplemented with 30 mM methylamine, as previously described (Kalyuhznaya et al., 2009; Beck et al., 2011). M. versatilis 301 was cultivated on plates as we were unable to cultivate this organism in liquid media (Kalyuzhnaya et al., 2012). Solidified diluted MM2 medium was used, supplemented with 30 mM methylamine, as previously described (Kalyuzhnaya et al., 2012). M. glucosotrophus SIP3-4 was cultivated in liquid medium using either methylamine (30 mM) or methanol (100 mM) as substrates, as previously described (Kalyuzhnaya et al., 2012).

Cultivation and sample preparation for transcriptomics experiments

The schematic of experimental design is depicted in Fig. 1. For transcriptomics (RNA-Seq) experiments, M. mobilis JLW8 and M. glucosotrophus SIP3-4 cells were grown on an appropriate substrate in liquid MM2 medium as described above to an OD600 of approximately 0.45 ± 0.05. Stop solution (5% buffer-equilibrated [pH 7.4] phenol in ethanol) was added, and cells were harvested by centrifugation at 5000 × g for 15 min at 4°C and immediately used for RNA extraction. M. versatilis 301 cells were grown on plates with solidified diluted MM2 medium supplemented with methylamine as described above. For methanol-induced samples, cells were grown on methylamine as described above, collected, centrifuged, washed with fresh diluted MM2 medium, and resuspended in MM2 plus methanol (25 mM, 50 ml total volume, in 250-ml flasks). After 2 h of incubation at 30°C, with shaking, cultures were pelleted as described above and immediately used for RNA extraction.

For in situ incubations, cells of M. mobilis JLW8 and M. versatilis 301 were grown on methylamine, and cells of M. glucosotrophus SIP3-4 were grown on methanol. Slide-A-Lyzer 3.5 K MWCO Dialysis Cassettes (12 ml Capacity, Thermo Fisher Scientific, Waltham, MA, USA) were used for sediment incubations, and these were prepared and cells were inoculated exactly as previously described (Kalyuzhnaya et al., 2010). Cassettes were placed on top of sediment cores that were collected as previously described (Kalyuzhnaya, Lidstrom & Chistoserdova, 2004), delivered to the laboratory on ice and used immediately. Cores were covered with foil and incubated for two days in a cold cabinet at 10°C. Cassettes were removed from sediment cores and cells were transferred into 50 ml tubes containing 0.5 ml of stop solution and collected by centrifugation at 5000 g for 15 min at 4°C. Two biological replicates were used for each condition.

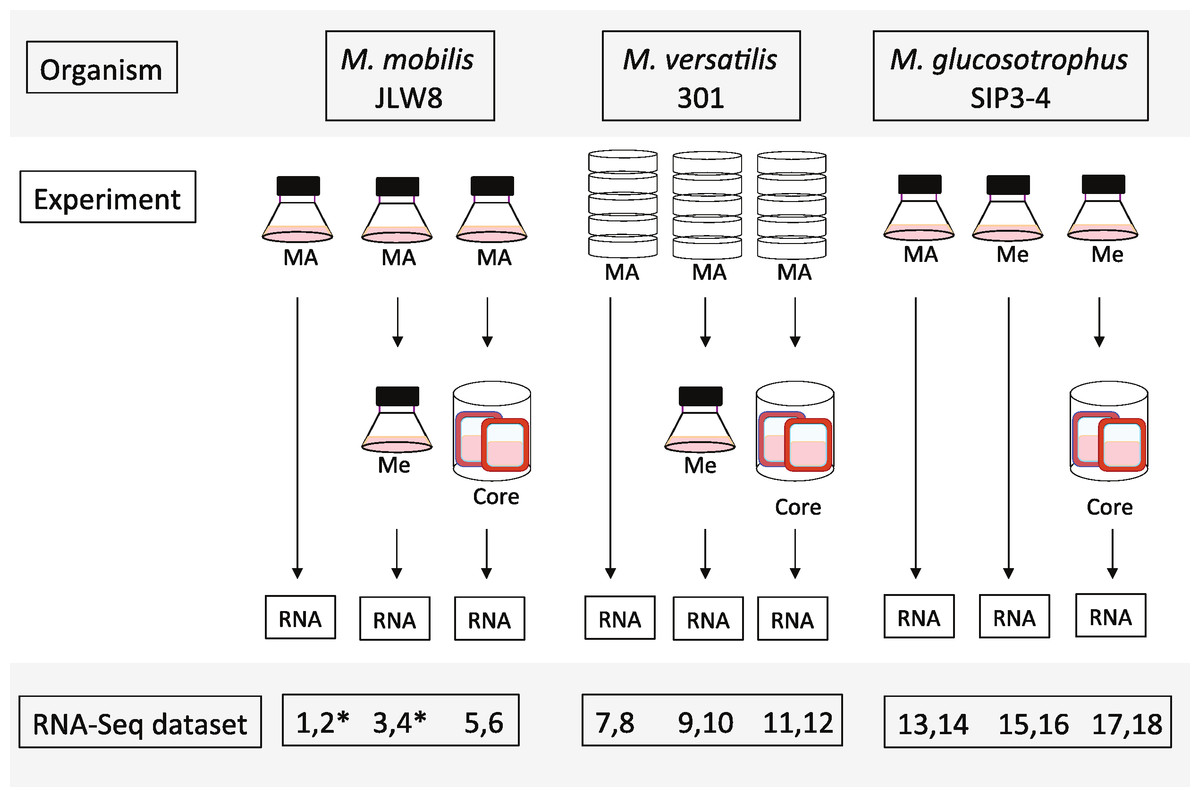

Schematic of experimental setup. Methylotenera species not possessing methanol dehydrogenase grow very poorly on methanol (Kalyuzhnaya et al., 2006; Kalyuhznaya et al., 2009). In addition, strain 301 cannot be cultivated in liquid culture (Kalyuzhnaya et al., 2012).

Figure 1: Schematic of experimental setup. Methylotenera species not possessing methanol dehydrogenase grow very poorly on methanol (Kalyuzhnaya et al., 2006; Kalyuhznaya et al., 2009). In addition, strain 301 cannot be cultivated in liquid culture (Kalyuzhnaya et al., 2012).

We have previously developed protocols for specific gene induction and demonstrated that a rapid response to methanol typically occurs (Beck et al., 2011). Thus induction versus extremely long cultivation were chosen for the Methylotenera strains. Methylovorus species grow well on methanol (Kalyuzhnaya et al., 2012), and thus strain SIP3-4 was grown on methanol, not requiring induction experiments. Two biological replicate RNA samples were prepared, and two RNA-seq datasets were generated for each experiment (numbered 1 to 18). Datasets noted by asterisks have been previously described (Beck et al., 2011). Statistics for each dataset are shown in Table S1. MA, methylamine; Me, methanol.

RNA extraction and ribosomal RNA depletion

RNA extraction was performed as described before (Kalyuzhnaya et al., 2010; Beck et al., 2011). The integrity of the RNA preparations was tested on a Bioanalyzer 2100 instrument (Agilent), using an Agilent RNA 6000 Nano kit as suggested by the manufacturer. The rRNA content was reduced using a MICROBExpress Bacterial mRNA purification kit (Ambion). The RNA samples were submitted to a sequencing facility (the High-Throughput Genomics Unit, Department of Genome Sciences, University of Washington; http://www.htseq.org/index.html), where cDNA libraries were generated using a platform-specific (Illumina HiSeq 2000) chemistry. Sequencing was carried out on an Illumina HiSeq 2000 instrument using platform-specific protocols and producing reads of 36 bp in length.

Data analysis

Reads corresponding to each sample were aligned to the respective reference genome (Lapidus et al., 2011) using the Burrows-Wheeler alignment tool (BWA; Li & Durbin, 2009) and using default parameters for small genomes. For each protein coding gene, the number of reads mapped per kilobase per one million reads (RPKM; Mortazavi et al., 2008) was computed. The RPKM data were averaged across biological replicates and visualized as an overlay on the genome using the tool described previously (Hendrickson et al., 2010). This visualization was used to identify genomic islands that were differentially abundant between conditions. Subsequently, the abundance measures of genes in the same pathway, function, or island as determined by expression pattern or prior knowledge, were summed and averaged across replicates to produce succinct plots comparing the three conditions for each organism.

Results

Experimental setup and RNA-Seq statistics

Our main goal was to evaluate gene expression in the three model strains in semi-in situ conditions, i.e., after incubation in semi-penetrable dialysis cassettes placed into freshly-sampled lake sediment cores, assuming that metabolic processes that naturally occur in this environmental niche continued over the short duration of time (48 h) in the laboratory. Note that control samples, i.e., samples growing under laboratory conditions, were prepared differently for each strain (Fig. 1). Cells of M. glucosotrophus SIP3-4 were grown on either methanol or methylamine to exponential phase and harvested for RNA isolation. Cells of M. versatilis 301 were grown on methylamine-supplemented plates and either harvested for RNA isolation or harvested and incubated with methanol before RNA isolation. Cells of M. mobilis JLW8 were grown in liquid cultures on methylamine and either harvested for RNA isolation or incubated with methanol as previously described (Beck et al., 2011). Obviously, the different growth conditions necessitated by the specific physiology of the strains employed may have affected gene expression patterns. Thus we compare expression patterns for different cultures cautiously. However, for each strain, comparing the in situ-incubated cultures to two laboratory culture controls (methanol and methylamine) should provide good clues as to which transcriptional responses are specific to in situ conditions. A total of 18 samples were compared in this study (Fig. 1), of which 14 samples were generated in this study and 4 were generated previously (Beck et al., 2011). Sequencing and transcript quantification statistics are shown in Table S1. In each transcriptome, matches were found for 98.0 to 100% of the annotated genes. For each gene, RPKM was used as the measure of abundance. Close correlation was observed between biological replicates for each experimental condition, with the correlation coefficient between replicates ranging from 0.84 to 0.99 (Table S1). The actual RPKM data for the newly generated datasets along with fold change and statistical analyses are shown in Tables S2S10. A global view of the condition-condition comparisons for each organism as shown in Fig. 2 indicates that most of the genes were expressed at similar levels in each condition, suggesting that differential expression of certain genes was in response to the specific conditions rather than to sample-to-sample noise, or as a general reflection of stress. On another hand, differential expression for some of the housekeeping genes was predicted. For example, the ribosomal protein synthesis gene cluster was less expressed in core samples compared to laboratory samples, as a reflection of slower metabolism (not shown), a trend noted in our previous study (Kalyuzhnaya et al., 2010).

We further focused our attention on two main groups of genes: the genes known for their role in methylotrophy, in order to investigate their contribution to in situ metabolism, and genes that demonstrated the most pronounced transcriptional response to the in situ conditions, in order to delineate candidate pathways/functions as important for environmental adaptation. Genes involved in a specific metabolic pathway/function were considered, in most cases, in a modular fashion, by summing RPKM counts for the genes involved. The metabolic pathways, specifically the methylotrophy pathways or other previously annotated pathways were considered based on prior knowledge (Chistoserdova, 2011a; Chistoserdova, 2011b) and not always included contiguous genes on the chromosomes. These pathways are outlined in Fig. 3 with genes belonging to each specific metabolic module listed in Table S11. Genes for the functions not previously studied in this group of organisms were determined by their contiguous location on the chromosomes and by their expression pattern.

A global view of transcriptome/transcriptome comparisons for each organism.

Figure 2: A global view of transcriptome/transcriptome comparisons for each organism.

Each point is the mean (across replicates) log2 RPKM for one condition vs. another, as indicated. Colored circles highlight some of the differentially expressed modules. Pilus, the unique Type II secretion module; Xox, the Mmol_1769/Mmol_1770 gene pair; Flagellum, flagellum cluster 1; NMGP, genes of N-methylglutamate pathway for methylamine oxidation.
Schematic of central metabolism of Methylophilaceae and major metabolic modules addressed in this study.

Figure 3: Schematic of central metabolism of Methylophilaceae and major metabolic modules addressed in this study.

As the role of MCC remains unknown, dashed lines indicate potential scenarios for its intermediates originating from central metabolic pathways or from external sources. Modules common to all three organisms indicated in red. Modules not shared by all three organisms are shown in black. See Table S11 for details. MDH, methanol dehydrogenase; MADH, methylamine dehydrogenase; NMGP, N-methylglutamate pathway; H4MPT, tetrahydromethanopterin-linked pathway for formaldehyde oxidation; RuMP, ribolemonophosphate pathway; FDH1,2, formate dehydrogenase enzymes; GndA,B, 6-phosphagluconate dehydrogenase enzymes; MCC, methylcitric acid cycle.

Expression of xoxF genes suggests different regulation and different roles for multiple homologs

We have previously noted that multiple homologs of xoxF genes (that are all homologs of the large subunit of methanol dehydrogenase; Chistoserdova, 2011b) were present in the genomes of the three organisms, and more recently we have reported on the phenotypes of xoxF mutants in M. mobilis JLW8 that suggested these genes must encode enzymes involved in methanol oxidation, even though methanol dehydrogenase activity could not be measured in this organism (Mustakhimov et al., 2013). Thus the expression of these genes was of special interest. We demonstrate elevated expression of mmol_1770 in M. mobilis JLW8 in response to the in situ conditions (4 to 6-fold compared to laboratory cultures (Fig. 4A, also highlighted in Fig. 2). Along with the well-characterized methylotrophy genes (e.g., fae encoding formaldehyde-activating enzyme, a key enzyme in dissimilatory metabolism; hps encoding hexulosephosphate synthase, a key enzyme in assimilatory metabolism; Chistoserdova, 2011b), mmol_1770 was one of the most highly expressed genes in the in situ conditions in this organism (Tables S2S4). A neighboring gene mmol_1769 predicted to encode a small cytochrome (not homologous to mxaG encoding a specific cytochrome for MDH; Chistoserdova & Lidstrom, 2013) was also highly expressed (Fig. 4A), suggesting a role for this cytochrome as a specific electron acceptor from Mmol_1770. In contrast, in M. versatilis 301, a homolog of mmol_1770 (m301_1208) was expressed at a very low level in each condition, and no homolog of mmol_1769 was present near m301_1208 or elsewhere in the genome, suggesting no role for this gene in either methylotrophy or in environmental niche adaptation for this organism (Fig. 4A, Tables S5S7). The homolog of mmol_1770 in M. glucosotrophus SIP3-4 (msip34_0016) was significantly (100-fold) over expressed in in situ conditions compared to laboratory conditions, but the expression level was relatively low (Figs. 4A, Tables S8S10). The neighboring gene (msip34_0015) predicted to encode a cytochrome (not homologous to either mmol_1769 or mxaG) revealed a similar expression pattern, suggesting a role in electron transfer from Msip34_0016.

Relative abundance of transcripts reflecting expression of central pathways for carbon assimilation and dissimilation.

Figure 4: Relative abundance of transcripts reflecting expression of central pathways for carbon assimilation and dissimilation.

(A) Abundance of transcripts from different homologs of xoxF genes and genes implicated in encoding other xox functions, compared to abundance of transcripts matched to the mxaFJGI cluster encoding methanol dehydrogenase. (B) Relative abundance of transcripts from different homologs of fae or fae-like genes. (C) Combined relative abundances of transcripts from genes encoding major methylotrophy pathways. Mau, methylamine dehydrogenase (mmol_1567-1576); NMGP, N-methylglutamate pathway (m301_1414-1421 and msip34_2421-2428); H4MPTP, H4MPT-linked formaldehyde oxidation pathway (mmol_0858-0862, 0896-0899, 1331-1336, 1342-1347; m301_0909-0913, 0950-0953, 1540-1545, 1552-1557; msip34_1489-1494, 1500-1509, 1683-1685); FDH1, FDH4, non-homologous formate dehydrogenases (mmol_2031-2035 and mmol_0469, 0470; m301_2445-2449; msip34_1177-1181 and msip34_1599, 1600). (D) Combined relative abundances of transcripts from genes for the methylcitric acid cycle (MCC; mmol_0748-0766; m301_0686-0703), compared to abundances of transcripts for the ribulose monophosphate pathway (RuMP; mmol_0287, 0313, 1337-1339, 0827, 1429, 1526, 1527, 1726, 1727, 1980, 2239; m301_0182, 0304, 1112, 1114, 1501, 1546-1548, 1566, 2018, 2019, 2400, 2582; msip34_0164, 0268, 0483, 1093-1095, 1138, 1269, 1497-1499, 1896, 1897, 2516).

The second xoxF homolog in M. mobilis JLW8, mmol_2048 was also slightly over-expressed in in situ conditions. The corresponding genes in M. versatilis 301 and M. glucosotrophus SIP3-4 were also most highly expressed in situ, compared to the methylamine- and methanol-grown or induced cultures. Figure 4A shows sums of abundances of reads matching these genes and what appear to be accessory genes xoxJ and xoxG, along with an oxidoreductase of unknown function as these genes form tight and highly conserved clusters in all known Methylophilaceae genomes (Lapidus et al., 2011).

One additional xoxF homolog in M. versatilis 301 (m301_1659) and two additional homologs in M. glucosotrophus SIP3-4 (msip34_1813 and msip34_2549) were expressed at low levels. Of the three organisms, only M. glucosotrophus SIP3-4 encoded the well-characterized (MxaFI) methanol dehydrogenase (Chistoserdova, 2011b), and the genes encoding this enzyme, including accessory genes (msip34_0734-0737) were highly expressed on all substrates as has been previously shown for other methylotrophs (Okubo et al., 2007; Hendrickson et al., 2010).

Differential expression of fae genes further supports dual functionality

While one function of formaldehyde activating enzyme (Fae), in linking formaldehyde to tetrahydromethanopterin (H4MPT), is well characterized (Vorholt et al., 2000), we have previously proposed that Fae enzymes may have additional functions, for example in sensing, signaling or regulation (Kalyuzhnaya et al., 2008). Thus we analyzed expression of fae and fae-like genes separately from other genes involved in the H4MPT-linked pathway for formaldehyde oxidation. We found that the fae subtype that has been previously determined as a novel subtype in M. mobilis based on phylogenetic analysis (Kalyuzhnaya et al., 2008) was overexpressed in sediment samples in both M. mobilis JLW8 and M. versatilis 301, while this type was not encoded by M. glucosotrophus SIP3-4 (Fig. 4B). This gene does not appear to be part of a gene cluster in either of the organisms, and the adjacent genes are not conserved. The conserved subtypes of fae (i.e., the subtypes present in all three organisms) showed different transcription patterns, as follows. mmol_1253 that is part of a sensing/chemotaxis gene cluster (Lapidus et al., 2011) was transcribed at a much lower level compared to mmol_2056 and revealed no response to in situ conditions while m301_0896 was approximately 10-fold over expressed in the sediment samples compared to methanol or methylamine (Fig. 4B). The surroundings of these two genes are only partially conserved (Lapidus et al., 2011). msip34_1496 that is part of the H4MPT-pathway gene cluster was most highly expressed on methanol, while the neighboring homolog msip34_1495 was transcribed at a very low level. The fae2 and fae3 types of fae homologs were transcribed at moderate levels and showed no response to environmental conditions.

Expression of other oxidative methylotrophy metabolic modules supports their proposed functions while highlighting a few variations

M. mobilis JLW8 uses methylamine dehydrogenase to metabolize methylamine (Kalyuzhnaya et al., 2006; Lapidus et al., 2011). The 10 mau genes were all expressed at much higher levels in methylamine cultures compared to methanol-induced cultures, and the expression was even lower in the core conditions (Fig. 4C) suggesting that this gene cluster responds to availability of methylamine as is shown for other organisms utilizing Mau systems (Chistoserdov et al., 1994; Delorme et al., 1997). M. versatilis 301 and M. glucosotrophus SIP3-4 utilize an alternative metabolic pathway to oxidize methylamine, the N-methylglutamate pathway (Latypova et al., 2010; Kalyuzhnaya et al., 2012). While in M. glucosotrophus SIP3-4 the genes for this pathway, encoding subunits of N-methylglutamate dehydrogenase, γ-glutamylmethylamide synthase and N-methylglutamate synthase (Table S11), were only expressed in methylamine-grown cells, in M. versatilis 301 they were expressed in all conditions, suggesting either different regulatory mechanisms for this pathway in different organisms or reflecting the fact that repression of this pathway did not occur over the timescale of the experiment. Expression of the genes of the H4MPT-linked pathway (20 genes, excluding the fae or fae-like genes) was not greatly influenced by the conditions, and the levels of expression were similar for the three organisms. All three organisms expressed genes for a NAD-linked formate dehydrogenase known as FDH1 (Hendrickson et al., 2010; Lapidus et al., 2011) while genes for an alternative enzyme known as FDH4 (Hendrickson et al., 2010; not encoded by M. versatilis 301, Lapidus et al., 2011) were expressed at low levels (Fig. 4C).

Expression pattern of the methylcitric acid cycle further suggests a role in environmental adaptation of Methylotenera

Some Methylophilaceae species (in this study, Methylotenera but not Methylovorus) possess genes encoding the methylcitric acid cycle (MCC), whose role remains unknown in these species (Chistoserdova, 2011a). We found that in both Methylotenera species, the genes for MCC were highly expressed in in situ conditions (Fig. 4D), in general higher than the genes of the ribulose monophosphate pathway (RuMP), the main carbon assimilatory pathway in Methylophilaceae (Chistoserdova, 2011b; Chistoserdova & Lidstrom, 2013). One of the most over expressed genes in the MCC gene cluster in both organisms was a gntR-type gene predicted to encode a transcriptional regulator (mmol_0754 and m301_0692), suggesting a role for this gene in switching the pathway on in response to environmental conditions. Transcription of the RuMP genes followed a reversed pattern in these organisms, being highly expressed in laboratory conditions (on both methylamine and methanol) and transcribed at lower levels in situ.

Motility/adhesion functions appear of special importance in in situ function

When we considered genes that were both highly transcribed and over expressed in the in situ conditions, genes with such a pattern mostly represented the following major functional categories: motility, adhesion, signaling and sensing, and transport. The gene cluster(s) encoding the flagellum functions, including regulatory functions, were some of the most highly transcribed genes in all three organisms (Figs. 5A5C), many of these genes being conserved among the three organisms. One other conserved function over expressed in all species was a Type IV secretion function encoded by a cluster of 6 genes (mmol_2269-2274, Fig. 5A; m301_2616-2621, Fig. 5B; msip34_2593-2598, Fig. 5C, encoding homologs of PilE, PilV, PilW, PilY, FimT and a hypothetical protein). In M. glucosotrophus SIP3-4, a Type II secretion gene cluster was also over expressed (msip34_2502-2507; approximately 6 fold) in in situ conditions (Fig. 5C). This gene cluster is strongly conserved in other organisms, and the respective genes are all transcribed in the Methylotenera species. However, in these latter species, no response to in situ conditions was observed, suggesting that the same type of a functional system may have a different response and be regulated differently in situ.

Combined relative abundances of transcripts for genes most highly and most differentially expressed in each of the three organisms.

Figure 5: Combined relative abundances of transcripts for genes most highly and most differentially expressed in each of the three organisms.

(A) M. mobilis JLW8 unique pilus genes, mmol_1380-1409; flagellum cluster 1, mmol_0919-0953; sensing/chemotaxis/flagellum cluster 2, mmol_1248-1273; IS transport/efflux, mmol_1451-1493; Type IV pilus mmol_2269-2274. (B) M. versatilis 301 flagellum cluster 1, m301_1679-1716; flagellum cluster 2, m301_0961-1015; NOD/sigma 24/regulation, m301_0769-0776; cytochrome c oxidase/sensing/regulation, m301_0844-0858; cytochrome c complex/regulation, m301_0064-0069; biopolymer transporter, m301_2524-2533; sensing/chemotaxis/regulation, m301_0896-0902; Type IV pilus, m301_2616-2621. (C) M. glucosotrophus SIP3-4 flagellum, msip34_0747-0820; phage, msip34_2008-2089; plasmid, msip34_2831-2843; Type IV pilus, msip34_2593-2598; Type II pilus, msip34_2502-2507.

Unique genomic elements of each organism demonstrate differential abundance

Remarkably, most of the other significantly over expressed functions were unique to each organism. In M. mobilis JLW8, one of the most highly expressed functions was the gene cluster encoding a Type II secretion system that is part of a genomic island previously identified based on genome/genome comparisons and analysis of GC value deviation (Lapidus et al., 2011). We previously noted that this gene cluster was dramatically overexpressed in response to exposure to methanol, compared to growth on methylamine (Beck et al., 2011). From the analyses conducted here, the expression of this gene cluster in situ is similar to the expression induced by methanol, while the expression is dramatically down during growth on methylamine (up to 1000-fold dependent on the gene considered; Fig. 5A). Other gene clusters that were uniquely present and responding to in situ conditions at the transcriptional level included an insertion sequence (IS) element (mmol_1456-1493) encoding transport/efflux functions in M. mobilis JLW8 (Fig. 5A), and predicted biopolymer transport functions (m301_2524-2533) in M. versatilis 301 (Fig. 5B). This latter gene cluster was partially conserved in the two other organisms, but expression of the counterpart genes was not significantly changed in situ compared to laboratory growth.

Over expressed functions unique to M. versatilis 301 included a gene cluster encoding (FAD-binding flavohemoglobin) nitric oxide dioxygenase, a sigma 24 factor and a transcriptional regulator (m301_0769-0776), a cytochrome complex and a two-component transcriptional regulation system (m301_0064-0069), a cytochrome oxidase along with sensing and regulation functions (m301_844-858), and a sensing/chemotaxis/regulation cluster (m301_0896-0902; Fig. 5B).

In M. glucosotrophus SIP3-4, a few prominently transcribed functions were found to be significantly repressed in situ compared to laboratory conditions, most notably a phage-like genomic island (msip34_2008-2089) previously identified by observations of a dramatically different GC content (Lapidus et al., 2011) and one of the two plasmids (msip34_2831-2843; Fig. 5C). The roles of these elements in physiology of M. glucosotrophus SIP3-4 remain unknown.

Discussion

This work is an important step toward a better understanding of the physiology of different Methylophilaceae species in their natural niche, lake sediment, where they likely play an important role in the cycling of carbon and nitrogen, as part of a diverse methylotroph community. We have previously shown that Methylophilaceae and most prominently the Methylotenera species not possessing MDH respond to methane, methanol and methylamine stimuli (Kalyuzhnaya et al., 2008; Kalyuhznaya et al., 2009) and that they are likely engaged in a cooperative behavior with Methylococcaceae species (Beck et al., 2013). However, little knowledge exists on what metabolic pathways or what other functions are required for these organisms to perform their environmental role. Glimpses into the environmental function of M. mobilis JLW8 have been gained previously using an in situ setup similar to the one described here, in combination with environmental array-based transcriptomics (Kalyuzhnaya et al., 2010). Here we expand the transcriptomics approach by including additional, genetically divergent Methylophilaceae species and by employing deep sequencing-based transcriptomics that provides semi-quantitative access to the whole transcriptomes, and thus significantly better resolution is achieved through this approach. We demonstrate that the major mechanisms for environmental adaptation include both methylotrophy and non-methylotrophy metabolic modules as well as modules involved in other functions. Our data also demonstrate that, besides shared strategies, the organisms employed in this study also utilize strategies unique to each species, suggesting that the genomic divergence plays a role in environmental function and niche fitness. At the same time, it appears that homologous gene/protein systems may play different roles in different organisms.

One of the notable outcomes of this study is further evidence for the importance of XoxF enzymes in the metabolism of the Methylophilaceae in situ. However, it appears that different species have harnessed different homologous Xox systems as major metabolic modules. While in M. mobilis JLW8 the homolog associated with a small, unique cytochrome appears to be the major module responding to environmental conditions, other species investigated here appear to rely on the alternative XoxF systems. As the only MDH-containing species included in this study, M. glucosotrophus SIP3-4 appeared to have decreased transcription from the mxaFJGI gene cluster in response to in situ conditions and an increased transcription from two of the four xoxF (and accessory) genes.

Different homologs of fae also demonstrated different responses to in situ conditions, further suggesting that different homologs may respond to different signals, and, in turn, that different homologs may have different additional functions, as proposed earlier (Kalyuzhnaya et al., 2008).

This study reinforces the prior observations on the apparent importance of the methylcitric acid cycle (MCC) in the Methylotenera species. High transcription from the respective gene clusters and pronounced over-expression of the genes in the pathway, along with the reverse expression pattern for the ribulose monophosphate pathway genes suggest a switch in central metabolism of Methylotenera in response to in situ conditions. The nature of the metabolite(s) processed via this pathway still remains unknown.

Of the functions not related to central metabolism, flagellum and fimbria synthesis functions appeared to be of significance for environmental function, based on their high abundance and differential expression. Obviously, solely from gene/protein homology it is impossible to predict the major functions of the flagella or of different pili in different Methylophilaceae strains, the former being implicated in not only mobility but also attachment and adhesion (Römling, Galperin & Gomelsky, 2013), and the latter implicated in a variety of functions, including adhesion, protein transfer, virulence, conjugation and transformation, to mention a few (Zechner, Lang & Schildbach, 2012; Giltner, Nguyen & Burrows, 2012; Campos et al., 2013). Finding differential expression for different types of pili in different species, while intriguing, is so far not sufficient for proposing specific strategies of communal functioning. Instead, at this time, these are only suggestive of prominent targets for further experimental investigations, via genetic manipulations of single species/communities and via expanded-omics approaches.

Supplemental Information

Supplemental Table 1

DOI: 10.7717/peerj.115/supp-1

Supplemental Table 2

Comparative RNA-Seq statistics for core vs. induced with methanol in Methylotenera mobilis JLW8.

DOI: 10.7717/peerj.115/supp-2

Supplemental Table 3

Comparative RNA-Seq statistics for core vs. methylamine in Methylotenera mobilis JLW8.

DOI: 10.7717/peerj.115/supp-3

Supplemental Table 4

Comparative RNA-Seq statistics for induced with methanol vs. methylamine in Methylotenera mobilis JLW8.

DOI: 10.7717/peerj.115/supp-4

Supplemental Table 5

Comparative RNA-Seq statistics for core vs. induced with methanol in Methylotenera versatilis 301.

DOI: 10.7717/peerj.115/supp-5

Supplemental Table 6

Comparative RNA-Seq statistics for core vs. methylamine in Methylotenera versatilis 301.

DOI: 10.7717/peerj.115/supp-6

Supplemental Table 7

Comparative RNA-Seq statistics for induced with methanol vs. methylamine in Methylotenera versatilis 301.

DOI: 10.7717/peerj.115/supp-7

Supplemental Table 8

Comparative RNA-Seq statistics for core vs. methanol in Methylovorus glucosotrophus SIP3-4.

DOI: 10.7717/peerj.115/supp-8

Supplemental Table 9

Comparative RNA-Seq statistics for core vs. methylamine in Methylovorus glucosotrophus SIP3-4.

DOI: 10.7717/peerj.115/supp-9

Supplemental Table 10

Comparative RNA-Seq statistics for methanol vs. methylamine in Methylovorus glucosotrophus SIP3-4.

DOI: 10.7717/peerj.115/supp-10

Supplemental Table 11

Gene designations, functions and protein identifiers for key enzyme systems known to be or potentially involved in methylotrophy.

DOI: 10.7717/peerj.115/supp-11
